RX8 ST170 twinscrew project

I just have started my engine swap project.
I will fit Ford st170 supercharged engine in it.
Target is to keep good weight distribution and have more power.
List of spec so far:
Twinscrew water cooled billet housing 2.6l/rev supercharger
PEC rods
WOSSNER forged low comp pistons
Clevite head gasket
ARP con rod studs
ARP main studs
ARP head studs
PIPER vvt delete kit
PIPER valve spring kit
Clevite H main bearings
Clevite H big end bearings
Overhouled head with match porting intake
Simens DEKA ported 1200cc injectors - Prepared by BJP race shop
Custom Fuel rail
Jenvey intake manifold
Custom CNC supercharger bracket and support designed by me
MOROSSO oil filter adapter with TORQUES remote oil filter housing
PUMASPEED cranckcase breather vent
AP RACING twinplate clutch CP7372 series.
TILTON 8000 series hydraulic release bearing
Burtonpower lightwight flywheel
Aeromotive FPR
GETRAG 265 transmission
Attached Thumbnails
RX8 ST170 twinscrew project-masina.jpg   RX8 ST170 twinscrew project-rx98-na-prikolici.jpg
Tunkka is offline   Reply With Quote
Old 07-15-2016, 09:34 AM   #2
SARXGROUP on FB
iTrader: (37)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 32,667
A Focus SVT engine in an RX-8, that's a new one. Looks like a well built engine and IIRC they were designed by Cosworth. How much HP is expected? They were like 170HP stock at the crank I think.
9krpmrx8 is offline   Reply With Quote
Old 07-18-2016, 12:20 AM   #3
Registered
Thread Starter

Join Date: Jul 2016
Posts: 24
Yes stock is rated at 170HP on the crank and it is developed by cosworth.
Basically SVT/ST170 engine is upgraded ZETEC engine from 130hp to 170hp.
In USA market engine is carried by Ford Focus ZX3 SVT but in Europe is sold as ST170.
My over thumb calculation is about 500 crank power with current pulley setup.
With current pulleys supercharger will spin up to 10 000 rpm but it is capable to go on 14 000rpm.

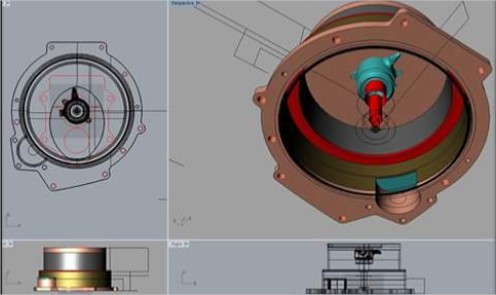

Past week we developed custom bell-housing to match engine and Getrag 265 gearbox.
Attached Thumbnails
RX8 ST170 twinscrew project-design-zvon-menjalnika.jpg   RX8 ST170 twinscrew project-zvon1.jpg

Last edited by Tunkka; 07-18-2016 at 12:44 AM.
Tunkka is offline   Reply With Quote
Old 07-18-2016, 07:40 AM   #4
Registered
iTrader: (1)

Join Date: May 2016
Location: Colo'freakin'rado
Posts: 542
I'm tracking on this one. I suppose you can't post it in the engine swap section but subscribed. I'm curious to see where this goes.
CelestialGryphon is offline   Reply With Quote
Old 07-18-2016, 07:43 AM   #5
Unruly Newb
iTrader: (3)

Gravey's Avatar

Join Date: Sep 2013
Location: Burlington Ontario
Posts: 781
Yeah very interesting, what is the total weight of the engine/supercharger?
Gravey is offline   Reply With Quote
Old 07-18-2016, 03:31 PM   #6
Life After 8K RPM....

Join Date: Aug 2013
Location: Toronto
Posts: 610
Subscribing for further details

All the best with your build, keep us posted.
Khurram is offline   Reply With Quote
Old 07-18-2016, 04:02 PM   #7
Dark Moderator
iTrader: (16)

Williard's Avatar

Join Date: Jul 2011
Location: PA, Shamokin. Ho-bud
Posts: 1,887
It has been moved to the non rotary swapped section.

Lets see what you can do


Travis
Williard is offline   Reply With Quote
Old 07-20-2016, 12:01 AM   #8
Registered
Thread Starter

Join Date: Jul 2016
Posts: 24

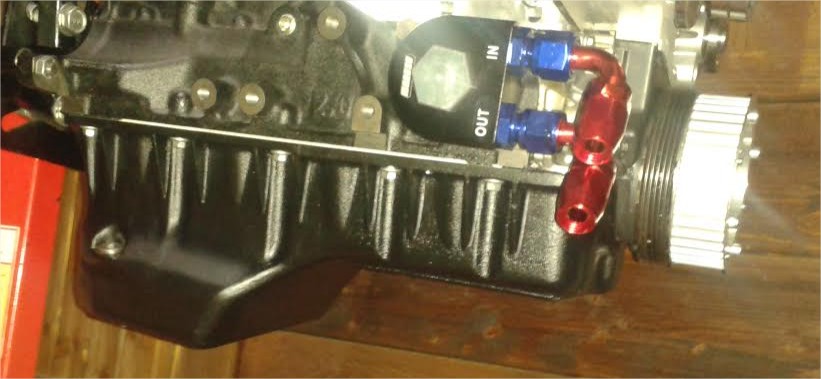

Yesterday RWD sump kit received and assembled. Will save some weight and get more ground clearance.

Regarding weight - I don't know how much is engine weight with SC on. I will try to get a scale to measure it (you give me big task to measure the weight).
Attached Thumbnails
RX8 ST170 twinscrew project-rwd-sump.jpg
Tunkka is offline   Reply With Quote
Old 07-20-2016, 03:13 PM   #9
Registered
Thread Starter

Join Date: Jul 2016
Posts: 24

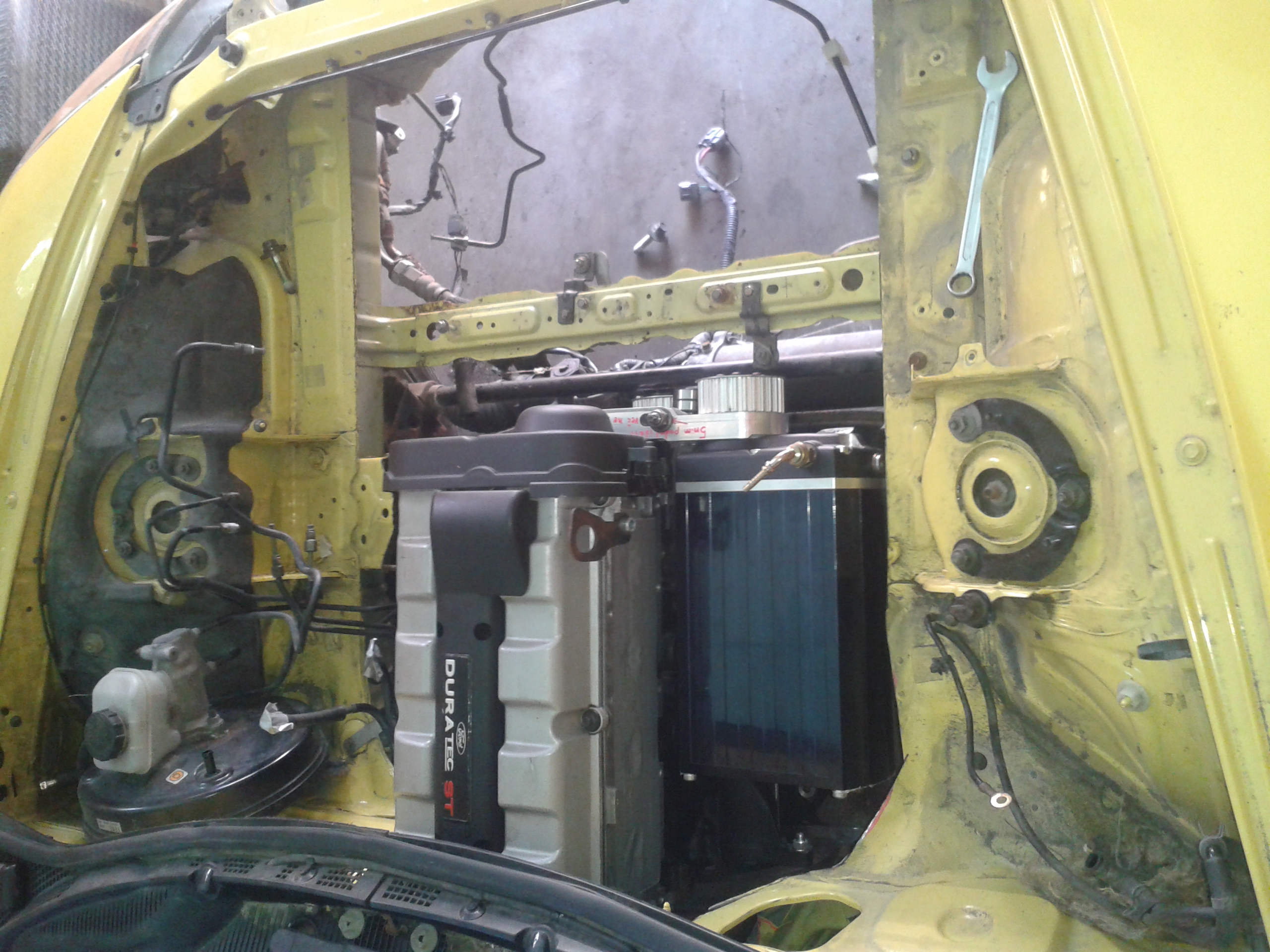

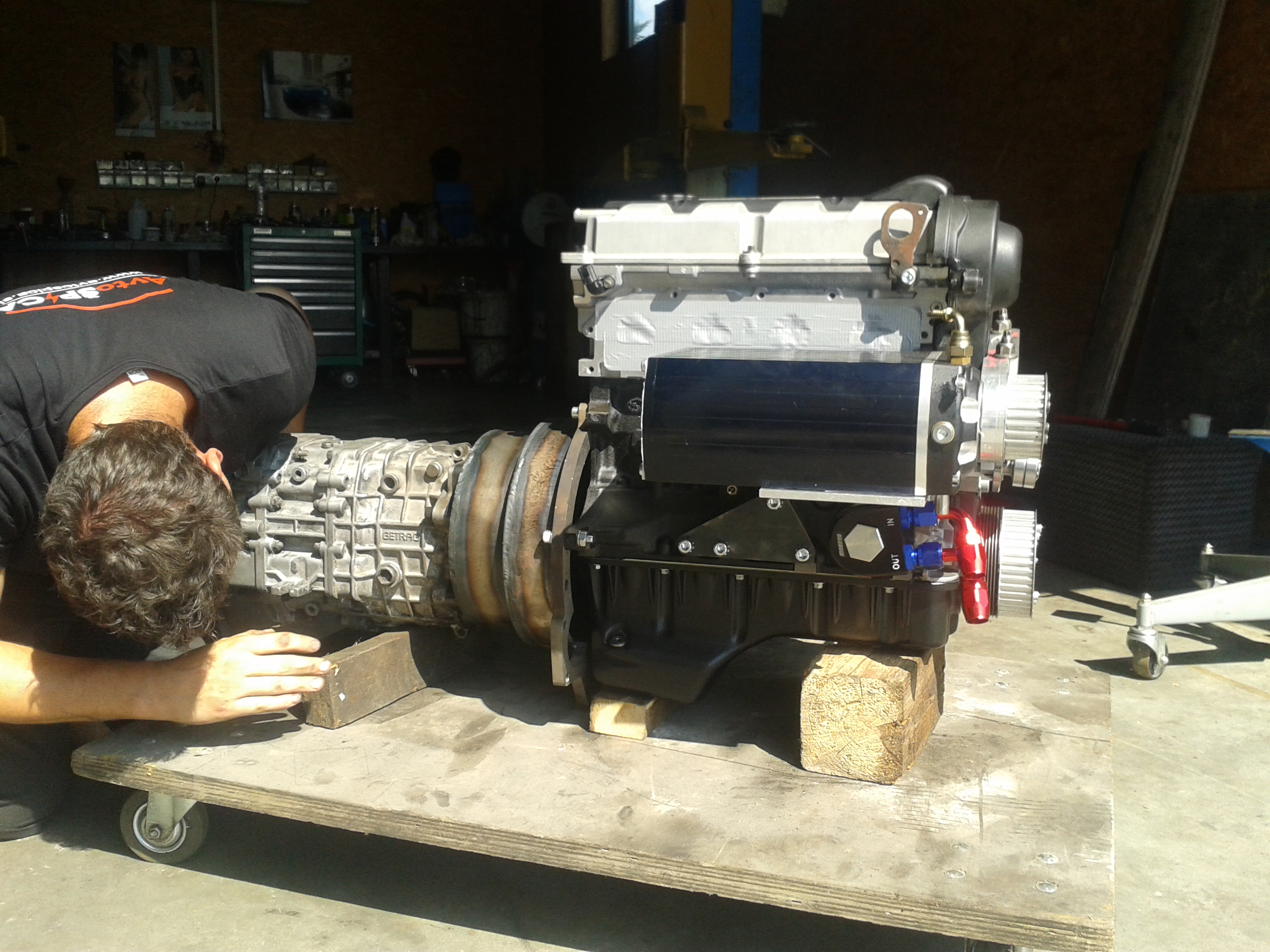

My friend is just crazy. During my full time job (I work as quality engineer in automotive industry) he put engine and tranny together. Than he put the engine into the engine bay to check layout. He cut a bit of firewall to keep front steering geometry in stock form... Stil a lot on to do list, but progress is fast and we want to built as much as possible before summer vacations...
Attached Thumbnails
RX8 ST170 twinscrew project-20160720_154341.jpg   RX8 ST170 twinscrew project-20160720_171123.jpg

Last edited by Tunkka; 07-20-2016 at 03:15 PM.
Tunkka is offline   Reply With Quote
Old 07-24-2016, 02:24 AM   #10
Registered

Join Date: Apr 2016
Posts: 25
this is rather unique in its own. i like!!!!!
No_Doritos is offline   Reply With Quote
Old 07-26-2016, 12:28 AM   #11
Registered
Thread Starter

Join Date: Jul 2016
Posts: 24

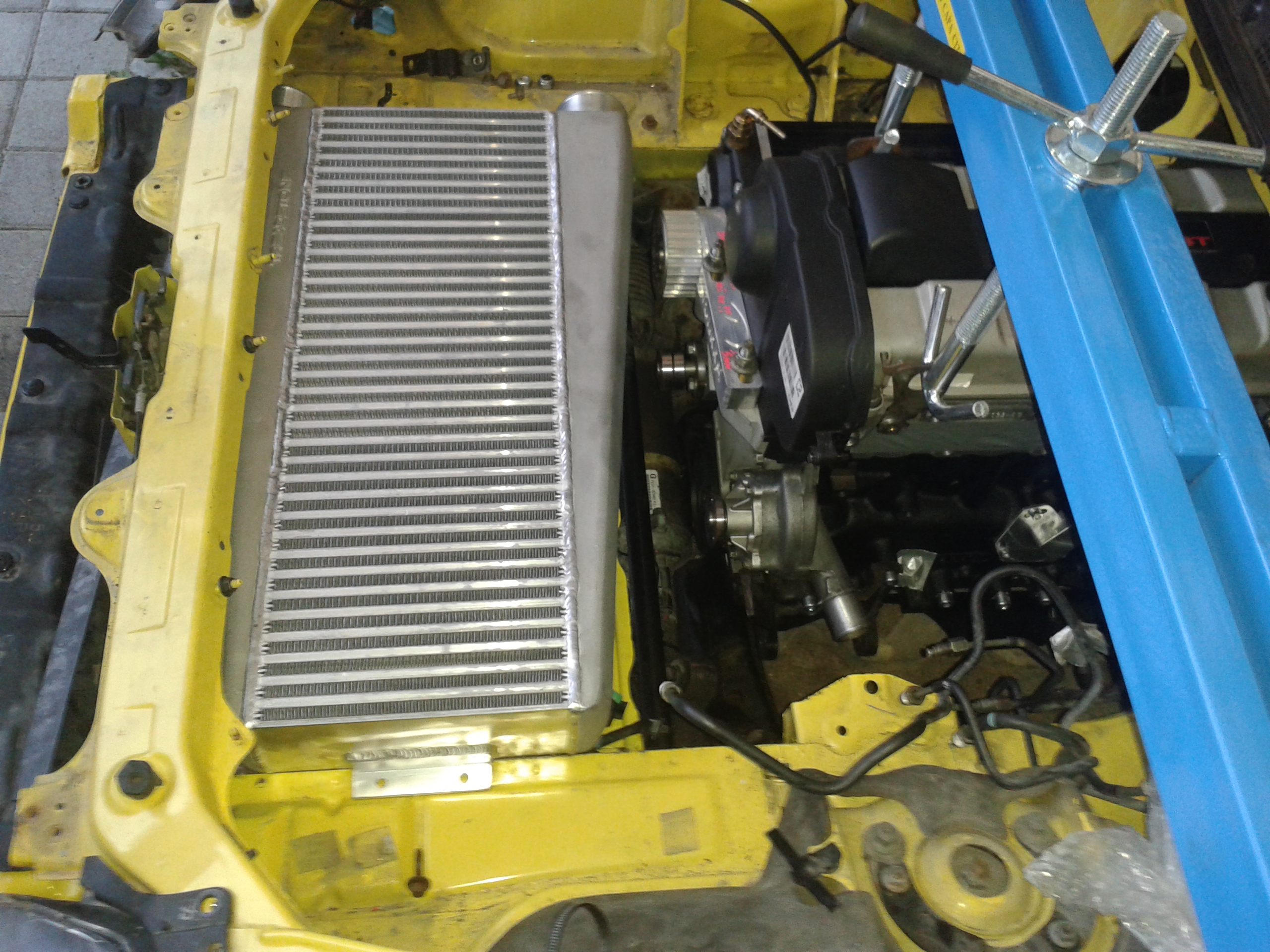

Inter-cooling in progress...
Attached Thumbnails
RX8 ST170 twinscrew project-20160725_200757.jpg
Tunkka is offline   Reply With Quote
Old 09-27-2016, 05:49 AM   #12
Registered
Thread Starter

Join Date: Jul 2016
Posts: 24
Summer vacations gone so I start to prepare custom intake manifold. Quite happy with robustness and appearance so far.
Attached Thumbnails
RX8 ST170 twinscrew project-ni-zadeve-ernest.pancur%40gmail.com-gmail-mozilla-firefox.jpg
Tunkka is offline   Reply With Quote
Old 09-28-2016, 12:31 AM   #13
Registered
Thread Starter

Join Date: Jul 2016
Posts: 24

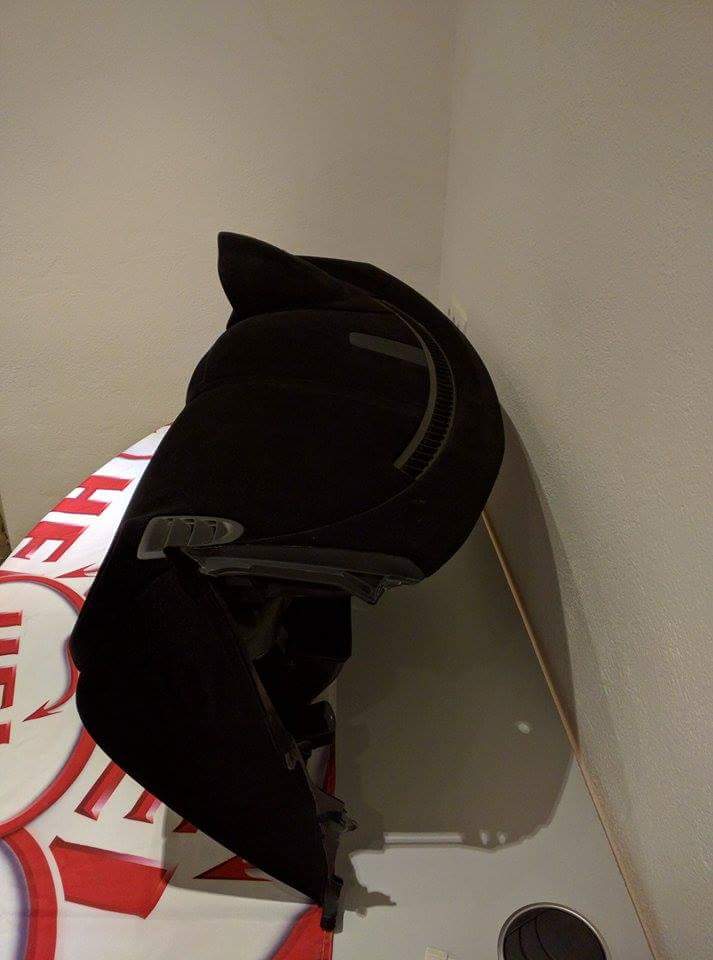

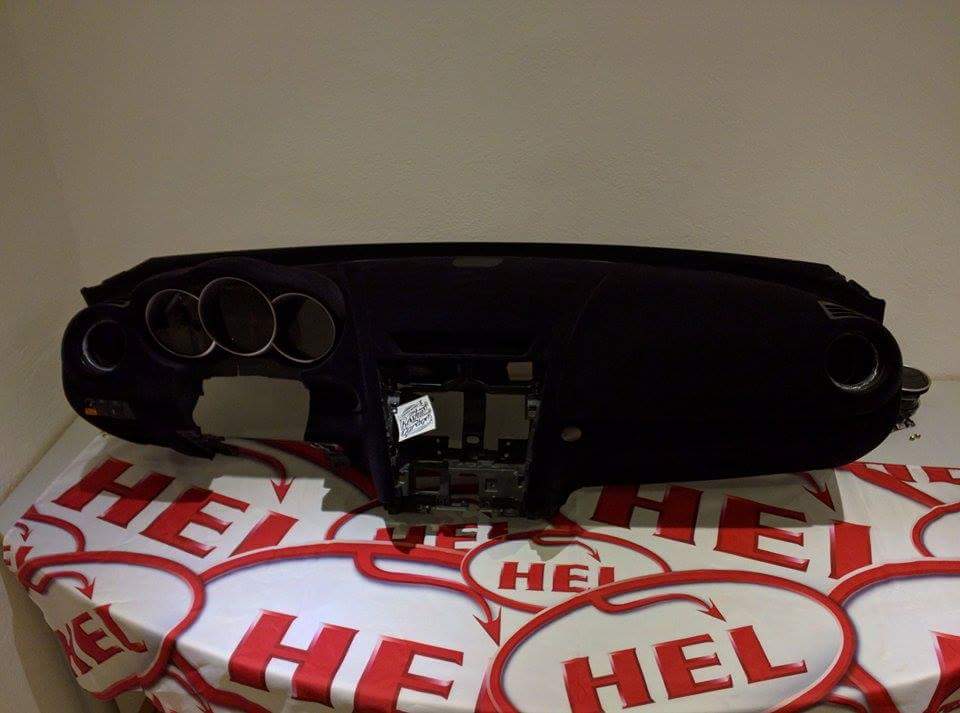

Dashboard flocked in deep black colour. Come out very well quality.
Attached Thumbnails
RX8 ST170 twinscrew project-14483723_995287620594294_1002826031_n.jpg   RX8 ST170 twinscrew project-14463868_995287683927621_981096309_n.jpg
Tunkka is offline   Reply With Quote
Old 10-18-2016, 07:13 AM   #14
Registered
Thread Starter

Join Date: Jul 2016
Posts: 24
After couple of hours spended behind 3D modeling finally bottom supercharger with air outlet bracket done by CNC machining.
Attached Thumbnails
RX8 ST170 twinscrew project-20161017_185148.jpg   RX8 ST170 twinscrew project-20161017_185038.jpg
Tunkka is offline   Reply With Quote
Old 10-26-2016, 08:32 PM   #15
Registered

Join Date: May 2016
Posts: 68
Following this one. Looks interesting.

Had to cut the firewall on mine too. I'll have to remove the plastic wiper scuttle panel to change the rear spark plug.

Cheers John
suicide-racer is offline   Reply With Quote
Old 10-27-2016, 12:24 AM   #16
Registered
Thread Starter

Join Date: Jul 2016
Posts: 24

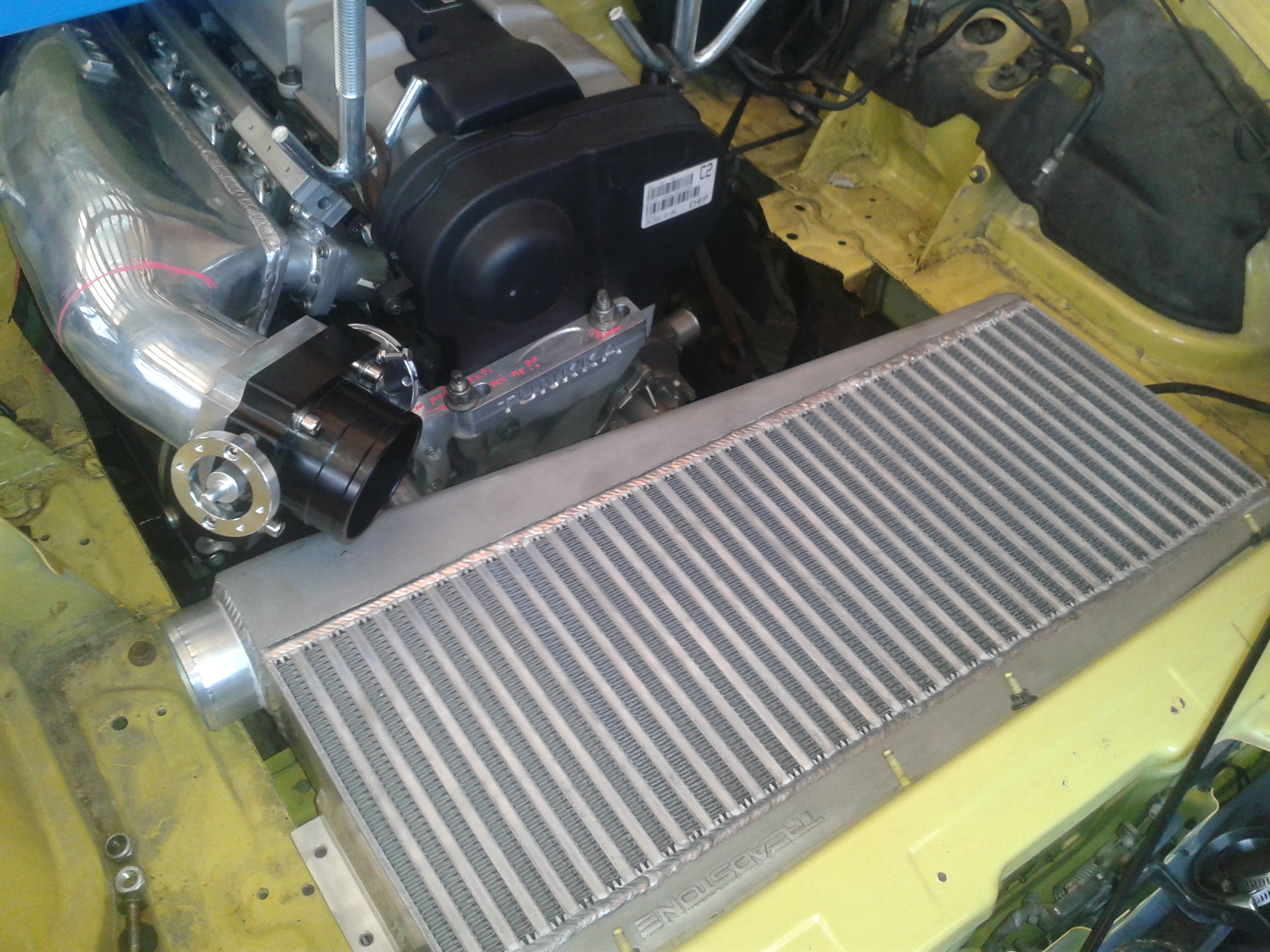

I didn't really need to cut the firewall but I choose large intercooler and position it horizontally so I choose this compromise to move engine a little bit backwards.
Attached Thumbnails
RX8 ST170 twinscrew project-20160924_175639.jpg
Tunkka is offline   Reply With Quote
Old 10-27-2016, 03:21 AM   #17
Registered

Join Date: May 2016
Posts: 68
I see. I chose to cut the firewall & still run the rx8 box in the original position. Engine sits in about the same position as the rotary too.

Cheers John
suicide-racer is offline   Reply With Quote
Old 11-12-2016, 04:28 AM   #18
Registered
Thread Starter

Join Date: Jul 2016
Posts: 24
Last engine mount positioned and at same time this is also bracket for alternator. I use BMW steering rack instead of Rx8 unit. Alternator and rack are dummy parts to test how they sit on the position. New items ordered... And lol engine looks really small
Attached Thumbnails
RX8 ST170 twinscrew project-20161111_205155.jpg   RX8 ST170 twinscrew project-20161111_202923.jpg
Tunkka is offline   Reply With Quote
Old 11-28-2016, 02:06 AM   #19
Registered
Thread Starter

Join Date: Jul 2016
Posts: 24
Huh I just stuck with fuel delivery system I want to replaced stock fuel pump with 430L one. After disassembling in tank fuel system noticed that 430L pump can't be installed without big diy task. How you guys solved fuel pump system on over 500HP setups. Any ideas? Plase give me advice how to solve issue with in tank system. I know fuel cell with inline pumps is always solution. Thank you.
Attached Thumbnails
RX8 ST170 twinscrew project-430-fuel-pump.jpg   RX8 ST170 twinscrew project-430-fuel-pump-replace.jpg
Tunkka is offline   Reply With Quote
Old 01-03-2017, 12:22 AM   #20
Registered
Thread Starter

Join Date: Jul 2016
Posts: 24

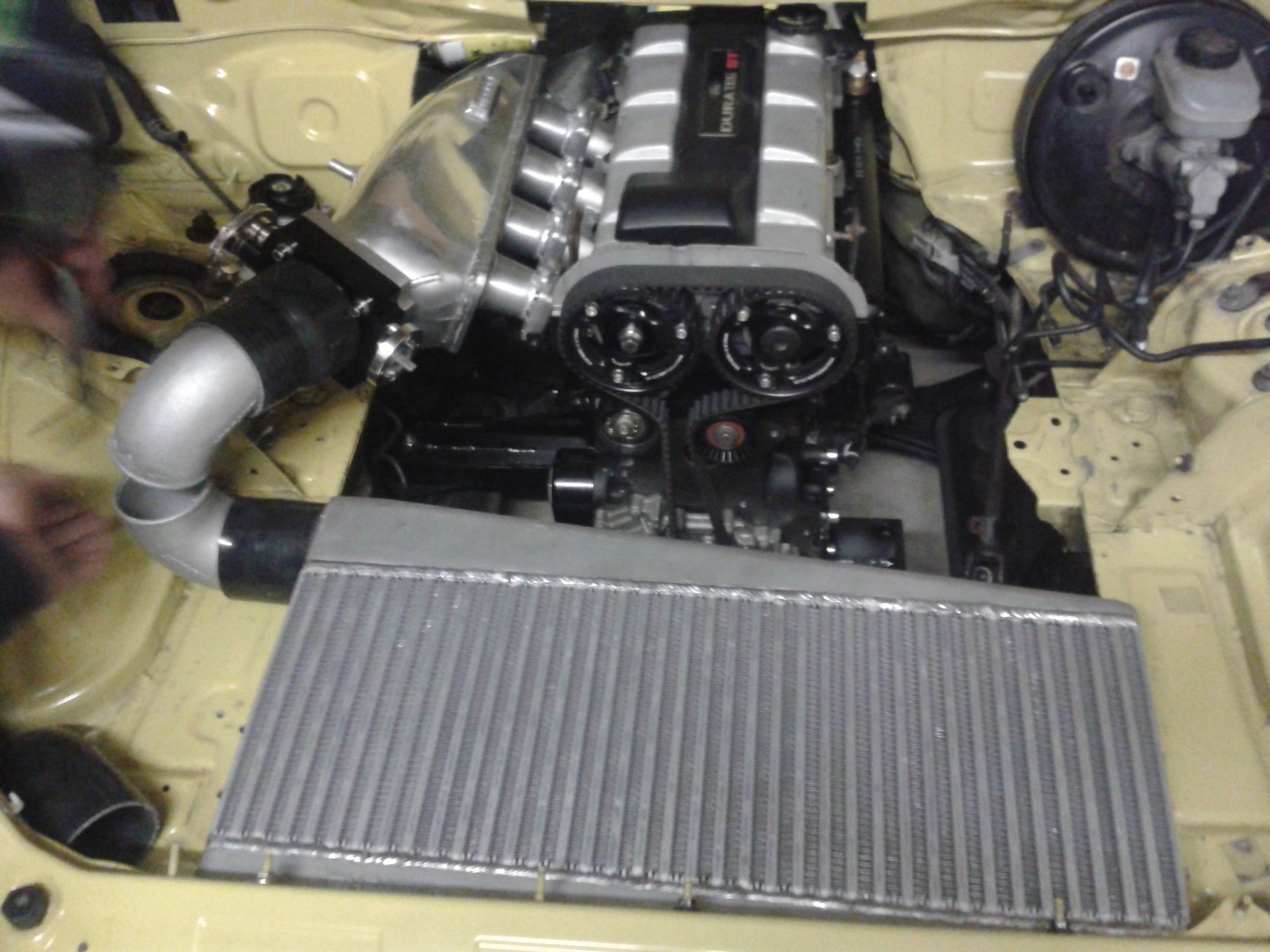

Intake manifold and throttle body position optimized so now I can start work on air piping. ECU arrived and I decided to go with Haltech for this project. For fuel pumps I found a solution and will be updated soon.
Attached Thumbnails
RX8 ST170 twinscrew project-20161212_193553.jpg   RX8 ST170 twinscrew project-20161219_175038.jpg
Tunkka is offline   Reply With Quote
Old 01-03-2017, 06:33 AM   #21
Dick Tater

BecauseRaceCar's Avatar

Join Date: Dec 2016
Location: Trackside
Posts: 54
Quote:
Originally Posted by Tunkka View Post
Huh I just stuck with fuel delivery system I want to replaced stock fuel pump with 430L one. After disassembling in tank fuel system noticed that 430L pump can't be installed without big diy task. How you guys solved fuel pump system on over 500HP setups. Any ideas? Plase give me advice how to solve issue with in tank system. I know fuel cell with inline pumps is always solution. Thank you.
I am not a fan of the stock fuel system, or the stock means of fuel pickup...I have heard a lot of fuel starvation issues.


My plan is to run these... https://liquidironindustries.com/Wal...k-Pickups.html


They are Walbro fuel pickups, include a mesh screen and a valve that if it starts sucking air, it closes. I plan on putting a couple of these in the bottom of each side of the tank and running an external pump...since I already have the pump.


My off road rig has run upside down with these on more than one occasion, so they work pretty damn well.
BecauseRaceCar is offline   Reply With Quote
Old 01-03-2017, 07:28 AM   #22
Registered
Thread Starter

Join Date: Jul 2016
Posts: 24
Quote:
Originally Posted by BecauseRaceCar View Post
Thank you for nice proposal. It might change my plans
Tunkka is offline   Reply With Quote
Old 01-03-2017, 07:44 AM   #23
Dick Tater

BecauseRaceCar's Avatar

Join Date: Dec 2016
Location: Trackside
Posts: 54
Anytime! Definitely subscribing to this build! I like the engine choice, beautiful fitment, and the manifold came out mint!
BecauseRaceCar is offline   Reply With Quote
Old 01-27-2017, 12:26 AM   #24
Registered
Thread Starter

Join Date: Jul 2016
Posts: 24
Hi,

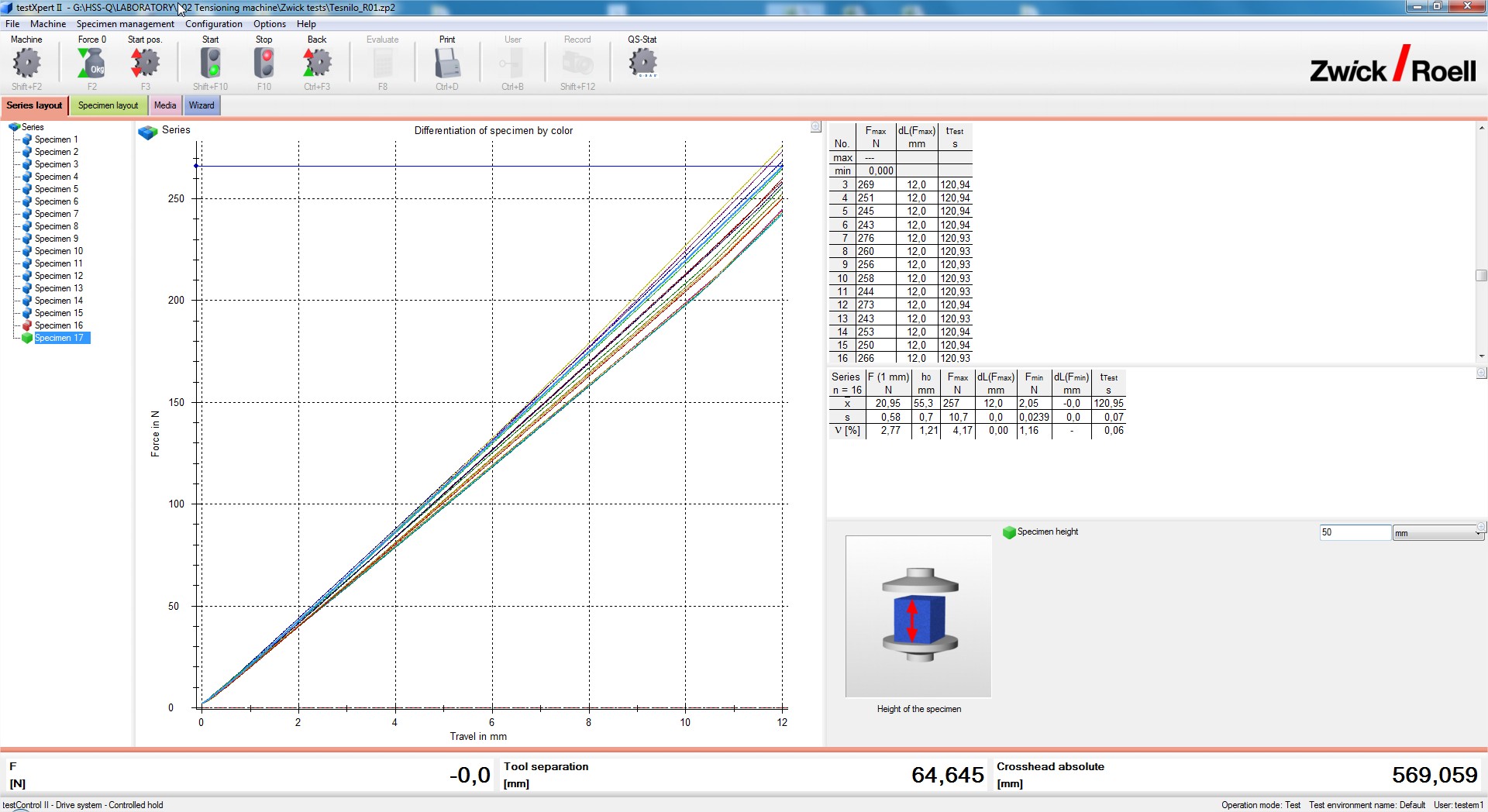

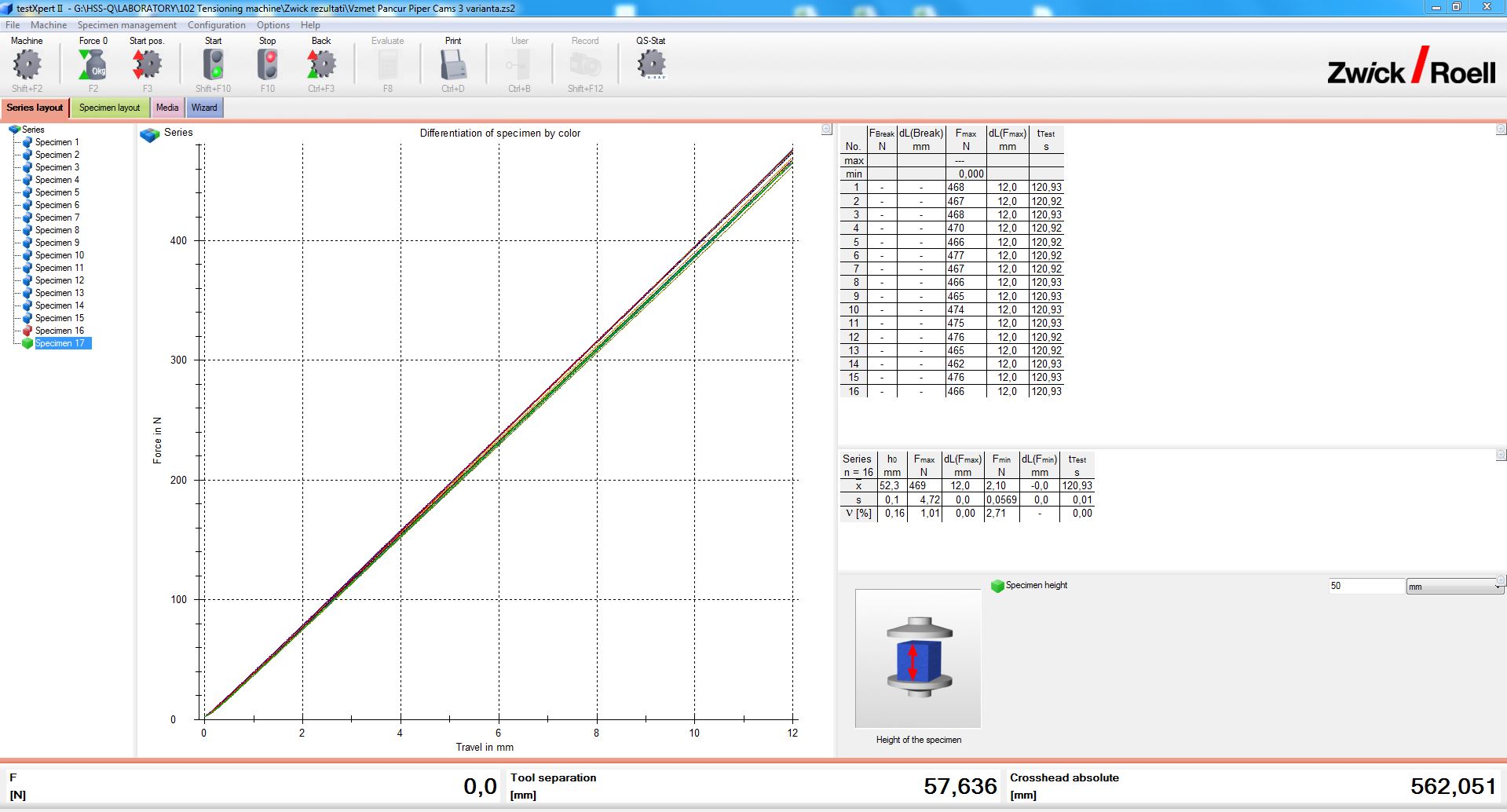

If anyone interested I did measurement of used valve springs vs. performance valve springs. On fist graph you can see stock used ST170 valve springs and on second graph performance. As you can see spring rate for performance springs is much better and more consistent.
Attached Thumbnails
RX8 ST170 twinscrew project-testxpert-ii-ghss-qlaboratory102-tensioning-machinezwick-testsvzmet-1.serija.zp2.jpg   RX8 ST170 twinscrew project-testxpert-ii-ghss-qlaboratory102-tensioning-machinezwick-testsvzmet-piper-cams-3.serija.zp2.jpg
Tunkka is offline   Reply With Quote
Old 01-28-2017, 01:14 AM   #25
Turbo ZX3

RX8_ZX3's Avatar

Join Date: Apr 2011
Location: Westchester CA
Posts: 50
Not knocking the build at all, looks like a great project, just curious why you chose the dated Zetec platform and not the newer Duratec platform? There are a few bolt-on options for 5spd and 6spd trans (including the stock RX-8 trans).

Flyin Miata supercharger (formerly built by Cosworth) on a 2.5L Duratec can easily hit 300BHP with stock internals, more if built. Not sure what your power goals are though, my friends were making 300-350ish whp back in the day with built turbo SVT's. I had a 2.3 Duratec Focus ZX3 with a Garrett GT28r on stock internals, made 260whp @ around 10-12psi. Fun cars.

Anyway, looking forward to seeing this thing finished.
RX8_ZX3 is offline   Reply With Quote
