TurboXS exhaust/midpipe is the REAL deal!
12-21-2005, 03:29 PM
#1
Ex- member.
Thread Starter
TurboXS exhaust/midpipe is the REAL deal!
I finished installing my TurboXS exhaust/ catless midpipe yesterday. I didn't do any WOT runs until today since I had to connect my wideband O2 sensor this morning.
First of all, this thing sounds sweet. Especially at initial startup and low rpms. Has a loud low growl. Gets louder at high rpms. The silencers will definitely go on for daily driving.
I did a WOT testrun in 3rd gear (EDIT: may have been 4th) and this thing is the real deal. My boost was at 10psi for the entire RPM range!! (8psi at first then up to 10, then 11, back down to 10). See video. Now this was with my boost controller OFF. Yes, I triple checked to make sure it was off! No gain or set boost values. Kindof freaked me out at first. I've heard of member's psi going up alittle after installing a midpipe, but not like this.
My AFR's did lean out a bit to 12.3 but there wasn't any detonation. I'll tune it to 11.8-12.0 later. I won't be able to do further testing until after the holidays.
Only thing I can think of is that the exhaust is flowing so much better , no backpressure.
The entire exhaust system is 3" the ENTIRE way. I believe this is the only exhaust that is truly 3" the whole way. I've did have the RP supercat that was gutted (3"), but my borla exhaust that I had goes from 3" to 2 (I think?) after the muffler. Also, I had tried the B&B catless midpipe which is 2.5" or 2.

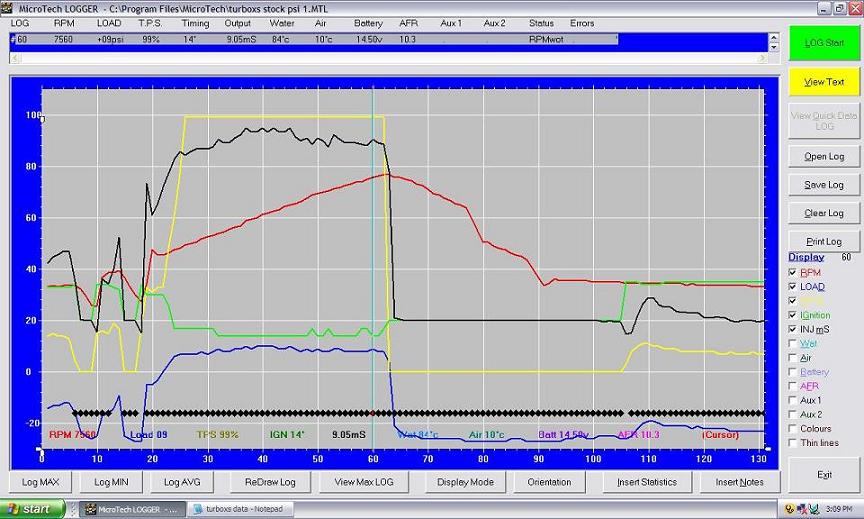

Also attached is my datalogger screenshot from the testrun and the raw data. After looking at the data, it looks like I only went to 8k rpms, I was going to fast by then and had to letoff. Thought it was redline but I had my eyes on the AFR's and road most of the time. Still, notice the boost didn't drop, usually it starts to go down around 7k. Not to mention, I'm usually at 6.5-7psi at stock boost.
I believe rkostolni also installed the turboxs exhaust system and is waiting to get tuned. Should be interesting. I believe 300hp may finally be reached with the greddy turbo using this exhaust system (and Interceptor).
Video here
First of all, this thing sounds sweet. Especially at initial startup and low rpms. Has a loud low growl. Gets louder at high rpms. The silencers will definitely go on for daily driving.
I did a WOT testrun in 3rd gear (EDIT: may have been 4th) and this thing is the real deal. My boost was at 10psi for the entire RPM range!! (8psi at first then up to 10, then 11, back down to 10). See video. Now this was with my boost controller OFF. Yes, I triple checked to make sure it was off! No gain or set boost values. Kindof freaked me out at first. I've heard of member's psi going up alittle after installing a midpipe, but not like this.
My AFR's did lean out a bit to 12.3 but there wasn't any detonation. I'll tune it to 11.8-12.0 later. I won't be able to do further testing until after the holidays.
Only thing I can think of is that the exhaust is flowing so much better , no backpressure.
The entire exhaust system is 3" the ENTIRE way. I believe this is the only exhaust that is truly 3" the whole way. I've did have the RP supercat that was gutted (3"), but my borla exhaust that I had goes from 3" to 2 (I think?) after the muffler. Also, I had tried the B&B catless midpipe which is 2.5" or 2.
Also attached is my datalogger screenshot from the testrun and the raw data. After looking at the data, it looks like I only went to 8k rpms, I was going to fast by then and had to letoff. Thought it was redline but I had my eyes on the AFR's and road most of the time. Still, notice the boost didn't drop, usually it starts to go down around 7k. Not to mention, I'm usually at 6.5-7psi at stock boost.
I believe rkostolni also installed the turboxs exhaust system and is waiting to get tuned. Should be interesting. I believe 300hp may finally be reached with the greddy turbo using this exhaust system (and Interceptor).
Video here
Last edited by adrian-1; 12-23-2005 at 07:47 PM.
12-21-2005, 07:59 PM
#8
Ex- member.
Thread Starter
Originally Posted by truemagellen
video has no sound
Originally Posted by epitrochoid
cool deal. i'm planning on the turbosx midpipe, but I just can't give up my HKS catback!
See this post.
12-21-2005, 08:18 PM
#11
Ex- member.
Thread Starter
Originally Posted by swoope
so do you think the the diff is the 3" catback as you shelled rp cat was 3"????

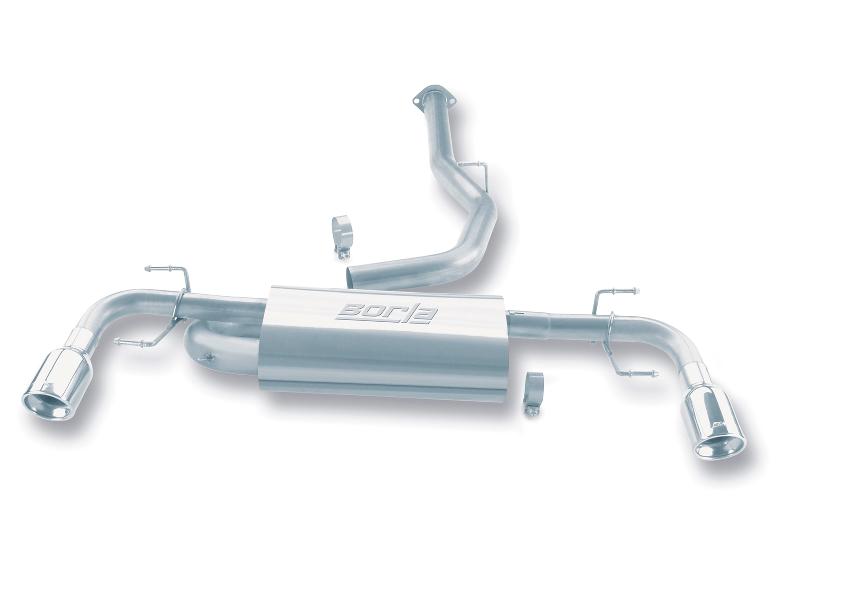

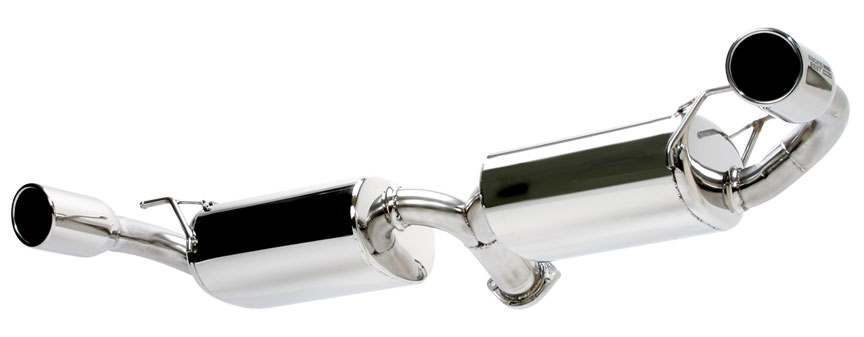

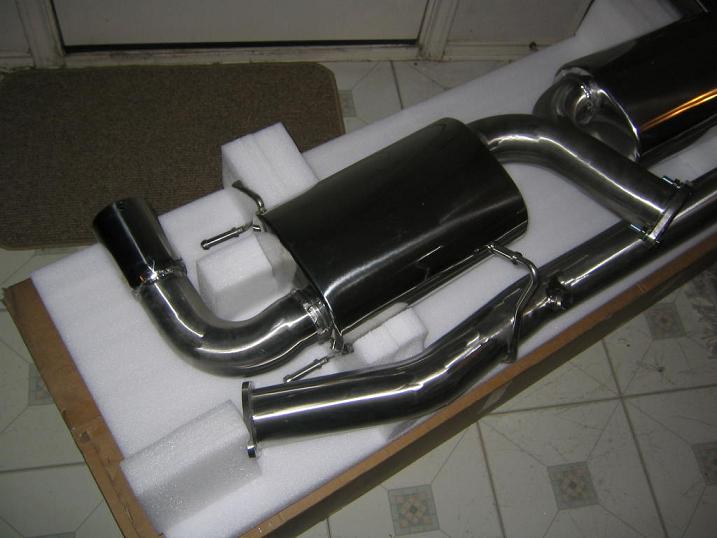

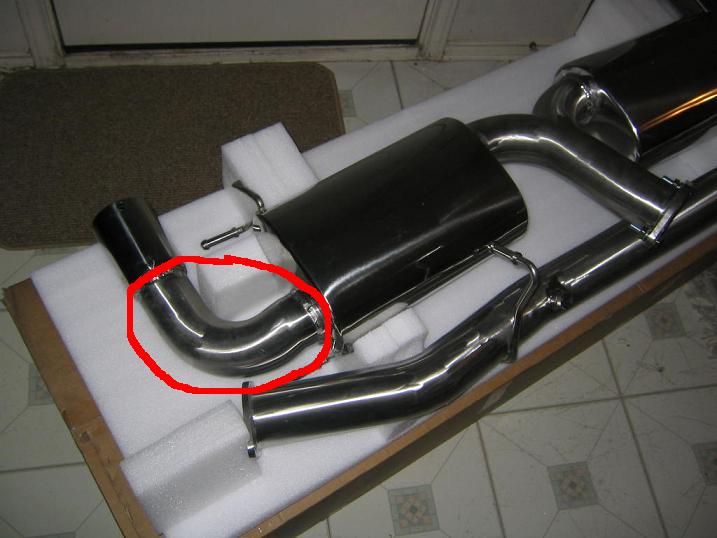

Borla and RB (plus other exhausts) have reducing pipes after the mufflers. The turbo XS is still 3" after the mufflers (see pics).
Last edited by adrian-1; 12-21-2005 at 08:22 PM.
12-21-2005, 08:21 PM
#12
Originally Posted by adrian-1
Yes.
Borla and RB (plus others) have reducing pipes after the mufflers. The turbo XS is still 3" after the mufflers (see pics).
Borla and RB (plus others) have reducing pipes after the mufflers. The turbo XS is still 3" after the mufflers (see pics).
would be hard to answer, but have to ask for personal reasons...
beers
12-21-2005, 08:26 PM
#13
Ex- member.
Thread Starter
Originally Posted by swoope
next ??? did you feel a diff between the rp cat before it went bad and after you shelled it???????
12-22-2005, 07:25 AM
#15
Registered
Join Date: Aug 2004
Location: Virginia/Maryland
Posts: 1,294
Likes: 0
Received 0 Likes
on
0 Posts
That is what he is saying. Hopefully I will get a chance to check out my boost levels w/ the turboXS today. My cars been at the dealer all week. If Ray is open next week I'll try to get down there for a dyno appointment. If we can hold 10psi with this exhaust I definitely think we'll break 300hp. We'll know soon enough.
Adrian, if the exhaust is too loud, Scott suggested welding in a Borla XR-1 muffler into the pipe. Its a 3" straight through muffler that suppose to have virtually no resistance but is pretty effective quieting things down.
Adrian, if the exhaust is too loud, Scott suggested welding in a Borla XR-1 muffler into the pipe. Its a 3" straight through muffler that suppose to have virtually no resistance but is pretty effective quieting things down.
12-22-2005, 11:45 AM
#17
RX8 and a Truk....
Originally Posted by swoope
seems to me it is the 3" midpipe making most of the difference.
I'm thinking of making and selling test-pipes if I can turn that kinda profit.
:D
12-22-2005, 11:47 AM
#18
Originally Posted by dmp
Yup - makes me wonder why places charge a couple hundred bux for a peice of hollow, bent steel.
I'm thinking of making and selling test-pipes if I can turn that kinda profit.
:D
I'm thinking of making and selling test-pipes if I can turn that kinda profit.
:D
now mild steel...well if I update my tools to accomodate 3 inches (most are ready) well lets start fabricating them
12-22-2005, 11:52 AM
#19
hows the sound with the turbo adrian, in my NA videos the noise between the RB catback vs XS catback + midpipe will blow your speakers if you play the RB at max volume and keep it that way for the XS stuff (trust me
)
Turbo drown out some of the noise or is it still very very loud?
) Turbo drown out some of the noise or is it still very very loud?
12-22-2005, 01:39 PM
#20
Registered
Join Date: Aug 2004
Location: Virginia/Maryland
Posts: 1,294
Likes: 0
Received 0 Likes
on
0 Posts
You can fix the boost gauge flutter by tapping into the vacuum/boost line that goes from the throttle body to the Interceptor instead of at the intake manifold. Myne has no flutter anymore.
12-22-2005, 01:43 PM
#21
oh boy there is someone that once I tell him this information will be extremely happy...I'll link him to your post
thanks
-Jason
thanks
-Jason
Originally Posted by rkostolni
You can fix the boost gauge flutter by tapping into the vacuum/boost line that goes from the throttle body to the Interceptor instead of at the intake manifold. Myne has no flutter anymore.
12-22-2005, 07:45 PM
#22
Ex- member.
Thread Starter
Originally Posted by PoLaK
Turbo drown out some of the noise or is it still very very loud?
I still haven't used the silencers, hopefully they'll quiet it down alittle.
Originally Posted by rkostolni
You can fix the boost gauge flutter by tapping into the vacuum/boost line that goes from the throttle body to the Interceptor instead of at the intake manifold. Myne has no flutter anymore.
12-22-2005, 10:59 PM
#23
Registered Drifter
Join Date: Jan 2004
Location: Orange County
Posts: 508
Likes: 0
Received 0 Likes
on
0 Posts
based on rkostolni and adrian's testimony, i'm considering going with the Turbo-XS set-up. looking forward to hearing the exhaust sound and seeing what the dyno says. this may get us over the 300 rwhp hump. we'll see. thanks guys, for your feedback.
dd sends...
dd sends...
12-23-2005, 11:55 AM
#24
so if 3" is the magic number supposedly (although we definitely need more evidence then what is presented)
then the new Agency Power setup should work too...it has 4inch titanium tips and 3inch TIG welded piping and includes a cat deletion pipe for less money too I believe
then the new Agency Power setup should work too...it has 4inch titanium tips and 3inch TIG welded piping and includes a cat deletion pipe for less money too I believe
