Neutral Safety for 6sp MT

Old 01-28-2013, 11:49 AM
  #1
Auto Security by Glock
Thread Starter
iTrader: (2)

bullet,silver's Avatar

Join Date: Sep 2010
Posts: 24
Likes: 0
Received 0 Likes on 0 Posts
Neutral Safety for 6sp MT

Paul,

I have the hunting idle issue in my 04' due to the failed neutral safety. I believe I have the part narrowed down to Y612-17-640B from thread 130591. Looks like it you offer the part shown here, but I was unable to locate an exploded parts view to confirm correct fitment for the manual trans. I need the part that mounts in the top driver's side of the tranny. Any recommendations for the easiest tool for removal?

http://www.partswebsite.com/mazmart/...61217640b.html

Your help is greatly appreciated.
bullet,silver is offline
Old 01-28-2013, 02:58 PM
  #2
RX8Club.com Sponsor
iTrader: (12)

Mazmart's Avatar

Join Date: Mar 2004
Posts: 4,789
Received 52 Likes on 27 Posts
Originally Posted by bullet,silver View Post
Paul,

I have the hunting idle issue in my 04' due to the failed neutral safety. I believe I have the part narrowed down to Y612-17-640B from thread 130591. Looks like it you offer the part shown here, but I was unable to locate an exploded parts view to confirm correct fitment for the manual trans. I need the part that mounts in the top driver's side of the tranny. Any recommendations for the easiest tool for removal?

http://www.partswebsite.com/mazmart/...61217640b.html

Your help is greatly appreciated.
Yes, that is the correct part. You're you getting hunting idle. That is one of the symptoms.

Paul.
Mazmart is offline
Old 01-28-2013, 03:06 PM
  #3
Legend In My Own Mind

Mr_Pieper's Avatar

Join Date: Feb 2011
Location: The Lou
Posts: 1,066
Likes: 0
Received 0 Likes on 0 Posts
Buy a deep well 27mm throw away socket. Cut a slot in it like an O2 sensor socket. Took me longer to make the socket than replace the part.
Mr_Pieper is offline
Old 01-28-2013, 03:10 PM
  #4
RX8Club.com Sponsor
iTrader: (12)

Mazmart's Avatar

Join Date: Mar 2004
Posts: 4,789
Received 52 Likes on 27 Posts

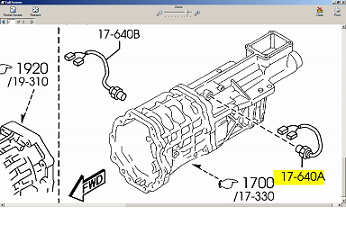

This is the image.

Paul.
Attached Images
File Type: bmp
Mazmart is offline
Old 01-28-2013, 07:30 PM
  #5
Auto Security by Glock
Thread Starter
iTrader: (2)

bullet,silver's Avatar

Join Date: Sep 2010
Posts: 24
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Mazmart View Post
This is the image.

Paul.

Thanks for the parts view, but I think that made me more confused... Does 17-640B superseded 17-640A?

17-640A is on the driver's side of the trans while 17-640B is jst hanging out there.
bullet,silver is offline
Old 01-28-2013, 07:33 PM
  #6
Auto Security by Glock
Thread Starter
iTrader: (2)

bullet,silver's Avatar

Join Date: Sep 2010
Posts: 24
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Mr_Pieper View Post
Buy a deep well 27mm throw away socket. Cut a slot in it like an O2 sensor socket. Took me longer to make the socket than replace the part.
Appreciate it!
bullet,silver is offline
Old 01-28-2013, 07:43 PM
  #7
Legend In My Own Mind

Mr_Pieper's Avatar

Join Date: Feb 2011
Location: The Lou
Posts: 1,066
Likes: 0
Received 0 Likes on 0 Posts
Just remember that it's the one with the white plugs.
Mr_Pieper is offline
Old 01-29-2013, 03:06 AM
  #8
Super Moderator

ASH8's Avatar

Join Date: Apr 2005
Location: Australia
Posts: 10,624
Received 156 Likes on 113 Posts
Y612-17-640B Switch Neutral (Left Side)
Y611-17-640A Switch Reverse (RIGHT SIDE)
ASH8 is offline
Old 01-29-2013, 08:30 AM
  #9
RX8Club.com Sponsor
iTrader: (12)

Mazmart's Avatar

Join Date: Mar 2004
Posts: 4,789
Received 52 Likes on 27 Posts
Originally Posted by bullet,silver View Post
Thanks for the parts view, but I think that made me more confused... Does 17-640B superseded 17-640A?

17-640A is on the driver's side of the trans while 17-640B is jst hanging out there.
The confusion is related to the fact that all the numbers in that diagram are meant for a Mazda parts person. They are known as D Codes and they are not the actual part number. We use the D code to look up the part number and D Codes often resemble the part number but they are NOT the part number.

Hope that helps.

Paul.
Mazmart is offline
Old 01-29-2013, 08:43 AM
  #10
Auto Security by Glock
Thread Starter
iTrader: (2)

bullet,silver's Avatar

Join Date: Sep 2010
Posts: 24
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Mazmart View Post
The confusion is related to the fact that all the numbers in that diagram are meant for a Mazda parts person. They are known as D Codes and they are not the actual part number. We use the D code to look up the part number and D Codes often resemble the part number but they are NOT the part number.

Hope that helps.

Paul.
Clever Mazda... bet they could sell the diagram decoder ring and make a fortune. Again, thanks for the assistance.
bullet,silver is offline
Old 01-29-2013, 10:05 AM
  #11
Registered
iTrader: (4)

Z0oMzo0m's Avatar

Join Date: Jan 2008
Location: PORT SAINT LUCIE, FL
Posts: 1,035
Likes: 0
Received 2 Likes on 1 Post
Was it hunting idle all the time? Or just occasionally?
Z0oMzo0m is offline
Old 01-29-2013, 10:29 PM
  #12
Auto Security by Glock
Thread Starter
iTrader: (2)

bullet,silver's Avatar

Join Date: Sep 2010
Posts: 24
Likes: 0
Received 0 Likes on 0 Posts
Intermittent... not or cold engine doesn't matter it just comes and goes as it pleases. I finally metered the switch to verify issue.
bullet,silver is offline
Old 01-29-2013, 10:30 PM
  #13
Auto Security by Glock
Thread Starter
iTrader: (2)

bullet,silver's Avatar

Join Date: Sep 2010
Posts: 24
Likes: 0
Received 0 Likes on 0 Posts
Part was ordered earlier today.
bullet,silver is offline
Old 01-30-2013, 12:24 PM
  #14
Android Army

Join Date: Jun 2008
Posts: 583
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by bullet,silver View Post
Part was ordered earlier today.
Both parts are shipping today. Thank you for using us.

-Sheldon.
