Heavy corrosion on battery terminal ate through clamp

I found the positive terminal was a little loose when inspecting the battery. On closer inspection, the acid ate through the clamp on the positive terminal. A light pull and it broke free.

If it weren't for the massive glob of dielectric grease put on there by the dealer, this would have come loose long before. As usual, the battery post is lead. Duh! But the big surprise was that the clamp was copper based. WTF was Mazda thinking? If you have a copper clamp and a lead terminal, you will have major corrosion and the sacrificial metal will be the copper. This explains why there was so much corrosion.

I went to the dealer and ordered a new terminal. (Hoping Mazda figured out the problem.) I got part number F151-67-TB1 . Thank God, the material looks like zinc coated steel or aluminized steel. I suspect this will hold up better. BTW: don't forget to stop by Home Depot and pick up a new 8mm x 1.25 metric nut. My old one was so corroded that I nearly broke the stud trying to remove it.

The dealer had no knowledge of a TSB on this. Anyone have the same issue?
This ad is not displayed to registered and logged-in members.
Register your free account today and become a member on RX8Club.com!
__________________
2004 RX8 6 speed - Sunlight Silver
Appearance Package | K&N Typhoon V2 Intake | Greddy FSTB | Progress Rear Sway Bar | Clear Corners
2004 Nissan 350Z Roadster Touring (Redline)
Factory NAV. | Greddy | Stillen | Nismo V2 | 350EVO | Ichiba | Eibach | Injen | Giovanna Cuomo 20" | Veilside CF
PhreakdOut is offline   Reply With Quote
Old 02-18-2009, 10:48 PM   #2
Surf Hard, Drive Hard

Mazurfer's Avatar

Trader Score: (0)
Join Date: Feb 2007
Location: Indialantic, Florida
Posts: 7,829
Stock audio or aftermarket?
__________________


05 TiGray, 6MT...GT.
Mods..........too many to list, so.......
View my garage
Mazurfer is offline   Reply With Quote
Old 02-19-2009, 03:37 PM   #3
Lubricious

Nubo's Avatar

Trader Score: (0)
Join Date: Oct 2003
Location: SF Bay Area, California
Posts: 3,434
Consider getting an AGM battery when the time comes and you'll never have to worry about battery-instigated corrosion again.

My OEM positive terminal clamp looks like steel -- 2004 build.
Nubo is offline   Reply With Quote
Old 02-19-2009, 06:05 PM   #4
2005 White GT

EDZRIDE's Avatar

Trader Score: (1)
Join Date: Feb 2006
Location: Spokane Valley, Washington
Posts: 1,147
Check the charging system too.
EDZRIDE is offline   Reply With Quote
Old 02-19-2009, 08:30 PM   #5
Registered Tracker

BlueRenesis82's Avatar

Trader Score: (0)
Join Date: Feb 2004
Location: Chicago
Posts: 3,288
I had a similar problem, the retaining arm that goes over the battery has accumulated a bit of corrosion on it, and I can't figure out where the acid is coming from. The top of the battery is junk free. FYI I have had a charger hooked up to it while it is being stored during the winter.
__________________
"RX-8Club.com - where everyone builds like Engman and drives like Senna"
RedDevil
BlueRenesis82 is offline   Reply With Quote
Old 02-21-2009, 04:05 AM   #6
Registered User

PhreakdOut's Avatar

Trader Score: (0)
Join Date: Aug 2006
Location: Ypsi, Michigan
Posts: 77
Quote:
Originally Posted by Mazurfer View Post
Stock audio or aftermarket?
All stock electrical. No goofy ground wires or anything like that.

Judging by the greenish corrosion, I'd say the copper terminal is the leading cause.
__________________
2004 RX8 6 speed - Sunlight Silver
Appearance Package | K&N Typhoon V2 Intake | Greddy FSTB | Progress Rear Sway Bar | Clear Corners
2004 Nissan 350Z Roadster Touring (Redline)
Factory NAV. | Greddy | Stillen | Nismo V2 | 350EVO | Ichiba | Eibach | Injen | Giovanna Cuomo 20" | Veilside CF
PhreakdOut is offline   Reply With Quote
Old 02-21-2009, 05:11 AM   #7
Moderator Noir

alnielsen's Avatar

Trader Score: (4)
Join Date: Aug 2004
Location: Buddhist Monastery, High Himalaya Mtns. of Tibet
Posts: 12,590
allen.nielsen.908
Send a message via Skype™ to alnielsen
I've been told that gluing a copper penny to the top of the battery will keep the terminal from corroding. The penny was changed from copper to zinc in the 1982, so look for an older penny.
__________________
Emissions and fuel economy haven't exactly been areas of strength for past rotary power plants, but absolutely no one with a soul has ever cared. - Autoweek

Rotary History:1982 RX7 GS, 1985 RX7 GSL-SE, 2004 RX8 Sport-Continuous Rotary Owner since 1985
Racing History:SCCA Solo II 1979-1986, Skip Barber Comp School 1983, SCCA Club Racing 1987-1993, 2004-2011 Track Days
Amateur Radio Call Sign: KC9ZOU - call me on the DARC 2m repeater.
alnielsen is offline   Reply With Quote
Old 02-21-2009, 10:28 AM   #8
Wally Moderator

ken-x8's Avatar

Trader Score: (0)
Join Date: Aug 2006
Location: Northern Virginia
Posts: 4,878
Even back when cable ends were made of lead they'd accumulate blue fuzzy corrosion. There's also no getting rid of copper, since at some point (like the cable end of the clamp) the clamp gets attached to the copper wire leading to the electrical system.

Felt anti-corrosion pads that go under the clamps may do some good. Coating the posts and clamps with vaseline before installing, then smearing vaseline on top after they're on, helps tremendously.

Ken
__________________
2006 MT, Galaxy Gray
Sport Package
LightInSight
Fuel cap hook
EZ-Pass sock
ken-x8 is offline   Reply With Quote
Old 07-15-2009, 02:43 PM   #9
Registered User

PhreakdOut's Avatar

Trader Score: (0)
Join Date: Aug 2006
Location: Ypsi, Michigan
Posts: 77
Holy Dead Thread! Sorry to bring it back. Since getting the 350Z, I rarely drive the RX anymore. (It's the wife's DD now.)

Looks like the corrosion issue is much better with the new terminal. Just thought I'd document that for future searchs on this topic.

Assuming people actually do a search.
__________________
2004 RX8 6 speed - Sunlight Silver
Appearance Package | K&N Typhoon V2 Intake | Greddy FSTB | Progress Rear Sway Bar | Clear Corners
2004 Nissan 350Z Roadster Touring (Redline)
Factory NAV. | Greddy | Stillen | Nismo V2 | 350EVO | Ichiba | Eibach | Injen | Giovanna Cuomo 20" | Veilside CF
PhreakdOut is offline   Reply With Quote
Old 10-06-2009, 06:18 PM   #10
space for rent

CTrx8's Avatar

Trader Score: (0)
Join Date: Aug 2006
Location: CT
Posts: 2,713
looks like i'm going to mazda tomorrow to get myself the same part. mine did the same thing.
__________________
Past - First Gen '79 RX-7 MT Black 4-speed
Present - 2004 RX-8 MT NG Touring
Future - ???

my vBGarage
CTrx8 is offline   Reply With Quote
Old 10-09-2009, 04:56 AM   #11
space for rent

CTrx8's Avatar

Trader Score: (0)
Join Date: Aug 2006
Location: CT
Posts: 2,713

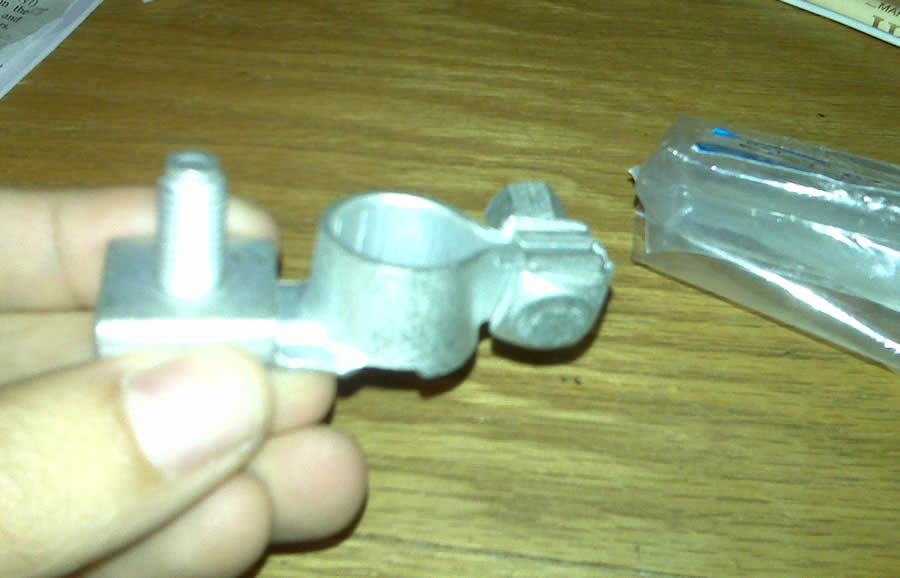

so i received the F151-67-TB1 but now don't know how to replace. here is a picture of what the terminal looked like when it snapped:

Click the image to open in full size.

but i was hoping this part would include the bend and is just the terminal. not sure how i'll get the old off since it's pretty much on there and be able to replace it with the new.
__________________
Past - First Gen '79 RX-7 MT Black 4-speed
Present - 2004 RX-8 MT NG Touring
Future - ???

my vBGarage
CTrx8 is offline   Reply With Quote
Old 10-09-2009, 05:00 AM   #12
True love is blue x2

xun4gvn4everx's Avatar

Trader Score: (2)
Join Date: Dec 2008
Location: Future
Posts: 3,537
Price the dealership and price your local junkyard. I bet the latter is cheaper
__________________
Quote:
Originally Posted by WinningRX8Chick View Post
Oh I go down..I play with *****.
Get in, sit down, shut up, and hold on!!

The RX-8 is like cocaine. It is addictive as hell, will run you broke, and your wife will leave you unless she is an addict too.
xun4gvn4everx is offline   Reply With Quote
Old 10-09-2009, 06:41 AM   #13
I <3 Sushi

Spinning Sushi's Avatar

Trader Score: (21)
Join Date: Aug 2006
Location: SoCal
Posts: 3,984
johnbt86 Spinning Sushi
Send a message via AIM to Spinning Sushi
Cut off old, put on new. Simple as that.
__________________

OMG IT SPINS!!
Spinning Sushi is offline   Reply With Quote
Old 10-09-2009, 07:18 AM   #14
Registered Zoom Zoomer

Huey52's Avatar

Trader Score: (2)
Join Date: Apr 2006
Location: New England
Posts: 4,117
I think the retaining arm "corrosion" is actually just the white lettering on the battery top [Interstate] abrating due to vibration. Once wiped off it hasn't returned for me.

Quote:
Originally Posted by BlueRenesis82 View Post
I had a similar problem, the retaining arm that goes over the battery has accumulated a bit of corrosion on it, and I can't figure out where the acid is coming from. The top of the battery is junk free. FYI I have had a charger hooked up to it while it is being stored during the winter.
Huey52 is offline   Reply With Quote
Old 10-09-2009, 08:14 AM   #15
space for rent

CTrx8's Avatar

Trader Score: (0)
Join Date: Aug 2006
Location: CT
Posts: 2,713
so find something to cut along the red line i have added below and add then attach the new? sounds easy enough but i haven't done it before so i didn't want to screw something up.

Click the image to open in full size.


Click the image to open in full size.
Attached Thumbnails
Heavy corrosion on battery terminal ate through clamp-oldterminal.jpg   Heavy corrosion on battery terminal ate through clamp-newterminal.jpg
__________________
Past - First Gen '79 RX-7 MT Black 4-speed
Present - 2004 RX-8 MT NG Touring
Future - ???

my vBGarage
CTrx8 is offline   Reply With Quote
Old 10-09-2009, 04:22 PM   #16
Resu Deretsiger

MadDashRX8's Avatar

Trader Score: (0)
Join Date: Feb 2004
Location: United Kingdom, for now
Posts: 369
If I'm not mistaken, you need to remove the top nut holding the broken piece in place. Then clean very well with a baking soda-water mix to neutralize the acid. Apply vaseline to the new part and install in place of the old part. Coat the assembly with vaseline, and reinstall on the battery. Hope this helps.
__________________

04 RX-8 GT, 6MT, Nordic Green/Chaparral, Tein S-Tech, Tokico D-Spec, K&N Typhoon II, Racing Beat Cat Back, High Flow Cat 100,000 MILES!!!
MadDashRX8 is offline   Reply With Quote
Old 10-11-2009, 07:45 AM   #17
space for rent

CTrx8's Avatar

Trader Score: (0)
Join Date: Aug 2006
Location: CT
Posts: 2,713
okay - so finally had enough time to work on this yesterday and it was a pain. luckily the black plastic piece unclips at the bottom so i could remove and work on it outside the engine bay. from there i rinsed several times in baking soda and water and finally was able to (with the help of some vice grips and socket wrench) get the nut off.

after getting the nut off, i tried to push the bolt through but it was too solidly set so i had to get some needle nose pliers to remove the old back piece (would be the bottom not readily shown in the picture) to then remove more corrosion from the back of the bolt and free it. after pulling out the remaining pieces of the old terminal and cleaning again, i was able to attach the new piece, add some vaseline, and reinstall. everything works great now so thanks to all for the help.

i probably won't check this thread again after a few weeks so if someone ends up having this issue and bumps it, feel free to send me a PM and i can walk through more detailed steps if the above didn't make sense.
__________________
Past - First Gen '79 RX-7 MT Black 4-speed
Present - 2004 RX-8 MT NG Touring
Future - ???

my vBGarage
CTrx8 is offline   Reply With Quote
Old 10-11-2009, 11:04 AM   #18
Registered Zoom Zoomer

Huey52's Avatar

Trader Score: (2)
Join Date: Apr 2006
Location: New England
Posts: 4,117
Just checked my battery yesterday, as I typically do when periodically under the hood, and aside from a little dust it was clean. There's no more 'white substance' so again presumably it was just the raised white lettering of the Interstate where it's worn by the hold down rod.

Difficult for me to comprehend how the OP's terminals got to such a condition. That didn't happen over night/week/month ... Preventive inspection and maintenance, or "an ounce of prevention is worth a pound of cure!" Sorry you had to learn the hard way.
Huey52 is offline   Reply With Quote
Old 10-11-2009, 06:50 PM   #19
space for rent

CTrx8's Avatar

Trader Score: (0)
Join Date: Aug 2006
Location: CT
Posts: 2,713
but how often do people really check every nook and cranny of their car? i know i cleaned my engine bay a couple months ago and even took the battery cover off to clean it and didn't see anything. our positive terminal has a cover on it where i'm assuming that all of that corrosion was happening b/c i didn't see it. and quite honestly, i don't check that closely that often but really wanted a clean engine bay so happened to have taken off my cover.

i check my oil and other fluids but never thought i'd need to take off the battery cover and positive terminal cover to check things. obviously with what i've seen now, i will be keeping an eye on it but i wouldn't expect that to be something everyone does on a regular basis.
__________________
Past - First Gen '79 RX-7 MT Black 4-speed
Present - 2004 RX-8 MT NG Touring
Future - ???

my vBGarage
CTrx8 is offline   Reply With Quote
Old 11-06-2011, 09:10 PM   #20
Registered User

Trader Score: (0)
Join Date: Nov 2011
Posts: 4
Question negative battery cable corrosion

I bought a 2008 RX-8 in May just back from a three year lease. The car had 17k miles on it and was serviced by the dealer every 5k. The only repair receipt I found was for a new battery, but I didn't think much of it. At 22k I had the car serviced no problems; at 25k the battery is dead and the negative cable and terminal are covered in corrosion. I called the dealer and that say that the corrosion could spread and would cost $400.00 to fix if it could not be cleaned with a service. I contacted Mazda USA to see if they will cover the repair. Has anyone else been able to get Mazda to pay for this recurring problem?

Last edited by CNSavage; 11-06-2011 at 09:12 PM. Reason: double typed word
CNSavage is offline   Reply With Quote
Old 11-06-2011, 11:06 PM   #21
Back in NYC, till OCT

nycgps's Avatar

Trader Score: (1)
Join Date: Jun 2005
Location: Planet Earth
Posts: 19,552
corrosion @ battery terminal is nothing new. don't make it sound like it's Mazda's problem. it's actually YOUR problem just like fuel, brake pad, etc.
__________________
ロータリーエンジン
nycgps is offline   Reply With Quote
Old 11-07-2011, 02:32 AM   #22
Super Moderator

Trader Score: (0)
Join Date: Apr 2005
Location: Australia
Posts: 9,363
Yep, it is called preventative maintenance..

But hey, my OE 1910 model T never corroded...I will NEVER buy another Mazda EVER AGAIN! (JK)
ASH8 is offline   Reply With Quote
Old 11-07-2011, 03:05 AM   #23
Registered User

Trader Score: (0)
Join Date: Nov 2011
Posts: 4
The terminal is not the issue, I have never seen the cable so interwoven with corrosion.
CNSavage is offline   Reply With Quote
Old 11-07-2011, 03:10 AM   #24
Registered User

Trader Score: (0)
Join Date: Nov 2011
Posts: 4
The battery was checked ny the dealer at 22k, it goes in every 5k. I think that qualifies as preventative maintenance.
CNSavage is offline   Reply With Quote
Old 12-12-2011, 06:09 AM   #25
Registered User

Trader Score: (0)
Join Date: Nov 2011
Posts: 4
Went old school, clean everything with a toothbrush and diet coke; then put on anti-corrosion pads. No problems since.
CNSavage is offline   Reply With Quote
Old 12-12-2011, 06:09 AM
RX8Club
Mazda RX8




Paid Advertisement





Reply

Tags
15167tb1, 8mm, batteries, battery, clamp, connector, copper, corroded, corrosion, loosen, positive, rx, rx8, super, terminal

Thread Tools Search this Thread
Search this Thread:

Advanced Search
Display Modes Rate This Thread
Rate This Thread:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


Similar Threads
Thread Thread Starter Forum Replies Last Post
Weird Battery Post Oxide/Corrosion Build-Up… help! 1145climber Series I Trouble Shooting 30 09-22-2009 02:47 PM
WTB: Battery hold down bolt and clamp Derex'8 RX-8 Parts For Sale/Wanted 2 03-19-2008 09:06 PM
The Corroded Battery Terminal Saga and Why You Should Buy from MazMart 1145climber Good Guy/Bad Guy 15 07-13-2007 12:09 PM
Desperately Needed: Positive Battery Terminal Connector 1145climber Mazmart 10 06-27-2007 09:53 AM


All times are GMT -5. The time now is 02:41 AM.


Powered by vBulletin® Version 3.8.7
Copyright ©2000 - 2014, vBulletin Solutions, Inc.
All content Copyright © 2007 by Internet Brands, Inc.
Emails Backup
