Cool My new CarPC Project - Honeycomb Here I Come

Over the past couple years I've been running a Windows 7 micro itx setup. With it I've had full HU / steering integration using a Grom Car2PC adapter and some custom code I developed for media management.

I've been following the Android tablet market for some time and have finally landed on a replacement.

I'll be using a Dell Streak 7" 3G/4G as a replacement for my entire setup. The end result should be pretty impressive as I'll be replacing about 30' of cabling, the lilliput LCD, and my trunk stored mini-itx PC with nothing more than the tablet (mounted via cradle in my jdm retractable nav tray), a pdmi cable, a hidden multimedia dock (supplies power, 3.5mm audio, and usb), and the FTDI maintained Android serial drivers to control my grom car2pc adapter with some new custom code developed on my part.

Anyway, I'll keep this thread updated as I progress. I'll be tackling the project in multiple steps, initially taking a step back and loosing some integration -- namely HU control, but have no doubt I'll be back to where I am today upon conclusion -- likely 3-6 months out.

Click the image to open in full size.

Click the image to open in full size.
This ad is not displayed to registered and logged-in members.
Register your free account today and become a member on RX8Club.com!
Attached Thumbnails

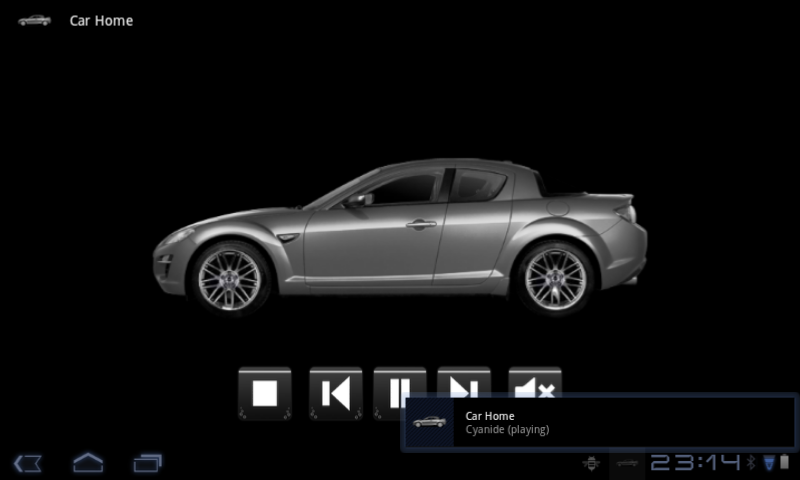

My new CarPC Project - Honeycomb Here I Come-device-2012-04-05-231507.png
__________________
.
We are a family like a pack of coyotes is a family; we roll together but we are totally willing to eat our young. -Kane
.
The reason i asked to listen experience show me your experiences ? Know is different thing, you know but you are not experienced ! -thunderberk

Last edited by ShellDude; 05-12-2012 at 11:35 PM.
ShellDude is offline   Reply With Quote
Old 11-15-2011, 09:41 PM   #2
weeeeeeeeee

ShellDude's Avatar

Trader Score: (9)
Join Date: Jun 2008
Location: Outside Philadelphia
Posts: 3,612
Various resources collected throughout the project:

Mazda JDM Retractable Navigation Box
http://japanparts.com/db/partslist.p...EY=091-030-004

Carnetix P2140 Intelligent Power Supply
http://www.carnetix.com/P2140/CNXP2140.htm

My own Communications & Control Library for the P2140
http://www.carnetix.com/forum/showthread.php?t=1963

Kensington K39224US PowerBolt Micro Car Charger




Dell Streak Product Page
http://www.dell.com/us/p/mobile-stre...025,901pdb6671

Dell Streak 7 Kernel Sources
http://opensource.dell.com/releases/streak7

SlipGrip RAM-HOL Streak 7 Mount
http://www.ebay.com/sch/i.html?_nkw=...ount&_osacat=0

Dell PDMI Dock
http://accessories.dell.com/sna/Popu...onfig#Overview
http://www.streaksmart.com/2010/12/s...ll-streak.html

Grom Mazda Car2PC Adapter
http://www.indashpc.org/new/adapters/car2pc-maz.html

Grom Mazda AUX Bluetooth Adapter
http://www.gromaudio.com/store/aux_a...e_adapter.html

USB A Female to USB A Female Adapter (should assist with OTG)
http://ntcdistributing.com/products/usb-connectors.htm

FTDI Android Homepage
http://www.ftdichip.com/Android.htm

FTDI Kernel & Kernel Module Build Guide
http://www.ftdichip.com/Support/Docu...to_Android.pdf

Blue Bluetooth OBD2 Adapter (this is the one I have)
http://www.dealextreme.com/p/elm327-...r-dongle-16921

libVoyager (open source Android OBD2 communications library)
https://github.com/gtosoft/libvoyager

OBD2 Wikipedia Page
http://en.wikipedia.org/wiki/OBD-II_PIDs
__________________
.
We are a family like a pack of coyotes is a family; we roll together but we are totally willing to eat our young. -Kane
.
The reason i asked to listen experience show me your experiences ? Know is different thing, you know but you are not experienced ! -thunderberk

Last edited by ShellDude; 04-14-2012 at 08:02 PM.
ShellDude is offline   Reply With Quote
Old 11-15-2011, 09:41 PM   #3
weeeeeeeeee

ShellDude's Avatar

Trader Score: (9)
Join Date: Jun 2008
Location: Outside Philadelphia
Posts: 3,612
reserved for even more future build updates
__________________
.
We are a family like a pack of coyotes is a family; we roll together but we are totally willing to eat our young. -Kane
.
The reason i asked to listen experience show me your experiences ? Know is different thing, you know but you are not experienced ! -thunderberk
ShellDude is offline   Reply With Quote
Old 11-15-2011, 09:42 PM   #4
weeeeeeeeee

ShellDude's Avatar

Trader Score: (9)
Join Date: Jun 2008
Location: Outside Philadelphia
Posts: 3,612
reserved just in case I need it
__________________
.
We are a family like a pack of coyotes is a family; we roll together but we are totally willing to eat our young. -Kane
.
The reason i asked to listen experience show me your experiences ? Know is different thing, you know but you are not experienced ! -thunderberk
ShellDude is offline   Reply With Quote
Old 11-26-2011, 09:05 PM   #5
weeeeeeeeee

ShellDude's Avatar

Trader Score: (9)
Join Date: Jun 2008
Location: Outside Philadelphia
Posts: 3,612
I tore down my center console today and pulled the lilliput screen and retractable tray. After a little bit of drilling into the existing center stand I got the $44 car mount I bought off ebay installed with no issues.

I'll put it back into the car tomorrow running a temporary 3.5mm audio plug to my car2pc adapter and a 12v lead (going to hijack the existing one I wired for the Lilliput) for the pdmi plug on the Streak.

The Streak 7s dimensions (width & height) exactly match the Lilliput 7". The depth is a little less than the Lilliput.. Basically a perfect fit for the tray.

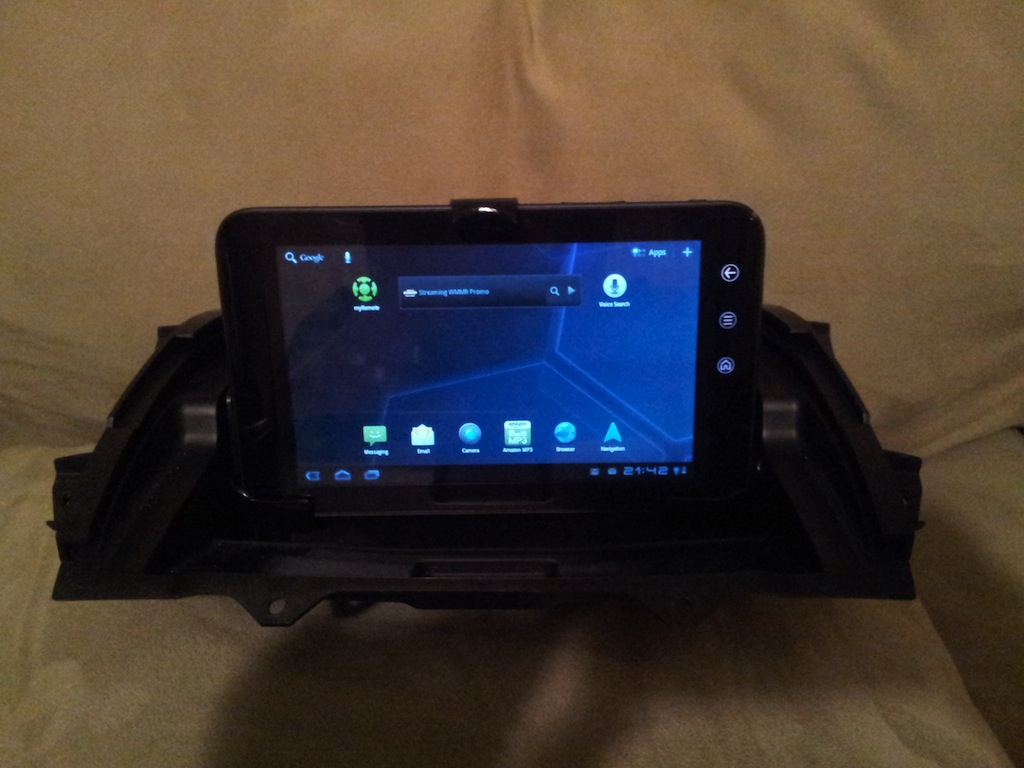

Here are some pictures of the tray mounted:

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

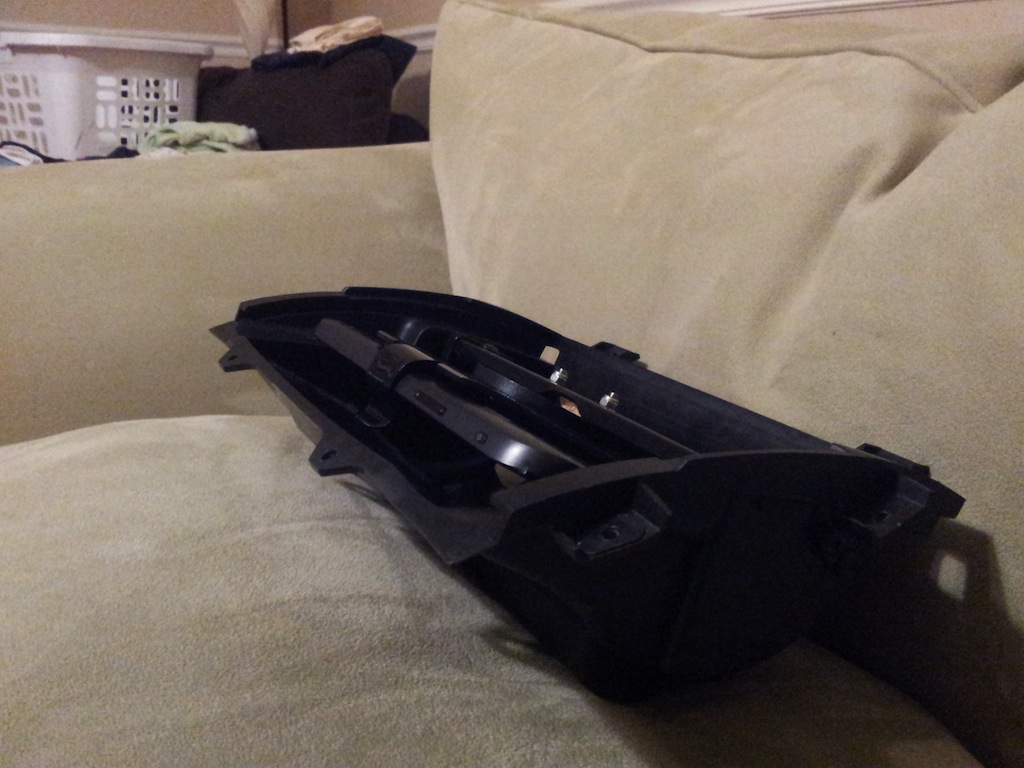

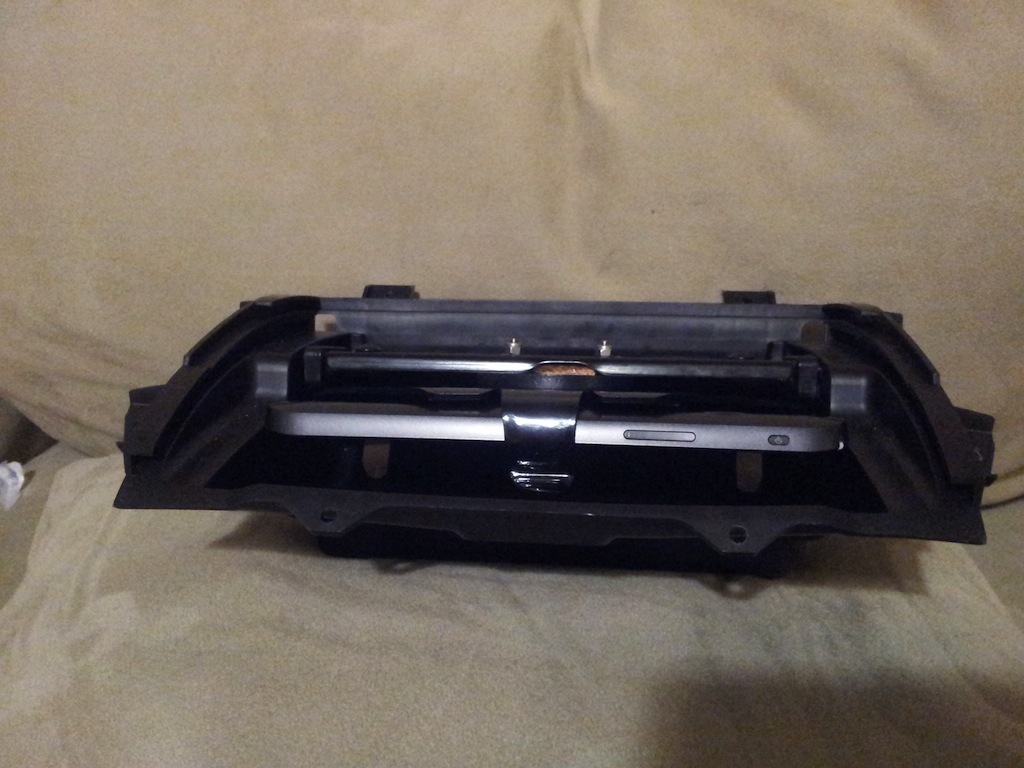

And the mount itself (stole the marketing image from ebay):

Click the image to open in full size.
Attached Thumbnails
My new CarPC Project - Honeycomb Here I Come-android_nav_front.jpg   My new CarPC Project - Honeycomb Here I Come-android_nav_retracted_front.jpg   My new CarPC Project - Honeycomb Here I Come-android_nav_retracted_side.jpg   My new CarPC Project - Honeycomb Here I Come-android_nav_side.jpg
__________________
.
We are a family like a pack of coyotes is a family; we roll together but we are totally willing to eat our young. -Kane
.
The reason i asked to listen experience show me your experiences ? Know is different thing, you know but you are not experienced ! -thunderberk

Last edited by ShellDude; 11-26-2011 at 09:11 PM.
ShellDude is offline   Reply With Quote
Old 11-26-2011, 09:47 PM   #6
SARXgroup.com

9krpmrx8's Avatar

Trader Score: (34)
Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 27,442
sarxgroup
That is badass man. I can't wait to see the finished product.
__________________


"Clean is the new cool, so letís keep it that way."

9krpmrx8 is offline   Reply With Quote
Old 11-26-2011, 10:04 PM   #7
weeeeeeeeee

ShellDude's Avatar

Trader Score: (9)
Join Date: Jun 2008
Location: Outside Philadelphia
Posts: 3,612
thanks, 9k!

I'll have some more pictures up tomorrow once I've got the tray reinstalled into the console. Should provide a really good visual for the final setup.
__________________
.
We are a family like a pack of coyotes is a family; we roll together but we are totally willing to eat our young. -Kane
.
The reason i asked to listen experience show me your experiences ? Know is different thing, you know but you are not experienced ! -thunderberk
ShellDude is offline   Reply With Quote
Old 11-26-2011, 10:21 PM   #8
Jedi Master

Jedi54's Avatar

Trader Score: (7)
Join Date: Mar 2004
Location: The Dark Side
Posts: 20,185
looks awesome!
can't wait to see how this ends up as I've been giving more thought to simply using a tablet device for a carPC.
__________________

Jedi54 is offline   Reply With Quote
Old 11-27-2011, 03:06 PM   #9
weeeeeeeeee

ShellDude's Avatar

Trader Score: (9)
Join Date: Jun 2008
Location: Outside Philadelphia
Posts: 3,612

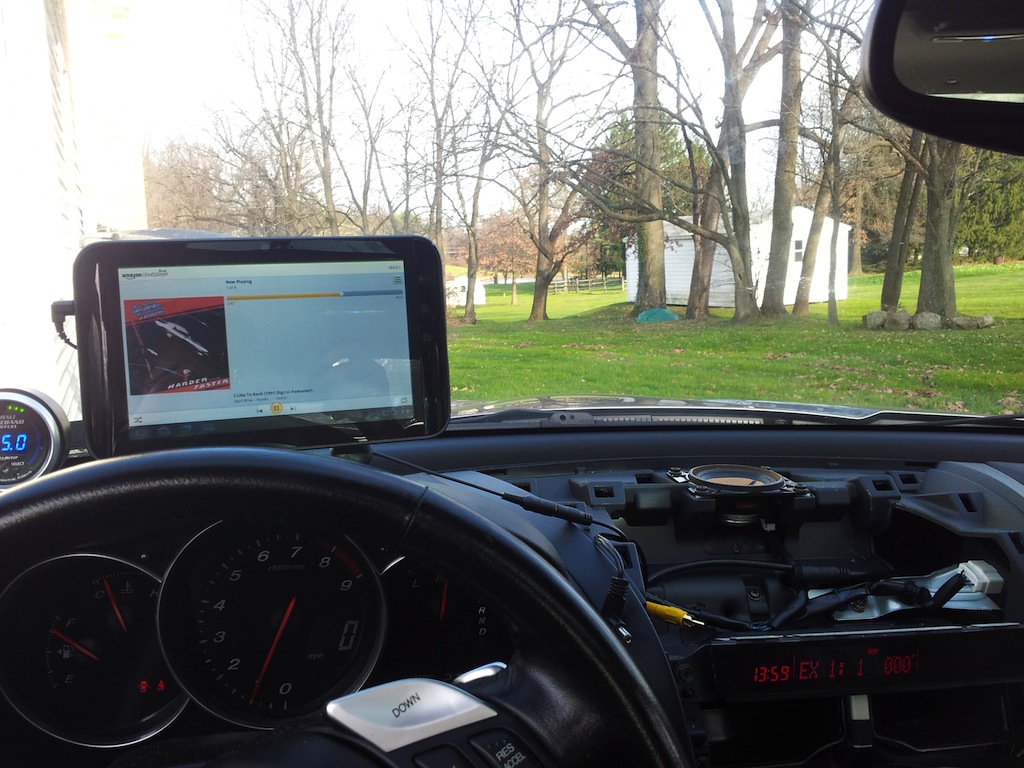

Got everything mounted temporarily as I await the 12V pdmi power converter. Initial impressions are OMFG this rocks!

Audio integration is complete. My one big TODO is getting the FTDI Serial enumerator kernel module built and incorporated. Once that is done I can do full on HU integration. Currently all I've got is volume control (although all I existing HU functions still work as was the case with my prior Win7 setup).

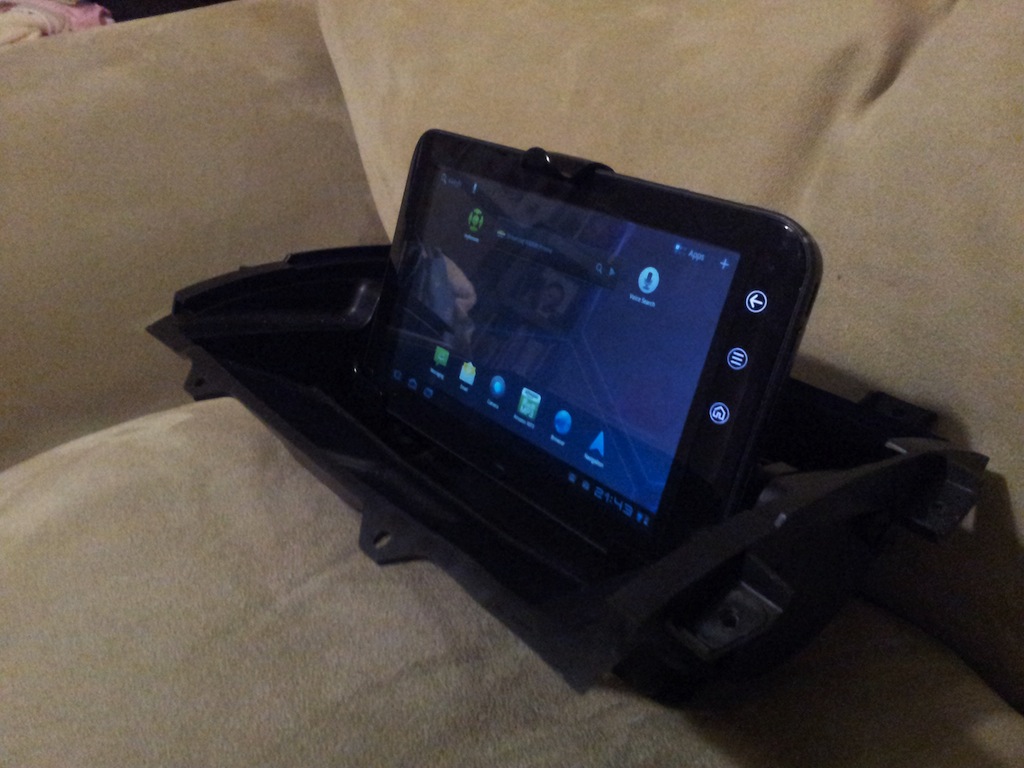

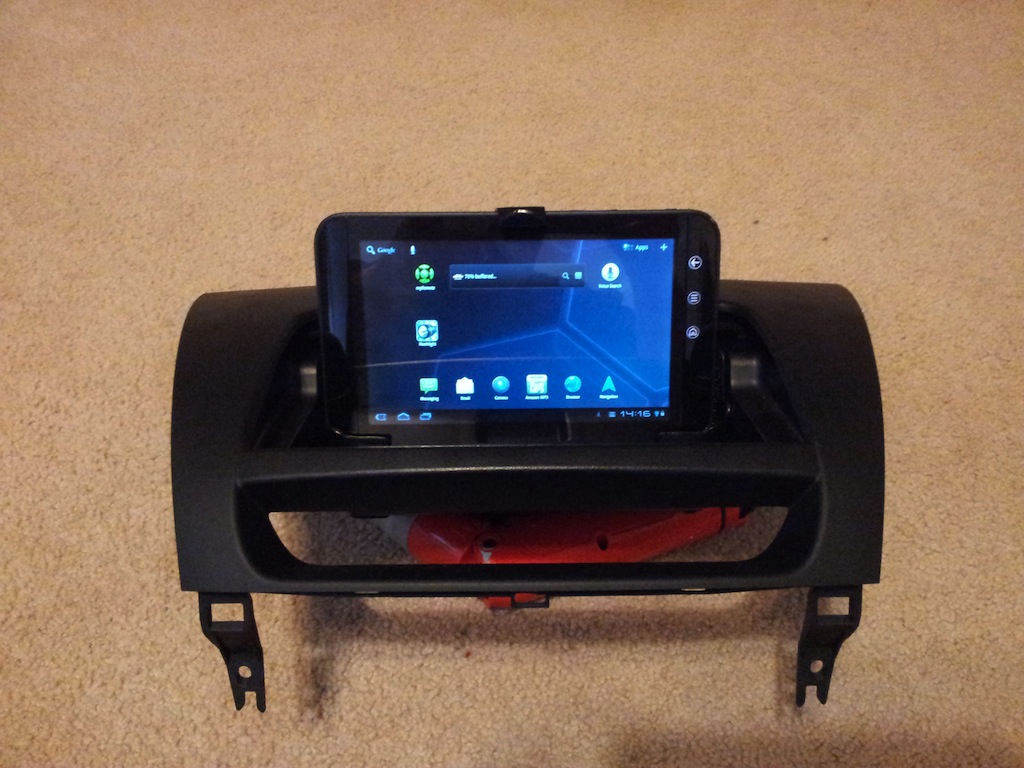

Here's a nice shot of JDM nab tray coming together prior to install into the car:

Click the image to open in full size.

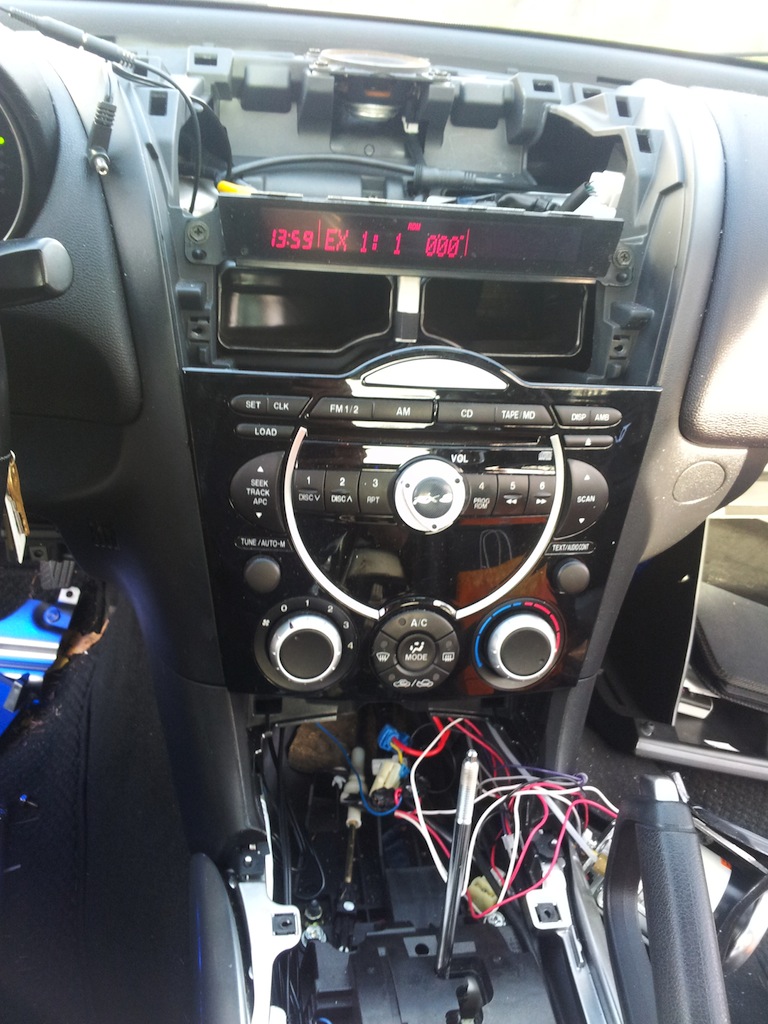

All the front console "guts":

Click the image to open in full size.

First test:

Click the image to open in full size.

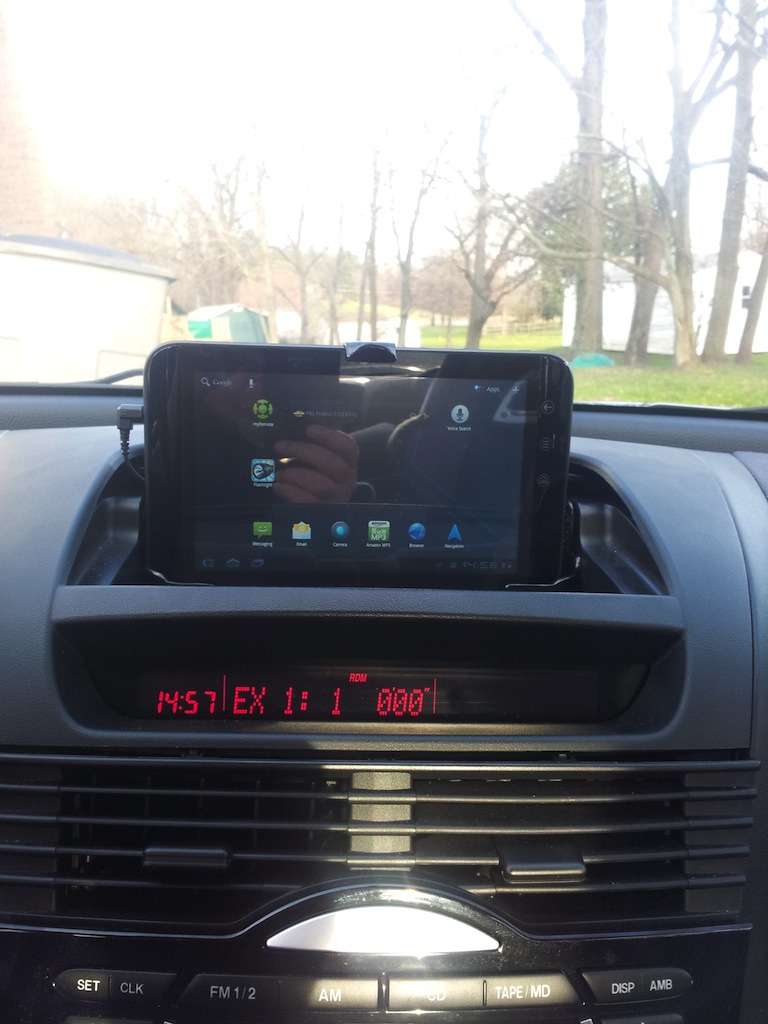

All buttoned up (head on view):

Click the image to open in full size.

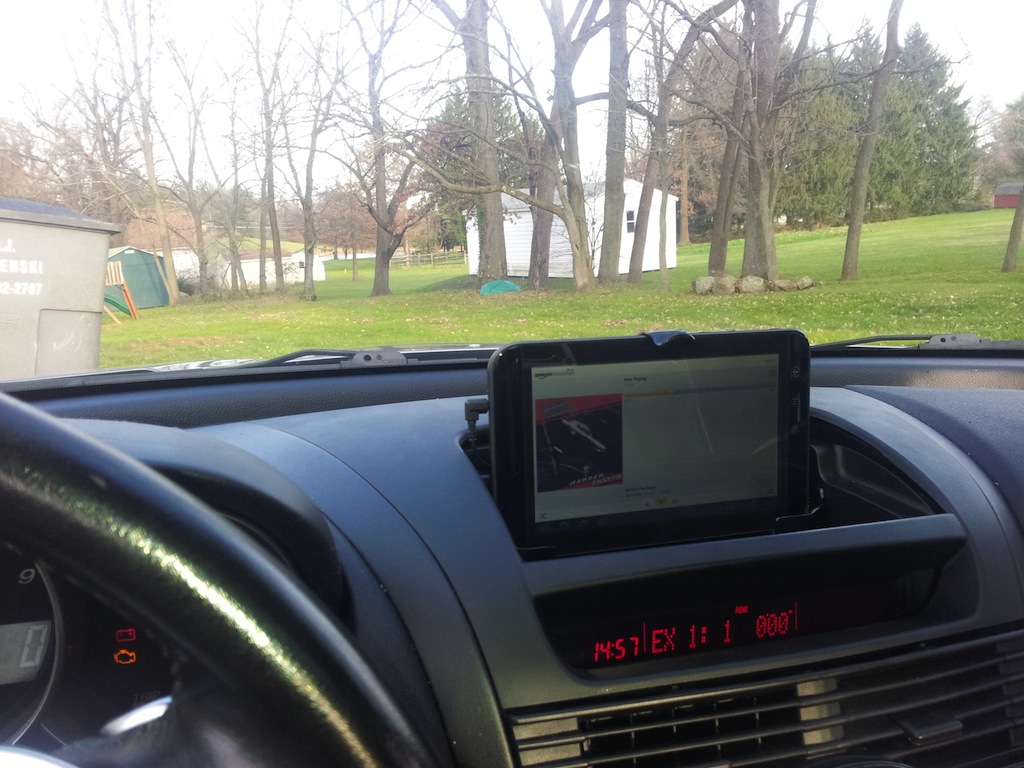

Drivers Eye View:

Click the image to open in full size.
Attached Thumbnails
My new CarPC Project - Honeycomb Here I Come-android_nav_ready.jpg   My new CarPC Project - Honeycomb Here I Come-android_nav_guts.jpg   My new CarPC Project - Honeycomb Here I Come-android_nav_test.jpg   My new CarPC Project - Honeycomb Here I Come-android_nav_driver.jpg   My new CarPC Project - Honeycomb Here I Come-android_nav_headon.jpg

__________________
.
We are a family like a pack of coyotes is a family; we roll together but we are totally willing to eat our young. -Kane
.
The reason i asked to listen experience show me your experiences ? Know is different thing, you know but you are not experienced ! -thunderberk
ShellDude is offline   Reply With Quote
Old 11-27-2011, 03:08 PM   #10
SARXgroup.com

9krpmrx8's Avatar

Trader Score: (34)
Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 27,442
sarxgroup
That's money. I want.
__________________


"Clean is the new cool, so letís keep it that way."

9krpmrx8 is offline   Reply With Quote
Old 11-27-2011, 03:11 PM   #11
weeeeeeeeee

ShellDude's Avatar

Trader Score: (9)
Join Date: Jun 2008
Location: Outside Philadelphia
Posts: 3,612

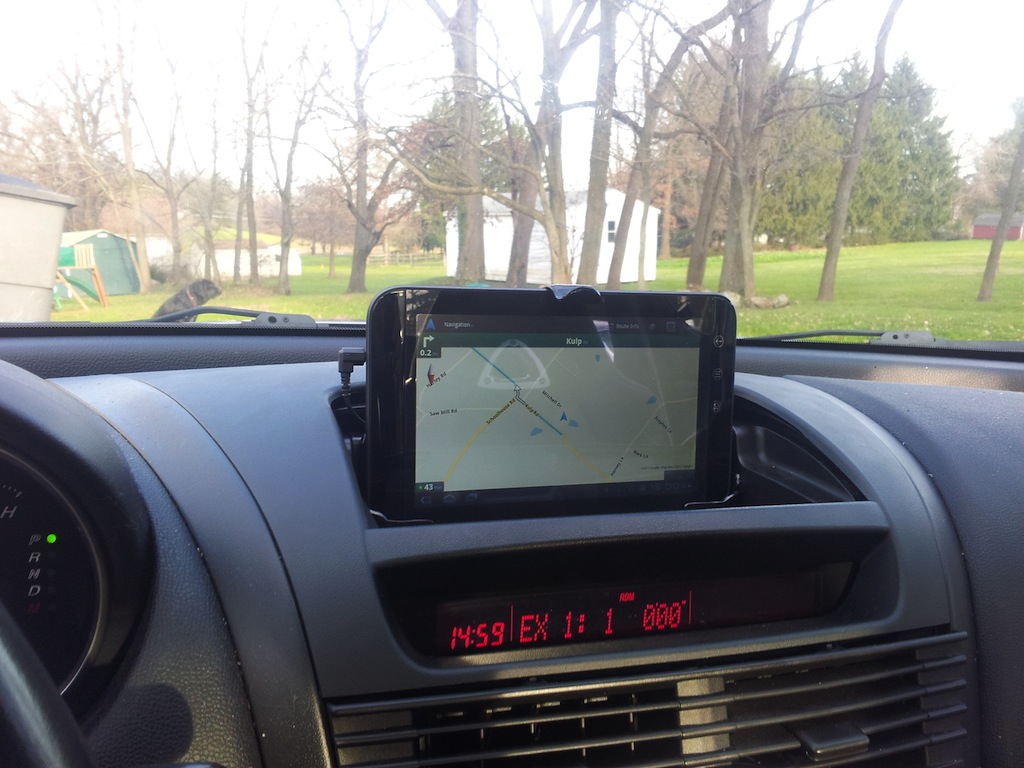

Google Navigation:

Click the image to open in full size.

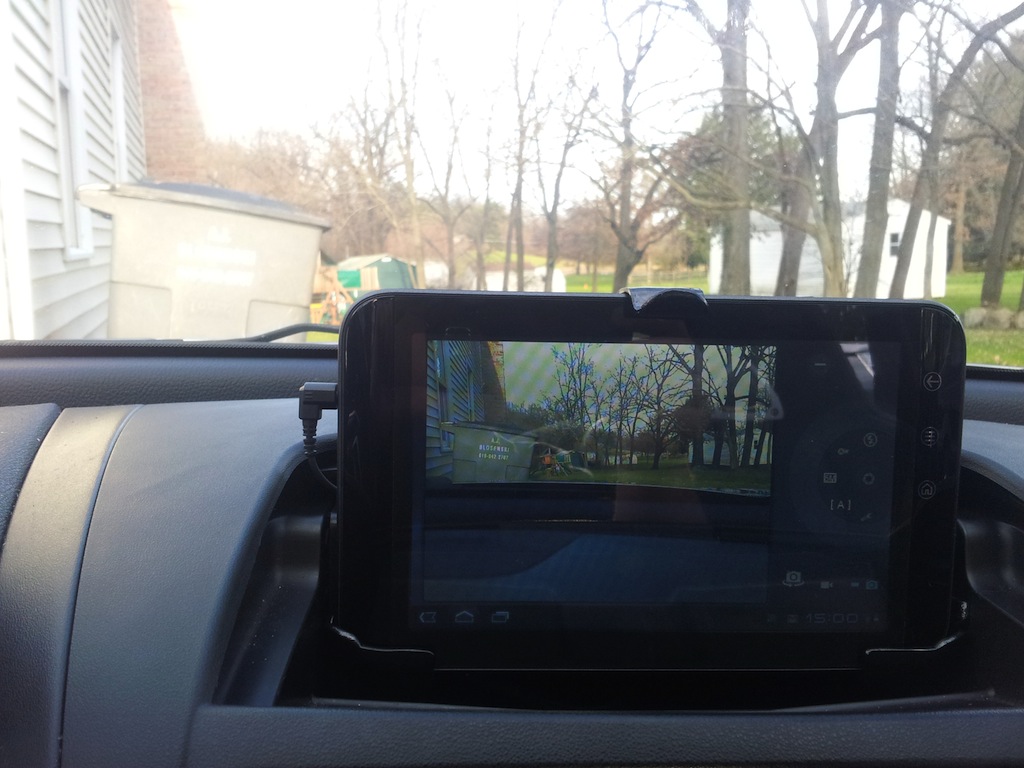

Android Camera:

Click the image to open in full size.

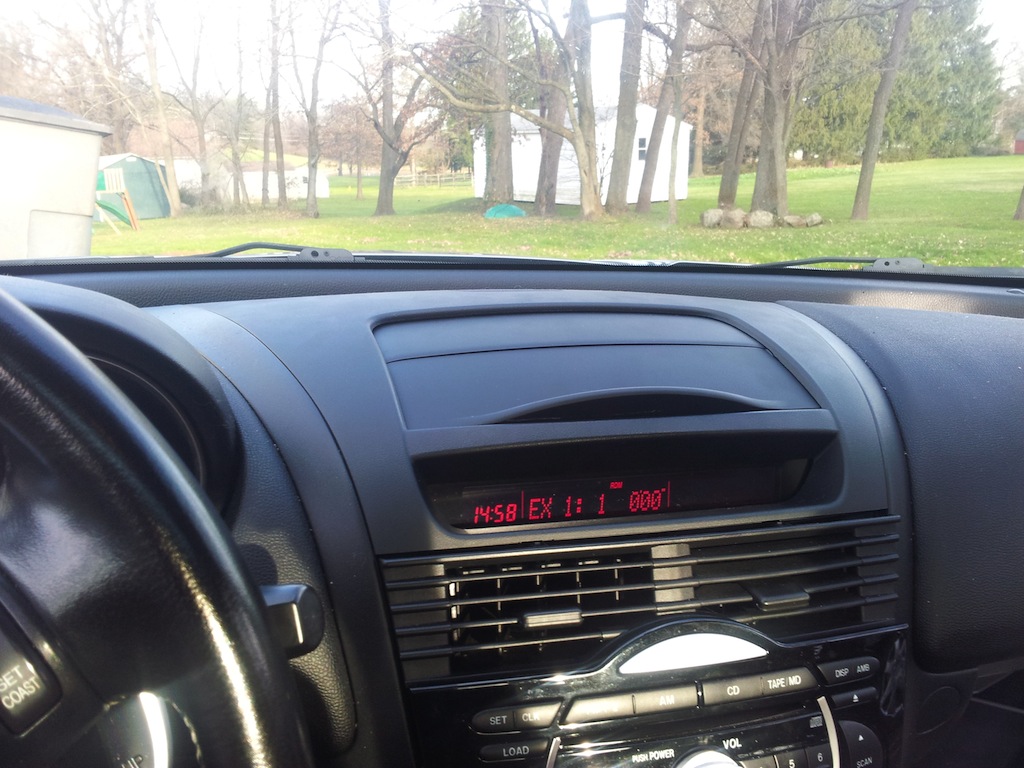

All stealth like when not in use:

Click the image to open in full size.

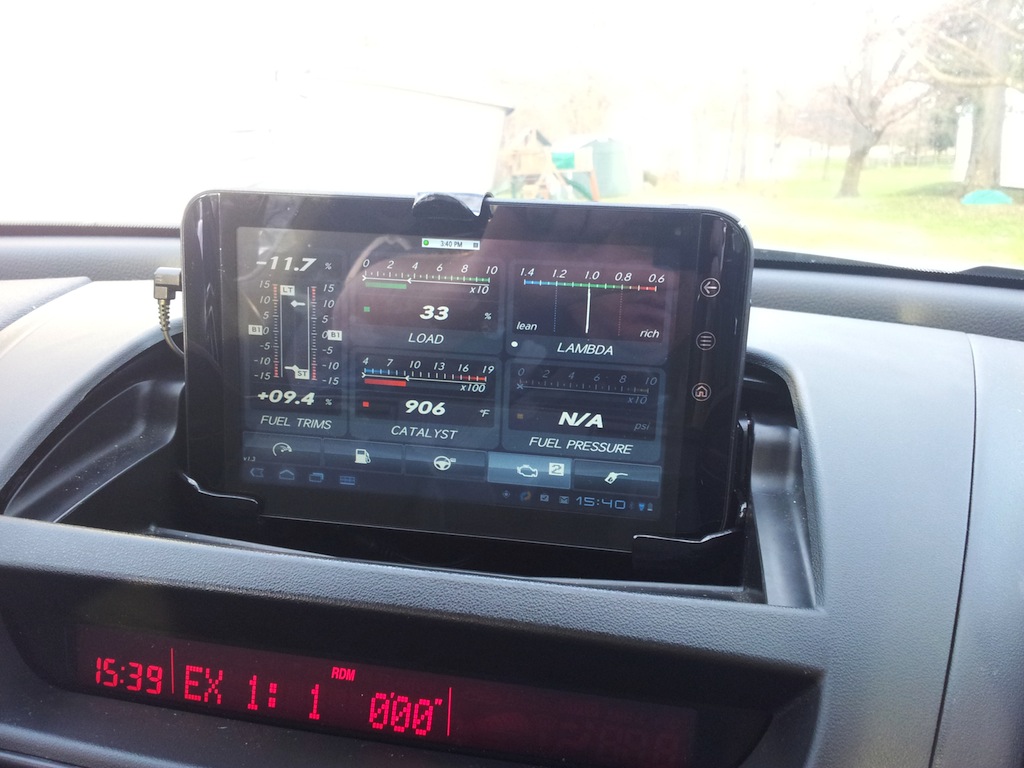

And my final shot for the day, Parmer DashCommand for Android connecting via my cheapo Bluetooth ELM adapter:
