bolt size and crush washer

Ok the bolt I need to know the size of is the 6 bolts that hold on the sump cover that you must take off to get at the oil filter and drain plug.

*I went to sears and got a 12mm and it fit perfect, so thats taken care of. Just took a few trips.

Also where can I buy JUST a crush washer for the oil plug? autozone and checkers wants to sell me a whole new plug that comes with the washer and wont sell just the washers... Their computers dont even have 2009 rx8 parts listed in them, so they couldnt sell me a plug+washer like they initially told me. I remember reading about the honda s2000 crush washers fitting just fine so I got a 08 s2000 plug & washer and am just gonna throw away the plug I guess.

Also what size do I need so I can avoid the hassle of them not having it in their system, and just say "I need a xx size washer". I know the one I bought was called a 14-1.5, then another I have says 090-075.1(that was the plug+washer for a s2000). The only way I could get a washer separate was a nice guy at autozone that just popped open a drain plug package and gave me the washer.

I know a mazda dealership would have the washer, I would just prefer to avoid driving 25-30 miles to the nearest one when I should be able to go down to any store around here if I knew the correct size.

Thanks for any help, went up to the dealership today and they told me it would be $48.50 for an oil change lol, theres no way in hell I am paying that.

Last edited by xexok; 01-04-2010 at 08:26 PM.
xexok is offline
Old 01-05-2010, 02:14 AM
  #2
Registered
Thread Starter

xexok's Avatar

Join Date: Dec 2009
Location: Aurora, CO
Posts: 2,100
Likes: 0
Received 0 Likes on 0 Posts
Almost 40 views and not a single post.

I think the drain plug on the 09+ rx8s is different than the ones from 04-08, thats the reason I am asking this question. From what I have read in the DIY thread for oil changes and from searching people were saying it was different, so I figured it might also be a different size. If its the same size plug and washer then at least say so, if you know.

As I said autozone/checkers has 0 things in their system for 09 rx8s so they arnt able to help me.
xexok is offline
Old 01-05-2010, 02:24 AM
  #3
seebass
iTrader: (4)

sebarx8's Avatar

Join Date: Jan 2008
Location: bloomfield nj now in miami ahhhh back in jersey now jajajjaja
Posts: 1,004
Likes: 0
Received 0 Likes on 0 Posts
go and do the oil change at the dealer go back the next day and tell them they forgot the o ring and thats it
sebarx8 is offline
Old 01-05-2010, 02:45 AM
  #4
Super Moderator

ASH8's Avatar

Join Date: Apr 2005
Location: Australia
Posts: 10,624
Received 154 Likes on 111 Posts
First, if you did some searching you would of had some answers..

The Oil Drain Plug is different on 09's, it is a FLUSH recess type and you have to use an 8 mm Hex head long spanner tool to undo.

The plug washer though is the same a Series 1 RX-8's...but the plug is not...as I said.

I will take a pic and post for you..
The crush washer is Mazda Part Number 9956-41-400
Plug part number shown in Pic..
And I also showed my 8 mm Hex Tool to undo the Plug.

BTW: The Plug you have on your car is painted BLACK...the one I show here is my spare..

Attached Thumbnails bolt size and crush washer-drain-plug.jpg

Last edited by ASH8; 01-05-2010 at 02:56 AM.
ASH8 is offline
Old 01-05-2010, 02:53 AM
  #5
Registered
Thread Starter

xexok's Avatar

Join Date: Dec 2009
Location: Aurora, CO
Posts: 2,100
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by sebarx8 View Post
go and do the oil change at the dealer go back the next day and tell them they forgot the o ring and thats it
no like I said I wouldnt pay $50 for an oil change, ever.

Ash I know its 8mm hex, the bolt I was asking about was for the sump cover and I figured that out myself, with 3 trips to sears.

All I needed to know was if the drain bolt on series 2 was a different diameter than series 1, and according to you its not so I can just ask for a washer/bolt from an 04-08 rx8 and be fine using just the washer.

Thank you for the pic and part number of washer.

Last edited by xexok; 01-05-2010 at 03:00 AM.
xexok is offline
Old 01-05-2010, 03:05 AM
  #6
Super Moderator

ASH8's Avatar

Join Date: Apr 2005
Location: Australia
Posts: 10,624
Received 154 Likes on 111 Posts
Yes, the drain plug washers are the same as S1 RX-8's, in fact the same washer is used in all Mazda's used over the past 40 years.
ASH8 is offline
Old 03-03-2019, 07:09 PM
  #7
New Member

Join Date: Mar 2019
Posts: 1
Likes: 0
Received 0 Likes on 0 Posts
drain plug

Originally Posted by ASH8 View Post
Yes, the drain plug washers are the same as S1 RX-8's, in fact the same washer is used in all Mazda's used over the past 40 years.
Are the drain plugs the same size as the S-1, RX-8. not the washer but the plug that the 8MM key goes into. what is the thread size if you know. please and thank you.
Nathan A. Larreynaga is offline
Old 03-04-2019, 03:13 PM
  #8
转子之魂

UnknownJinX's Avatar

Join Date: Apr 2017
Location: Victoria, BC
Posts: 2,175
Received 317 Likes on 291 Posts

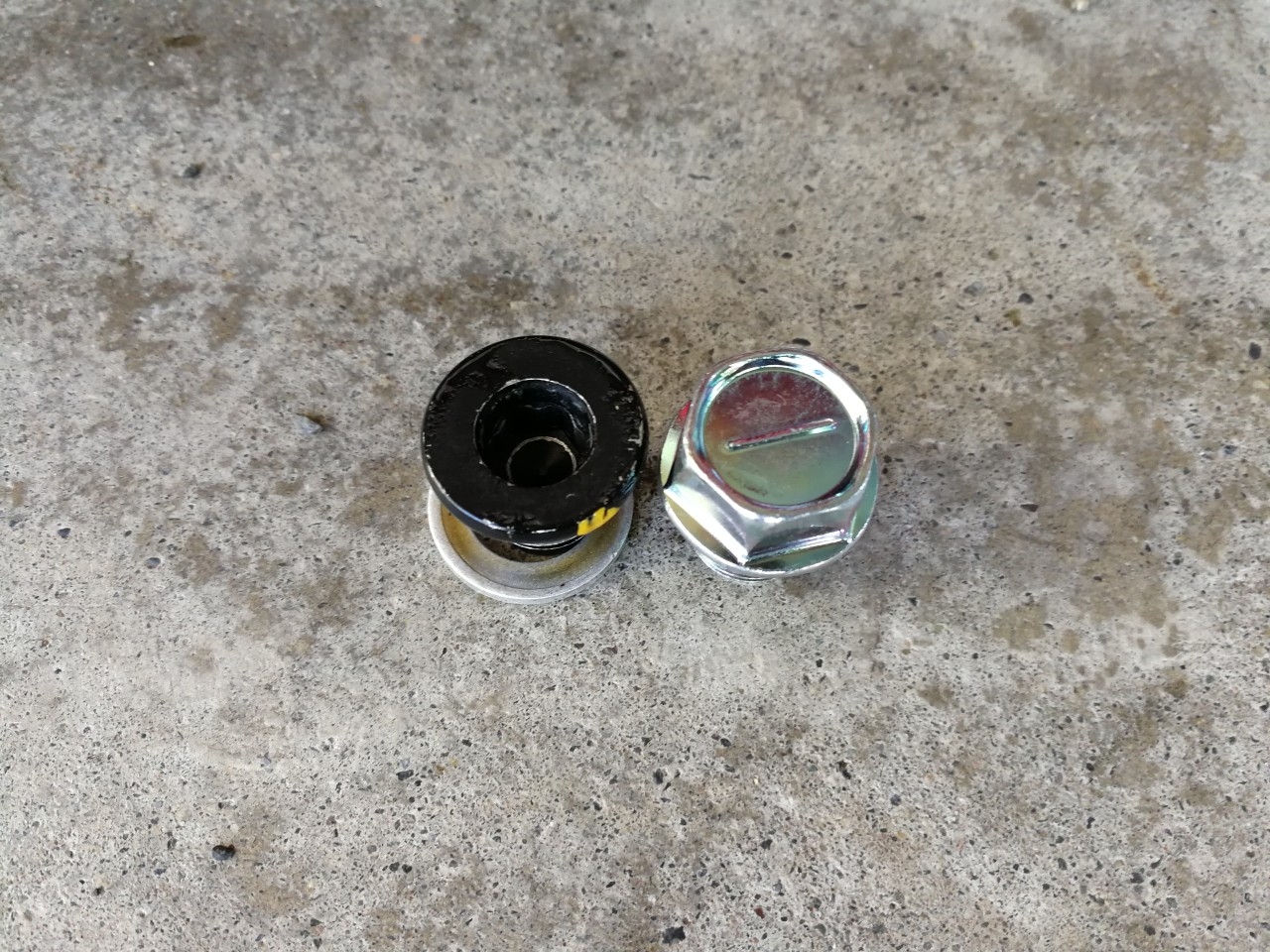

I haven't measured the exact size, but they have a better design that uses a 17mm socket versus 8mm key, which was more prone to stripping.

Still have my old one sitting around so I could measure it when I get home.

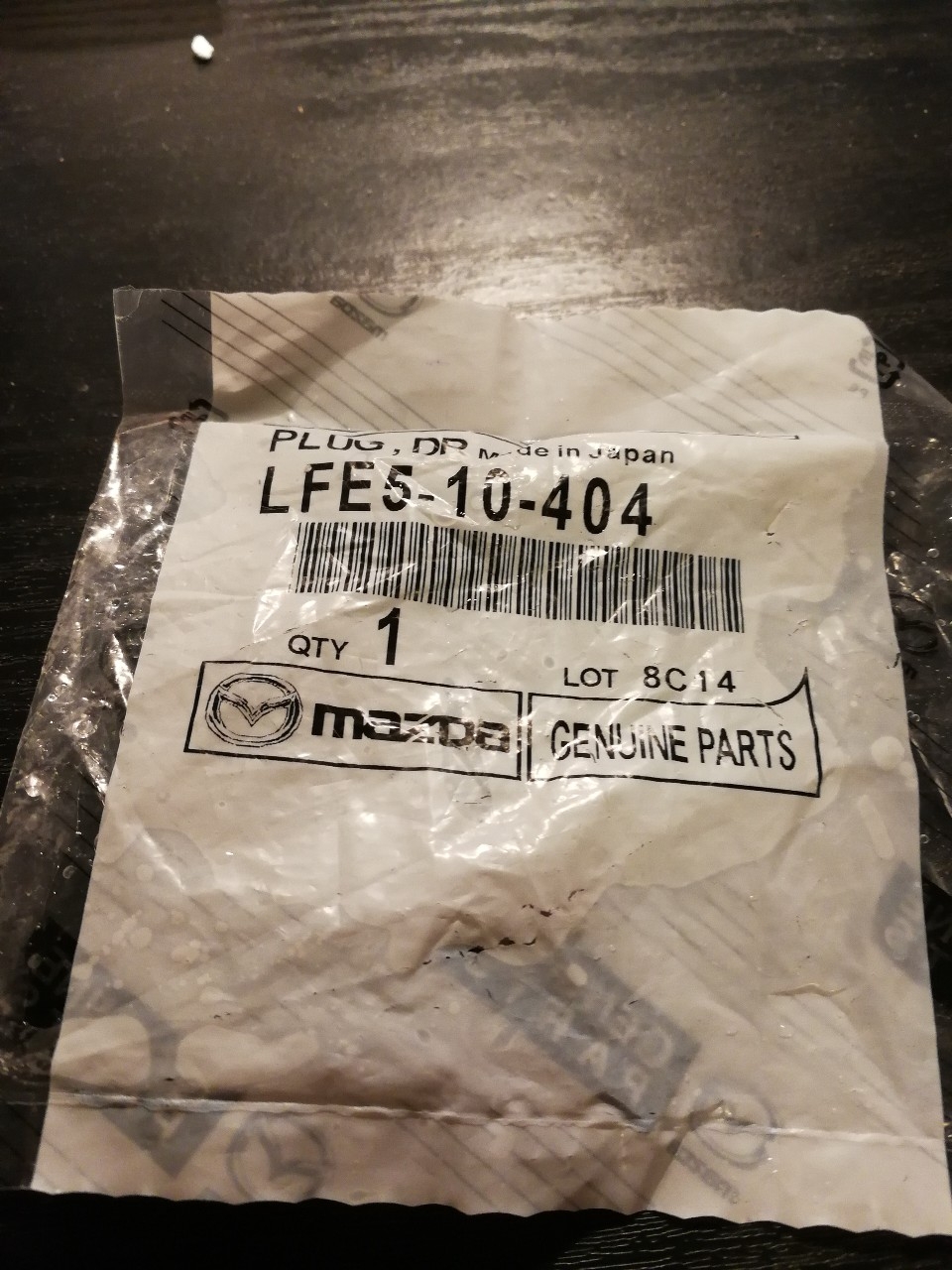

Here are some pictures of them, along with the part number of the updated plug.
Attached Thumbnails bolt size and crush washer-img_20181104_140353-1280x960.jpg   bolt size and crush washer-img_20181104_214723-960x1280.jpg   bolt size and crush washer-img_20181104_145802-1280x960.jpg

Last edited by UnknownJinX; 03-04-2019 at 03:17 PM.
UnknownJinX is offline
