I was wondering if anyone here knows the largest size of intercooler i could fit without having to cut any of the body. i was thinking that 28x7X2.5? Can anyone help me with this issue?

rotarenvy

whats the size of the standard greddy intercooler? it looks like you can add an inch to it's height (haven't measured)

chickenwafer

iTrader: (9)

I just checked mine, it's 33" endtank-to-endtank (including the entrance tubes), 24" core, 28" overall length, 9" tall, 3" thick.

rotarenvy

was that the greddy intercooler or a custom core?

staticlag

http://www.esmerilracing.com/

picture on the front has a 24x11x3 I believe

rotarenvy

have they removed the front crash beam for this mounting? it also looks upside down compared to the actual kits configuration.


this is the procharger kit intercooler location with crash beam removed. I dont know the cooler size.

staticlag

Yeah, they removed it for that kit.

The current kit is shipped with its location just squeezed in behind the front bar.

J.Cab

iTrader: (1)

i was thinking possibly doing a 30x8x2.5 do you think it would work?

rotarenvy

is the 30" with or without the end-tanks?

tdiddy

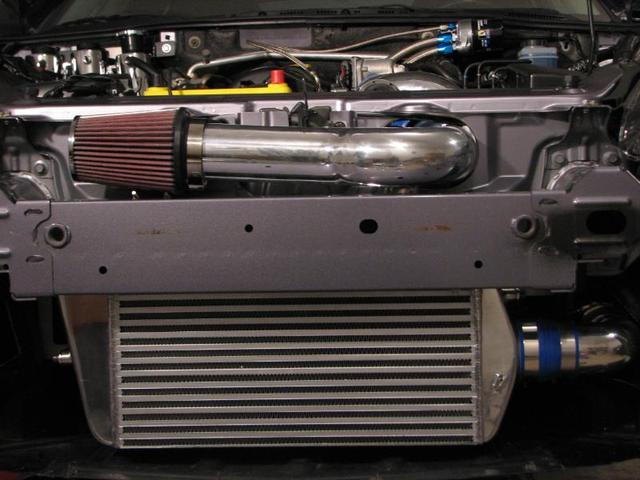

Here is what my intercooler fits like. There is absolutely no reason to remove the rebar!!!! My intercooler is 20x9.5x3.5. I think you could fit one that is 28x10x3.5 if you wanted but it would depend on how you were planning on running the piping.

chickenwafer

iTrader: (9)

Custom one, MUCH larger than the GReddy IC

StealthTL

iTrader: (1)

Got any pics.....?

S

chickenwafer

iTrader: (9)

Sure, I will take some in a minuet. But I want a cookie

chickenwafer

iTrader: (9)

Stealth, here's some pics:

rotarenvy

chickenwafer; how about mounted

chickenwafer

iTrader: (9)

Not yet, I wish. Upgrading the turbo

rotarenvy

I finally got my intercooler mounted! It's my first ever intercooler install and I'm really happy how it's working out. it's not mounted where I wanted it to go because it's too F*#ken huge I mounted it where it would fit. core size is 610 x 300mm (24"x12"). outlet to outlet it is 955mm (37.5") long.

J.Cab

iTrader: (1)

what kind of turbo kit are planning on using. that is one big intercooler. i take it a custom one? what kind/where did you get it?

paulmasoner

iTrader: (1)

That cant be stressed enough.... many of you may recall an unfortunant incident with someone dear to the community.....

that crash bar/rebar is there to save your life. does removing it mean a front end collision will certainly kill you, probably not. Do you REALLY want to find out though?!?!

rotarenvy

it's made by ARE
I had it modified since with the std straight inlet and outlet it would have been way to long. for a custom FI setup that I'm designing.
