Gauge mounting solutions
06-02-2010, 06:49 PM
#26
Registered
Join Date: Sep 2009
Location: SF Bay Area
Posts: 250
Likes: 0
Received 0 Likes
on
0 Posts
Thanks for the update. For your first attempt, the gauge pod looks pretty good.
Regarding the spot where you inserted the oil line, that's a factory plug that you removed?
Also, any reason not to use the Racing Beat water temp sensor?
Regarding the spot where you inserted the oil line, that's a factory plug that you removed?
Also, any reason not to use the Racing Beat water temp sensor?
Last edited by kster; 06-02-2010 at 06:53 PM.
06-02-2010, 07:56 PM
#27
Wants to tune my 09
Thread Starter
Join Date: May 2009
Location: Mass.
Posts: 41
Likes: 0
Received 0 Likes
on
0 Posts
Yes, that is a factory plug. The shop manual calls for Mazda techs to remove that plug and hook up their pressure gauge for troubleshooting purposes so that is a perfect place for the sensor. Since the oil temp doesn't work how I have it set up, you wouldn't even need the steel line, you could just screw the sender in after taking out that plug. I can't think of any reason not to use the RB sensor, I just felt like ordering all my stuff from one place. The upside of that one is stated...it has continuos flow. The one I and so many others have installed doesn't require cutting any coolant lines, but doesn't start to register until the thermostat kicks open, but I don't mind.
08-10-2010, 04:22 PM
#28
Registered
Join Date: Jan 2010
Posts: 15
Likes: 0
Received 0 Likes
on
0 Posts
Hi BlueR3,
I like to do the same like you.
I'm lucky someone tried it first. I was really unhappy after the mail from racingbeat as they wrote they haven't a solution.
Is the Oil temp working now?
I like to do the same like you.
I'm lucky someone tried it first. I was really unhappy after the mail from racingbeat as they wrote they haven't a solution.
Is the Oil temp working now?
08-10-2010, 10:12 PM
#29
2009 RX-8 Touring
If you want gauges that are actually useful while driving, put them on the A-pillar or the steering column. Anywhere else is too far away from where you should be looking (i.e. straight ahead) and you won't be able to monitor them out of the corner of your eye. My preferred location is the A-pillar because they don't overlap the gauges in the instrument cluster.
Here's a pic of the gauges I put in my Passat. You can see they are easily visible while keeping your eyes on the road ahead.
Here's a pic of the gauges I put in my Passat. You can see they are easily visible while keeping your eyes on the road ahead.
08-11-2010, 08:46 AM
#30
Wants to tune my 09
Thread Starter
Join Date: May 2009
Location: Mass.
Posts: 41
Likes: 0
Received 0 Likes
on
0 Posts

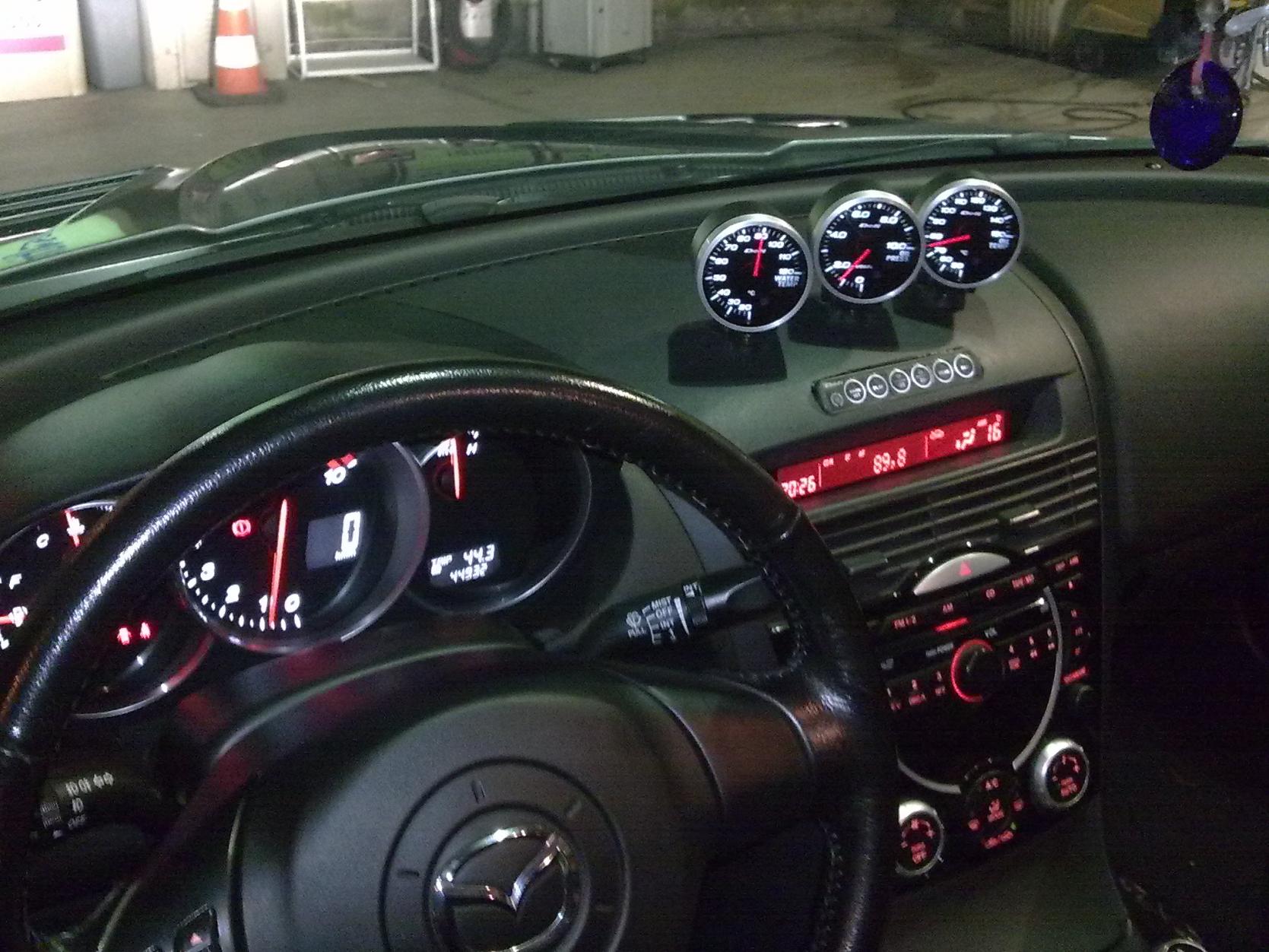

Unfotunatly I have been extremely busy this summer and havnt had a chance to rework the oil temp. I do agree that the pillar mount is easier to see but mounting there is annoying to me. I have a similar setup on my wrx but really Find it annoying because it increases the size of your blind spot a little and the gauge lighting in my eyes at night is annoying as well. The good part though is how easy the boost and egt is to read. But on the 8 a quick glance Down is no big deal to me and once I get the time to refinish the way I want, in my opinion the ashtray area is really clean looking.
08-11-2010, 09:20 AM
#31
Registered
Join Date: Jan 2010
Posts: 15
Likes: 0
Received 0 Likes
on
0 Posts
yes it's right that the ashtray isn't the best solution. If I make it there is "written in the stars".
First, important for me is the technical feasibility. Is the clearance enough to fit the pressure sensor without the hose?

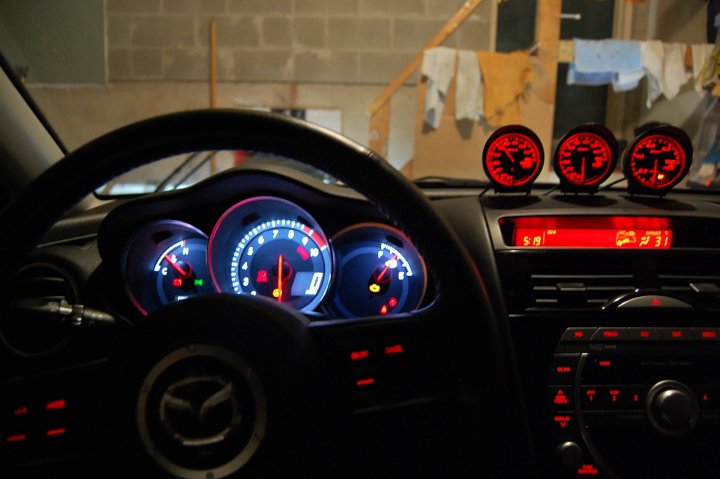

the prosport gauges are looking good.
First, important for me is the technical feasibility. Is the clearance enough to fit the pressure sensor without the hose?
the prosport gauges are looking good.
08-11-2010, 05:48 PM
#34
SARX Legend
iTrader: (46)
You could mount a fitting in the oil return line where it returns (after the coolers) the block. I forgot the size of the fitting I used when I converted to a single cooler but that would be the easy place to do it and totally removable if needed.
10-21-2010, 11:18 AM
#36
If you want gauges that are actually useful while driving, put them on the A-pillar or the steering column. Anywhere else is too far away from where you should be looking (i.e. straight ahead) and you won't be able to monitor them out of the corner of your eye. My preferred location is the A-pillar because they don't overlap the gauges in the instrument cluster.
Here's a pic of the gauges I put in my Passat. You can see they are easily visible while keeping your eyes on the road ahead.
Here's a pic of the gauges I put in my Passat. You can see they are easily visible while keeping your eyes on the road ahead.
While that looks really nice for the Passat, I have yet to find anybody making a good A-Pillar gauge pod for the RX8....
12-20-2010, 12:52 PM
#37
Yes, that is a factory plug. The shop manual calls for Mazda techs to remove that plug and hook up their pressure gauge for troubleshooting purposes so that is a perfect place for the sensor. Since the oil temp doesn't work how I have it set up, you wouldn't even need the steel line, you could just screw the sender in after taking out that plug. I can't think of any reason not to use the RB sensor, I just felt like ordering all my stuff from one place. The upside of that one is stated...it has continuos flow. The one I and so many others have installed doesn't require cutting any coolant lines, but doesn't start to register until the thermostat kicks open, but I don't mind.
. Thanks! Btw, ever find a good place for the temp sensor? Question #2 is, when installing that water sensor, I take it that unless I drain some coolant, I am going to get it pouring out of that line when i crack it open huh?
12-20-2010, 01:37 PM
#38
SARX Legend
iTrader: (46)
Ok, for oil pressure, you could use the a "T" fitting if the 09+ uses the same type of oil pressure sending unit as the 04-08's. Just install the "T" in teh factory threads on the rotor housing and then reinstall the factory oil pressure sending unit (so your gauge in the cluster still works) and then install the sending unit for the Prosport gauge (only one I know of that goes to 150psi).
For oil temp, install one of these (need to verify thread type, etc) between the oil pump and the oil cooler feed line.
For oil temp, install one of these (need to verify thread type, etc) between the oil pump and the oil cooler feed line.
12-28-2010, 05:45 PM
#39
Rotary Enthusiast

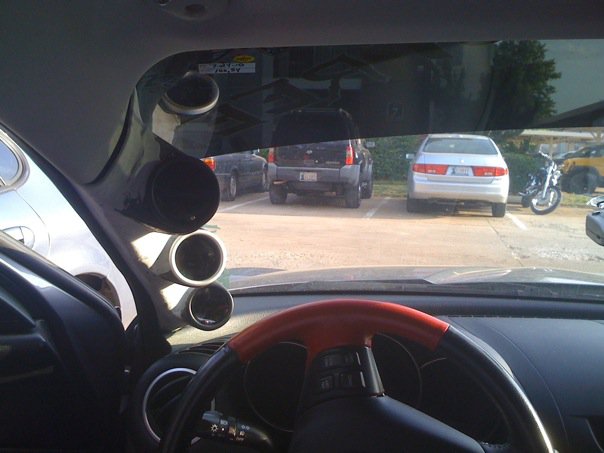

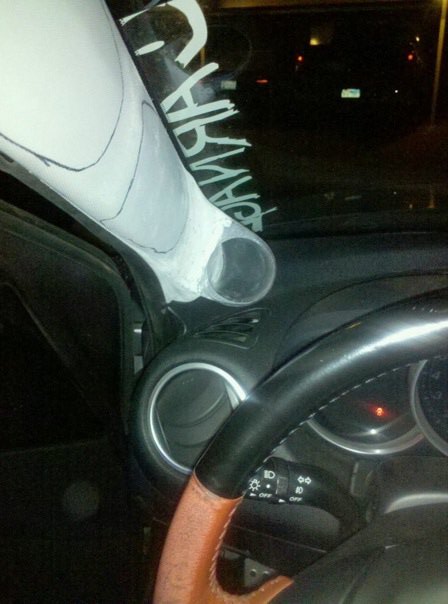

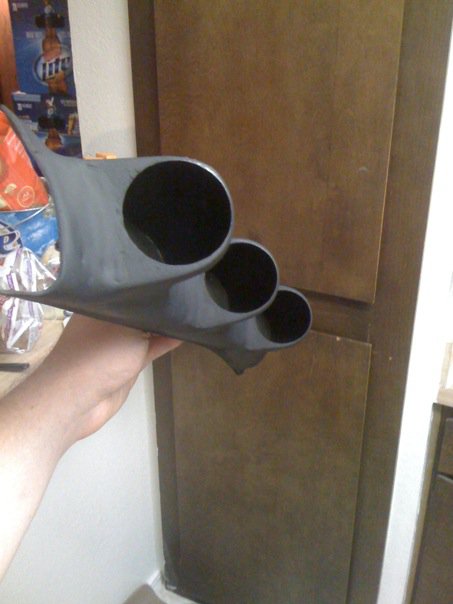

I just fabricated one! not 100% without flaws (that i know about) but works well and looks good. Painted Glossy black after the whole thing was said and done. i can get instructions and materials if Anyone needs, just PM me
Last edited by linuxadickt; 12-28-2010 at 06:15 PM.
12-28-2010, 07:46 PM
#41
Registered
Join Date: Sep 2008
Posts: 48
Likes: 0
Received 0 Likes
on
0 Posts
12-28-2010, 10:41 PM
#42
Ok, for oil pressure, you could use the a "T" fitting if the 09+ uses the same type of oil pressure sending unit as the 04-08's. Just install the "T" in teh factory threads on the rotor housing and then reinstall the factory oil pressure sending unit (so your gauge in the cluster still works) and then install the sending unit for the Prosport gauge (only one I know of that goes to 150psi).
For oil temp, install one of these (need to verify thread type, etc) between the oil pump and the oil cooler feed line.
For oil temp, install one of these (need to verify thread type, etc) between the oil pump and the oil cooler feed line.
12-28-2010, 10:56 PM
#43
Rotary Enthusiast
12-28-2010, 11:09 PM
#45
Rotary Enthusiast
http://www.glowshiftdirect.com/oilfi...5thread-1.aspx
Just make sure the senders are the right thread and size. Otherwise you can get them from glowshift. They are a bit cheaper but not bad for budget and I've not had any problems with them, just be sure to take the scratch cover off when you get them installed
Just make sure the senders are the right thread and size. Otherwise you can get them from glowshift. They are a bit cheaper but not bad for budget and I've not had any problems with them, just be sure to take the scratch cover off when you get them installed
12-28-2010, 11:51 PM
#46
<a href="http://www.glowshiftdirect.com/oilfiltersenderadapter-20mm15thread-1.aspx" target="_blank">http://www.glowshiftdirect.com/oilfiltersenderadapter-20mm15thread-1.aspx</a><br />
<br />
Just make sure the senders are the right thread and size. Otherwise you can get them from glowshift. They are a bit cheaper but not bad for budget and I've not had any problems with them, just be sure to take the scratch cover off when you get them installed
<br />
Just make sure the senders are the right thread and size. Otherwise you can get them from glowshift. They are a bit cheaper but not bad for budget and I've not had any problems with them, just be sure to take the scratch cover off when you get them installed
<br />
no wonder i was confused...these dont fit in s2's...gotta recheck where you are posting
