DIY: Improve OIL Cooler Air Flow Up to 10-15%
#151
Brand new owner...FINALLY! (05 WWP GT 33k)
This was my first mod on the car. After breaking several of the pop tabs on the passenger side, I left the piece on for the drivers side and was able to get it easily with my air saw. A dremel tool would've worked well also.
Thanks for the tips everybody
This was my first mod on the car. After breaking several of the pop tabs on the passenger side, I left the piece on for the drivers side and was able to get it easily with my air saw. A dremel tool would've worked well also.
Thanks for the tips everybody
#153
'04 Mazda RX-8
Yes, Jim, I cut a hole in my front bumper cover and installed a 4" ram air duct directly into the OEM air box. It has lowered my intake temperatures to 5 degrees above ambient outside temperature.
#154
Registered
iTrader: (1)
I did this as an emergency measure on a hot track day. My temp on the first run hit 230, on subsequent runs after this mod peak of 219 (and it got hotter outside later in the day). Not bad for 5 minutes work.
As far as intake temp, I read IAT at 2-3F above ambient at speed (60mph+) with the stock intake.
As far as intake temp, I read IAT at 2-3F above ambient at speed (60mph+) with the stock intake.
#157
Registered
iTrader: (15)
for those of you further north, I would consider creating some sort of "cover" that takes up half of the oil coolers for the winter.
Not sure about most of you, but I have trouble getting my oil temps up to a good level in the winter time without this "mod". Creating a little "shield" that blocked half of each of my coolers helped.
Not sure about most of you, but I have trouble getting my oil temps up to a good level in the winter time without this "mod". Creating a little "shield" that blocked half of each of my coolers helped.
#158
for those of you further north, I would consider creating some sort of "cover" that takes up half of the oil coolers for the winter.
Not sure about most of you, but I have trouble getting my oil temps up to a good level in the winter time without this "mod". Creating a little "shield" that blocked half of each of my coolers helped.
Not sure about most of you, but I have trouble getting my oil temps up to a good level in the winter time without this "mod". Creating a little "shield" that blocked half of each of my coolers helped.
This may be the reason Mazda designed them the way they are. I am sure there is enough cooling for street use. Track use is different... I guess you could also use tape to reduce cooling in colder temps.
#161
Super Moderator
Thread Starter
Yep..

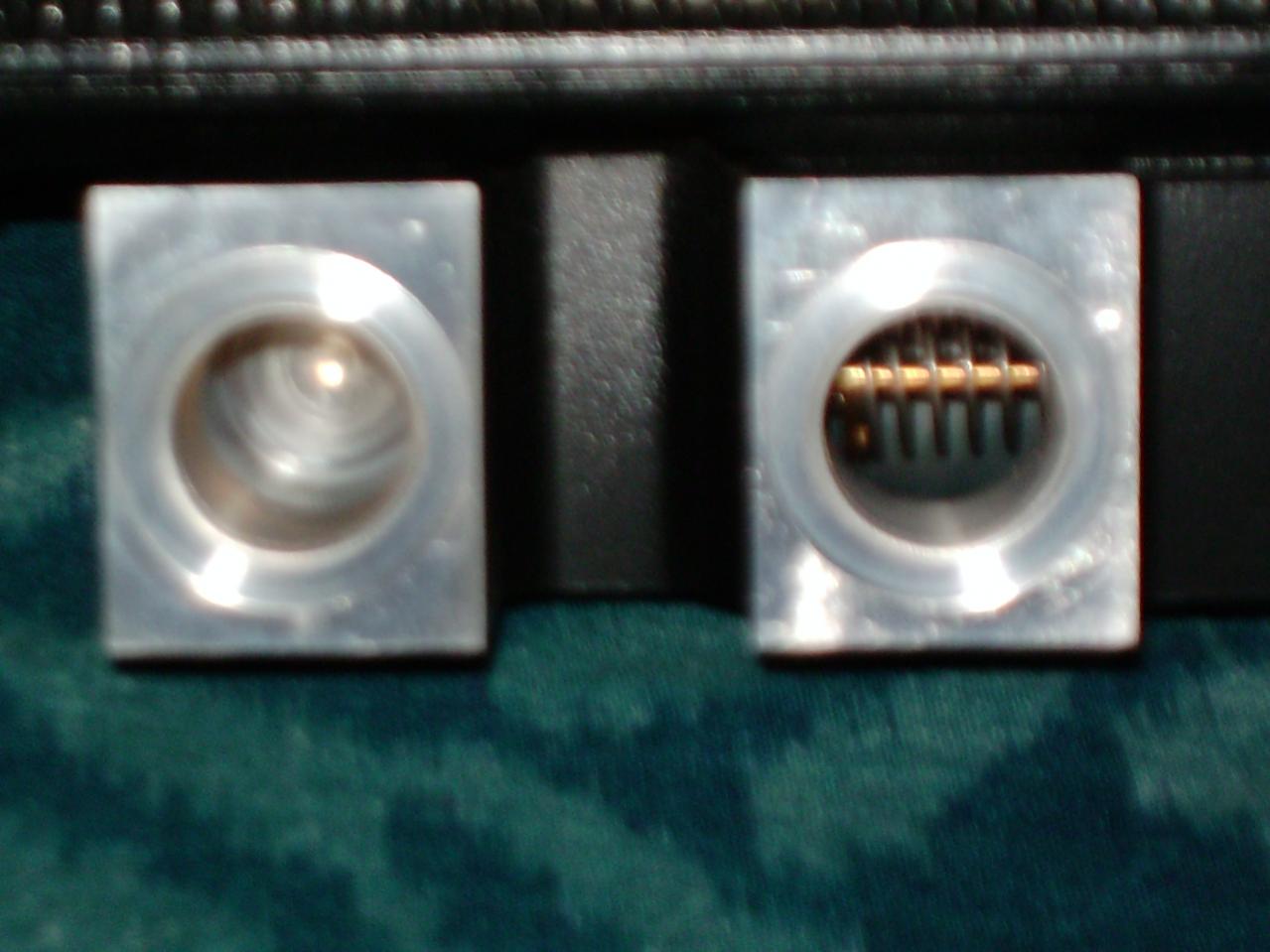

Series II Oil Cooler Thermostat in Pic (slightly blurry)..
Series II Oil Cooler Thermostat in Pic (slightly blurry)..
#163
Super Moderator
Thread Starter
There is always oil flowing through oil coolers partially when cold, the thermostat is basically a standard restrictive flow type.
#164
I cut out as much as I could still leaving a bit of the curved lip for stength. The screen I oversized to allow a gap between it and the vents to prevent loss of airflow from debris and to absorb rocks or anything else from the tire. And it turns out it looks cool lol. My weapon of choice was an angle grinder with cut off wheel. Then just clean the surfaces and use silicone to hold the screen in place.
Last edited by Red Ryno; 07-30-2015 at 10:36 PM.
#165
Super Moderator
Thread Starter
PLEASE take a look at this link, we need your help now, it is self explained.
