Custom LS2 Ignition Install
For those of you who haven't been following a few other threads I have been posting in, I have been working on a DIY LS2 ignition installation and finally got around to installing it yesterday. Here are some shots of my work:

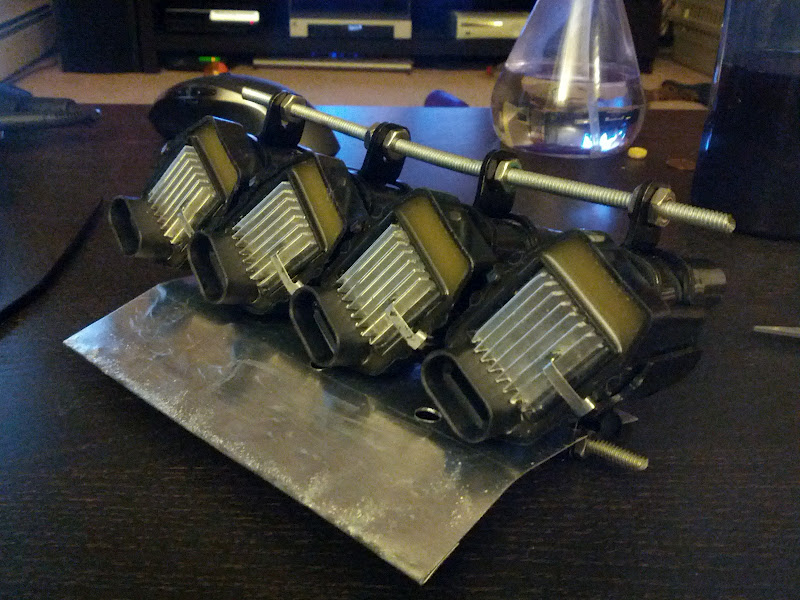

Mocking Up

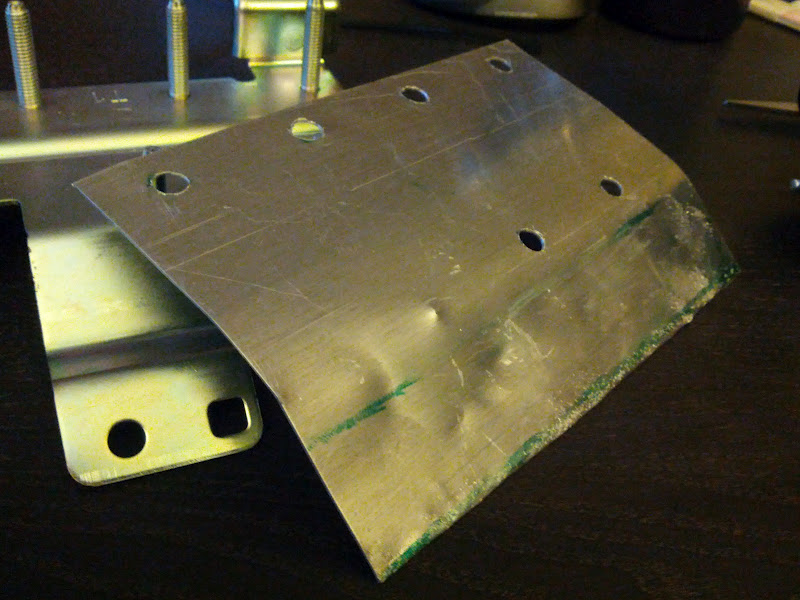

Fabbing Up a Mouting Plate




Installing Coils on Plate




Installing Assembly to OEM Bracket

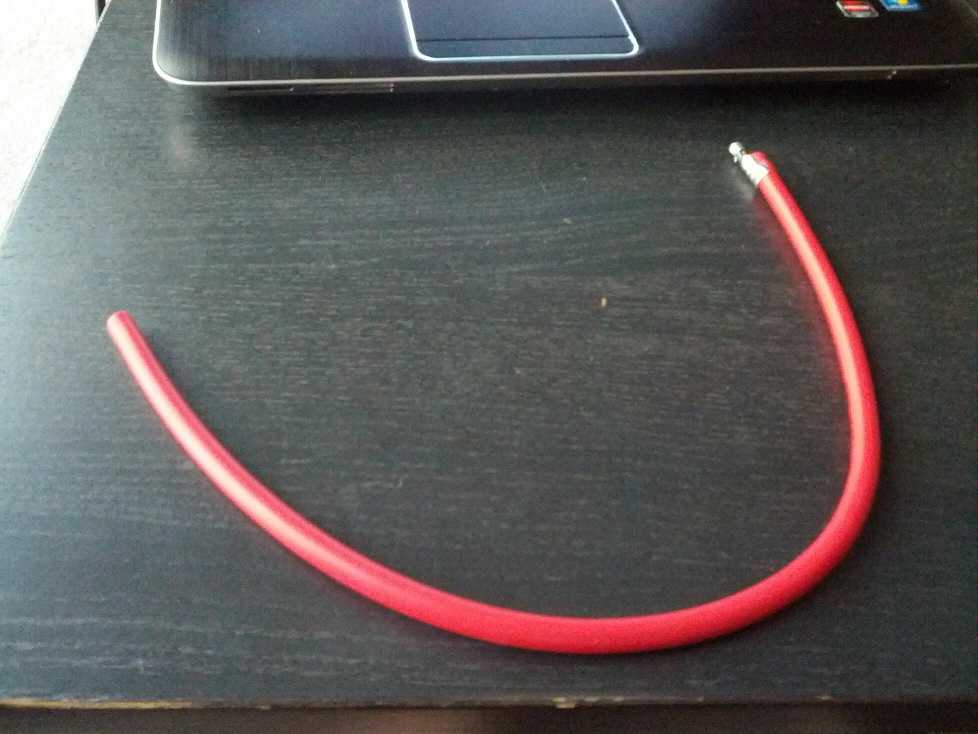

Creating LS2 Wires












Fully Assembled Kit


Removing OEM Coils


Installing LS2 Coils




All Buttoned Up
paimon.soror is offline
Reply Like
Old 03-23-2012, 06:37 AM
  #2
wcs
no agenda
iTrader: (2)

wcs's Avatar

Join Date: Feb 2005
Location: Ontario
Posts: 5,210
Received 62 Likes on 54 Posts
Nice .... now get back to work
wcs is offline
Reply Like
Old 03-23-2012, 06:43 AM
  #3
Angler of the Year
iTrader: (3)

slvrstreak's Avatar

Join Date: Dec 2009
Location: George-uhh
Posts: 1,557
Likes: 0
Received 5 Likes on 4 Posts
well done paimon
slvrstreak is offline
Reply Like
Old 03-23-2012, 06:59 AM
  #4
Registered
Thread Starter
iTrader: (15)

paimon.soror's Avatar

Join Date: Jun 2010
Location: Between Cones
Posts: 7,560
Received 25 Likes on 23 Posts
i love you guys
paimon.soror is offline
Reply Like
Old 03-23-2012, 08:20 AM
  #5
Turbo Member
iTrader: (10)

Chris's Avatar

Join Date: May 2006
Location: Tampa, FL
Posts: 2,496
Likes: 0
Received 14 Likes on 10 Posts
how are you grounding them?
Chris is offline
Reply Like
Old 03-23-2012, 08:26 AM
  #6
Registered
Thread Starter
iTrader: (15)

paimon.soror's Avatar

Join Date: Jun 2010
Location: Between Cones
Posts: 7,560
Received 25 Likes on 23 Posts
Originally Posted by Chris
how are you grounding them?
the harness has a ground running from each coil to a single grounding wire. That wire is grounded to the engine's ground point right above the coils.
paimon.soror is offline
Reply Like
Old 03-23-2012, 08:32 AM
  #7
Time for boost...
iTrader: (24)

RX8Soldier's Avatar

Join Date: Jun 2010
Location: Canada
Posts: 5,414
Likes: 0
Received 15 Likes on 14 Posts
Bravo, monsieur!
I've just enjoyed another episode of "Paimon Presents..."

How tight is the fit in the engine?
RX8Soldier is offline
Reply Like
Old 03-23-2012, 08:37 AM
  #8
Registered
Thread Starter
iTrader: (15)

paimon.soror's Avatar

Join Date: Jun 2010
Location: Between Cones
Posts: 7,560
Received 25 Likes on 23 Posts
oh it's in there nice and snug ... took me a hell of a time getting in since the mains harness runs right around there. But i use all the same mounting holes as OEM so it is bolted in there and doesn't move around
paimon.soror is offline
Reply Like
Old 03-23-2012, 08:39 AM
  #9
Turbo Member
iTrader: (10)

Chris's Avatar

Join Date: May 2006
Location: Tampa, FL
Posts: 2,496
Likes: 0
Received 14 Likes on 10 Posts
Originally Posted by paimon.soror
the harness has a ground running from each coil to a single grounding wire. That wire is grounded to the engine's ground point right above the coils.
haha, derp derp derp, you would think I would have seen that
Chris is offline
Reply Like
Old 03-23-2012, 07:57 PM
  #10
Registered
iTrader: (1)

Motomouse's Avatar

Join Date: May 2006
Location: Clifton, NJ
Posts: 402
Likes: 0
Received 1 Like on 1 Post
can we know how much it cost you in parts ??
Motomouse is offline
Reply Like
Old 03-23-2012, 07:59 PM
  #11
Registered
Thread Starter
iTrader: (15)

paimon.soror's Avatar

Join Date: Jun 2010
Location: Between Cones
Posts: 7,560
Received 25 Likes on 23 Posts
I managed to get the coils at a really good price (100 total for all 4), and then the wires and boots cost me a total of roughly 100. Throw in the sheet of aluminum and the screw dowels, and i would say about $220, and if you throw in the OEM coil bracket it would be a total of $260

edit: forgot to throw in the RX8 -> LS2 harness which was another $100 .... so we are looking at about $360ish
Last edited by paimon.soror; 03-23-2012 at 10:51 PM.
paimon.soror is offline
Reply Like
Old 03-23-2012, 10:48 PM
  #12
No respecter of malarkey
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 26,719
Received 2,007 Likes on 1,636 Posts
don't forget the PnP wiring harness cost
TeamRX8 is offline
Reply Like
Old 03-23-2012, 10:51 PM
  #13
Registered
Thread Starter
iTrader: (15)

paimon.soror's Avatar

Join Date: Jun 2010
Location: Between Cones
Posts: 7,560
Received 25 Likes on 23 Posts
^ aha! thanks, edited the post
paimon.soror is offline
Reply Like
Old 03-23-2012, 11:07 PM
  #14
Registered
iTrader: (1)

RotaryTherapy's Avatar

Join Date: Jun 2009
Location: Paramaribo, Suriname ( South America )
Posts: 697
Likes: 0
Received 0 Likes on 0 Posts
Where'd you ground yours exactly ? Others told me to ground on the driver side somewhere. But my PnP wiring harness was long enough to routed directly unto the battery's negative terminal.
RotaryTherapy is offline
Reply Like
Old 03-23-2012, 11:27 PM
  #15
Registered
Thread Starter
iTrader: (15)

paimon.soror's Avatar

Join Date: Jun 2010
Location: Between Cones
Posts: 7,560
Received 25 Likes on 23 Posts
there is a bolt right above where the coils are. There is something already being grounded over there, so I just tapped into that.
paimon.soror is offline
Reply Like
Old 03-24-2012, 09:25 AM
  #16
No respecter of malarkey
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 26,719
Received 2,007 Likes on 1,636 Posts
eventually you will need this too, regardless of coil/wire type

https://www.rx8club.com/series-i-do-yourself-forum-73/diy-testing-all-rx-8-coils-gm-ls2-yukon-coils-sparkplug-wires-222641/
TeamRX8 is offline
Reply Like
Old 03-24-2012, 10:27 AM
  #17
running on double cream!
iTrader: (1)

rickeo's Avatar

Join Date: Aug 2005
Location: Doylestown, PA
Posts: 870
Likes: 0
Received 3 Likes on 2 Posts
Originally Posted by TeamRX8
eventually you will need this too, regardless of coil/wire type

https://www.rx8club.com/showthread.php?t=222641
Beautiful little tool that is a mainstay in my toolbox now. That was an awesome DIY Team that helped me diagnose a bad BHR coil. (Which Charles promptly replaced!)
rickeo is offline
Reply Like
Old 06-08-2012, 08:52 AM
  #18
Registered
iTrader: (3)

olddragger's Avatar

Join Date: Apr 2004
Location: macon, georgia
Posts: 10,828
Likes: 0
Received 38 Likes on 27 Posts
does anyone know what the S2 dwell tables show?
olddragger is offline
Reply Like
Old 07-03-2012, 04:53 AM
  #19
No respecter of malarkey
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 26,719
Received 2,007 Likes on 1,636 Posts
Originally Posted by rickeo
Beautiful little tool that is a mainstay in my toolbox now. That was an awesome DIY Team that helped me diagnose a bad BHR coil. (Which Charles promptly replaced!)
This is more common than people realize. It does not get discussed openly much. I developed the DIY troubleshooting a brand new BHR assembly that came with a bad coil. It was promptly replaced once I brought it to their attention. There is no magic at work here. These can fail no different than an OE coil for all the same reasons.

Originally Posted by olddragger
does anyone know what the S2 dwell tables show?
Unless they have access to the OE map how would they and why would it matter when there is no tuning solution to access and change it?
TeamRX8 is offline
Reply Like
Old 02-12-2013, 01:02 PM
  #20
Registered
iTrader: (1)

Joe814's Avatar

Join Date: Jan 2013
Location: Manhattan,IL
Posts: 134
Likes: 0
Received 5 Likes on 5 Posts
What coils did you use. D585s? Where did you find them at that price!?!?
Joe814 is offline
Reply Like
Old 02-12-2013, 01:03 PM
  #21
Registered
Thread Starter
iTrader: (15)

paimon.soror's Avatar

Join Date: Jun 2010
Location: Between Cones
Posts: 7,560
Received 25 Likes on 23 Posts
D585s and i got them from a member here
paimon.soror is offline
Reply Like
Old 02-13-2013, 12:40 PM
  #22
Registered
iTrader: (1)

Joe814's Avatar

Join Date: Jan 2013
Location: Manhattan,IL
Posts: 134
Likes: 0
Received 5 Likes on 5 Posts
Damn!!!! I'm trying to hunt some down
Joe814 is offline
Reply Like
Old 04-04-2013, 02:41 PM
  #23
Registered

C Del's Avatar

Join Date: Apr 2013
Location: Easton, PA
Posts: 35
Likes: 0
Received 1 Like on 1 Post
Forgive the ignorance, but what is the advantage of using LS2 coils? Higher output voltage/current? How does this compare to BHR's ignition kit?
C Del is offline
Reply Like
Old 06-28-2013, 06:06 PM
  #24
Registered user
iTrader: (7)

Novoken's Avatar

Join Date: Feb 2011
Location: NC
Posts: 700
Likes: 0
Received 0 Likes on 0 Posts
looks great!!! so you cant use rx8 8.5mm wires?
Novoken is offline
Reply Like
Old 07-01-2013, 09:29 PM
  #25
No respecter of malarkey
iTrader: (25)

TeamRX8's Avatar

Join Date: Apr 2005
Posts: 26,719
Received 2,007 Likes on 1,636 Posts
if you don't adjust the PCM dwell table they make less spark energy than the OE coils from around 5000 rpm to redline
TeamRX8 is offline
