Old 05-04-2015, 11:18 AM
  #326
Pew Pew Pew
iTrader: (10)

J8635621's Avatar

Join Date: Jun 2007
Location: Waco
Posts: 6,344
Received 128 Likes on 89 Posts
what is MPSS? michelin pilot sport? Yea those will probably rub since they are way wider than normal.
Old 05-04-2015, 12:05 PM
  #327
New Member

Abius's Avatar

Join Date: Jul 2014
Posts: 9
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by J8635621
what is MPSS? michelin pilot sport? Yea those will probably rub since they are way wider than normal.
Yes they are the Michelin Pilot Super Sport.

As is with the original tires and spacers the lip/rim protector passes very slightly the fender of the car.

With the stretch of the tire, if there is any bump it seems the fender would drop into the sidewall. Although I am at stock height so it would have to be a hell of a bump. As of yet I havnt had any rubbing.

The price of the two size tires are about 40$ more per tire. The increase in tire size was more for the look then anything.

If anyone has any other input, would be appreciated.

Thanks,
Old 05-04-2015, 12:09 PM
  #328
Pew Pew Pew
iTrader: (10)

J8635621's Avatar

Join Date: Jun 2007
Location: Waco
Posts: 6,344
Received 128 Likes on 89 Posts
It will look stupid at stock height + it will rub. The wheel/tire doesn't go straight up when it hits a bump just fyi. It tilts inward.
Old 05-04-2015, 01:03 PM
  #329
New Member

Abius's Avatar

Join Date: Jul 2014
Posts: 9
Likes: 0
Received 0 Likes on 0 Posts
The two tires will be virtually the same diameter(-0.33 inch smaller with the 245).

How would it look stupid?
Old 05-04-2015, 01:45 PM
  #330
Pew Pew Pew
iTrader: (10)

J8635621's Avatar

Join Date: Jun 2007
Location: Waco
Posts: 6,344
Received 128 Likes on 89 Posts
Look up comparisons of the width of MPSS vs regular tires. It'll poke beyond the fender even more than what you have now and from what you said, it is already poking.
Old 05-04-2015, 04:50 PM
  #331
New Member

Abius's Avatar

Join Date: Jul 2014
Posts: 9
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by J8635621
Look up comparisons of the width of MPSS vs regular tires. It'll poke beyond the fender even more than what you have now and from what you said, it is already poking.
I see, I see.

I will probably just stick with the stock tire size.

Ill be back once the tires are install and post pictures.

Thanks!
Old 05-04-2015, 06:24 PM
  #332
Pew Pew Pew
iTrader: (10)

J8635621's Avatar

Join Date: Jun 2007
Location: Waco
Posts: 6,344
Received 128 Likes on 89 Posts
PS: lower the car
Old 05-05-2015, 07:16 AM
  #333
New Member

Abius's Avatar

Join Date: Jul 2014
Posts: 9
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by J8635621
PS: lower the car
lol

Going to get over the wallet pain of these tires first. Then Ill probably look into.

I have a 2010, only has 12,000KM (7500miles) on it right now.
Old 07-13-2015, 03:43 PM
  #334
Registered

Eastcoastmod's Avatar

Join Date: Jun 2015
Location: CANADA EAST COAST
Posts: 16
Likes: 0
Received 0 Likes on 0 Posts

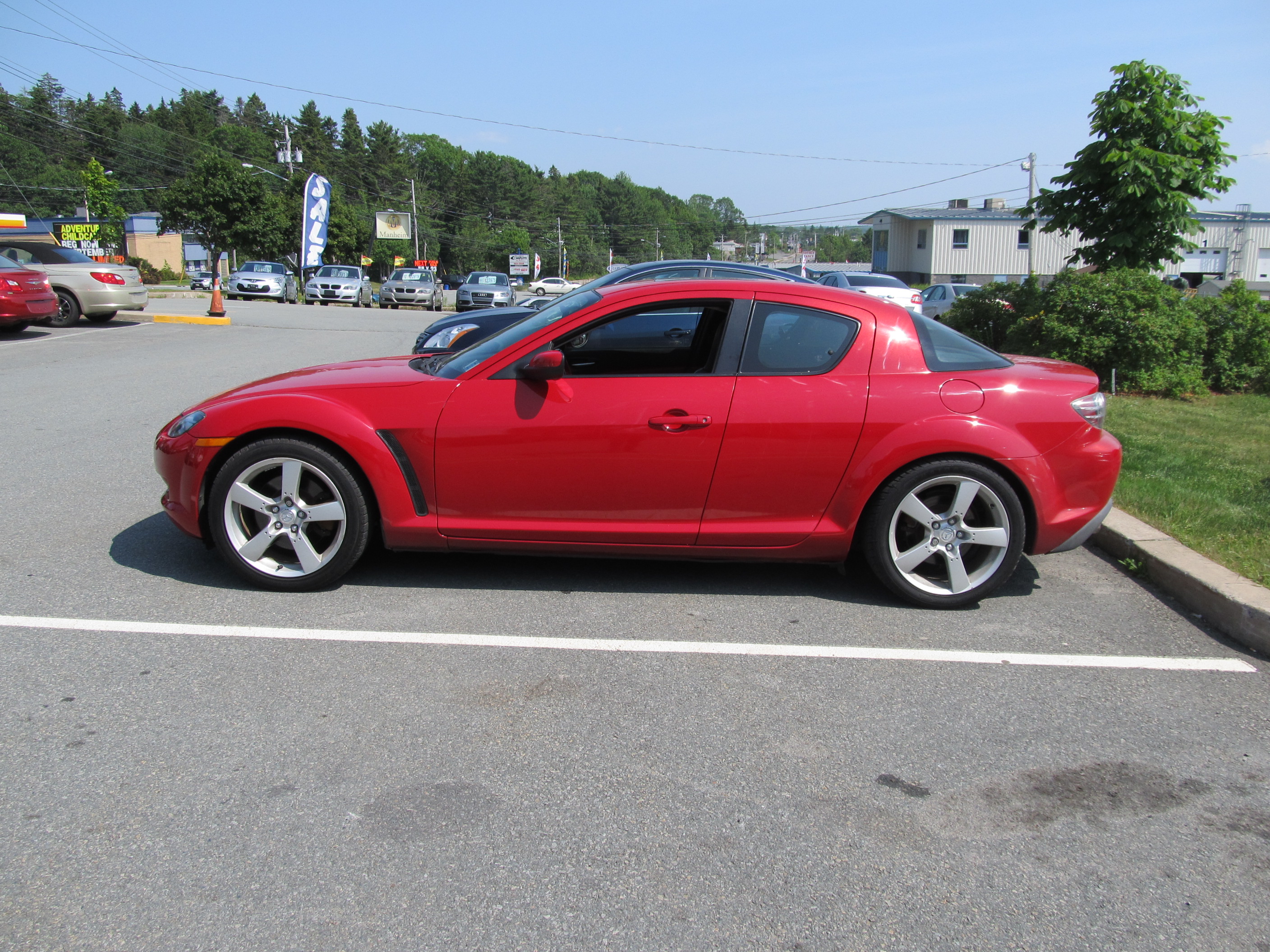

225 front 245 rear 25mm spacers curious if this is stock height or not

225/45 front 245/40 rear 25mm spacers Stock rims
It's suspension time and I want to go lower.
I'm just curious if this is the stock height with the rear sitting a bit lower?
Attached Thumbnails 25MM spacers with stock wheels and 245/40-18's = Flush :)-img_5197.jpg
Old 07-13-2015, 03:45 PM
  #335
SARX Legend
Thread Starter
iTrader: (46)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 33,784
Received 452 Likes on 366 Posts
Sagging rear OEM shocks, it is normal with age.
Old 07-13-2015, 04:17 PM
  #336
Registered

Eastcoastmod's Avatar

Join Date: Jun 2015
Location: CANADA EAST COAST
Posts: 16
Likes: 0
Received 0 Likes on 0 Posts
Thankyou
Old 03-06-2016, 10:28 PM
  #337
Registered

GM Enthusiast's Avatar

Join Date: Sep 2015
Location: Phoenix, AZ
Posts: 27
Likes: 0
Received 0 Likes on 0 Posts
Based on the info I got from this thread, I did 25mm spacers all the way around with Goodyear 245/40/18's and otherwise completely stock suspension. The front most definitely is not flush...



I ended up going down to 20mm spacers in the front.

Also there's some misinformation in this thread about having to cut the studs to fit 20mm spacers. There is more then enough room in the stock wheels to fit 20mm spacers without modification.
Old 03-07-2016, 10:27 AM
  #338
SARX Legend
Thread Starter
iTrader: (46)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 33,784
Received 452 Likes on 366 Posts
I don't think anyone would say that it would sit flush on stock suspension. Greatly lower offset wheel will always look silly without lowering the car. Plenty of people have ran 20mm spacers without cutting studs so I'm not sure where that info was posted.


Edit: I saw Viper said that but it doesn't make sense, maybe his spacers were not actually 20mm. But yeah, don't believe everything you read.

Last edited by 9krpmrx8; 03-07-2016 at 10:32 AM.
Old 03-07-2016, 01:00 PM
  #339
Registered

GM Enthusiast's Avatar

Join Date: Sep 2015
Location: Phoenix, AZ
Posts: 27
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by 9krpmrx8
I don't think anyone would say that it would sit flush on stock suspension. Greatly lower offset wheel will always look silly without lowering the car.
Suspension mods are definitely coming up soon. However, lowering the car wouldn't do anything about the tire sticking out from the wheel well almost 1/2". I think with the stock 225/45 it would be flush, but the thread title itself says 245/40. Maybe its something specific to the Goodyear rubber? I honestly don't know. I just know in my case 20mm spacers in the front worked much better (still not perfect, but close enough). I'm hanging on to the 25mm for now though and see what happens when its time for new rubber.

Originally Posted by 9krpmrx8
Edit: I saw Viper said that but it doesn't make sense, maybe his spacers were not actually 20mm. But yeah, don't believe everything you read.
Its possible that those couple of people that said it didn't bother to look at the back of their wheels and notice that there's plenty of room (or even see the picture you posted). I just wanted to call it out for future people, so they don't do anything they don't need to do.
Old 03-07-2016, 01:04 PM
  #340
SARX Legend
Thread Starter
iTrader: (46)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 33,784
Received 452 Likes on 366 Posts
Lowering the car would definitely tuck in the tops of the wheels, look at the pics posted in the first post with 25mm spacers, 245/40-18 tires, lowered on Tein S techs.
Old 03-07-2016, 06:29 PM
  #341
Pew Pew Pew
iTrader: (10)

J8635621's Avatar

Join Date: Jun 2007
Location: Waco
Posts: 6,344
Received 128 Likes on 89 Posts
Goodyear tires are wider than most
Old 07-26-2016, 11:02 AM
  #342
Registered

gwailo's Avatar

Join Date: Aug 2015
Location: Everett, WA
Posts: 32
Likes: 0
Received 2 Likes on 2 Posts
Setup:
stock wheels
Tein S Tech lowering springs
Garageline 25mm spacers
Firestone Firehawk Indy 500 245/40/18

Rubbing constantly with passenger and occasionally riding solo with very mild driving. I hesitate to get spirited because I fear hard cornering will rub like crazy. I cannot argue with how it looks but I now cannot drive the car the way God intended.

My question:

Will going back to stock tire width of 225 (keeping the 40 sidewall) potentially cure rubbing issues? Or will I need to remove the 25mm spacers? I've read about minor rubbing on maybe harder than normal driving or with several people in the car but I am experiencing rubbing on a regular basis with one passenger under normal and even careful driving styles.

Could my shocks be shot? I was not expecting this much of an issue.. Love the look though! Lol


Last edited by gwailo; 07-26-2016 at 11:06 AM.
Old 07-26-2016, 10:26 PM
  #343
Registered

JamesD31's Avatar

Join Date: Aug 2012
Location: Chicago, IL
Posts: 466
Likes: 0
Received 0 Likes on 0 Posts
i run 245 Z2's with 18x9 with I think (I forget) 38 offset, wheels on stock suspension right now and no rubbing. I obviously need to lower my car, but it sits pretty damn flush and have had no problems.
Old 08-01-2016, 09:57 AM
  #344
Registered

GM Enthusiast's Avatar

Join Date: Sep 2015
Location: Phoenix, AZ
Posts: 27
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by gwailo
Could my shocks be shot? I was not expecting this much of an issue.. Love the look though! Lol
I'd guess you probably do.

My passenger rear shock is completely shot, and on that side I experience exactly what you describe. I have a brand new set of KYBs and Tein S-techs just waiting for it to cool off a bit in AZ.

The thing is the area it rubs is pretty small. With the 245s and 25mm spacer, it rubs I'd say about 1/2" of the inner fender lip. So just to be safe, along with the new shocks and springs, a friend of mine has a fender rolling tool that I'm going to use to gently massage that fender lip up and out just a bit. If all goes right it won't push the actual fender itself out at all, just the inner lip.
Old 08-01-2016, 10:26 AM
  #345
SARX Legend
Thread Starter
iTrader: (46)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 33,784
Received 452 Likes on 366 Posts
Yep, time for new shocks.
Old 08-13-2016, 03:50 PM
  #346
Registered

gwailo's Avatar

Join Date: Aug 2015
Location: Everett, WA
Posts: 32
Likes: 0
Received 2 Likes on 2 Posts
Do I smell coilovers?
Old 04-04-2017, 08:53 PM
  #347
Registered

interog8's Avatar

Join Date: Feb 2009
Location: Alberta, Canada
Posts: 75
Likes: 0
Received 0 Likes on 0 Posts
Hi everyone, would really appreciate some advice on what size spacers I need to get a flush look with my wheels. Front is 235/35/19 8.5s +45, rear is 265/30/19 9.5s +35 lowered on Tein S techs

Old 04-04-2017, 10:10 PM
  #348
SARX Legend
Thread Starter
iTrader: (46)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 33,784
Received 452 Likes on 366 Posts
15-20mm up front and 5mm or 10mm depending on how aggressive you want to get.

My car is the same size wheels and +24 up front and +27 in the rear. So depending on your suspension, you can make it work.


Last edited by 9krpmrx8; 04-04-2017 at 10:13 PM.
Old 04-05-2017, 12:23 PM
  #349
Registered

interog8's Avatar

Join Date: Feb 2009
Location: Alberta, Canada
Posts: 75
Likes: 0
Received 0 Likes on 0 Posts
Thanks 9k - car looks awesome, exactly what I am going for! Any rubbing issues? Did you have to roll the fenders at all?
Old 04-05-2017, 01:13 PM
  #350
SARX Legend
Thread Starter
iTrader: (46)

9krpmrx8's Avatar

Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 33,784
Received 452 Likes on 366 Posts
Yeah in the front I get some rubbing at full lock on the fender liners. I did roll the fenders but I also run tires that fit as they should, no stretch BS.
