KY Starter not engaging the flywheel

2004 mazda rx8 84K 6spd

The car was not starting...(not flooded)...the oem starter would not engage... it tested bad.... so i got a new starter from advance.... after i put it in it the starter would not hit the flywheel and engage... so i got a new battery with 850 cold cranking amps... nothing changed... took the starter back and got another one.... still will not hit the flywheel... so i take it to advance and a local starter shop to test the starter and both said it checked good...i took the car to a local mechanic to have him put it in and still the same he told me the starter is missing the flywheel by an 1/8 inch..so i went and got another starter from advance.... still the same... the starter from advance had the part number n3h1-18-400 (right starter for the car) and they told me it was the updated starter and was putting out the right amps....... the car still has the factory flywheel... any suggestions.... HELP PLEASE..... all the teeth on the flywheel is good by the way.... has anyone had the same problem????


Thanks

JOHN
This ad is not displayed to registered and logged-in members.
Register your free account today and become a member on RX8Club.com!
Spyderjhv1997 is offline   Reply With Quote
Old 09-07-2009, 09:23 PM   #2
Back in NYC, till OCT

nycgps's Avatar

Trader Score: (1)
Join Date: Jun 2005
Location: Planet Earth
Posts: 19,549
Quote:
Originally Posted by Spyderjhv1997 View Post
2004 mazda rx8 84K 6spd

The car was not starting...(not flooded)...the oem starter would not engage... it tested bad.... so i got a new starter from advance.... after i put it in it the starter would not hit the flywheel and engage... so i got a new battery with 850 cold cranking amps... nothing changed... took the starter back and got another one.... still will not hit the flywheel... so i take it to advance and a local starter shop to test the starter and both said it checked good...i took the car to a local mechanic to have him put it in and still the same he told me the starter is missing the flywheel by an 1/8 inch..so i went and got another starter from advance.... still the same... the starter from advance had the part number n3h1-18-400 (right starter for the car) and they told me it was the updated starter and was putting out the right amps....... the car still has the factory flywheel... any suggestions.... HELP PLEASE..... all the teeth on the flywheel is good by the way.... has anyone had the same problem????


Thanks

JOHN
you either install it wrong. or you got the 09+ starter. (I think its the same tho. hmm need to check)
__________________
ロータリーエンジン
nycgps is offline   Reply With Quote
Old 09-07-2009, 09:34 PM   #3
Grasshopper

Jon316G's Avatar

Trader Score: (1)
Join Date: Dec 2006
Location: Streetsboro, OH
Posts: 6,694
I'm curious how they could tell it was missing the flywheel by 1/8"

First thing you would normally check is the gap for the drive pinion while its extended out, but with a new (and multiple) starters having the same "issue" I really doubt this is something you need to do.
How exactly are they testing the starter?
Just applying voltage to the solenoid to watch the drive pinion extend out?

Like nycgps mentioned... might be the wrong starter.
__________________
Current Mods: RB REVi Intake & Ram Air Duct, AP Catback Exhaust, MazSport DR Midpipe, AP Pulley, BHR Ignition Coils, BHR/SPEC Flywheel, ACT Counterweight, Exedy Stage 1 Clutch Kit, HD Release Bearing, AccessPort w/MazdaManiac tune, REmedy Thermostat & Water Pump, AFE Short Shifter, Lotek Pod with ProSport Gauges, Axxess iPod Adapter, Illuminated Shift Knob, Bridgestone Potenza RE760, OPTIMA 35 RedTop Battery.
Oils: Engine= Royal Purple 5w30, Trans= Redline MT-90, Diff= Redline 75w90

Last edited by Jon316G; 09-07-2009 at 09:48 PM.
Jon316G is offline   Reply With Quote
Old 09-07-2009, 09:48 PM   #4
Registered User

Trader Score: (0)
Join Date: Aug 2009
Posts: 18
Thats just what they told me... they said something about the teeth on the flywheel had marks where the starter was barely hitting...
Spyderjhv1997 is offline   Reply With Quote
Old 09-07-2009, 09:53 PM   #5
Grasshopper

Jon316G's Avatar

Trader Score: (1)
Join Date: Dec 2006
Location: Streetsboro, OH
Posts: 6,694
The upgraded starter p/n is N3Z1-18-400
N3H1-18-400 was the original.
__________________
Current Mods: RB REVi Intake & Ram Air Duct, AP Catback Exhaust, MazSport DR Midpipe, AP Pulley, BHR Ignition Coils, BHR/SPEC Flywheel, ACT Counterweight, Exedy Stage 1 Clutch Kit, HD Release Bearing, AccessPort w/MazdaManiac tune, REmedy Thermostat & Water Pump, AFE Short Shifter, Lotek Pod with ProSport Gauges, Axxess iPod Adapter, Illuminated Shift Knob, Bridgestone Potenza RE760, OPTIMA 35 RedTop Battery.
Oils: Engine= Royal Purple 5w30, Trans= Redline MT-90, Diff= Redline 75w90

Last edited by Jon316G; 09-07-2009 at 09:57 PM.
Jon316G is offline   Reply With Quote
Old 09-07-2009, 10:03 PM   #6
Registered User

Trader Score: (0)
Join Date: Aug 2009
Posts: 18
the drive on all three starters was going out all the way to the end...

as for advance and the starter shop checking to c if the starters was good... they checked it on a machine that reads amp put out and just watched the drive come out...
Spyderjhv1997 is offline   Reply With Quote
Old 09-07-2009, 10:04 PM   #7
Registered User

Trader Score: (0)
Join Date: Aug 2009
Posts: 18
o... then advance lied to me...
Spyderjhv1997 is offline   Reply With Quote
Old 09-07-2009, 10:06 PM   #8
Grasshopper

Jon316G's Avatar

Trader Score: (1)
Join Date: Dec 2006
Location: Streetsboro, OH
Posts: 6,694
But they never measured the pinion gap to tell if it was traveling to where it should be.
Either way, three starters having the same symptom tells me it isn't an issue with the starters.
__________________
Current Mods: RB REVi Intake & Ram Air Duct, AP Catback Exhaust, MazSport DR Midpipe, AP Pulley, BHR Ignition Coils, BHR/SPEC Flywheel, ACT Counterweight, Exedy Stage 1 Clutch Kit, HD Release Bearing, AccessPort w/MazdaManiac tune, REmedy Thermostat & Water Pump, AFE Short Shifter, Lotek Pod with ProSport Gauges, Axxess iPod Adapter, Illuminated Shift Knob, Bridgestone Potenza RE760, OPTIMA 35 RedTop Battery.
Oils: Engine= Royal Purple 5w30, Trans= Redline MT-90, Diff= Redline 75w90
Jon316G is offline   Reply With Quote
Old 09-07-2009, 10:10 PM   #9
Grasshopper

Jon316G's Avatar

Trader Score: (1)
Join Date: Dec 2006
Location: Streetsboro, OH
Posts: 6,694
Lets verify the basics.... is it wired correctly?
Starter not engaging the flywheel-starter-10-.jpg
__________________
Current Mods: RB REVi Intake & Ram Air Duct, AP Catback Exhaust, MazSport DR Midpipe, AP Pulley, BHR Ignition Coils, BHR/SPEC Flywheel, ACT Counterweight, Exedy Stage 1 Clutch Kit, HD Release Bearing, AccessPort w/MazdaManiac tune, REmedy Thermostat & Water Pump, AFE Short Shifter, Lotek Pod with ProSport Gauges, Axxess iPod Adapter, Illuminated Shift Knob, Bridgestone Potenza RE760, OPTIMA 35 RedTop Battery.
Oils: Engine= Royal Purple 5w30, Trans= Redline MT-90, Diff= Redline 75w90
Jon316G is offline   Reply With Quote
Old 09-07-2009, 10:13 PM   #10
Registered User

Trader Score: (0)
Join Date: Aug 2009
Posts: 18
yes... when i unbolt it and hold it in my hand it zips out 100 mph..... i just put it back in and it catches the flywheel barely... i can hear it tap it.... but it never engages... I wish more rx8 owners lived near me... London, KY by the way..
Spyderjhv1997 is offline   Reply With Quote
Old 09-07-2009, 10:15 PM   #11
Grasshopper

Jon316G's Avatar

Trader Score: (1)
Join Date: Dec 2006
Location: Streetsboro, OH
Posts: 6,694
Does it sound like the teeth are constantly grinding when you attempt to start it?
__________________
Current Mods: RB REVi Intake & Ram Air Duct, AP Catback Exhaust, MazSport DR Midpipe, AP Pulley, BHR Ignition Coils, BHR/SPEC Flywheel, ACT Counterweight, Exedy Stage 1 Clutch Kit, HD Release Bearing, AccessPort w/MazdaManiac tune, REmedy Thermostat & Water Pump, AFE Short Shifter, Lotek Pod with ProSport Gauges, Axxess iPod Adapter, Illuminated Shift Knob, Bridgestone Potenza RE760, OPTIMA 35 RedTop Battery.
Oils: Engine= Royal Purple 5w30, Trans= Redline MT-90, Diff= Redline 75w90
Jon316G is offline   Reply With Quote
Old 09-07-2009, 10:17 PM   #12
Registered User

Trader Score: (0)
Join Date: Aug 2009
Posts: 18
they do not grind at all... it just zips... but the plunger comes out...
Spyderjhv1997 is offline   Reply With Quote
Old 09-07-2009, 10:20 PM   #13
Grasshopper

Jon316G's Avatar

Trader Score: (1)
Join Date: Dec 2006
Location: Streetsboro, OH
Posts: 6,694
Just to clarify...
When you have the starter out and you turn the key to 'start', the solenoid pushes the drive pinion forward and the gear spins continuously until you turn the key off of the 'start' position?
Meaning, you can hold that key on 'start' for a good 5-10sec and the drive will continue to spin with the pinion extended?
__________________
Current Mods: RB REVi Intake & Ram Air Duct, AP Catback Exhaust, MazSport DR Midpipe, AP Pulley, BHR Ignition Coils, BHR/SPEC Flywheel, ACT Counterweight, Exedy Stage 1 Clutch Kit, HD Release Bearing, AccessPort w/MazdaManiac tune, REmedy Thermostat & Water Pump, AFE Short Shifter, Lotek Pod with ProSport Gauges, Axxess iPod Adapter, Illuminated Shift Knob, Bridgestone Potenza RE760, OPTIMA 35 RedTop Battery.
Oils: Engine= Royal Purple 5w30, Trans= Redline MT-90, Diff= Redline 75w90
Jon316G is offline   Reply With Quote
Old 09-07-2009, 10:23 PM   #14
Registered User

Trader Score: (0)
Join Date: Aug 2009
Posts: 18
yep
Spyderjhv1997 is offline   Reply With Quote
Old 09-07-2009, 10:25 PM   #15
Grasshopper

Jon316G's Avatar

Trader Score: (1)
Join Date: Dec 2006
Location: Streetsboro, OH
Posts: 6,694
And when the drive pinion retracts back (key not in the start position) the gear is in the same position as in the attached pic below?
Starter not engaging the flywheel-starter-2-.jpg
__________________
Current Mods: RB REVi Intake & Ram Air Duct, AP Catback Exhaust, MazSport DR Midpipe, AP Pulley, BHR Ignition Coils, BHR/SPEC Flywheel, ACT Counterweight, Exedy Stage 1 Clutch Kit, HD Release Bearing, AccessPort w/MazdaManiac tune, REmedy Thermostat & Water Pump, AFE Short Shifter, Lotek Pod with ProSport Gauges, Axxess iPod Adapter, Illuminated Shift Knob, Bridgestone Potenza RE760, OPTIMA 35 RedTop Battery.
Oils: Engine= Royal Purple 5w30, Trans= Redline MT-90, Diff= Redline 75w90
Jon316G is offline   Reply With Quote
Old 09-07-2009, 10:41 PM   #16
Back in NYC, till OCT

nycgps's Avatar

Trader Score: (1)
Join Date: Jun 2005
Location: Planet Earth
Posts: 19,549
Its the same one.

hmm, Jon has a point ... check it out.
__________________
ロータリーエンジン
nycgps is offline   Reply With Quote
Old 09-07-2009, 11:00 PM   #17
True love is blue x2

xun4gvn4everx's Avatar

Trader Score: (2)
Join Date: Dec 2008
Location: Future
Posts: 3,537
I am very interested to see what the issue is here. I have never heard of this problem unless someone were to buy the wrong starter.
__________________
Quote:
Originally Posted by WinningRX8Chick View Post
Oh I go down..I play with *****.
Get in, sit down, shut up, and hold on!!

The RX-8 is like cocaine. It is addictive as hell, will run you broke, and your wife will leave you unless she is an addict too.
xun4gvn4everx is offline   Reply With Quote
Old 09-07-2009, 11:03 PM   #18
Registered User

Trader Score: (0)
Join Date: Aug 2009
Posts: 18
sorry im back.... i fooled around with it... no luck.. still wont catch...it goes back in everytime...... Do i just need to buy the new upgraded OEM from the factory...
Spyderjhv1997 is offline   Reply With Quote
Old 09-07-2009, 11:08 PM   #19
True love is blue x2

xun4gvn4everx's Avatar

Trader Score: (2)
Join Date: Dec 2008
Location: Future
Posts: 3,537
does nething seem loose around the starter which could have put it out of position?
__________________
Quote:
Originally Posted by WinningRX8Chick View Post
Oh I go down..I play with *****.
Get in, sit down, shut up, and hold on!!

The RX-8 is like cocaine. It is addictive as hell, will run you broke, and your wife will leave you unless she is an addict too.
xun4gvn4everx is offline   Reply With Quote
Old 09-07-2009, 11:17 PM   #20
Registered User

Trader Score: (0)
Join Date: Aug 2009
Posts: 18
theres nothing loose....I twisted the flywheel around with a bar and it of course didnt slip and ever tooth was good....
Spyderjhv1997 is offline   Reply With Quote
Old 09-07-2009, 11:19 PM   #21
True love is blue x2

xun4gvn4everx's Avatar

Trader Score: (2)
Join Date: Dec 2008
Location: Future
Posts: 3,537
Thought you said the teeth had some wear from the starter not quite biting? If that us indeed the case, you have atleast the wrong model starter or something is not in line right to cause the starters teeth to not engage with the flywheel teeth
__________________
Quote:
Originally Posted by WinningRX8Chick View Post
Oh I go down..I play with *****.
Get in, sit down, shut up, and hold on!!

The RX-8 is like cocaine. It is addictive as hell, will run you broke, and your wife will leave you unless she is an addict too.
xun4gvn4everx is offline   Reply With Quote
Old 09-07-2009, 11:28 PM   #22
Registered User

Trader Score: (0)
Join Date: Aug 2009
Posts: 18
the teeth are fine.. but you can c where the starter hits the very edge of the teeth....
Spyderjhv1997 is offline   Reply With Quote
Old 09-07-2009, 11:33 PM   #23
GoodBox MotorSports

Easy_E1's Avatar

Trader Score: (2)
Join Date: Sep 2005
Location: Bellevue WA
Posts: 7,703
manchowder31 GoodBox_MotorSports
Send a message via Skype™ to Easy_E1
Sounds like the starter mount housing is too short. Do you have your old starter handy to check to see if the housing is the same length?
Easy_E1 is offline   Reply With Quote
Old 09-07-2009, 11:41 PM   #24
Registered User

Trader Score: (0)
Join Date: Aug 2009
Posts: 18
turned it in for the core
Spyderjhv1997 is offline   Reply With Quote
Old 09-07-2009, 11:52 PM   #25
GoodBox MotorSports

Easy_E1's Avatar

Trader Score: (2)
Join Date: Sep 2005
Location: Bellevue WA
Posts: 7,703
manchowder31 GoodBox_MotorSports
Send a message via Skype™ to Easy_E1
Here's a couple of pics for measurements. Don't mind where the gauge is sitting on the left. It's just the camera angle. See if your starter housing is close to these numbers. They are in Millimeters.
If your starter housing is under those dimensions then the autoparts store has an issue with their supplier of starters.

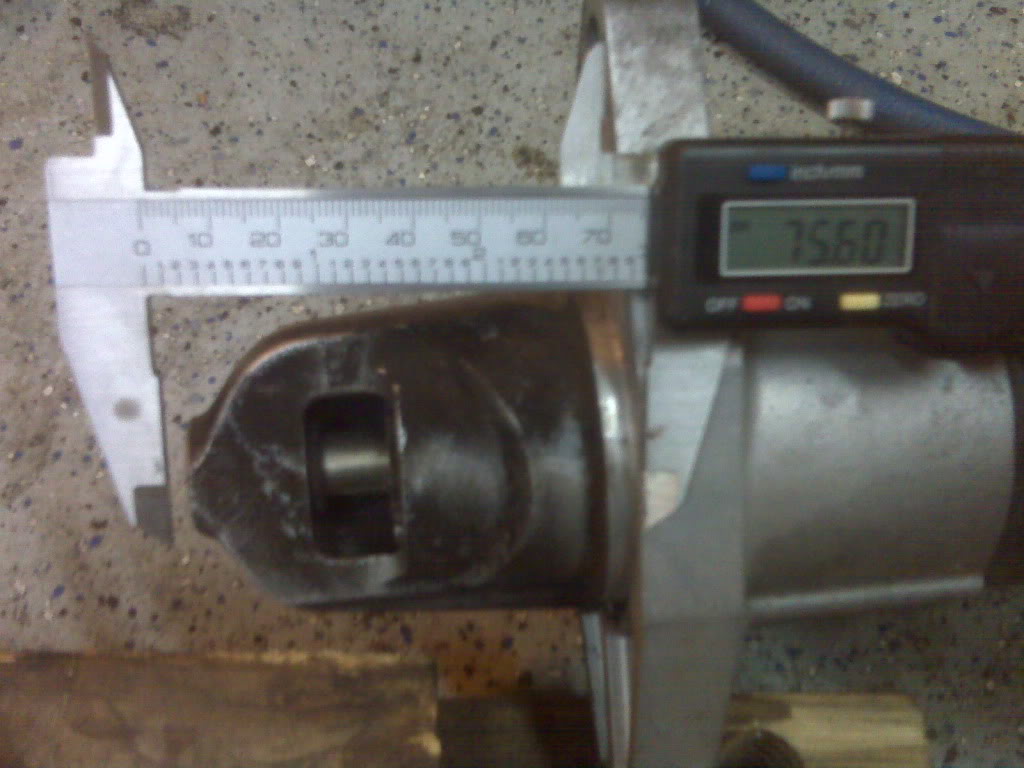

75.63 mm
Click the image to open in full size.

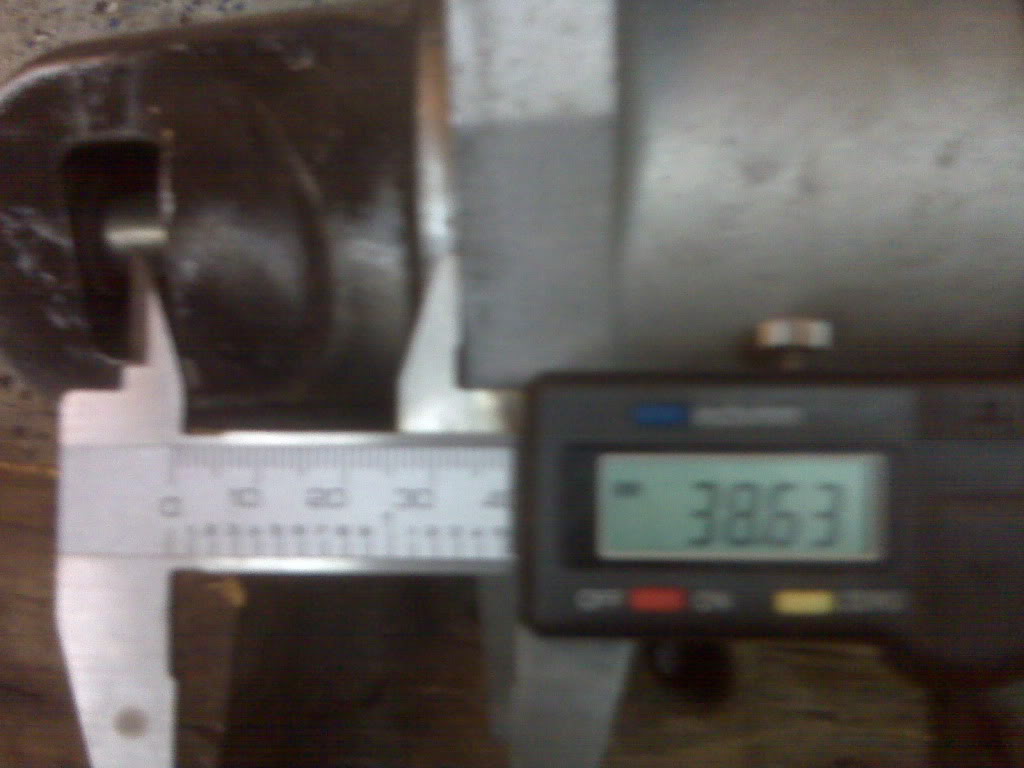

38.63 mm
Click the image to open in full size.

Last edited by Easy_E1; 09-07-2009 at 11:54 PM.
