Old 09-05-2009, 11:25 AM   #1
another broken syncro

thejew89's Avatar

Trader Score: (0)
Join Date: Jun 2008
Location: Mansfield, TX
Posts: 644
fuel leak at the fuel line disconnect

so i had my car up on a lift at a local shop checking my suspension out. i have the notoriuos progress sway clunk that wont go away so i was checking for anything loose. while i was walking under car towards the rear i noticed my gas tank was covered in gas. so i pulled out the inspection mirror and a flashlight to find that my fuel line coming out of my fuel pump is leaking from the quick disconnect. has anyone else had this problem. i immediately pulled the service cover off and tried replacing the o-ring in the line. after a new o-ring was installed it still leaks.

what should i do i dont really want to go buy a new fuel line from mazda its $80 and i dont have any extra money saved up right now because of school.

also my cars an 04 6spd with 82k on it.
This ad is not displayed to registered and logged-in members.
Register your free account today and become a member on RX8Club.com!
__________________

Quote:
WTBRotary!: Why won't my car start?
TheJew89: You have to press the clutch.
thejew89 is offline   Reply With Quote
Old 09-05-2009, 11:32 AM   #2
I8U
Grand-Am Supporter

I8U's Avatar

Trader Score: (1)
Join Date: May 2006
Location: Goldsboro, NC
Posts: 1,934
Get it fixed ASAP! Fuel leak=big boom or fire. Does the line connect fully? See if you can zip tie the line to the pump, it may stop the leak...olddragger had the same problem but on the opposite end, in the engine bay, and it leaned out his motor just enough and it blew up.
__________________
FOR SALE:'04 TiGray MT parts car
Current ride: 2010 Celestial Blue MS3, Corksport SRI/TIP
I8U is offline   Reply With Quote
Old 09-05-2009, 11:52 AM   #3
another broken syncro

thejew89's Avatar

Trader Score: (0)
Join Date: Jun 2008
Location: Mansfield, TX
Posts: 644
ive tried holding pressure on the line and it still drips a little ive called a few of my friends that work for mazda dealers and they have never seen this problem. the weird thing about it is that my car is still running its original fuel pump its never been messed with that i know of. also ive noticed the smell of fuel for a few months but i always thought it was just that i had spilled gas cuz i only noticed it after i filled up. im thinkin about cutting the quick disconnect off my fuel line and getting a piece of high pressure rubber hose and a couple good hose clamps on it and seel if that stops the leak.

yeah with how low my car is i scraped the ground often so that could cause a spark and then me and my car go boom
__________________

Quote:
WTBRotary!: Why won't my car start?
TheJew89: You have to press the clutch.
thejew89 is offline   Reply With Quote
Old 09-05-2009, 12:02 PM   #4
I8U
Grand-Am Supporter

I8U's Avatar

Trader Score: (1)
Join Date: May 2006
Location: Goldsboro, NC
Posts: 1,934
Adding a high pressure line should fix the problem without having to replace the whole line itself. If you do that, make sure you use a small pipe cutter to avoid sparks and have extinguisher on the spot just to be safe.
__________________
FOR SALE:'04 TiGray MT parts car
Current ride: 2010 Celestial Blue MS3, Corksport SRI/TIP
I8U is offline   Reply With Quote
Old 09-05-2009, 12:07 PM   #5
another broken syncro

thejew89's Avatar

Trader Score: (0)
Join Date: Jun 2008
Location: Mansfield, TX
Posts: 644
ive got a small extinguisher that sit on the floor in my back seat to begin with you never know when your rear bumper will catch on fire after a backfire lol.

ill have to find my pipe cutter or go buy a new one though i was going to use a very sharp pocket knife but the pipe cutter sounds a lot safer.

thanks so much for the help
__________________

Quote:
WTBRotary!: Why won't my car start?
TheJew89: You have to press the clutch.
thejew89 is offline   Reply With Quote
Old 09-05-2009, 12:10 PM   #6
I8U
Grand-Am Supporter

I8U's Avatar

Trader Score: (1)
Join Date: May 2006
Location: Goldsboro, NC
Posts: 1,934
You can buy a small pipe cutter at Lowe's or HD. I have one good up to 5/8", didn't cost more than 10 bucks.
__________________
FOR SALE:'04 TiGray MT parts car
Current ride: 2010 Celestial Blue MS3, Corksport SRI/TIP
I8U is offline   Reply With Quote
Old 09-05-2009, 12:15 PM   #7
another broken syncro

thejew89's Avatar

Trader Score: (0)
Join Date: Jun 2008
Location: Mansfield, TX
Posts: 644
i work at autozone so ill just get one from work but i think i have one somewhere in one of my tool boxes. should i get a barbed fitting to put in the end of the plastic stock line or just get a rubber hose that fits over it snug?
__________________

Quote:
WTBRotary!: Why won't my car start?
TheJew89: You have to press the clutch.
thejew89 is offline   Reply With Quote
Old 09-05-2009, 12:24 PM   #8
I8U
Grand-Am Supporter

I8U's Avatar

Trader Score: (1)
Join Date: May 2006
Location: Goldsboro, NC
Posts: 1,934
I'm not sure what would be best for that. You would think a barbed fitting there would restrict the fuel flow from the pump...I also think that line is actually aluminum, I think it has a plastic coating of some kind. I haven't messed with mine in a while so I can't be sure.

I think the rubber hose is the best quick fix option.
__________________
FOR SALE:'04 TiGray MT parts car
Current ride: 2010 Celestial Blue MS3, Corksport SRI/TIP
I8U is offline   Reply With Quote
Old 09-05-2009, 12:30 PM   #9
another broken syncro

thejew89's Avatar

Trader Score: (0)
Join Date: Jun 2008
Location: Mansfield, TX
Posts: 644
well the rubber hose option is out i just got a text from a friend of mine that works at a local mazda stealership and he said that the fuel lines on our cars are made of plastic, and that if i cut the quick disconnect off i might run into problems with the plastic fuel line collapsing as i tighten the hose clamp down on it. my day keeps getting better and better.
__________________

Quote:
WTBRotary!: Why won't my car start?
TheJew89: You have to press the clutch.
thejew89 is offline   Reply With Quote
Old 09-05-2009, 03:02 PM   #10
Modulated Moderator

dannobre's Avatar

Trader Score: (3)
Join Date: Feb 2004
Location: Smallville
Posts: 10,206
Send a message via MSN to dannobre Send a message via Yahoo to dannobre
It's metal about 10" from the tank..you can use HP rubber fuel line and 2 hose clamps to fix it....

Just carefully trim back the plastic tube from the metal..and be careful not to notch the pipe...
__________________


dannobre is offline   Reply With Quote
Old 09-05-2009, 03:10 PM   #11
another broken syncro

thejew89's Avatar

Trader Score: (0)
Join Date: Jun 2008
Location: Mansfield, TX
Posts: 644
ok cool i got 18 inches of high pressure fuel injection hose. ill just cut that off and run new line all the way up to the fuel pump
__________________

Quote:
WTBRotary!: Why won't my car start?
TheJew89: You have to press the clutch.
thejew89 is offline   Reply With Quote
Old 09-05-2009, 04:19 PM   #12
another broken syncro

thejew89's Avatar

Trader Score: (0)
Join Date: Jun 2008
Location: Mansfield, TX
Posts: 644
so after replacing the the fuel line quick connect i found out its actually the fuel pump nipple that is leaking so now i have to buy a new fuel pump
__________________

Quote:
WTBRotary!: Why won't my car start?
TheJew89: You have to press the clutch.
thejew89 is offline   Reply With Quote
Old 09-05-2009, 04:23 PM   #13
I8U
Grand-Am Supporter

I8U's Avatar

Trader Score: (1)
Join Date: May 2006
Location: Goldsboro, NC
Posts: 1,934
Don't buy it from the dealer, you'll pay way too much. Check out a couple vendors here, try Mazmart, Paul always some good deals. I know he has a new and used '09 pump instock for a good price, it will only take a small amount of modding to fit it to an '04.
__________________
FOR SALE:'04 TiGray MT parts car
Current ride: 2010 Celestial Blue MS3, Corksport SRI/TIP

Last edited by I8U; 09-05-2009 at 04:27 PM.
I8U is offline   Reply With Quote
Old 09-05-2009, 04:28 PM   #14
another broken syncro

thejew89's Avatar

Trader Score: (0)
Join Date: Jun 2008
Location: Mansfield, TX
Posts: 644
the problem is im goin out of town tomorrow and my 8 is the only car i have thats legal to drive right now.

but if i cant find it locally ill try to seal it with something and then order it from one of them
__________________

Quote:
WTBRotary!: Why won't my car start?
TheJew89: You have to press the clutch.
thejew89 is offline   Reply With Quote
Old 09-05-2009, 04:32 PM   #15
I8U
Grand-Am Supporter

I8U's Avatar

Trader Score: (1)
Join Date: May 2006
Location: Goldsboro, NC
Posts: 1,934
Just to let you know, no dealership carries them in stock, they'll have to order it. And you can't get them at an autoparts store. See what you can do to seal it for now and hope it holds.
__________________
FOR SALE:'04 TiGray MT parts car
Current ride: 2010 Celestial Blue MS3, Corksport SRI/TIP
I8U is offline   Reply With Quote
Old 09-05-2009, 04:56 PM   #16
another broken syncro

thejew89's Avatar

Trader Score: (0)
Join Date: Jun 2008
Location: Mansfield, TX
Posts: 644
thats what i found out now so im just gonna let it sit in my driveway and my dad agreed to let me borrow his truck until i get it fixed i just gotta keep gas in his truck which is no big deal it gets better mileage than the 8 does also i found out i can order it through work and its only 150 brand new
__________________

Quote:
WTBRotary!: Why won't my car start?
TheJew89: You have to press the clutch.
thejew89 is offline   Reply With Quote
Old 09-05-2009, 05:09 PM   #17
I8U
Grand-Am Supporter

I8U's Avatar

Trader Score: (1)
Join Date: May 2006
Location: Goldsboro, NC
Posts: 1,934
Yeah, you can get an '04+ pump for that price. Mines been modded, I got mine from swoope here on the forum. He installed a 3rd Gen RX7 fuel filter on it for me, flows alot better and let me run a higher amount of 2 stroke oil without having to worry about it clogging up.

Good luck man, make sure you get the pump ring removal tool from the dealership...mine here let me borrow it for free. Made the removal and install a breeze. The universal tools seem to jack the ring up pretty bad.
__________________
FOR SALE:'04 TiGray MT parts car
Current ride: 2010 Celestial Blue MS3, Corksport SRI/TIP
I8U is offline   Reply With Quote
Old 09-05-2009, 05:38 PM   #18
another broken syncro

thejew89's Avatar

Trader Score: (0)
Join Date: Jun 2008
Location: Mansfield, TX
Posts: 644
i was gonna call my friend at the local dealer and see if i can borrow his personal tool. im sure for a case of beer or something i can get him to come over and help me oout with installing the new one.

thanks again for all the help
__________________

Quote:
WTBRotary!: Why won't my car start?
TheJew89: You have to press the clutch.
thejew89 is offline   Reply With Quote
Old 09-05-2009, 05:41 PM   #19
I8U
Grand-Am Supporter

I8U's Avatar

Trader Score: (1)
Join Date: May 2006
Location: Goldsboro, NC
Posts: 1,934
Yeah man, no prob. Takes less than 30 mins from start to finish. Have fun!
__________________
FOR SALE:'04 TiGray MT parts car
Current ride: 2010 Celestial Blue MS3, Corksport SRI/TIP
I8U is offline   Reply With Quote
Old 09-05-2009, 06:40 PM   #20
FLAME ON!

Trader Score: (0)
Join Date: Jul 2009
Location: Strip Club
Posts: 950
Quote:
Originally Posted by thejew89 View Post
so after replacing the the fuel line quick connect i found out its actually the fuel pump nipple that is leaking so now i have to buy a new fuel pump
samething happen to mine. i put them o clamps on the line where the nipple is with the o clamps you use a flat head screw driver to tighten them to the nipple. i went to autozone and got a vac line just largenugh to pull ovwer the stop ring at the front of the nipple. i used 2 clamps one right behind the ring one in front.
you can get the o clamps at autozone and homedepot.
worked for me.
dont tourq to hard the clamps will cut the hose.
__________________
{FS} NEW ENGINE MOUNTS & ENGINE TRAY
http://www.rx8club.com/showthread.php?t=206016
BUY THEM YOU MUST!
@!!narotordo is offline   Reply With Quote
Old 09-05-2009, 06:43 PM   #21
I8U
Grand-Am Supporter

I8U's Avatar

Trader Score: (1)
Join Date: May 2006
Location: Goldsboro, NC
Posts: 1,934
Apparently he had crack or leak in the fuel pump nipple itself. He's looking at buying a new pump now.
__________________
FOR SALE:'04 TiGray MT parts car
Current ride: 2010 Celestial Blue MS3, Corksport SRI/TIP
I8U is offline   Reply With Quote
Old 09-06-2009, 02:07 AM   #22
FLAME ON!

Trader Score: (0)
Join Date: Jul 2009
Location: Strip Club
Posts: 950
Oh right.
__________________
{FS} NEW ENGINE MOUNTS & ENGINE TRAY
http://www.rx8club.com/showthread.php?t=206016
BUY THEM YOU MUST!
@!!narotordo is offline   Reply With Quote
Old 09-07-2009, 07:32 PM   #23
another broken syncro

thejew89's Avatar

Trader Score: (0)
Join Date: Jun 2008
Location: Mansfield, TX
Posts: 644

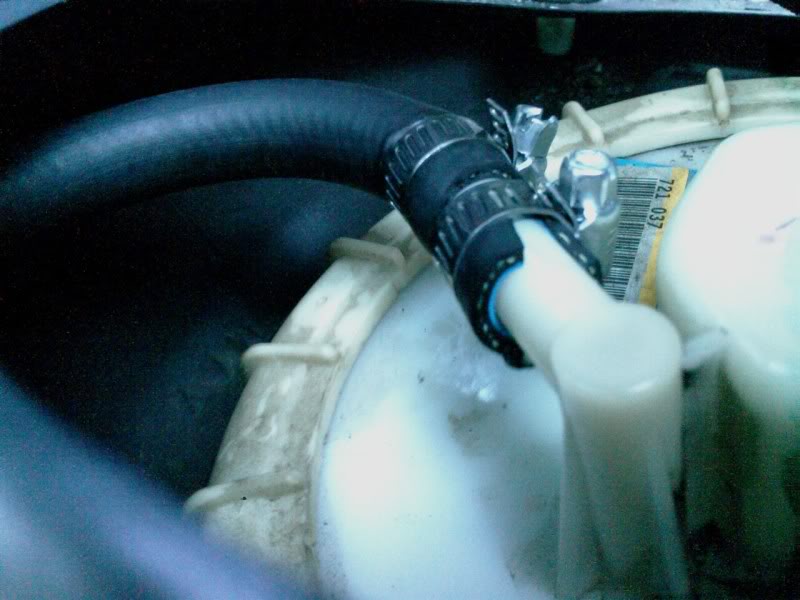

i guess it takes 2 days to figure out a temporary fix now, because while i was driving home from ordering my new fuel pump from work, i thought maybe i could take a piece of rubber fuel line and hose clamp it around the nipple where its leaking and it might be a temporary fix so i can drive to work while i wait on my new pump. so i just got home and did it and amazingly it doesnt leak now. heres a pic of what i ended up doing to the fuel line and the nipple to get it to temporarily stop leaking

Click the image to open in full size.

i had to slice one side open to wrap the hose around where it was leaking because it wouldnt stretch over the rib on the nipple, so i used the hose clamp and really torqued it down on the hose and no more leaks.
__________________

Quote:
WTBRotary!: Why won't my car start?
TheJew89: You have to press the clutch.
thejew89 is offline   Reply With Quote
Old 09-07-2009, 08:31 PM   #24
I8U
Grand-Am Supporter

I8U's Avatar

Trader Score: (1)
Join Date: May 2006
Location: Goldsboro, NC
Posts: 1,934
Glad it worked for ya.
__________________
FOR SALE:'04 TiGray MT parts car
Current ride: 2010 Celestial Blue MS3, Corksport SRI/TIP
I8U is offline   Reply With Quote
Old 10-07-2010, 08:13 PM   #25
SPOOLN8

RotaryMachineRx's Avatar

Trader Score: (0)
Join Date: Nov 2008
Location: Saskatoon, Saskatchewan, Canada
Posts: 1,084
Did you have to de-pressurize the system before removing the fuel line?
__________________
Turbo Build Thread: Click Here
My Garage

RotaryMachineRx is offline   Reply With Quote
Old 10-07-2010, 08:13 PM
RX8Club
Mazda RX8




Paid Advertisement





Reply

Tags
2005, barb, cobalt, connects, filter, fire, fuel, happen, leak, leaking, line, mazda, plastic, pump, repair, rx8

Thread Tools Search this Thread
Search this Thread:

Advanced Search
Display Modes Rate This Thread
Rate This Thread:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


Similar Threads
Thread Thread Starter Forum Replies Last Post
Doing Fuel return line anyone done this? WhiteSnowflake8 Series I Tech Garage 12 02-04-2009 02:05 PM
New Fuel Line Adapter colin204 Series I Aftermarket Performance Modifications 9 10-07-2007 08:47 PM
Fuel Leak Problem sammytcl Series I Tech Garage 0 02-10-2006 01:05 PM
Question about Fuel Line` ZexRX8 Series I Trouble Shooting 1 07-14-2005 12:14 PM


All times are GMT -5. The time now is 08:03 PM.


Powered by vBulletin® Version 3.8.7
Copyright ©2000 - 2014, vBulletin Solutions, Inc.
SEO by vBSEO ©2011, Crawlability, Inc.
All content Copyright 2007 by Internet Brands, Inc.
Emails Backup
