Where pass from Engine and internal Car with wire?

Hello I need to pass a wire from Engine Zone to Internal Car Zone. I cannot made it! Who can Help me? Where pass?
Thanks
This ad is not displayed to registered and logged-in members.
Register your free account today and become a member on RX8Club.com!
Thommino is offline   Reply With Quote
Old 10-07-2004, 02:01 PM   #2
Proud to be arrogant!

rotarygod's Avatar

Trader Score: (0)
Join Date: Apr 2003
Location: Houston
Posts: 9,075
On the passenger side firewall. Remove the windshield washer fluid bottle. You will see a circle on the firewall area where it looks like the brake booster location for the right hand drive cars would come through. You can drill into the cabin there without hitting anything behind it.
rotarygod is offline   Reply With Quote
Old 10-07-2004, 02:05 PM   #3
Moderator

staticlag's Avatar

Trader Score: (0)
Join Date: Aug 2004
Location: Omaha, NE
Posts: 3,457
staticlag staticlag staticlag
If its about 8 gauge or less, you can poke a hole(with a phillips screwdriver) in the rubber wiring bundle grommet under the drivers side. Its the big black rubber mass that leads into the engine compartment high on the left side of where the hood release goes into the engine compartment. This is the easiest way to do it.

This may be the easiest, but I would recommend drilling a hole with its own grommet to preserve the air/water tightness of the firewall, you will have to do this if you are running 4 gauge or higher into the compartment. Just buy a hole drill bit assembly to fit your grommet, and prepare to drill your hole.

On the manual transmission car, I found a nice space(but tiny!) to drill a hole on the right side of the hood release, and to the left of the clutch. Be careful though, if you drill it there, you only have about 1/2 inch diameter to work with, or else you will drill into the chassis welds or some various clutch parts.

Another place to drill is behind the winshield washer tank, search the forums and you should find the post, its about running 4 gauge wire for an amp.
staticlag is offline   Reply With Quote
Old 10-07-2004, 02:05 PM   #4
Registered

abbid's Avatar

Trader Score: (0)
Join Date: May 2004
Location: Arizona
Posts: 4,160
Send a message via AIM to abbid Send a message via MSN to abbid Send a message via Yahoo to abbid
or you can weasel it in between the rubber grommet circled in this pic, its the rubber behind the kevlar.

http://img.photobucket.com/albums/v2.../clutch001.jpg
abbid is offline   Reply With Quote
Old 10-07-2004, 04:40 PM   #5
Administrator

zoom44's Avatar

Trader Score: (0)
Join Date: Jul 2002
Location: portland oregon
Posts: 21,014
Send a message via AIM to zoom44
careful with the "driver's side/pasenger side" references. he may be the other way around.
zoom44 is offline   Reply With Quote
Old 10-07-2004, 05:15 PM   #6
Registered User

Trader Score: (0)
Join Date: Nov 2003
Posts: 241

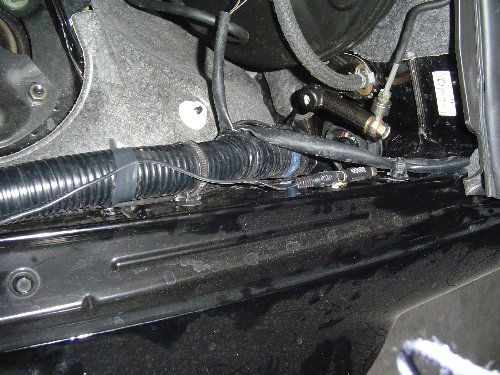

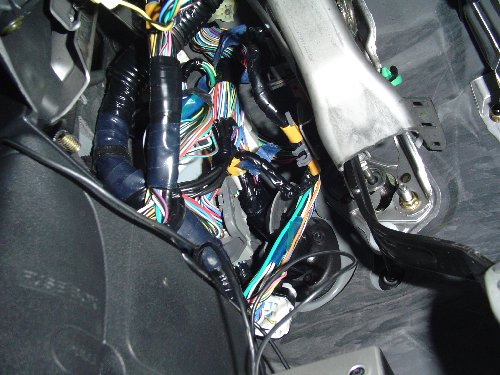

I need to pass here (in this Zone).
Attached Thumbnails
Where pass from Engine and internal Car with wire?-mini-dsc01158-jpg   Where pass from Engine and internal Car with wire?-mini-dsc01156-jpg
Thommino is offline   Reply With Quote
Old 10-08-2004, 12:32 AM   #7
Owner of BHR

Charles R. Hill's Avatar

Trader Score: (7)
Join Date: Nov 2003
Posts: 5,941
When I routed my 12v lead to the dash for my nitrous system I pierced a small hole in the hood release cable grommet with a very sharp scratch awl and the wire taped to the tip of the awl. One step and the wire was fed through and doesn't leak. It was easiest to feed it from the passenger compartment to the engine compartment, first, and use the wire as a pull-line if your connection has already been made at the engine.

Charles

Last edited by Charles R. Hill; 10-08-2004 at 12:34 AM.
Charles R. Hill is offline   Reply With Quote
Old 10-08-2004, 12:42 AM   #8
Registered User

Trader Score: (0)
Join Date: Nov 2003
Posts: 241

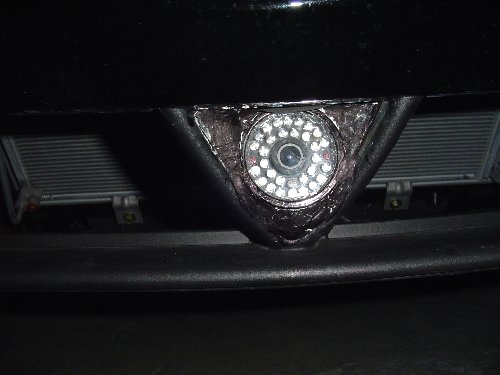

Don't you have some picture that show where can I pass with cable. I need pass one rca cable for this:...
Attached Thumbnails
Where pass from Engine and internal Car with wire?-mini-dsc01161-jpg
Thommino is offline   Reply With Quote
Old 10-08-2004, 01:05 AM   #9
Owner of BHR

Charles R. Hill's Avatar

Trader Score: (7)
Join Date: Nov 2003
Posts: 5,941
Just follow the cable run from your hood latch back to the firewall and through the grommet to the pull handle.

Charles
Charles R. Hill is offline   Reply With Quote
Old 10-08-2004, 03:36 AM   #10
Registered User

Trader Score: (0)
Join Date: Nov 2003
Posts: 241

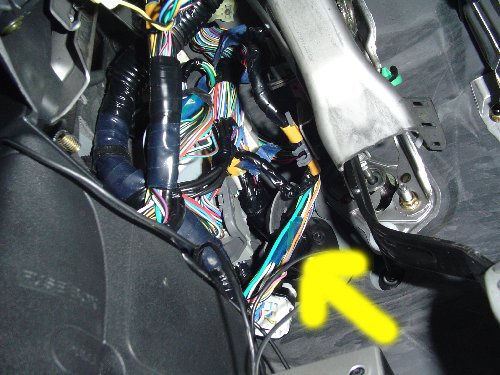

Shall I pierce the rubber? Or can I pass without break off nothing?
Attached Thumbnails
Where pass from Engine and internal Car with wire?-mini-dsc01156-segnato-jpg
Thommino is offline   Reply With Quote
Old 10-08-2004, 07:42 AM   #11
Owner of BHR

Charles R. Hill's Avatar

Trader Score: (7)
Join Date: Nov 2003
Posts: 5,941
That's precisely where I pierced the grommet; in the pleats(or folds) of the rubber. Just make sure that the grommet you are looking at is the one for the hood release cable.

Charles
