Where is the EPS Motor Relay? Help Pls.
05-15-2006, 05:36 PM
#1
Registered User
Thread Starter
Join Date: Jan 2006
Location: Dhaka, Bangladesh
Posts: 158
Likes: 0
Received 0 Likes
on
0 Posts
Where is the EPS Motor Relay? Help Pls.
Is the EPS motor relay under the EPS Controller? Or near the motor? I couldnt find it in the workshop manual. It is in the EPS electrical diagram but could not find out where. Any idea guys? Pls advice.
05-15-2006, 05:44 PM
#2
Not having much luck....
05-15-2006, 06:26 PM
#4
Rotary Wanker
Join Date: Sep 2005
Location: Washington, DC
Posts: 413
Likes: 0
Received 0 Likes
on
0 Posts

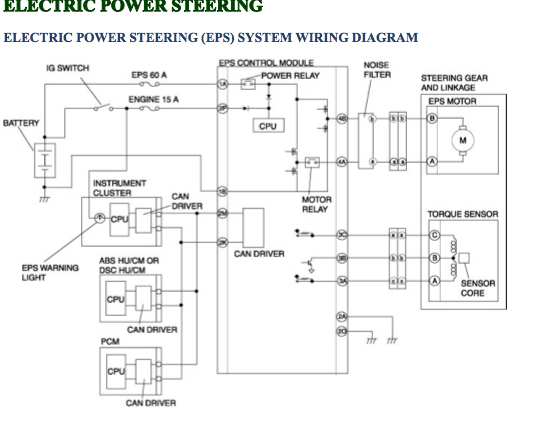

According to the circuit diagram, it's inside the EPS. You need a relay because the 60 amp circuit is too big to go thru the ignition switch. The ignition switch trips the relay and energizes the 60 amp circuit to the power steering rack.
