Karack

i'm having an issue with bus communications to the ABS module, causing the instrument cluster warning lights to go a bit crazy. cleaning the connections and resetting the code in the ECU fixes the issue for a few days but it is becoming apparent that the ABS module is simply failing.

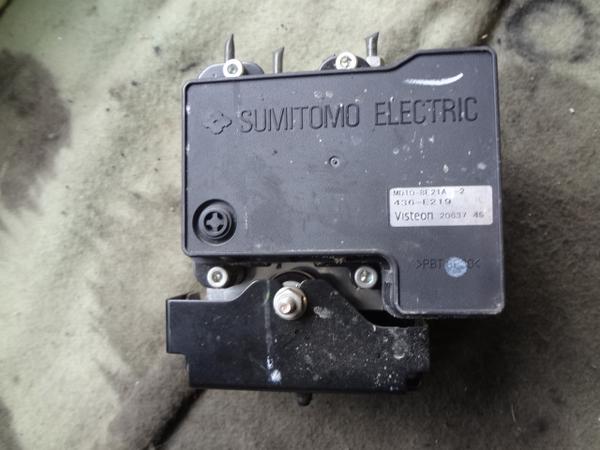

the main issue is the module itself, which is a Visteon controller built by Sumitomo electric. all the listings for the '04 models come up with a Bosch controller, not this one. BUT i just checked my own '04 which also does not have DSC and it is ALSO a Visteon controller.

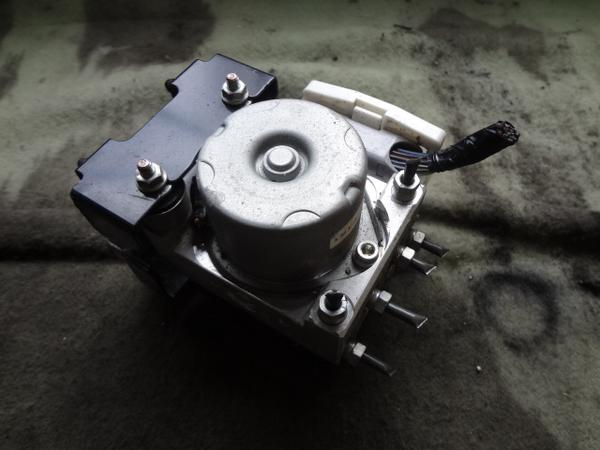

basically he doesn't want to pay $1500 for a new module, just wants to buy a used replacement to get by with for a few hundred until he decides to keep or sell the car. but i'm not finding any documentation about what models this Visteon/Sumitomo is specific to, the connectors are also different between the Bosch unit and the Visteon. the visteon has a long white strap facing passenger side that swings to the front of the car, the bosch has a black pull up connector facing the passenger side of the car.

even a google search for the module gave no input into why these modules are rarer than the bosch units or their possible interchangability somehow, and nothing used. if it's somehow specific to '04 models you would think there would be a lot more available used, but that's not the case. if so everyone's listings are also incorrect, if the '04 has a different ABS module than the '05 and later.

9krpmrx8

iTrader: (46)

I know they are scarce. And also, only the dealer can program them, they have to load the build data to it.

My alternator overcharged a few years back and the ABS module was one of the major things to get fried. That whole ordeal cost a few thousand to fix, thankfully I had an extended warranty that covered it.

Karack

yeah i realize the modules will have to be rematched once replaced, so it will have to go to the dealer for that since they are the only service center with the software to do it. but if he can get by for $500 versus nearly $2k i think he would be ok with that.

nycgps

iTrader: (1)

I know what exact issue you're talking about, it gives you all kinds of Uxxxxx error and the rpm needle will just go nuts all the time and yep It's the module that fails.

This is the one you're talking about. it's a bit hard to find a used one cuz it's rare to find a 8 without DSC

and it takes literately 5 minutes to program the module, did it before with my IDS

j9fd3s

there are two different ABS/DSC units, the difference is the DSC or not.

the NON DSC is F1Y1-43-7A0

the DSC cars get an F1Y3-43-7A0C

Karack

then it must be the used parts listings are incorrect, even the parts listed for non DSC fitted cars had the same bosch part #. i suppose i'll have to call around a bit to try and find someone willing to step out of their office to verify part numbers.

the factory part numbers aren't stamped on the units anywhere so it makes it a little more of a chore, just the manufacturer part/serial #s.

nycgps

iTrader: (1)

I dunno about the non-dsc part, but the DSC one does have the part number stamped at the corner of the unit.

Karack

it has a part # tag but the numbers are worthless in finding a used unit so far.

j9fd3s

if you look at em, they are completely different, i think even the lines and harness is different

nycgps

iTrader: (1)

I can get something for u, but shipping gonna take a while.

I think this is what you need, there is a part number stamp at the corner of the unit.





yep, completely different, as my earlier EPC picture.

nycgps

iTrader: (1)

i just coded a used ABS unit today, the old unit was dead (has all kinds of Uxxxx and Cxxxx code, can't even get code off from it to the used unit, so has to be re-programmed, needs to get As-Built Data. so if you don't have IDS, u gotta do it at dealership.

Karack

that's the one, let me know a time frame of when you could possibly ship it out and a price.

i don't have the IDS software so i would just send him to the dealer once it is swapped. too bad the non DSC models had these, they seem more problematic.

nycgps

iTrader: (1)

it probably takes a month to get to you, this pos is damn rare but it's not exactly expensive, cuz its rare to have non-dsc rx8. pmed

j9fd3s

you should pop off the cover and see if the damage is obvious, the german stuff a lot of times has a "fuse" in there thats easy to fix

Karack

thanks for the PM, i will let you know.



i doubt it's a fuse issue since the problem can manifest itself in between immediately to nearly a week or more.

j9fd3s

broken solder joint?

Karack

perhaps but me and repairing intricate solder connections are a bad mix. sending it out for repairs would probably cost the same as a working replacement unit.

TeamRX8

iTrader: (25)

are you sure that it's not a wiring harness issue?
