Radiator fan control

With summer coming up I am concerned about the heat. One of the upgrades I am doing for this is reworking the radiator fans. I figured some other people might also be interested in this.

I went out and measured the coolant temperature wire as the car warmed up. I found an almost linear dependency (as expected). The voltage was measured at the ECU. I then inserted a pot and altered the signal to the ecu and got some additional data points. Here are the results.
50 deg C = 1.8v
70 deg C = 1.27v
80 deg C = 1.08v
90 deg C = 0.88v
102 deg C = 0.67v
104 deg C = 0.66v 1 fan turns on
106 deg C = 0.62v
108 deg C = 0.57v 2 fans turn on
115 deg C = 0.5v

The stock water temp gauge did not move until 115 deg C. By 120 deg C it moved 4 marks. At 124 deg C it was in the red.

I'm now going to build a circuit that when it detects 90 deg C or 0.88v it trips on an external resistor to fool the ecu into thinking the temp is 104 deg C. At 95 deg C I wil trip on another resistor to make the car think it is at 108 deg C.

Any thoughts on my choosen temps to turn on the fans are appreciated.
This ad is not displayed to registered and logged-in members.
Register your free account today and become a member on RX8Club.com!
__________________
Titanium RX8 GT package 6MT (Sold)
Greddy Turbo kit @9psi, Interceptor EMS, Custom CAI, TurboXS Racepipe, TurboXS Cat-Back, Apexi AVC-R Boost controller, Jet-Hot coat, Innovate LMA3/LM1, Nitto 555, Koyo radiator, Fan-mod, High-temp silicone couplers w/Tbolt clamps, RP shifter, Jl audio 12w-7, jl audio 1000wx1, Optima YT, Defi Boost Gauge, Catch can, Type RS BOV, Greddy Turbo Timer, K&N, tint.

Last edited by rkostolni; 04-18-2006 at 07:58 PM.
rkostolni is offline   Reply With Quote
Old 04-18-2006, 08:25 PM   #2
Modulated Moderator

dannobre's Avatar

Trader Score: (3)
Join Date: Feb 2004
Location: Smallville
Posts: 10,219
Send a message via MSN to dannobre Send a message via Yahoo to dannobre
The only flaw to your logic is that the ECU will also think the car is hot and adjust EVERYTHING else accordingly...........

Wire in a switch to the fan relays and turn them on manually.......
dannobre is online now   Reply With Quote
Old 04-18-2006, 08:46 PM   #3
Banned

TeamRX8's Avatar

Trader Score: (22)
Join Date: Apr 2005
Posts: 17,032
agreed, an external switching system is best, surely there is a way to wire it such that it doesn't cause issues with the OE fan power strategy
TeamRX8 is offline   Reply With Quote
Old 04-18-2006, 08:49 PM   #4
Modulated Moderator

dannobre's Avatar

Trader Score: (3)
Join Date: Feb 2004
Location: Smallville
Posts: 10,219
Send a message via MSN to dannobre Send a message via Yahoo to dannobre
I think if you trigger the relay that you should be OK if it is wired but not on. The ECU probably doesn't know that the fan is on or off......just that it triggered the relay to turn it on....and off. If you manually trigger it the ECU shouldn't be able to tell. Would need to wire a diode in there though to keep the circuit from feeding back to the ECU I think.
dannobre is online now   Reply With Quote
Old 04-18-2006, 08:55 PM   #5
Banned

TeamRX8's Avatar

Trader Score: (22)
Join Date: Apr 2005
Posts: 17,032
I believe there are issues with the way the PCM alters the fans from parallel to series trying to do it like that, somebody mentioned this in another thread somewhere recently

edit: helps if I read your entire post first , yeah I was thinking diode or some other switching method too

Last edited by TeamRX8; 04-19-2006 at 06:25 AM.
TeamRX8 is offline   Reply With Quote
Old 04-18-2006, 10:01 PM   #6
Registered

Trader Score: (0)
Join Date: Aug 2004
Location: Virginia/Maryland
Posts: 1,294
I'm using the Interceptor, so the stock ecu can't do much. I don't think the few things that it is still in control of should be affected by changing the temp from 90 to 104deg. Or am I missing something? The temperature won't be altered while the engine is cold, as I would think during this time it would be an issue. Even for those w/ the stock ecu, I wouldn't think its that large of a temperature adjustment, and 104 D isn't that hot that the ecu should start pulling timing or throwing fuel at the engine.

I don't believe you can manually control the fans while keeping the ecu connected to them. 1. The wiring diagrams show a feedback line from the fan to the ecu, I need to go back and look though to see if they could be diode isolated though. 2. Someone on here, I forget who, wired up a manual fan controller found that there were issues with keeping the ecu wired to the fans. He had problems with the fan fuse blowing.
__________________
Titanium RX8 GT package 6MT (Sold)
Greddy Turbo kit @9psi, Interceptor EMS, Custom CAI, TurboXS Racepipe, TurboXS Cat-Back, Apexi AVC-R Boost controller, Jet-Hot coat, Innovate LMA3/LM1, Nitto 555, Koyo radiator, Fan-mod, High-temp silicone couplers w/Tbolt clamps, RP shifter, Jl audio 12w-7, jl audio 1000wx1, Optima YT, Defi Boost Gauge, Catch can, Type RS BOV, Greddy Turbo Timer, K&N, tint.

Last edited by rkostolni; 04-19-2006 at 07:58 AM.
rkostolni is offline   Reply With Quote
Old 04-21-2006, 01:19 AM   #7
Hot Pit

Winning 8's Avatar

Trader Score: (0)
Join Date: Jul 2005
Location: Castro Valley, CA
Posts: 667
the fan turn on at 104 deg is because the thermostat fully opened at that point. if you want to lower the fan switch you need to lower your thermostat open temp to match your radiator fan, the easier way is to change your radiator to a aluminum one.
I got a aluminum radiator on my rx7 and once you hit 25 mph the temp gauge start to go down, but you need to go 55 mph with the stock radiator.
Winning 8 is offline   Reply With Quote
Old 04-23-2006, 10:08 PM   #8
Registered

Trader Score: (0)
Join Date: Aug 2004
Location: Virginia/Maryland
Posts: 1,294
Is the thermostat controlled by the ecu in our cars or is it a traditional wax based thermostat?
rkostolni is offline   Reply With Quote
Old 04-25-2006, 01:15 AM   #9
Banned

TeamRX8's Avatar

Trader Score: (22)
Join Date: Apr 2005
Posts: 17,032

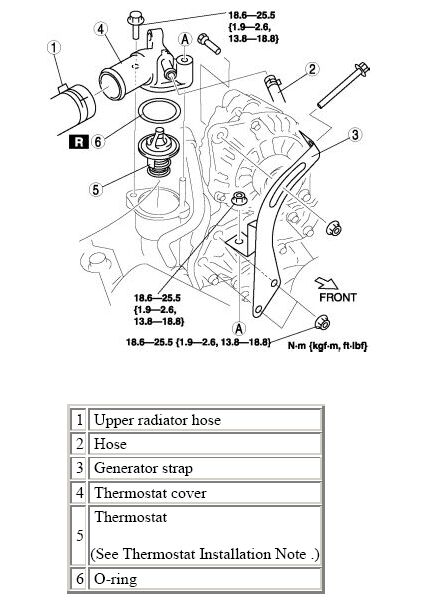

the RX-8 Renesis does not have an electronic thermostat, I believe the fans work off of PCM programming based on a temperature probe and other conditions such as A/C activation, etc.:
