AT Fuel Injectors

volcomx31 · 12-10-2009, 03:30 PM

I need to swap out my fuel injectors but I don't know which color/size I need for my Automatic 8. If anyone knows the correct size/color please let me know. Thank you!

This ad is not displayed to registered and logged-in members.
Register your free account today and become a member on RX8Club.com!

volcomx31 · 12-11-2009, 12:39 AM

nobody knows what injectors the AT has?

swoope · 12-12-2009, 01:10 AM

i wonder if you even try sometimes.

but here you go..

Fuel Injector Info

beers

volcomx31 · 12-12-2009, 01:14 AM

lol. i searched and never found that particular thread. thanks.

lilring · 12-12-2009, 01:18 AM

this might be a stuiped question. but why are you swaping out your injectors?

volcomx31 · 12-12-2009, 01:23 AM

they are most likely clogged/dirty and my car is running like ****. bad gas mileage, rough idle, etc..Charles Hill actually came by and diagnosed my car and he thinks that could be it.

lilring · 12-12-2009, 01:35 AM

really? do you have the orginal engine? and how many miles are on it? im wondering if mine is the same thing

Easy_E1 · 12-12-2009, 01:38 AM

Quote:

Originally Posted by volcomx31

they are most likely clogged/dirty and my car is running like ****. bad gas mileage, rough idle, etc..Charles Hill actually came by and diagnosed my car and he thinks that could be it.

No wonder I couldn't get him on the phone. He's out helping people.

Have you tried some fuel conditioner/injector cleaner?

lilring · 12-12-2009, 01:44 AM

what fuel injector cleaner should I use? there so many out there

swoope · 12-12-2009, 01:51 AM

b&g 44k and seafoam are good choices.. you can now find seafoam at walmart..

i would do one can with half a tank..

but if the injectors are really clogged it will not do it.. removal and cleaning is the only way..

beers

volcomx31 · 12-12-2009, 01:20 PM

i am on my 2nd engine and it has 35k on it..i have tried BG44K and that didn't do anything..i need to get them removed and cleaned.

lilring · 12-12-2009, 02:02 PM

do you think Zmax would do the trick?

Jedi54 · 12-12-2009, 02:48 PM

I dont' get how you clogged your injectors in 35,000 miles.

volcomx31 · 12-12-2009, 04:54 PM

i don't know..it sucks though.

invasion08 · 12-12-2009, 05:16 PM

Here is how to get to your fuel injectors to get them cleaned

BEFORE REPAIR PROCEDURE

WARNING:

•Fuel is extremely flammable. Always keep sparks and flame away from fuel. Ignition may cause death or serious injury, or damage to equipment.
•Fuel line spills and leakage from the pressurized fuel system are dangerous. Fuel can ignite and cause serious injury or death and damage. Fuel can also irritate skin and eyes. To prevent this, always complete the "Fuel Line Safety Procedure".
CAUTION : If there is foreign material on the connecting area of the quick release connector, it might damage the connector or fuel pipe. To prevent this, when the quick release connector has been disconnected, clean the connecting area before reconnecting it.

Fuel Line Safety Procedure

1.Remove the fuel-filler can to release the pressure inside the fuel tank
2.Remove the fuel pump relay.
3.Start the engine.
4.After the engine stalls, crank the engine several times.
5.Turn the ignition switch to the LOCK position.
6.Install the fuel pump relay.

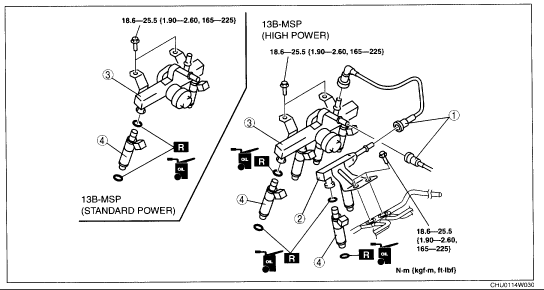

FUEL INJECTOR REMOVAL/INSTALLATION

1.Follow the before repair procedure and perform fuel line safety procedure.
2.Disconnect the negative battery cable.
3.Remove the extension manifold (upper). (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION.)
4.Remove the extension manifold (lower). (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION.)

5.Remove the VDI actuator bracket installation bolt and the position the VDI actuator out of the way.
6.Disconnect the fuel injector connector.

7.Remove in the order indicated in the table.
8.Install in the reverse order of removal.
9.Inspect the variable dynamic effect intake (VDI) actuator.
10.Inspect all parts by performing the "AFTER REPAIR PROCEDURE".

invasion08 · 12-12-2009, 05:24 PM

Volcomx31 This is your best bet without removing the fuel injectors. http://www.bgfindashop.com/locator/index.php. And find a place that can do the Fuel/Air Induction Service on your car. BG also has a product just for fuel injectors

BG Fuel Injection System Cleaner

BG Fuel Injection System Cleaner is a specially formulated blend of solvents, high molecular-weight dispersants and deposit control additives which will quickly, effectively and safely clean fuel injectors and help remove upper engine deposits. This product is designed to be used with the BG 9210 Inject-A-Flush® Apparatus and BG 44K® Part No. 208. BG Fuel Injection System Cleaner contains deposit control additives which “pre-soak” rock-hard valve deposits. This allows the powerful cleaning ingredients in BG 44K® to provide even more effective cleanup. Not harmful to any fuel system components including gaskets, hoses, metals, fuel tank bladders, fuel pumps, O-rings, etc. Catalytic converter and oxygen sensor safe.

volcomx31 · 12-12-2009, 10:18 PM

good looking! i will look into this. thanks man.

volcomx31 · 12-12-2009, 10:40 PM

would you guys choose Econo Lube N' Tune or AAMCO for service?

swoope · 12-13-2009, 01:05 AM

Quote:

Originally Posted by invasion08

Volcomx31 This is your best bet without removing the fuel injectors. http://www.bgfindashop.com/locator/index.php. And find a place that can do the Fuel/Air Induction Service on your car. BG also has a product just for fuel injectors

BG Fuel Injection System Cleaner

BG Fuel Injection System Cleaner is a specially formulated blend of solvents, high molecular-weight dispersants and deposit control additives which will quickly, effectively and safely clean fuel injectors and help remove upper engine deposits. This product is designed to be used with the BG 9210 Inject-A-Flush® Apparatus and BG 44K® Part No. 208. BG Fuel Injection System Cleaner contains deposit control additives which “pre-soak” rock-hard valve deposits. This allows the powerful cleaning ingredients in BG 44K® to provide even more effective cleanup. Not harmful to any fuel system components including gaskets, hoses, metals, fuel tank bladders, fuel pumps, O-rings, etc. Catalytic converter and oxygen sensor safe.

yep,,

likely will not do the job..

beers

Jedi54 · 12-13-2009, 01:05 AM

neither

volcomx31 · 12-13-2009, 02:01 AM

from experience or what?

mike[piston eater] · 12-13-2009, 02:39 AM

neptune speed :D

Atilla · 12-13-2009, 02:59 AM

^+1 w/mike

would be the only place i would trust.

scribed for reference.

invasion08 · 12-13-2009, 07:27 AM

Quote:

Originally Posted by swoope

yep,,

likely will not do the job..

beers

And could i please get your opinions or facts on why this will not do the job?

swoope · 12-16-2009, 03:29 AM

have done both seafoam, and have been a big fan of 44k.. but if you get a good clog in an injector only removal and replacement will work..

it happened to me..

beers
