Turbo Novice System Layout Thread

Rootski · 12-05-2011, 07:30 PM

It's another n00b turbo thread from me! I've read the books and laid out my parts, but I'm still not totally sure where every line, hose, and hookup goes in what order on the RX-8. So to help visualize it, I've drawn up this:

Please bear with me, I know it's not pretty. It's turbo system layout as I best understand it, and I know a lot of parts are wrong. I hope someone will be willing to help correct it and fill in the gaps where the "?" prevails.

Vacuum hoses are red, and I've drawn them where I think they should go based on the threads and books I've perused.

Water lines are blue, and I'm not sure where the water comes from, whether the turbo needs its own reservoir or piggybacks off of the radiator reservoir.

Oil lines are black, and I don't know where the catch can goes or if the RX-8 needs the extra pump or not.

No electrical hookups are drawn. It's a pretty busy diagram already.

Who knows, if you guys are nice enough to help me get this sorted, it could make a nice sticky someday

Thanks for playing along.

This ad is not displayed to registered and logged-in members.
Register your free account today and become a member on RX8Club.com!

JantzenRX-8 · 12-05-2011, 07:44 PM

I'm no FI expert but i thought it you were going to recirculate the BOV it should be plumbed back in after the MAF.

Rootski · 12-05-2011, 07:51 PM

I guess that makes sense. That was one of my big questions.

Brettus · 12-05-2011, 08:24 PM

lot of stuff wrong on that diagram . What were you hoping to achieve ?

9krpmrx8 · 12-05-2011, 09:15 PM

http://www.turbobygarrett.com/turbobygarrett/

Rootski · 12-05-2011, 09:55 PM

Quote:

Originally Posted by Brettus

lot of stuff wrong on that diagram . What were you hoping to achieve ?

To learn exactly what those are, make a correct diagram, then use it for my turbo build and have other people do the same.

Mawnee · 12-05-2011, 11:28 PM

Working on correcting your diagram, but heres a first draft :P

Brettus · 12-05-2011, 11:36 PM

Quote:

Originally Posted by Mawnee

Working on correcting your diagram, but heres a first draft :P
]

Nailed it !

Mawnee · 12-05-2011, 11:52 PM

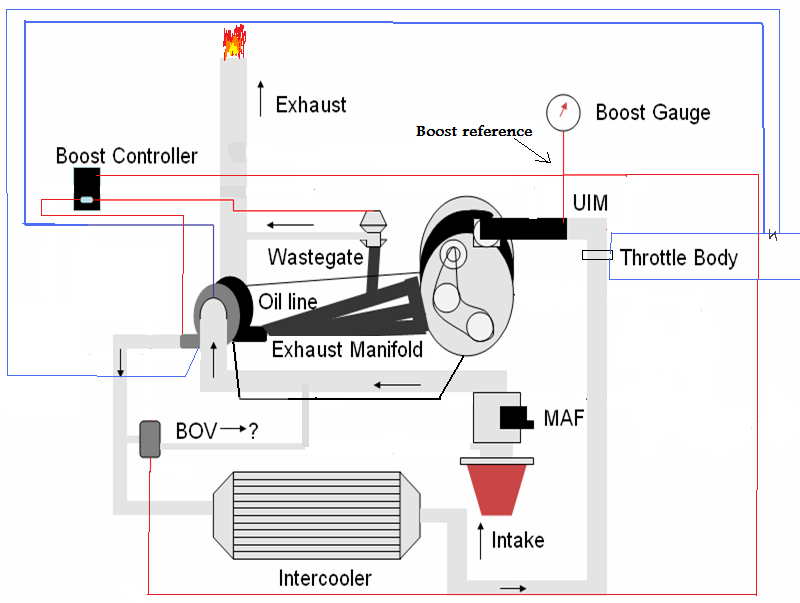

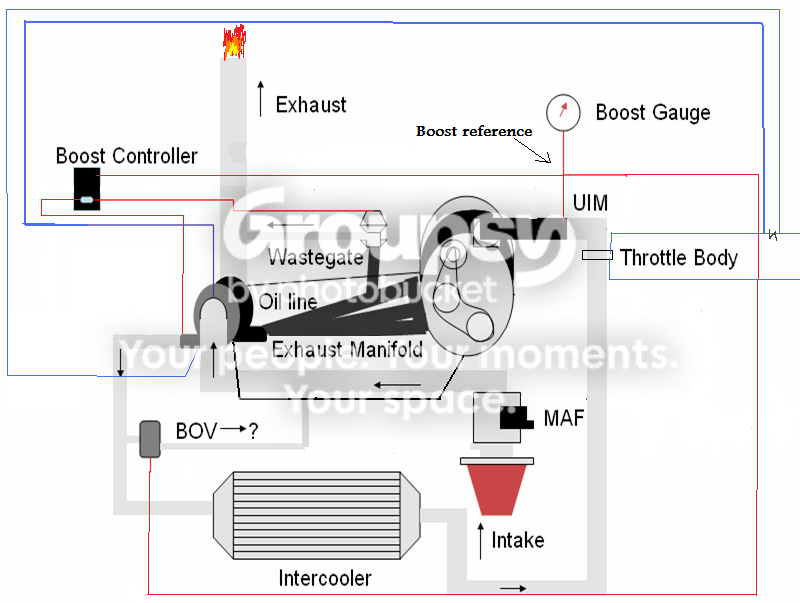

Round 2

Rootski · 12-05-2011, 11:55 PM

Thanks Mawnee. Running pretty rich though.

AAaF · 12-06-2011, 02:32 AM

Good thread. This is effecient education for anyone who considering to turbo charge. Pictures and diagrams explains more than....well a lot of words.

TeamRX8 · 12-06-2011, 08:42 AM

Quote:

Originally Posted by AAaF

Good thread. This is effecient education for anyone who considering to turbo charge. Pictures and diagrams explains more than....well a lot of words.

maskedferret · 12-06-2011, 12:25 PM

Where's the O-pipe?

ooobigfire · 12-06-2011, 04:32 PM

I saw this thread and it made me want to make my own set up lol

Mawnee · 12-06-2011, 06:58 PM

^ nice! But I worry those thin red couplers will slip off at high boost. Also with a vta bov you should definetly add the flames coming out of the exhaust

Rootski · 12-06-2011, 08:59 PM

I like it, bigfire. What's that gray hose by the catch can line running to the top of the block? And is the oil pump for the turbo an add-on or a stock pump?

Also, Barksdale? Rough.

Mawnee · 12-06-2011, 10:06 PM

The oil catch can is in no way related to the oil system. It is to stop excessive oil from being pulled out of the "crankcase" as vapor and dumped into your intake by your vacuum lines. Unchecked this vapor condenses and adds up to a lot of oil all over your intake tubes, throttle body and intake manifold.

Also the only turbo setups that need an external oil pump are remote turbo setups(rear mount). For a standard turbo setup you simply tap into your pressurized oil system at the sensor or filter for the feed and run a gravity drain back to your pan.

Brettus · 12-06-2011, 10:12 PM

Quote:

Originally Posted by Mawnee

Also the only turbo setups that need an external oil pump are remote turbo setups(rear mount). For a standard turbo setup you simply tap into your pressurized oil system at the sensor or filter for the feed and run a gravity drain back to your pan.

I hear some people don't like gravity ...

Mawnee · 12-06-2011, 10:18 PM

Quote:

Originally Posted by Brettus

I hear some people don't like gravity ...

9krpmrx8 · 12-06-2011, 10:21 PM

Quote:

Originally Posted by Brettus

I hear some people don't like gravity ...

Gravity is overrated

Rootski · 12-07-2011, 07:31 PM

Quote:

Originally Posted by Mawnee

The oil catch can is in no way related to the oil system. It is to stop excessive oil from being pulled out of the "crankcase" as vapor and dumped into your intake by your vacuum lines. Unchecked this vapor condenses and adds up to a lot of oil all over your intake tubes, throttle body and intake manifold.

Also the only turbo setups that need an external oil pump are remote turbo setups(rear mount). For a standard turbo setup you simply tap into your pressurized oil system at the sensor or filter for the feed and run a gravity drain back to your pan.

Good info, thanks. I had read that low-mounted turbos might not be able to use a gravity drain, and I plan on mounting mine right on the manifold. When I think about it I guess it'll still be higher than the oil pan.
