Thermostat housing for turbo
hi all,
i am trying to modify little bit my thermostat housing for my turbo set up.
before i always have my mechanic working on my car, but this time, decided to do myself. i have fixed everything, welding and others...
now, i try to reroute my water line. instead of going to the side, now as you can see the pics, its going to the front...
question now, i need your inputs guys if you are willing to give.
the pictures below, the first and the second thermostat housing are different.
the first one is stock, and second one is cut and we close the hole that goes to the lower part, i think you have to look at the pic.
DO YOU GUYS THINK THAT IT WILL AFFECT THE FLOW OF THE WATER? IS IT GOING TO BE FINE? just wondering...thank you for all the advice
steven
i am trying to modify little bit my thermostat housing for my turbo set up.
before i always have my mechanic working on my car, but this time, decided to do myself. i have fixed everything, welding and others...
now, i try to reroute my water line. instead of going to the side, now as you can see the pics, its going to the front...
question now, i need your inputs guys if you are willing to give.
the pictures below, the first and the second thermostat housing are different.
the first one is stock, and second one is cut and we close the hole that goes to the lower part, i think you have to look at the pic.
DO YOU GUYS THINK THAT IT WILL AFFECT THE FLOW OF THE WATER? IS IT GOING TO BE FINE? just wondering...thank you for all the advice
steven
#3
Registered
Thread Starter
Join Date: Jan 2007
Location: NJ
Posts: 1,401
Likes: 0
Received 0 Likes
on
0 Posts
if that's the warm-up bypass port, does it mean that it will get warmed up longer? or it is going to affect the cooling system? or it is a bad idea?
#4
Registered
iTrader: (3)
without going into a long explanation why---you need the bypass to be functional. Do not close it up unless you are using the car for racing only.
Rerouting the radiator hose should be Ok to do? Good idea if you needed the clearance.
its probably just the picture but make sure the overflow tank ( plastic one) is the highest point in the cooling system--it looks like the therm cover may be as high?
Again good thinking on rerouting the hose.
Rerouting the radiator hose should be Ok to do? Good idea if you needed the clearance.
its probably just the picture but make sure the overflow tank ( plastic one) is the highest point in the cooling system--it looks like the therm cover may be as high?
Again good thinking on rerouting the hose.
#5
Registered
Thread Starter
Join Date: Jan 2007
Location: NJ
Posts: 1,401
Likes: 0
Received 0 Likes
on
0 Posts
without going into a long explanation why---you need the bypass to be functional. Do not close it up unless you are using the car for racing only.
Rerouting the radiator hose should be Ok to do? Good idea if you needed the clearance.
its probably just the picture but make sure the overflow tank ( plastic one) is the highest point in the cooling system--it looks like the therm cover may be as high?
Again good thinking on rerouting the hose.
Rerouting the radiator hose should be Ok to do? Good idea if you needed the clearance.
its probably just the picture but make sure the overflow tank ( plastic one) is the highest point in the cooling system--it looks like the therm cover may be as high?
Again good thinking on rerouting the hose.
steven
#7
Registered
Thread Starter
Join Date: Jan 2007
Location: NJ
Posts: 1,401
Likes: 0
Received 0 Likes
on
0 Posts
thank you for chime in for my need of some knowledge..
i did some reading little bit, but the conclusion is that if i wanna do this way, i have to take the thermostat away from the housing so the water can flow. it is becoming "restrictor flow" instead of "FREE FLOW" which is always the best for the street use.
basically when you see my last pic, that's the connection to the lower radiator. i am planning to use the outlet on the aluminium piping as you can see in the pic for the split outlet to the "firewall" and "the bottom of the coolant reservoir". also, i will connect also the bottom of the reservoir to the top of the radiator, just incase.
i don't know if it's a good idea...l
let me know if you need to see more pics, so i can take more pics when i get home
thank you one more time
steven
#9
Boostin'
You have to delete the T-stat if you are going to plug the bypass. The T-stat plugs that portion when it is opens. I know of an Rx-8 running this way on the street( plugged/no tstat).
#11
Registered
Thread Starter
Join Date: Jan 2007
Location: NJ
Posts: 1,401
Likes: 0
Received 0 Likes
on
0 Posts
OD, thank you for your advice..i might figure out how to make the bypass from the piping. i might have to get an extra thermostat housing which is the "inline thermostat housing with w/ thermostat in it", so it close the upper radiator, an reroute it to lower chamber...
steven
#15
Registered
Thread Starter
Join Date: Jan 2007
Location: NJ
Posts: 1,401
Likes: 0
Received 0 Likes
on
0 Posts
i will give you more details...this is one of the old top mount style..if you know what i meant...old distributor..i used to do lower mount with the same type of turbo, T67, now i decided to do top mount...it has been running good, but it's winter, so i decided to tackle little bit of water line and htings that i need to get things away..
these are the pics that i want to show you guys, since you guys don't mind chime in helping for the advice...and other ppl, who dont like the topic, can leave it without any comment
the stock style, the lower hose goes through between extension and downpipe so just try to come up with some trials....
as you can see, the lower hose, there is a hole, and will do 2 outlet from there, one go to firewall and lower reservoir....just ask you guys some advice..
as you guys can see, from the left
stock, now, my reservoir, the distance from turbo to hose, and my old set up..
#16
Registered
Thread Starter
Join Date: Jan 2007
Location: NJ
Posts: 1,401
Likes: 0
Received 0 Likes
on
0 Posts
dont worry , we are already in since "you are in already by posting it"
it's ok team, i know you got annoyed sometimes, and i am sorry for that, but i am here to get some advice,..i like to read, but posting, not really. i post whenever i need some advices..that's all, and if you are not willing to give it, don't have to read it..go along with peace in mind,,thats all...some people are good at one thing, some people have time to do research, some people have good information but lazy to share it, some ppl like to give advice even if they have been saying it many times because they understand about the situations out there..that's the people that i am looking for...
well, let's take this topic back, but please whoever don't feel share the advice,
DONT POST....let it go...
thank you
steven
it's ok team, i know you got annoyed sometimes, and i am sorry for that, but i am here to get some advice,..i like to read, but posting, not really. i post whenever i need some advices..that's all, and if you are not willing to give it, don't have to read it..go along with peace in mind,,thats all...some people are good at one thing, some people have time to do research, some people have good information but lazy to share it, some ppl like to give advice even if they have been saying it many times because they understand about the situations out there..that's the people that i am looking for...
well, let's take this topic back, but please whoever don't feel share the advice,
DONT POST....let it go...
thank you
steven
#17
Registered
Thread Starter
Join Date: Jan 2007
Location: NJ
Posts: 1,401
Likes: 0
Received 0 Likes
on
0 Posts
DAN and OD,
this is what i am talking about inline thermostat housing...i might try use it at the end before tap it like DAN said before...what do you guys think?
steven
this is what i am talking about inline thermostat housing...i might try use it at the end before tap it like DAN said before...what do you guys think?
steven
#18
seebass
iTrader: (4)
steven :wors hip:
dont worry , we are already in since "you are in already by posting it"
it's ok team, i know you got annoyed sometimes, and i am sorry for that, but i am here to get some advice,..i like to read, but posting, not really. i post whenever i need some advices..that's all, and if you are not willing to give it, don't have to read it..go along with peace in mind,,thats all...some people are good at one thing, some people have time to do research, some people have good information but lazy to share it, some ppl like to give advice even if they have been saying it many times because they understand about the situations out there..that's the people that i am looking for...
well, let's take this topic back, but please whoever don't feel share the advice,
DONT POST....let it go...
thank you
steven
it's ok team, i know you got annoyed sometimes, and i am sorry for that, but i am here to get some advice,..i like to read, but posting, not really. i post whenever i need some advices..that's all, and if you are not willing to give it, don't have to read it..go along with peace in mind,,thats all...some people are good at one thing, some people have time to do research, some people have good information but lazy to share it, some ppl like to give advice even if they have been saying it many times because they understand about the situations out there..that's the people that i am looking for...
well, let's take this topic back, but please whoever don't feel share the advice,
DONT POST....let it go...
thank you
steven
#19
Registered
iTrader: (3)
Ohhhhh---ok I see what you are trying to do now. I didnt realize the plastic air separation/overflow/expansion tank was no longer going to be used? Is that correct?
How will you control the coolant pressure/air without one?
The reason I ask is I dont see the hookups for the hoses on the new thermostat housing?
If you want to medusa those inlets on the one showing (lower radiator hose one) that will be ok--they all blend into the same flow.

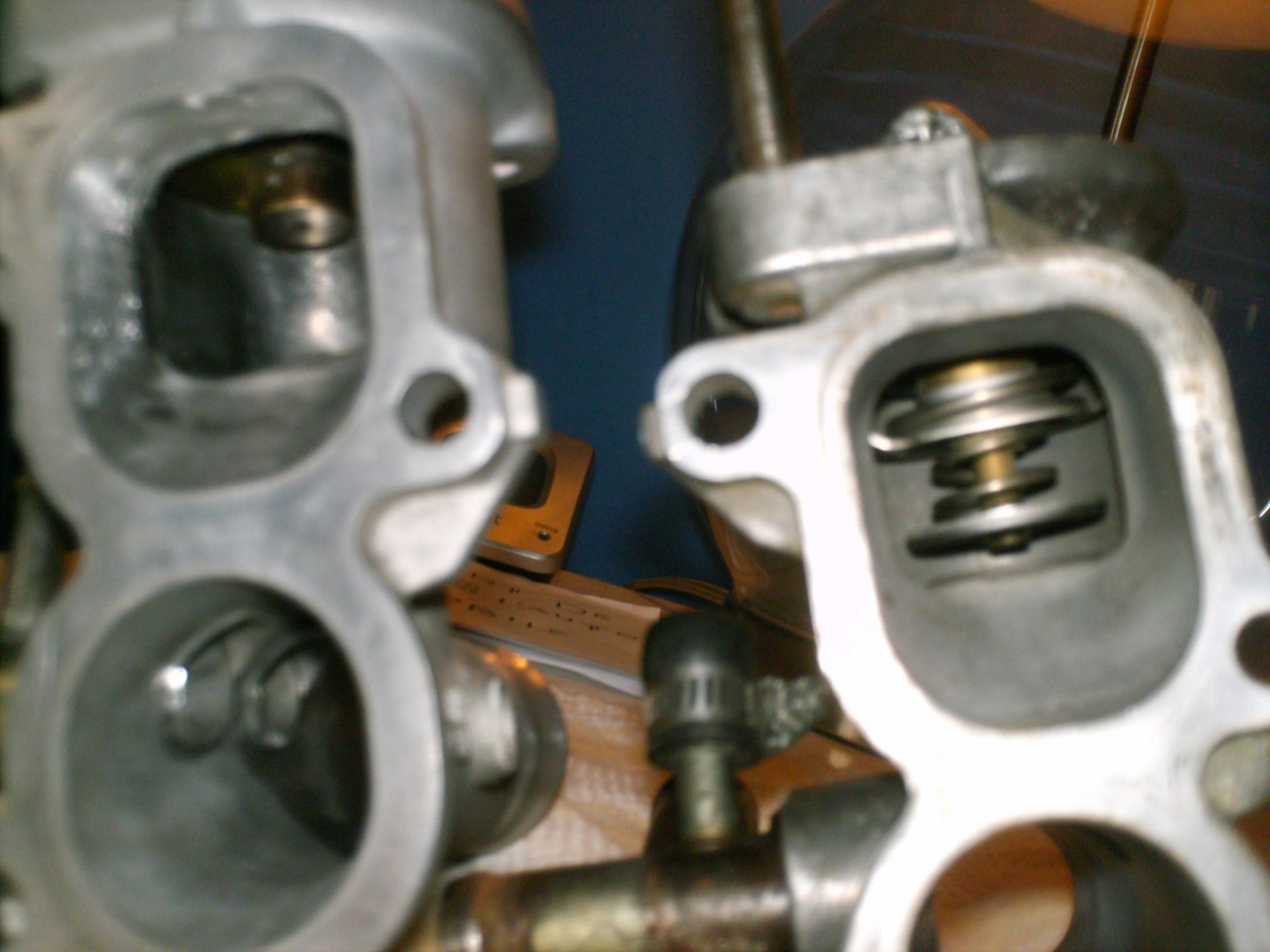

Now about the by pass---that has to be managed from the thermostat housing. Here is a picture that may help.
