Old 03-05-2009, 12:35 PM   #1
Turbocharger Guru

Trader Score: (0)
Join Date: Jan 2009
Location: Birmingham, AL USA
Posts: 220
Send a message via AIM to Bryan@BNR
The newest 100% bolt on Greddy Hybrid turbocharger!

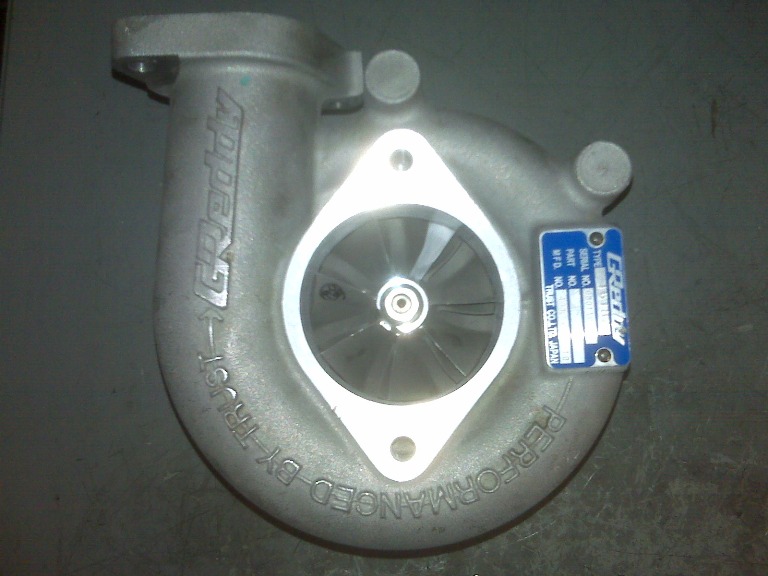

Here is a sneak peak preview of the compressor side of the Greddy turbocharger. It is machined custom for a custom 58 lb/min compressor wheel that is a High volume, low pressure compressor. The plans are with this option is to have a water cooled center section to get rid of the turbine seal failure woes that come with a non water cooled center section. Thrust assembly is also upgraded to flow more volume and to have more thrust bearing to collar surface area. The turbine will be clipped to minimize back pressure.

There will be an option for a 49 lb/min compressor as well.

I know you guys have been interested for a long time for a robust Greddy turbocharger. Well, here is the answer!
This ad is not displayed to registered and logged-in members.
Register your free account today and become a member on RX8Club.com!
Attached Thumbnails
The newest 100% bolt on Greddy Hybrid turbocharger!-greddy-rx8-60-1.jpg
__________________
[SIGPIC][/SIGPIC]
"650 RWHP or bust"

BNR Supercars LLC
Bryan Nickell
Bryan@BNR is offline   Reply With Quote
Old 03-05-2009, 12:42 PM   #2
Illudium Q-36 Space Moderator

Kane's Avatar

Trader Score: (1)
Join Date: Jan 2007
Location: PCB
Posts: 6,599
Send a message via Yahoo to Kane
Nice man; really nice.

Let's see more pics!
__________________
"Choose the harder right over the easier wrong" - CPT English, US Army Diver, KIA Dec 3, 2006

Overboosted Overlord #1
Kane is offline   Reply With Quote
Old 03-05-2009, 12:43 PM   #3
Illudium Q-36 Space Moderator

Kane's Avatar

Trader Score: (1)
Join Date: Jan 2007
Location: PCB
Posts: 6,599
Send a message via Yahoo to Kane
And a flowmap.
__________________
"Choose the harder right over the easier wrong" - CPT English, US Army Diver, KIA Dec 3, 2006

Overboosted Overlord #1
Kane is offline   Reply With Quote
Old 03-05-2009, 12:49 PM   #4
Turbocharger Guru

Trader Score: (0)
Join Date: Jan 2009
Location: Birmingham, AL USA
Posts: 220
Send a message via AIM to Bryan@BNR
Thats all the pics for now. I will have more pics in around a week. I have all the other parts coming, I just wanted to make sure that wheel fit in the housing. And with some careful measuring and altercations, I made it work very nicely.

Someone please post up compressor maps for both the 50 trim and the 60-1 compressor wheels. This will be your choices to pick from.

Bryan@BNR
__________________
[SIGPIC][/SIGPIC]
"650 RWHP or bust"

BNR Supercars LLC
Bryan Nickell
Bryan@BNR is offline   Reply With Quote
Old 03-05-2009, 12:55 PM   #5
Illudium Q-36 Space Moderator

Kane's Avatar

Trader Score: (1)
Join Date: Jan 2007
Location: PCB
Posts: 6,599
Send a message via Yahoo to Kane
T04E-50 Trim; Right?

Or the T3-50 Trim?
__________________
"Choose the harder right over the easier wrong" - CPT English, US Army Diver, KIA Dec 3, 2006

Overboosted Overlord #1

Last edited by Kane; 03-05-2009 at 01:07 PM.
Kane is offline   Reply With Quote
Old 03-05-2009, 01:05 PM   #6
Administrator

zoom44's Avatar

Trader Score: (0)
Join Date: Jul 2002
Location: portland oregon
Posts: 21,498
Send a message via AIM to zoom44
Bryan you can talk about product in informative/technical/ are you interested? discussions but you cant solicit sales by posting your email or links to your business or post pricing etc without first making arrangements with the forum owners.

you can contact the IB guy directly at marvin.suerto@carsdirect.com rather than using the advertising link
__________________
Please read my Winter Thread

Re-program your AC Amplifier


Ordered Jan 10th,2003 Picked-up 7/31/03!! 2004 sunlight silver , touring package + 6cd changer. Revi intake and duct, Axial Flow Engineering Short Shifter, Racing Beat Flash!

Quote:
Originally Posted by RX-8NDF
All you have to do is read your owners manual.

Factory Parts & Accessories finishlineperformance.com
zoom44 is offline   Reply With Quote
Old 03-05-2009, 01:07 PM   #7
hakuna matata!

alz0rz's Avatar

Trader Score: (41)
Join Date: Aug 2007
Location: NYC
Posts: 6,195
Send a message via AIM to alz0rz
Bolt-on.. very nice.

I second the call for a flow map.
__________________
2014 BMW M235i - 6spd
GBNF: 2005 VR 6sp RX8 GT & 2005 VR 6sp RX8 Touring.
alz0rz is offline   Reply With Quote
Old 03-05-2009, 01:09 PM   #8
Illudium Q-36 Space Moderator

Kane's Avatar

Trader Score: (1)
Join Date: Jan 2007
Location: PCB
Posts: 6,599
Send a message via Yahoo to Kane
Click the image to open in full size.
Click the image to open in full size.

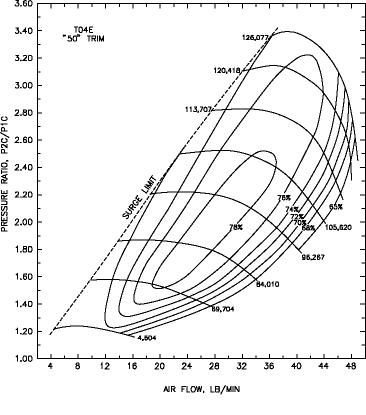

I think these are it - the T3 maps are not nearly as well suited for our cars.
Attached Thumbnails
The newest 100% bolt on Greddy Hybrid turbocharger!-flow_map-50trim.jpg   The newest 100% bolt on Greddy Hybrid turbocharger!-to4e60.jpg   The newest 100% bolt on Greddy Hybrid turbocharger!-60-1.jpg
__________________
"Choose the harder right over the easier wrong" - CPT English, US Army Diver, KIA Dec 3, 2006

Overboosted Overlord #1

Last edited by Kane; 03-05-2009 at 01:22 PM.
Kane is offline   Reply With Quote
Old 03-05-2009, 01:09 PM   #9
I am THAT guy

Atilla's Avatar

Trader Score: (1)
Join Date: May 2007
Location: Caca Cali
Posts: 6,968
zerolock18
*scribed for reading purposes*
__________________
Daily Driven

Link: http://www.rx8club.com/rx-8-multimed...2014-a-252075/
Atilla is offline   Reply With Quote
Old 03-05-2009, 01:10 PM   #10
Illudium Q-36 Space Moderator

Kane's Avatar

Trader Score: (1)
Join Date: Jan 2007
Location: PCB
Posts: 6,599
Send a message via Yahoo to Kane
I would be more concerned about the Water Cooled CHRA that the flow map to be honest.
If you already have a Greddy then you know the power of the "evil" snail which isn't bad at all - getting one to last 50K or more would be really nice.

The better power is just a bonus IMO.
__________________
"Choose the harder right over the easier wrong" - CPT English, US Army Diver, KIA Dec 3, 2006

Overboosted Overlord #1
Kane is offline   Reply With Quote
Old 03-05-2009, 01:16 PM   #11
Turbocharger Guru

Trader Score: (0)
Join Date: Jan 2009
Location: Birmingham, AL USA
Posts: 220
Send a message via AIM to Bryan@BNR

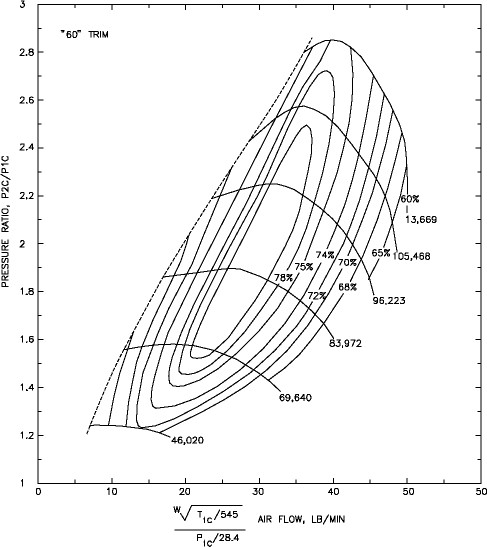

Wrong map! That is the 60 trim not the 60-1. Huge difference. The other is a T04E 50 trim.
__________________
[SIGPIC][/SIGPIC]
"650 RWHP or bust"

BNR Supercars LLC
Bryan Nickell
Bryan@BNR is offline   Reply With Quote
Old 03-05-2009, 01:19 PM   #12
Illudium Q-36 Space Moderator

Kane's Avatar

Trader Score: (1)
Join Date: Jan 2007
Location: PCB
Posts: 6,599
Send a message via Yahoo to Kane
So the 50 is right and the 60 is wrong?
__________________
"Choose the harder right over the easier wrong" - CPT English, US Army Diver, KIA Dec 3, 2006

Overboosted Overlord #1
Kane is offline   Reply With Quote
Old 03-05-2009, 01:21 PM   #13
Never Blend In

nuke0907's Avatar

Trader Score: (2)
Join Date: Oct 2006
Location: Omaha, NE
Posts: 4,568
nuke0907
Send a message via AIM to nuke0907 Send a message via Yahoo to nuke0907
i might have to look into this for future purposes.
__________________

Quote:
Originally Posted by ZumnRx8 View Post
lol NUKE! we will be TWINS except ill be the ugly 1 until i get some plastic surgery on the outside
nuke0907 is offline   Reply With Quote
Old 03-05-2009, 01:21 PM   #14
Turbocharger Guru

Trader Score: (0)
Join Date: Jan 2009
Location: Birmingham, AL USA
Posts: 220
Send a message via AIM to Bryan@BNR
Quote:
Originally Posted by zoom44 View Post
Bryan you can talk about product in informative/technical/ are you interested? discussions but you cant solicit sales by posting your email or links to your business or post pricing etc without first making arrangements with the forum owners.

you can contact the IB guy directly at marvin.suerto@carsdirect.com rather than using the advertising link

I got ya. I removed the links from my signature. Thanks for informing me.
__________________
[SIGPIC][/SIGPIC]
"650 RWHP or bust"

BNR Supercars LLC
Bryan Nickell
Bryan@BNR is offline   Reply With Quote
Old 03-05-2009, 01:23 PM   #15
Illudium Q-36 Space Moderator

Kane's Avatar

Trader Score: (1)
Join Date: Jan 2007
Location: PCB
Posts: 6,599
Send a message via Yahoo to Kane
Better?
__________________
"Choose the harder right over the easier wrong" - CPT English, US Army Diver, KIA Dec 3, 2006

Overboosted Overlord #1
Kane is offline   Reply With Quote
Old 03-05-2009, 01:24 PM   #16
Turbocharger Guru

Trader Score: (0)
Join Date: Jan 2009
Location: Birmingham, AL USA
Posts: 220
Send a message via AIM to Bryan@BNR
Quote:
Originally Posted by Kane View Post
So the 50 is right and the 60 is wrong?

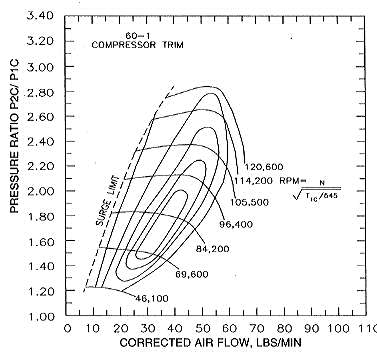

Yeah, the 60 is wrong. I think there is a map of a T04B 60-1. It is actually an E wheel, but that is what garrett has it as.
__________________
[SIGPIC][/SIGPIC]
"650 RWHP or bust"

BNR Supercars LLC
Bryan Nickell
Bryan@BNR is offline   Reply With Quote
Old 03-05-2009, 01:24 PM   #17
Illudium Q-36 Space Moderator

Kane's Avatar

Trader Score: (1)
Join Date: Jan 2007
Location: PCB
Posts: 6,599
Send a message via Yahoo to Kane
I changed it out.
__________________
"Choose the harder right over the easier wrong" - CPT English, US Army Diver, KIA Dec 3, 2006

Overboosted Overlord #1
Kane is offline   Reply With Quote
Old 03-05-2009, 04:54 PM   #18
1st RX8 BNR Turbo Owner..

J.Cab's Avatar

Trader Score: (1)
Join Date: Feb 2008
Location: San Antonio, Texas
Posts: 454
Alright guys,

The turbo in the picture is mine that Bryan is currently working out. Some plans are to fit a 60-1 compressor wheel inside the "base" Greddy turbo. Also make it a water cooled center for an "extended" lifetime per say. I am also looking if he can port the turbine side so I can have some room to grow with. Stay tuned for what seems to be a promising option for us Greddy turbo owners. As I have heard nothing but great things about BNR!
J.Cab is offline   Reply With Quote
Old 03-05-2009, 05:08 PM   #19
BDC
BDC Motorsports

BDC's Avatar

Trader Score: (0)
Join Date: Nov 2006
Location: Dallas, Tx
Posts: 417
Send a message via AIM to BDC Send a message via MSN to BDC Send a message via Yahoo to BDC
+1 for Bryan's goodies. I've installed several of these on customer cars over here. High quality and reliable.

B
__________________
Brian D. Cain

BDC is offline   Reply With Quote
Old 03-05-2009, 05:18 PM   #20
Asshole for hire

Trader Score: (1)
Join Date: Jun 2006
Location: Colfontaine, Belgium
Posts: 3,332
Send a message via AIM to paulmasoner Send a message via Yahoo to paulmasoner
this looks promising for sure. my biggest concern is the wastegate. any chance it can be increased in size?
__________________
2006 RX-8 Shinka sold
1997 Toyota Starlet
2011 Kawasaki KLR650E
Quote:
Originally Posted by zenrx8 View Post
you tend to deliver information with derision, a baseball bat and brass knuckles instead of a helpful attitude.
paulmasoner is offline   Reply With Quote
Old 03-05-2009, 05:29 PM   #21
Reginald P. Billingsly

bose's Avatar

Trader Score: (5)
Join Date: Sep 2007
Location: Taylorsville, UT
Posts: 2,167
rufusjonez420 roturbose
Looks promising, I can't wait to see more.
__________________
Engine NOT motor. Wheels NOT rims.
bose is offline   Reply With Quote
Old 03-05-2009, 05:48 PM   #22
Turbocharger Guru

Trader Score: (0)
Join Date: Jan 2009
Location: Birmingham, AL USA
Posts: 220
Send a message via AIM to Bryan@BNR
Quote:
Originally Posted by paulmasoner View Post
this looks promising for sure. my biggest concern is the wastegate. any chance it can be increased in size?
Porting the wastegate is no problem. Clipping the turbine wheel actually helps with boost control as well. Put the two together and you have a better control. If you guys want a huge wastegate valve, it will be major surgery to the turbine housing.

The turbine housing can be ported in one spot to open up flow a bit. I'm not saying the housing will flow 400 RWHP, but I think it can come pretty close. A 10 cm2 Mitsubishi is equal to a .72 a/r Garrett. Its a little small, but for what you guys are needing, it will do the job.

Bryan@BNR
__________________
[SIGPIC][/SIGPIC]
"650 RWHP or bust"

BNR Supercars LLC
Bryan Nickell
Bryan@BNR is offline   Reply With Quote
Old 03-05-2009, 05:51 PM   #23
Asshole for hire

Trader Score: (1)
Join Date: Jun 2006
Location: Colfontaine, Belgium
Posts: 3,332
Send a message via AIM to paulmasoner Send a message via Yahoo to paulmasoner
good deal, sounds even better then. i dont think most here are looking for a turbo that will flow that much anyway. i think most people once they actually drive an 8 putting down 300-350 they will be shocked at how fast it really is compared to stock, and that is more than enough for most
__________________
2006 RX-8 Shinka sold
1997 Toyota Starlet
2011 Kawasaki KLR650E
Quote:
Originally Posted by zenrx8 View Post
you tend to deliver information with derision, a baseball bat and brass knuckles instead of a helpful attitude.
paulmasoner is offline   Reply With Quote
Old 03-05-2009, 05:53 PM   #24
hakuna matata!

alz0rz's Avatar

Trader Score: (41)
Join Date: Aug 2007
Location: NYC
Posts: 6,195
Send a message via AIM to alz0rz
flowing enough air for 300+ on the Greddy turbo while also being more reliable (water cooled) would be a GODSEND!
__________________
2014 BMW M235i - 6spd
GBNF: 2005 VR 6sp RX8 GT & 2005 VR 6sp RX8 Touring.
alz0rz is offline   Reply With Quote
Old 03-05-2009, 06:05 PM   #25
1st RX8 BNR Turbo Owner..

J.Cab's Avatar

Trader Score: (1)
Join Date: Feb 2008
Location: San Antonio, Texas
Posts: 454
Bryan,

Can we go ahead and port the wastegate and turbine housing on my order. I am trying to "maximize" the turbo now so that I dont have to upgrade in the future.

Thanks,
Justin
J.Cab is offline   Reply With Quote
Old 03-05-2009, 06:05 PM
RX8Club
Mazda RX8




Paid Advertisement





Reply

Tags
accessport, aerocharger, aftermarket, bolt, bov, cobb, hybrid, map, mazdaspeed6, mrs, newest, rx8club, subaru, turbocharger, turbochargers

Thread Tools Search this Thread
Search this Thread:

Advanced Search
Display Modes Rate This Thread
Rate This Thread:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


Similar Threads
Thread Thread Starter Forum Replies Last Post
Mazda RX8 performance bolt-on from GReddy aimee Series I Interior, Audio, and Electronics 8 01-20-2009 02:27 AM
FS: GReddy Rear Strut Tower Bar $100 SHIPPED simplyphp RX-8 Parts For Sale/Wanted 18 12-17-2008 04:52 AM
FS: GReddy T618Z turbocharger chickenwafer RX-8 Parts For Sale/Wanted 7 06-20-2008 04:44 PM
New In Box Greddy Strut Brace $100 RX8KatyTX RX-8 Parts For Sale/Wanted 1 09-10-2007 12:03 PM
Greddy Turbo for Rx-8 - bolt ons Undies Series I Aftermarket Performance Modifications 7 05-08-2005 03:10 PM


All times are GMT -5. The time now is 06:54 AM.


Powered by vBulletin® Version 3.8.7
Copyright ©2000 - 2014, vBulletin Solutions, Inc.
All content Copyright 2007 by Internet Brands, Inc.
Emails Backup
