BOSE amp connector diagram ?

Hi,

I own an RX8 with BOSE system with 9 speakers and I want to by-pass the Bose amp.

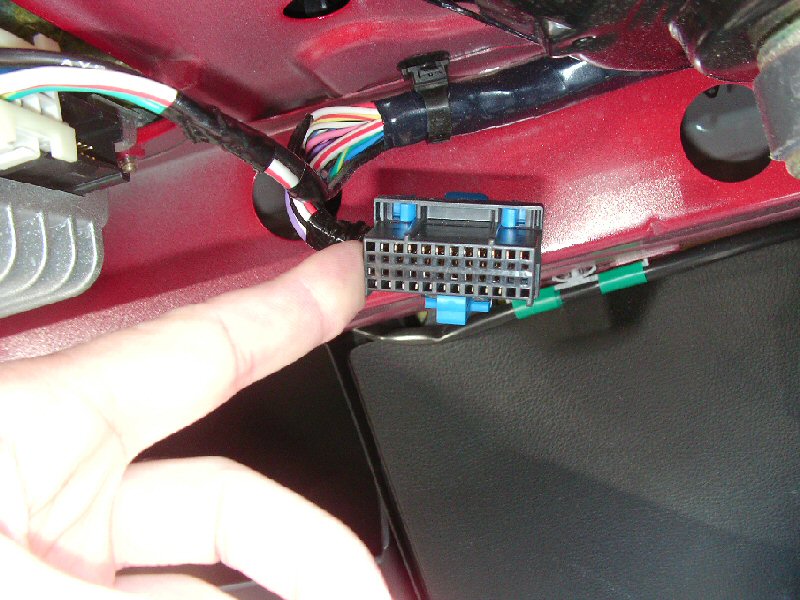

Is anybody able to tell me a decription of the two connectors and wiring ? Especially this one on the picture to find speaker inputs and outputs.

Thanks
This ad is not displayed to registered and logged-in members.
Register your free account today and become a member on RX8Club.com!
Attached Thumbnails
BOSE amp connector diagram ?-sany0019b-jpg
viperjr is offline   Reply With Quote
Old 04-10-2007, 05:23 PM   #2
Drive Like you stole it

rx8guy86's Avatar

Trader Score: (0)
Join Date: Jul 2006
Location: Knoxville, TN
Posts: 406
Send a message via AIM to rx8guy86 Send a message via MSN to rx8guy86 Send a message via Yahoo to rx8guy86
Speaker sizes, harnesses, kits, etc: audio install reference


There are several links on that sticky that will help you... I have the bose as well, and bypassed the entire system... I used that sticky all the time...

btw... search button does work...
rx8guy86 is offline   Reply With Quote
Old 04-11-2007, 05:06 AM   #3
Registered User

viperjr's Avatar

Trader Score: (0)
Join Date: Apr 2007
Posts: 2
Quote:
Originally Posted by rx8guy86
Speaker sizes, harnesses, kits, etc: audio install reference


There are several links on that sticky that will help you... I have the bose as well, and bypassed the entire system... I used that sticky all the time...

btw... search button does work...
I found this thread previously but I didn't find informations about bose amp connector diagram. Do you have a more precise link ? Maybe it is because english is not my mother language ?

Last edited by viperjr; 04-11-2007 at 05:08 AM.
viperjr is offline   Reply With Quote
