Ignition timing for turbo or supercharged renesis - post your maps
04-22-2009, 11:05 PM
#1
Ignition timing for turbo or supercharged renesis - post your maps
Firstly I did search and I know there was another comprehensive thread around here on this subject that seems to have disappeared . If someone can find it i'll delete this thread .
The purpose of this thread is to discuss what is working for people and at what boost / whp .
Latest map used for us tunes on 91 octane :as of 22/06/2012
The purpose of this thread is to discuss what is working for people and at what boost / whp .
Latest map used for us tunes on 91 octane :as of 22/06/2012
Last edited by Brettus; 06-21-2012 at 05:22 PM.
04-23-2009, 08:45 PM
#4
U-Stink-But-I-♥-U
iTrader: (1)
Join Date: Mar 2005
Location: 12 o'clock on the Beltway.
Posts: 2,004
Likes: 0
Received 1 Like
on
1 Post

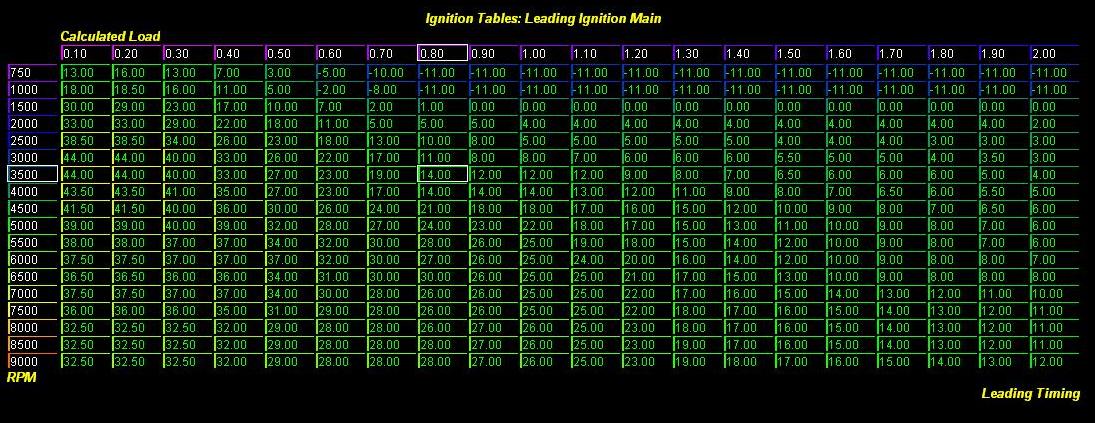

This is my first iteration of timing. I have only begun to play with this when I had to shut down for a while. I will not but up and running for three weeks as I am out of town next week and the following.
This map is based on load and not MAP. I have not seen a published timing map based on load, so I dont know what is right or wrong on this map.
Feel free to discuss.
This map is based on load and not MAP. I have not seen a published timing map based on load, so I dont know what is right or wrong on this map.
Feel free to discuss.
04-23-2009, 09:41 PM
#5
This is my first iteration of timing. I have only begun to play with this when I had to shut down for a while. I will not but up and running for three weeks as I am out of town next week and the following.
This map is based on load and not MAP. I have not seen a published timing map based on load, so I dont know what is right or wrong on this map.
Feel free to discuss.
]
This map is based on load and not MAP. I have not seen a published timing map based on load, so I dont know what is right or wrong on this map.
Feel free to discuss.
]
04-23-2009, 09:49 PM
#6
U-Stink-But-I-♥-U
iTrader: (1)
Join Date: Mar 2005
Location: 12 o'clock on the Beltway.
Posts: 2,004
Likes: 0
Received 1 Like
on
1 Post
165-170, but was quite rich. In the mid 10s.
I intended the midrange to be very safe until I could get an idea where I was. I have an innovate accelerometer that I intended to use to tune the timing, but I think that is going to go into my Baja. I guess I need to either get a g-tech or try to use the datalogs to figure acceleration.
WAIT! I thought you were running a map based timing map? That is a load based map. What are you using now??
Wish my car was running.
I intended the midrange to be very safe until I could get an idea where I was. I have an innovate accelerometer that I intended to use to tune the timing, but I think that is going to go into my Baja. I guess I need to either get a g-tech or try to use the datalogs to figure acceleration.
WAIT! I thought you were running a map based timing map? That is a load based map. What are you using now??
Wish my car was running.
04-23-2009, 09:57 PM
#7
Always have run a load based map - I originally had a piggyback that was map based but only used it to modify the tune .
My midrange timing was similar to yours originally but i advanced the timing after discussions with MM - ensureing i ran rich till i got it sorted . My EGTs came down as a result ...
My midrange timing was similar to yours originally but i advanced the timing after discussions with MM - ensureing i ran rich till i got it sorted . My EGTs came down as a result ...
04-25-2009, 01:08 AM
#13
Hmmmmmm.........
Join Date: Mar 2005
Location: Melbourne, Australia
Posts: 3,564
Likes: 0
Received 6 Likes
on
4 Posts
Brett do you mind if I bring up the issue of EGT's relating to ignition advance in here?
If not, looking at Scanalyser I note only that there is CAT temp. Reckon this would be sufficient?
Cheers
Andrew
If not, looking at Scanalyser I note only that there is CAT temp. Reckon this would be sufficient?
Cheers
Andrew
04-25-2009, 12:13 PM
#19

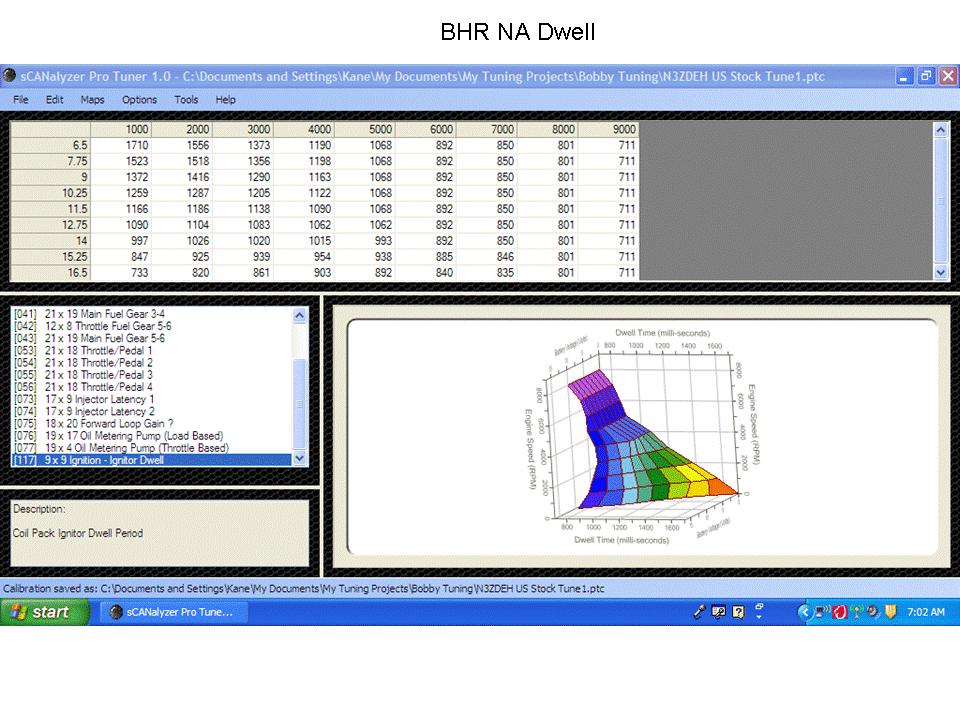

Here are the factory Dwell - and the Dwell Changes I have made to date.
This is why I am prety sure that both the AP and the ProTuner are both not TRULY measuring dwell in MS - since the factory map is way above 5ms.
Since we know the factory ignition is about 3-3.8ms; I just modifyed it by 130-150% and smoothed it some. It works great on PunisherRX8's car.
Also the Yukon coils have an 8ms cap on them - so you will never be able to get them to run longer than that.
Once I get to the Dyno - I'll be able to adjust these some more - the goal is too keep backing the dwell down until I lose some power / get misfires... that will tell me for the car they are on - what is the minimum dwell I can get away with.
This is why I am prety sure that both the AP and the ProTuner are both not TRULY measuring dwell in MS - since the factory map is way above 5ms.
Since we know the factory ignition is about 3-3.8ms; I just modifyed it by 130-150% and smoothed it some. It works great on PunisherRX8's car.
Also the Yukon coils have an 8ms cap on them - so you will never be able to get them to run longer than that.
Once I get to the Dyno - I'll be able to adjust these some more - the goal is too keep backing the dwell down until I lose some power / get misfires... that will tell me for the car they are on - what is the minimum dwell I can get away with.
Last edited by Kane; 04-25-2009 at 12:19 PM.
04-25-2009, 04:41 PM
#21
From another thread - posting it here for future ref.
I had asked Kane if the factory dwell of 595 = 5.95 ms ...
I had asked Kane if the factory dwell of 595 = 5.95 ms ...
I did too - but some areas made me think.
1) The int-x setting for the factory ignition = 3.0 to 3.8 ms dwell.
2) Jeff scoped the PCM and saw a 3ms signal.
3) 3 - The PCM Troubleshooting manual has some information about the ignition characteristics which seem to indicate the 3-4 ish MS Dwell Times since the entire ignition sequence takes just under 5ms including discharge at idle.
Then look over at the PCM info - and at full voltage at idle we see 1200-1100 ish... so IMO is is a scalar of some kind.
1) The int-x setting for the factory ignition = 3.0 to 3.8 ms dwell.
2) Jeff scoped the PCM and saw a 3ms signal.
3) 3 - The PCM Troubleshooting manual has some information about the ignition characteristics which seem to indicate the 3-4 ish MS Dwell Times since the entire ignition sequence takes just under 5ms including discharge at idle.
Then look over at the PCM info - and at full voltage at idle we see 1200-1100 ish... so IMO is is a scalar of some kind.
