DIY: Oil Catch Can Install (basic)

The link to the other catch can DIY is dead... so I figured I would make one for the novice automotive enthusiast.

Preface - looking at the forums, each catch can is different with lots of different mounting options and equipment, etc... I'm going to focus this on just a quick over all hoses and locations that need to be moved.

I know this is really easy, but there are a lot of people on here that really have never worked on their car and a real simple DIY like this would be helpful. (like me!)

Step 1: Do you need a catch can?

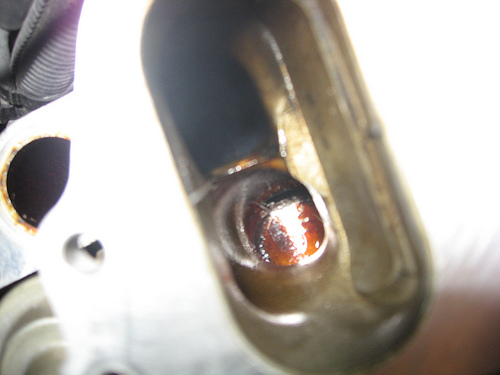

In the 04 and 05 models, if you overfilled the oil, it could blow back into your upper intake clogging the throttle body and perhaps causing your SSV valve to be stick closed. (bad, causes stalling at Idle, build up, etc)
A catch can will keep all of this oil "blow by" of overfilled oil out of your intake.

06's and newer have the oil overflow routed into the rear maintenance ports.

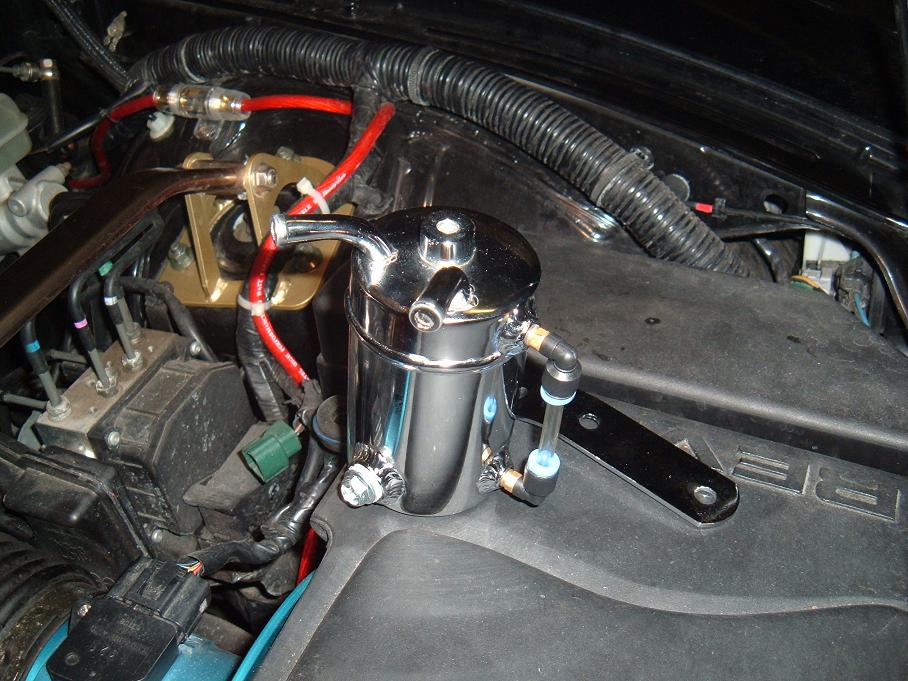

I purchased the catch can below off ebay for $45. Claimed it was OBX, but obx didn't have these on their site. So... who knows - its a can that holds oil... as long as it doesn't leak, i'm happy.
This ad is not displayed to registered and logged-in members.
Register your free account today and become a member on RX8Club.com!
Attached Thumbnails
DIY: Oil Catch Can Install (basic)-catch-can-jpg
__________________
10 Mazdaspeed 3
01 Honda S2000
95 Ford Bronco XLT... winter beater/tow vehicle
Good Guy Thread about me!!
http://www.rx8club.com/showthread.ph...70#post3435670

Last edited by Vyndictive; 02-03-2009 at 12:13 PM.
Vyndictive is offline   Reply With Quote
Old 01-13-2009, 03:39 PM   #2
"13B vs. Renesis" Discuss

Vyndictive's Avatar

Trader Score: (28)
Join Date: Mar 2008
Location: Canton, OH
Posts: 2,399
Step 2. Choose a catch can that you feel comfortable with. 750ml capacity is pretty large. Make sure you can fit a large can in your engine bay. Quality doesn't seem to be a real issue as long as the fittings are good. But like anything else, you get what you pay for.

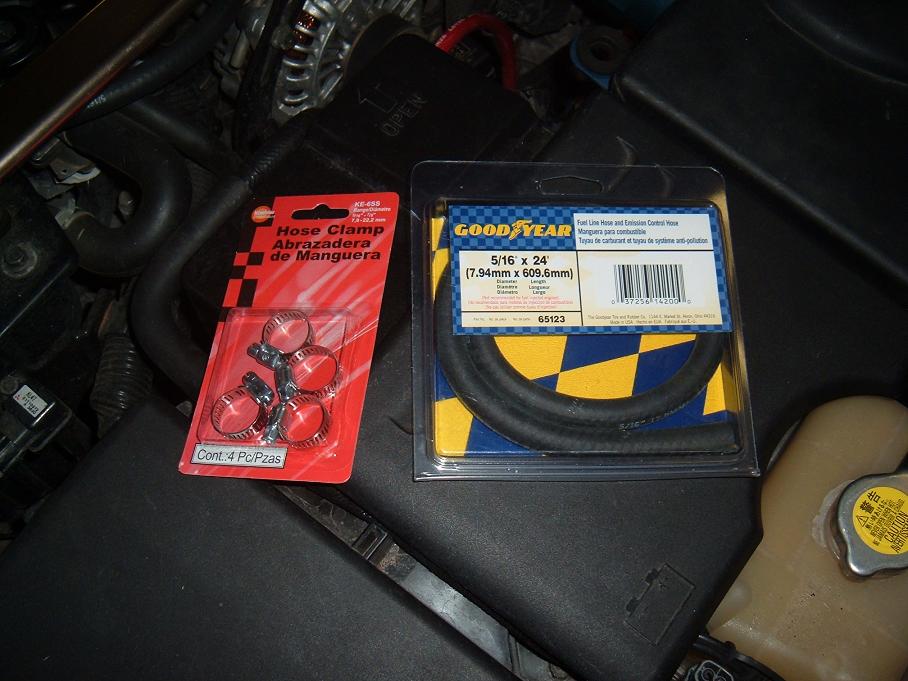

Step 3. Supplies. (If not included with your can)
Vacuum/ emissions hose. thicker walled, enough to not collapse under vacuum.
24 inches should be enough. I used 5/16 hose, but it would be easier with a slightly larger diameter.
Hose clamps
10mm socket
flat head screw driver
Vacuum Caps

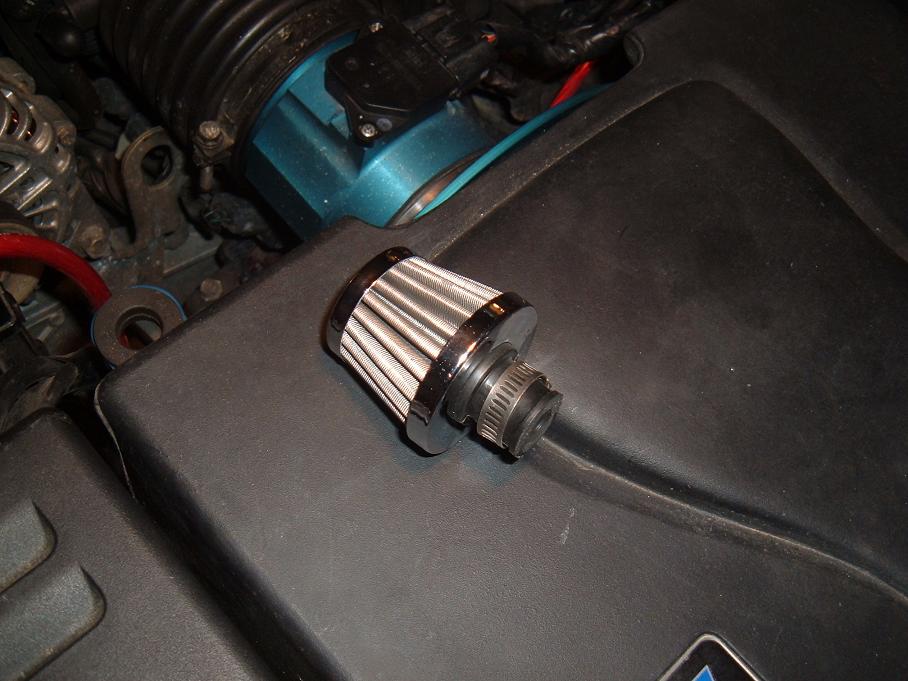

Breather filter (if desired - not running hose back into intake)
Attached Thumbnails
DIY: Oil Catch Can Install (basic)-additional-parts-jpg   DIY: Oil Catch Can Install (basic)-breather-jpg
__________________
10 Mazdaspeed 3
01 Honda S2000
95 Ford Bronco XLT... winter beater/tow vehicle
Good Guy Thread about me!!
http://www.rx8club.com/showthread.ph...70#post3435670
Vyndictive is offline   Reply With Quote
Old 01-13-2009, 03:41 PM   #3
"13B vs. Renesis" Discuss

Vyndictive's Avatar

Trader Score: (28)
Join Date: Mar 2008
Location: Canton, OH
Posts: 2,399

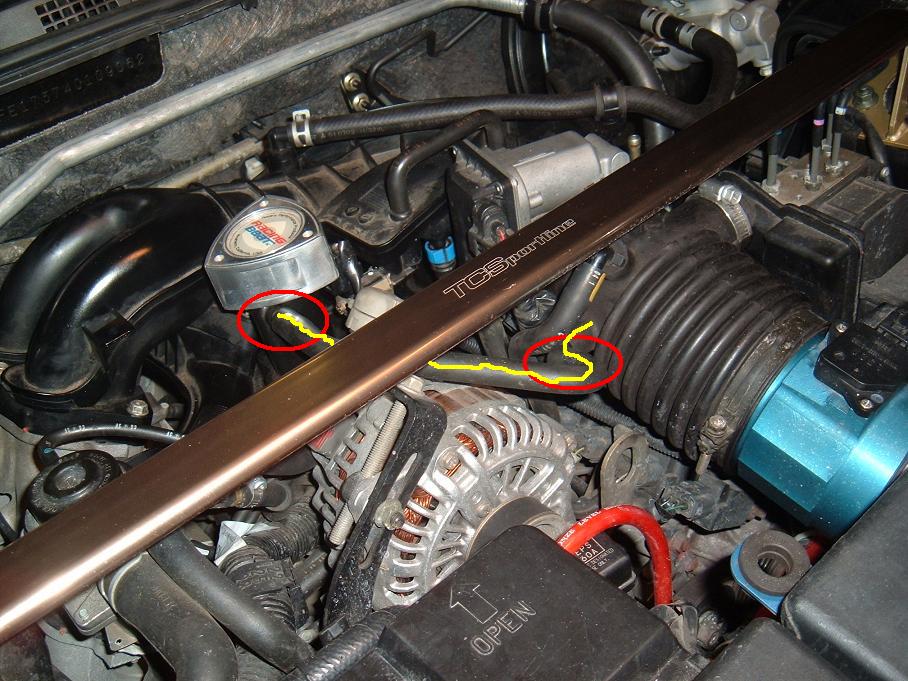

Step 4. Remove the stock hose connecting the oil filler chamber to the intake. You do not need any tools to this, it will just pop off with a little wiggling.
Ports to remove are in red circles, and the hose path is in yellow.
Note - when removing the hose from the air intake, it connects to a black plastic "L" joint. If you try to rip off the hose, you risk breaking this L joint. So be gentle with it and slowly work it off.
Don't use pliers either.

Also - Keep that stock hose someplace if you ever need to go back to stock. I'm sure a dealership would try to void your warranty for this.
Attached Thumbnails
DIY: Oil Catch Can Install (basic)-stock-hose-jpg
__________________
10 Mazdaspeed 3
01 Honda S2000
95 Ford Bronco XLT... winter beater/tow vehicle
Good Guy Thread about me!!
http://www.rx8club.com/showthread.ph...70#post3435670

Last edited by Vyndictive; 01-14-2009 at 10:51 PM.
Vyndictive is offline   Reply With Quote
Old 01-13-2009, 03:43 PM   #4
"13B vs. Renesis" Discuss

Vyndictive's Avatar

Trader Score: (28)
Join Date: Mar 2008
Location: Canton, OH
Posts: 2,399

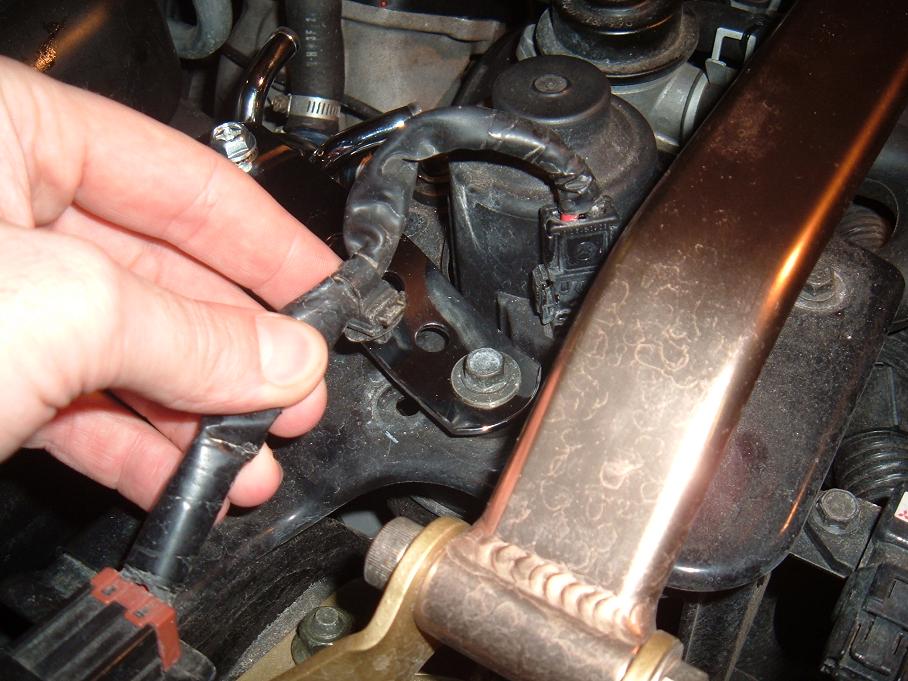

Step 5. Find a suitable mount for your catch can. Best places are by the window washer fluid tank or the other side by the brake master cylinder. Ensure a good fit, make sure the path of your hoses won't run by any belts or really hot areas.

Be sure you can see the oil catch can oil level without too much difficulty.

I mounted mine in front of the washer fluid can. Removed the 10mm bolt and popped off the wiring clip. I also mounted my can quickly to test it to make sure it would fit alright then unbolted it so it would be easier to attach the hose.
I circled my primary locations in the picture.
Attached Thumbnails
DIY: Oil Catch Can Install (basic)-mount-location-jpg   DIY: Oil Catch Can Install (basic)-install-1-jpg   DIY: Oil Catch Can Install (basic)-install-2-jpg
__________________
10 Mazdaspeed 3
01 Honda S2000
95 Ford Bronco XLT... winter beater/tow vehicle
Good Guy Thread about me!!
http://www.rx8club.com/showthread.ph...70#post3435670
Vyndictive is offline   Reply With Quote
Old 01-13-2009, 03:45 PM   #5
"13B vs. Renesis" Discuss

Vyndictive's Avatar

Trader Score: (28)
Join Date: Mar 2008
Location: Canton, OH
Posts: 2,399

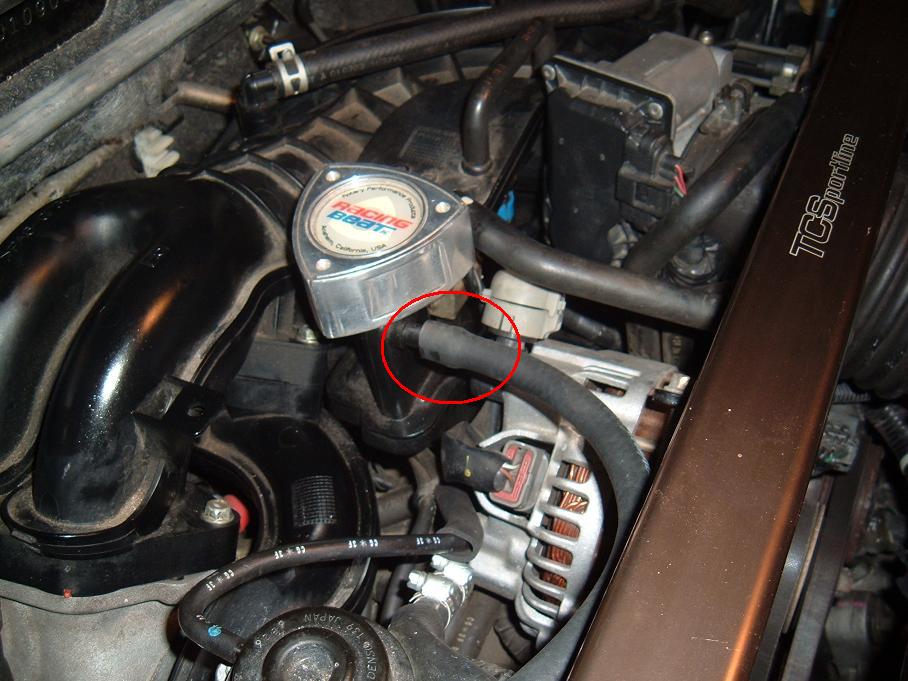

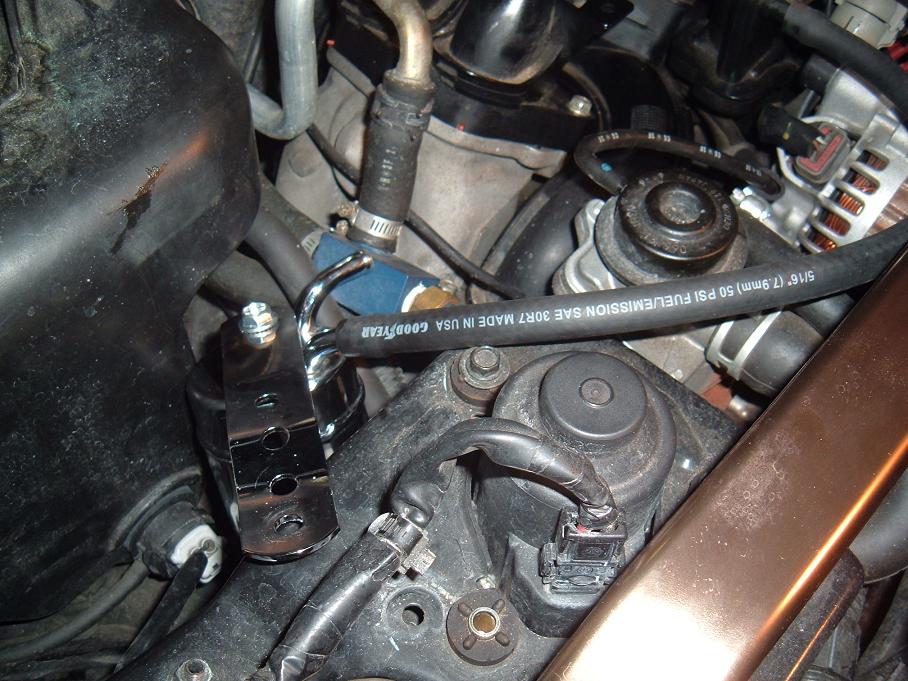

Step 6. Run the hose to unmounted can. Mark the hose and cut the proper length. Try to keep the filler cap higher than the entry port to the catch can so the overflow will run into the can with gravity.

Mount your hose from the filler port to the "unmounted" catch can, but run the hose on the path that you want it. (it'll be easier to attach the hose to the can when it is not mounted)

Use a clamp on the catch can filler neck hose...
Attached Thumbnails
DIY: Oil Catch Can Install (basic)-hose-route-jpg   DIY: Oil Catch Can Install (basic)-intake-can-hose-jpg
__________________
10 Mazdaspeed 3
01 Honda S2000
95 Ford Bronco XLT... winter beater/tow vehicle
Good Guy Thread about me!!
http://www.rx8club.com/showthread.ph...70#post3435670
Vyndictive is offline   Reply With Quote
Old 01-13-2009, 03:47 PM   #6
"13B vs. Renesis" Discuss

Vyndictive's Avatar

Trader Score: (28)
Join Date: Mar 2008
Location: Canton, OH
Posts: 2,399

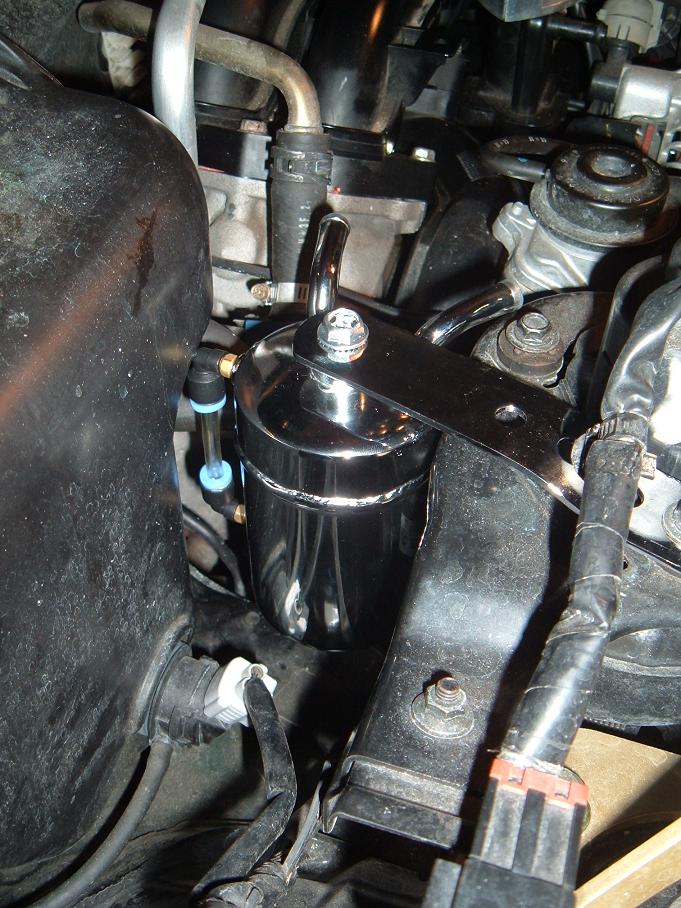

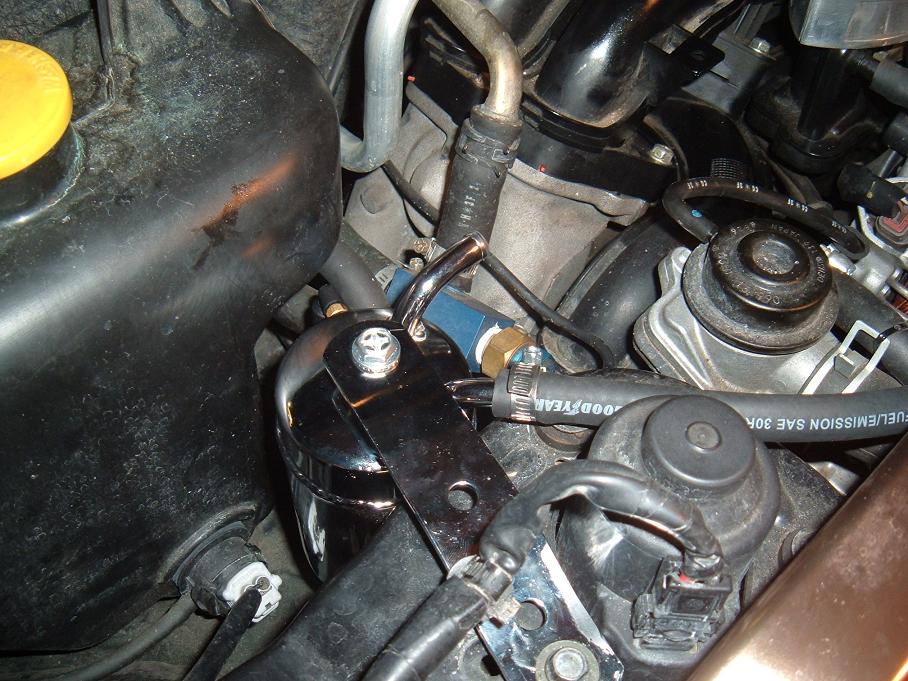

Step 7. Finish mounting the can with the hoses run to and from the can (if you're not capping the intake)

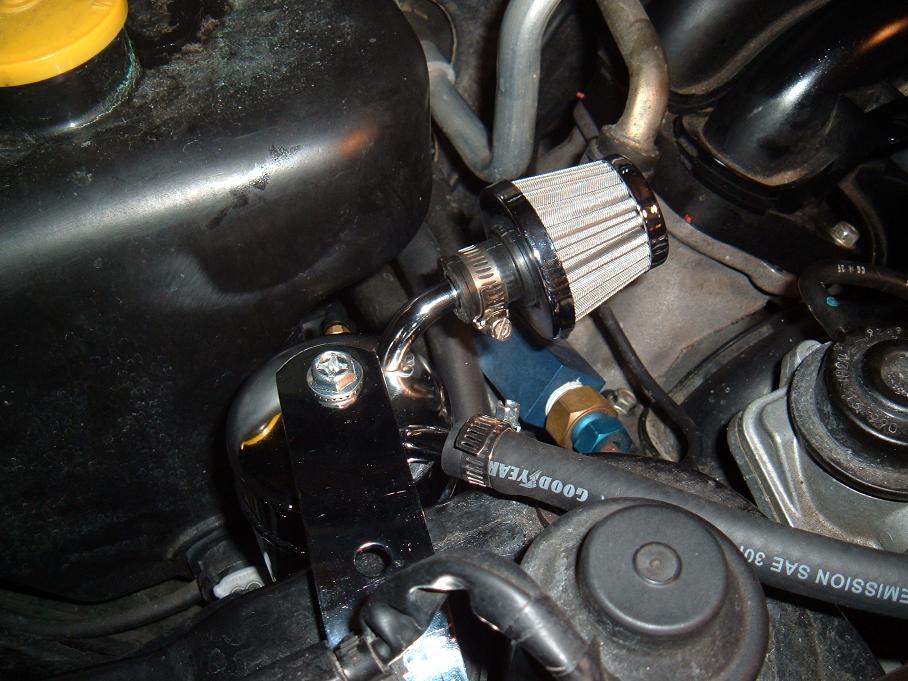

Step 8. Install breather on exit port of catch can and install hose clamp on port.
Attached Thumbnails
DIY: Oil Catch Can Install (basic)-intake-mounted-can-jpg   DIY: Oil Catch Can Install (basic)-final-install-jpg
__________________
10 Mazdaspeed 3
01 Honda S2000
95 Ford Bronco XLT... winter beater/tow vehicle
Good Guy Thread about me!!
http://www.rx8club.com/showthread.ph...70#post3435670
Vyndictive is offline   Reply With Quote
Old 01-13-2009, 03:49 PM   #7
"13B vs. Renesis" Discuss

Vyndictive's Avatar

Trader Score: (28)
Join Date: Mar 2008
Location: Canton, OH
Posts: 2,399

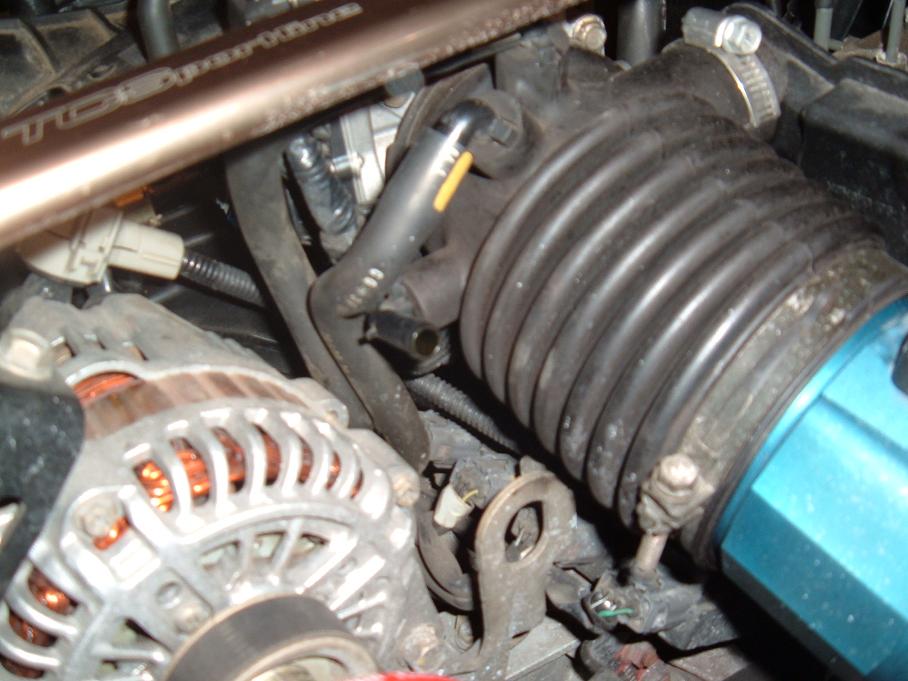

Step 9. Cap the intake (If not running catch can exit hose back to intake)
With the stock hose removed, you'll have an open port into your intake that is unfiltered air (bad). Thus, you need to cap it using a Vacuum cap, I don't know the exact size for sure, so I just tried different sizes out of my "variety pack" from autozone until I got one to fit.
Attached Thumbnails
DIY: Oil Catch Can Install (basic)-open-intake-port-jpg   DIY: Oil Catch Can Install (basic)-capped-intake-port-jpg
__________________
10 Mazdaspeed 3
01 Honda S2000
95 Ford Bronco XLT... winter beater/tow vehicle
Good Guy Thread about me!!
http://www.rx8club.com/showthread.ph...70#post3435670
Vyndictive is offline   Reply With Quote
Old 01-13-2009, 03:50 PM   #8
"13B vs. Renesis" Discuss

Vyndictive's Avatar

Trader Score: (28)
Join Date: Mar 2008
Location: Canton, OH
Posts: 2,399
Step 10. Admire your handy work, even you can work on cars!

Again, this DIY may seem really really basic, but I think it will be helpful for people who are not really comfortable working on their cars - this is really step by step.

Enjoy a dry intake from now on!
__________________
10 Mazdaspeed 3
01 Honda S2000
95 Ford Bronco XLT... winter beater/tow vehicle
Good Guy Thread about me!!
http://www.rx8club.com/showthread.ph...70#post3435670
Vyndictive is offline   Reply With Quote
Old 01-13-2009, 04:42 PM   #9
Registered User

Trader Score: (0)
Join Date: Dec 2008
Location: CHERRY POINT, NC
Posts: 56
thanks for the DIY man, im thinking about gettting a greddy, on my 04..
__________________
zoom zoom
Renesis_Genesis is offline   Reply With Quote
Old 01-14-2009, 12:14 PM   #10
Bite Me.

StealthTL's Avatar

Trader Score: (0)
Join Date: Mar 2003
Location: WAAaaay North....
Posts: 6,776
Hugh Jampton
Great DIY!

Thanks for explaining the 'basics' - why it's needed, why the air should be filtered, etc....

S
__________________
S

University Of Life,
School Of Hard Knocks,
Kindergarten Of Getting Your Teeth Kicked In.
StealthTL is offline   Reply With Quote
Old 01-14-2009, 12:18 PM   #11
Jedi Master

Jedi54's Avatar

Trader Score: (7)
Join Date: Mar 2004
Location: The Dark Side
Posts: 19,740
nicely done!
__________________

Jedi54 is offline   Reply With Quote
Old 01-14-2009, 12:59 PM   #12
SHKWAV

Shinka_MJR's Avatar

Trader Score: (0)
Join Date: Jun 2008
Location: Massillon, Ohio
Posts: 659
Shinka MJR
Send a message via MSN to Shinka_MJR
Nice job Vyn!

BTW, not to steal his thunder, but if anyone is interested, i am attaching his DIY as a pdf here. (complete with credits to him in the PDF) This way anyone can download and easily print it if they want.

Mods, if you want to put it on the initial post, that'd be great!

Again, great job with this Vyn!
Attached Files
File Type: pdf oil_catch_can_DIY.pdf (1,012.3 KB, 1759 views)
__________________
"Clarity of thought before rashness of action."

2005 Shinka: #1098 out of 1357
Shinka_MJR is offline   Reply With Quote
Old 01-14-2009, 06:19 PM   #13
Registered User

trustbuddy's Avatar

Trader Score: (3)
Join Date: Apr 2006
Location: California
Posts: 414
Send a message via AIM to trustbuddy
Vyndictive, thank you very much sir.
I really appreciate this DIY.
__________________
Quote:
Originally Posted by Captain Amazing
^ Someone once asked me if I knew anything about cars because I said my car is a rotary and has no cylinders.
Quote:
Originally Posted by topgear8
^Well as long as you don't think Veilside looks good, then I respect your opinion.
From Honda to Mazda...yet same 9000 RPM.

I love Horse Thief Mile @ Willow Springs
trustbuddy is offline   Reply With Quote
Old 01-14-2009, 06:23 PM   #14
Surf Hard, Drive Hard

Mazurfer's Avatar

Trader Score: (0)
Join Date: Feb 2007
Location: Indialantic, Florida
Posts: 7,752
Quote:
Originally Posted by Renesis_Genesis View Post
thanks for the DIY man, im thinking about gettting a greddy, on my 04..
Wait.......what...........I have a black powder coated Greddy for sale.

See............. F/S....various stuff
__________________


05 TiGray, 6MT...GT.
Mods..........too many to list, so.......
View my garage
Mazurfer is offline   Reply With Quote
Old 01-14-2009, 06:28 PM   #15
Surf Hard, Drive Hard

Mazurfer's Avatar

Trader Score: (0)
Join Date: Feb 2007
Location: Indialantic, Florida
Posts: 7,752
Quote:
Originally Posted by Vyndictive View Post
Step 4. Remove the stock hose connecting the oil filler chamber to the intake. You do not need any tools to this, it will just pop off with a little wiggling.
Ports to remove are in red circles, and the hose path is in yellow.

Keep that stock hose someplace if you ever need to go back to stock. I'm sure a dealership would try to void your warranty for this.
One long-winded comment, because I have seen people do it.
When taking the hose off the intake side, please realize that if you just grab it and yank the hell out of the hose, you will break the plastic tube piece off. Vyn is right in that you should twist it just a little bit, but try to get your finger(s) back behind/beyond the rubber hose and hold the plastic tube still while removing the hose.
__________________


05 TiGray, 6MT...GT.
Mods..........too many to list, so.......
View my garage
Mazurfer is offline   Reply With Quote
Old 01-14-2009, 06:30 PM   #16
Surf Hard, Drive Hard

Mazurfer's Avatar

Trader Score: (0)
Join Date: Feb 2007
Location: Indialantic, Florida
Posts: 7,752
And here's a link to the "Catch Can Pics" thread so you can get ideas for what's out there and where possible mounting locations are.

Catch Can Pics.


Dave
__________________


05 TiGray, 6MT...GT.
Mods..........too many to list, so.......
View my garage
Mazurfer is offline   Reply With Quote
Old 01-14-2009, 10:49 PM   #17
"13B vs. Renesis" Discuss

Vyndictive's Avatar

Trader Score: (28)
Join Date: Mar 2008
Location: Canton, OH
Posts: 2,399
Quote:
Originally Posted by Mazurfer View Post
One long-winded comment, because I have seen people do it.
When taking the hose off the intake side, please realize that if you just grab it and yank the hell out of the hose, you will break the plastic tube piece off. Vyn is right in that you should twist it just a little bit, but try to get your finger(s) back behind/beyond the rubber hose and hold the plastic tube still while removing the hose.
Very true - I'll make a notation in the original posts.

I'm glad people are finding this useful.
__________________
10 Mazdaspeed 3
01 Honda S2000
95 Ford Bronco XLT... winter beater/tow vehicle
Good Guy Thread about me!!
http://www.rx8club.com/showthread.ph...70#post3435670
Vyndictive is offline   Reply With Quote
Old 01-14-2009, 11:06 PM   #18
Grasshopper

Jon316G's Avatar

Trader Score: (1)
Join Date: Dec 2006
Location: Streetsboro, OH
Posts: 6,676
Good job Vyn...
Too bad we didn't take pics of what occurred that made you want to do this (stuck SSV valve).

I think people seeing your throttle body, intake manifold extension, SSV, and MAF housing covered with oil/sludge would convince more people to consider a catch can (or at least doing your own oil changes).
__________________
Current Mods: RB REVi Intake & Ram Air Duct, AP Catback Exhaust, MazSport DR Midpipe, AP Pulley, BHR Ignition Coils, BHR/SPEC Flywheel, ACT Counterweight, Exedy Stage 1 Clutch Kit, HD Release Bearing, AccessPort w/MazdaManiac tune, REmedy Thermostat & Water Pump, AFE Short Shifter, Lotek Pod with ProSport Gauges, Axxess iPod Adapter, Illuminated Shift Knob, Bridgestone Potenza RE760, OPTIMA 35 RedTop Battery.
Oils: Engine= Royal Purple 5w30, Trans= Redline MT-90, Diff= Redline 75w90
Jon316G is offline   Reply With Quote
Old 01-15-2009, 08:11 AM   #19
"13B vs. Renesis" Discuss

Vyndictive's Avatar

Trader Score: (28)
Join Date: Mar 2008
Location: Canton, OH
Posts: 2,399
well, here is the pic of the SSV from the top, can't see much. But - see how its brown? That oil that is baked on causing the valve to be stuck shut.

That stripe that looks clean is from a flathead screwdriver with a rag on it that we were using to try to get some of that crap out of there.

I had oil film all down the entire intake, the throttle body was completely coated, it was bad!
Attached Thumbnails
DIY: Oil Catch Can Install (basic)-ssv-jpg
__________________
10 Mazdaspeed 3
01 Honda S2000
95 Ford Bronco XLT... winter beater/tow vehicle
Good Guy Thread about me!!
http://www.rx8club.com/showthread.ph...70#post3435670
Vyndictive is offline   Reply With Quote
Old 01-18-2009, 05:11 PM   #20
OMGITM!

tiltmode43's Avatar

Trader Score: (15)
Join Date: Jan 2006
Location: Sunny Southern California
Posts: 3,488
Send a message via AIM to tiltmode43
This should prevent the question from being asked so many times as we are familiar with! Great job!
__________________
<333
tiltmode43 is offline   Reply With Quote
Old 02-09-2009, 12:55 PM   #21
Registered Lunatic

Tamas's Avatar

Trader Score: (1)
Join Date: Aug 2003
Location: SF Bay Area, California
Posts: 3,387
Great DIY - thanks!

One question though...

Quote:
Originally Posted by Vyndictive View Post
06's and newer have the oil overflow routed into the rear maintenance ports.
If this is the case, would it perhaps be possible to mimic this somehow on the '04-'05 cars instead of using a catch can? Seems to be simpler and may even be better as it'd not be necessary to empty the can from time to time.
__________________
2004 Titanium gray 6MT
My Garage

"A man is the less likely to become great the more he is dominated by reason: few can achieve greatness - and none in art - if they are not dominated by illusion." (Mr. Doctor)
Tamas is offline   Reply With Quote
Old 02-09-2009, 01:13 PM   #22
Grasshopper

Jon316G's Avatar

Trader Score: (1)
Join Date: Dec 2006
Location: Streetsboro, OH
Posts: 6,676
Quote:
Originally Posted by Tamas View Post
would it perhaps be possible to mimic this somehow on the '04-'05 cars instead of using a catch can? Seems to be simpler and may even be better as it'd not be necessary to empty the can from time to time.
This is the TSB Vyn was referring to.
http://www.finishlineperformance.com...50-06-1664.pdf
Nothing says you can't go this route if you want.
__________________
Current Mods: RB REVi Intake & Ram Air Duct, AP Catback Exhaust, MazSport DR Midpipe, AP Pulley, BHR Ignition Coils, BHR/SPEC Flywheel, ACT Counterweight, Exedy Stage 1 Clutch Kit, HD Release Bearing, AccessPort w/MazdaManiac tune, REmedy Thermostat & Water Pump, AFE Short Shifter, Lotek Pod with ProSport Gauges, Axxess iPod Adapter, Illuminated Shift Knob, Bridgestone Potenza RE760, OPTIMA 35 RedTop Battery.
Oils: Engine= Royal Purple 5w30, Trans= Redline MT-90, Diff= Redline 75w90
Jon316G is offline   Reply With Quote
Old 02-09-2009, 01:17 PM   #23
Boosted Kiwi

Brettus's Avatar

Trader Score: (2)
Join Date: Apr 2006
Location: Y-cat-o NZ
Posts: 14,894
Founjd a great place to mount the catch can the other day . On my discarded air pump bracket . Looks like it is made for the job
Brettus is online now   Reply With Quote
Old 02-10-2009, 08:32 AM   #24
"13B vs. Renesis" Discuss

Vyndictive's Avatar

Trader Score: (28)
Join Date: Mar 2008
Location: Canton, OH
Posts: 2,399
Quote:
Originally Posted by Tamas View Post
Great DIY - thanks!

One question though...

If this is the case, would it perhaps be possible to mimic this somehow on the '04-'05 cars instead of using a catch can? Seems to be simpler and may even be better as it'd not be necessary to empty the can from time to time.
Yeah, that would work also... The reason I chose not to go that route was because while dumping the oil back into the ports will keep it out of the upper intake, your engine is still just going to burn it off and have too much oil in the combustion strokes... Which is minor because all of the later cars don't have a problem with this... I guess if I overfilled my oil, I wouldn't want it all running back into the engine anyway.
__________________
10 Mazdaspeed 3
01 Honda S2000
95 Ford Bronco XLT... winter beater/tow vehicle
Good Guy Thread about me!!
http://www.rx8club.com/showthread.ph...70#post3435670
Vyndictive is offline   Reply With Quote
Old 02-19-2009, 11:10 PM   #25
Registered

JantzenRX-8's Avatar

Trader Score: (8)
Join Date: Jun 2006
Location: Norman, OK
Posts: 1,280
Quote:
Originally Posted by Jon316G View Post
This is the TSB Vyn was referring to.
http://www.finishlineperformance.com...50-06-1664.pdf
Nothing says you can't go this route if you want.
So if you have the lines re-routed per ^^^ and you still install a catch can because of VVV

Quote:
Originally Posted by Vyndictive View Post
Yeah, that would work also... The reason I chose not to go that route was because while dumping the oil back into the ports will keep it out of the upper intake, your engine is still just going to burn it off and have too much oil in the combustion strokes... Which is minor because all of the later cars don't have a problem with this... I guess if I overfilled my oil, I wouldn't want it all running back into the engine anyway.
What do you do with the line that comes out of the intake and gives the intake manifold the ole reach-around like VVV Was the X is capped before?
Attached Thumbnails
DIY: Oil Catch Can Install (basic)-oil-line-reach-around-jpg
__________________
___________________
04 Titanium Gray MT
JantzenRX-8 is offline   Reply With Quote
Old 02-19-2009, 11:10 PM
RX8Club
Mazda RX8




Paid Advertisement





Reply

Tags
breather, can, catch, diy, focus, illegal, install, installation, installing, oil, rb25, rx7, rx8, tank, wikipedia

Thread Tools Search this Thread
Search this Thread:

Advanced Search
Display Modes Rate This Thread
Rate This Thread:

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is Off
HTML code is Off
Trackbacks are On
Pingbacks are On
Refbacks are On


Similar Threads
Thread Thread Starter Forum Replies Last Post
Diy: Install An Additional Oil Cooler MadDog Series I Do It Yourself Forum 23 09-16-2009 10:05 PM
Oil catch can install? RotaryX13B Series I Aftermarket Performance Modifications 25 03-20-2009 11:02 AM
Oil Catch Can install question RevAmp Series I Tech Garage 3 06-03-2008 09:39 PM
stock 8 catch can install tips twinrotary8 Series I Aftermarket Performance Modifications 11 06-11-2006 09:51 PM
Catch-can install NoTears316 Series I Aftermarket Performance Modifications 3 12-31-2004 04:43 PM


All times are GMT -5. The time now is 01:50 AM.


Powered by vBulletin® Version 3.8.7
Copyright ©2000 - 2014, vBulletin Solutions, Inc.
SEO by vBSEO ©2010, Crawlability, Inc.
All content Copyright 2007 by Internet Brands, Inc.
Emails Backup
