DIY: Motor Mounts installation tips

Didn't see any reference to the motor mounts in the sticky index, so I figured I'd share my experience today replacing my motor mounts... I realize that most people who need new mounts have already had them replaced by the dealer.... but, I hate the dealer, and I got all 3 upgrade parts for $150 shipped, so I said what the heck... I have also replaced my starter with the new more powerful one, and I did the coil packs yesterday. Again, I got all these parts new, off of eBay, nice and cheap and no dealer B.S.

You will need a cherry picker engine lift for best results and safety.
There are three official parts as part of the TSB, the right and left motor mounts (made with a new style of rubber) and the right side engine bracket (it has a heat shield to protect the mount from excess manifold heat).

Simply jack your car up on the front, put your jack stands in place on the frame rails, and remove the front wheels.

Now remove the strut tower brace to allow access for the cherry picker hook on the main engine lift eyelet. Drop your cherry picker in there, hook in, and take some of the weight of the motor off of the frame (not too much!).

Unbolt the brake line support bracket (one 10mm bolt per side) to make your life a TON easier.

Now follow the TSB's instructions on the order of removal of the associated bolts...
Note, that the sheet talks about the bolts labled (2) on the driver's side, that in fact, do NOT need to be removed...as I found out... the ones labled (2) on the passenger side however, DO get pulled, so the whole bracket can come out and replaced.

Once all the bolts are removed on both sides of the car, now you can carefully raise the engine further with the cherry picker and note that you will need to get it at least high enough to clear the motor mounts of their frame mounted studs.

Now just pull out each motor mount - they will just be sitting there waiting for you...nothing special here.

Now pull all the 17mm bolts holding on the right side bracket and fenagle the bracket out of the suspension arms etc...

Replace the bracket with the new style one, and bolt back up.

Install the new motor mounts and insert and finger tighten all three bolts/nuts
on each side.

Once all the nuts and bolts are started, you can lower the engine back down a little, but not all the way.... you just want to allow for better alignment of the bolts and parts while you torque them down.

Crank down all those 14mm bolts and nuts, and then you can lower and unhook the cherry picker.

Reinstall the brake line support bolts.

Reinstall the wheels.

Drop car, test drive and notice less vibration...

To check before and after vibration (in 6sp manual) just try to put the shifter in reverse without using the clutch (obviously it won't go, but feel the level of shuddering).

Cheers

-C
This ad is not displayed to registered and logged-in members.
Register your free account today and become a member on RX8Club.com!
Attached Thumbnails

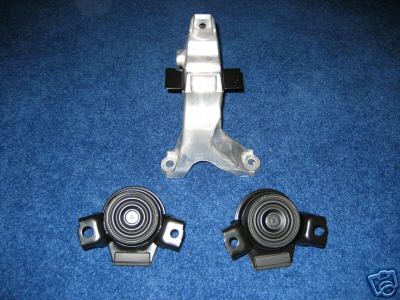

DIY: Motor Mounts installation tips-e59e_1.jpg

Last edited by Chamberlin; 06-17-2007 at 11:37 PM. Reason: added pic of new mounts
Chamberlin is offline   Reply With Quote
Old 06-24-2007, 11:03 PM   #2
Embrace The Sparkles

RX927's Avatar

Trader Score: (1)
Join Date: Feb 2007
Location: NNJ
Posts: 844
great write up. could you write one on how to replace coils?
__________________
T--N--C
RX927 is offline   Reply With Quote
Old 06-24-2007, 11:08 PM   #3
2005 Ti Gray RX-8 - SOLD

Chamberlin's Avatar

Trader Score: (1)
Join Date: May 2006
Location: Tucson, AZ
Posts: 314
Sure I can - it was really easy, shouldn't take but a few lines of text...
Thanks for the good words...

-C
Chamberlin is offline   Reply With Quote
Old 06-28-2007, 03:18 PM   #4
Koi no Ousama

TeamRX8's Avatar

Trader Score: (22)
Join Date: Apr 2005
Posts: 17,044
most of us use a jack and a piece of wood under the oil pan to lift the motor one side at a time rather than a cherry picker
__________________
Es gibt keine verzweifelten Lagen, es gibt nur verzweifelte Menschen.
- Heinz Guderian

I love the smell of natto in the morning ...
TeamRX8 is offline   Reply With Quote
Old 06-28-2007, 03:20 PM   #5
Buzz Buzz Buzz

Cromax's Avatar

Trader Score: (0)
Join Date: Mar 2005
Location: Melbourne, Victoria
Posts: 1,931
Send a message via ICQ to Cromax Send a message via MSN to Cromax
Nice writeup chamberlin!!!
Cromax is offline   Reply With Quote
Old 06-28-2007, 03:36 PM   #6
2005 Ti Gray RX-8 - SOLD

Chamberlin's Avatar

Trader Score: (1)
Join Date: May 2006
Location: Tucson, AZ
Posts: 314
Thanks Cromax!
Team, that would work great too with the wood blocks and jack. I had access to a picker, and never had to think about a work around...

-C
Chamberlin is offline   Reply With Quote
Old 07-02-2007, 12:57 AM   #7
2005 Ti Gray RX-8 - SOLD

Chamberlin's Avatar

Trader Score: (1)
Join Date: May 2006
Location: Tucson, AZ
Posts: 314
heads up, there are some new mounts from the same guy I got mine from on eBay!

cheers
-C
Chamberlin is offline   Reply With Quote
Old 08-06-2007, 01:06 PM   #8
bi polar rotor loner

GAMBEAN's Avatar

Trader Score: (0)
Join Date: Oct 2006
Location: long island, n.y.
Posts: 348
Thumbs up

Quote:
Originally Posted by TeamRX8 View Post
most of us use a jack and a piece of wood under the oil pan to lift the motor one side at a time rather than a cherry picker

I changed out mine yesterday using what you did. worked like a charm! heck I think it was easier than doing my fc t2 mounts.
GAMBEAN is offline   Reply With Quote
Old 08-06-2007, 01:28 PM   #9
Banned

Trader Score: (3)
Join Date: Oct 2003
Location: Under my car
Posts: 16,407
Quote:
Originally Posted by TeamRX8 View Post
most of us use a jack and a piece of wood under the oil pan to lift the motor one side at a time rather than a cherry picker
+1 on that, though using the engine lift is safer.
I usually use the jack/blocks method because I don't have a huge garage and moving the engine lift around is a PITA.
MazdaManiac is offline   Reply With Quote
Old 08-06-2007, 01:45 PM   #10
2005 Ti Gray RX-8 - SOLD

Chamberlin's Avatar

Trader Score: (1)
Join Date: May 2006
Location: Tucson, AZ
Posts: 314
hahaha, the giant PIA heavy assed engine lift is still in my living room!!! My friend hasn't come and picked it up yet... price I pay for free tool usage!
Chamberlin is offline   Reply With Quote
Old 08-06-2007, 02:01 PM   #11
Banned

Trader Score: (3)
Join Date: Oct 2003
Location: Under my car
Posts: 16,407
I did the opposite. I lent my hoist to a friend and I'm hoping he'll hang on to it until I need it again!
MazdaManiac is offline   Reply With Quote
Old 08-06-2007, 03:21 PM   #12
2005 Ti Gray RX-8 - SOLD

Chamberlin's Avatar

Trader Score: (1)
Join Date: May 2006
Location: Tucson, AZ
Posts: 314
I think that is what is going on here too
Chamberlin is offline   Reply With Quote
Old 07-17-2008, 05:52 PM   #13
Registered

rotaryn00bie's Avatar

Trader Score: (0)
Join Date: Jul 2008
Posts: 50
Send a message via MSN to rotaryn00bie
very well written. =]
im too much of a newbie to attempt this by myself, afraid of doing something wrong. Today I called a dealer that is located a few minutes from my house and they want to charge me $500 just for labor :o
Do you think I should buy the motor mounts and have a mechanic install it for me?
rotaryn00bie is offline   Reply With Quote
Old 07-17-2008, 08:16 PM   #14
2005 Ti Gray RX-8 - SOLD

Chamberlin's Avatar

Trader Score: (1)
Join Date: May 2006
Location: Tucson, AZ
Posts: 314
Thanks!
I would think you should be able to get it done for much less than $500....show the mechanic this DIY...
Chamberlin is offline   Reply With Quote
Old 02-17-2009, 02:52 PM   #15
Registered

Trader Score: (1)
Join Date: Sep 2007
Location: Southeast NH
Posts: 349
Sorry for resurrecting this, but does anyone know where the best place to get these from is? Montgomery Mazda? Should I order the mounts shown for the '08 or '04-'07 (to go on an '04.) I assume it's the same part, as it's the same exact price ($109.62 for the R.)
Also, when was the engine bracket upgraded? I can't find it on the Mont site.
Thanks.
skrubol is offline   Reply With Quote
Old 02-18-2009, 12:59 PM   #16
Registered User

Trader Score: (0)
Join Date: Dec 2004
Location: Lake Forest, IL
Posts: 981
If you are jacking up from the bottom, would you still have to remove the strut-brace?
Does removing the Strut Brace mess up the alignment?

Why do you have to remove the wheels? Is it too hard to access the parts otherwise?

I had dealer quotes of $170 and $225 for the labor on this in case anyone is interested. I bought the parts from Rosenthal Mazda for about $180.

Last edited by Matt RX8; 02-18-2009 at 01:34 PM.
Matt RX8 is offline   Reply With Quote
Old 02-18-2009, 06:52 PM   #17
sold the 8... :(

Trader Score: (7)
Join Date: Feb 2008
Posts: 4,940
Quote:
Originally Posted by Matt RX8 View Post
If you are jacking up from the bottom, would you still have to remove the strut-brace?
no.
Quote:
Does removing the Strut Brace mess up the alignment?
no.
Quote:
Why do you have to remove the wheels?
to get to the motor mounts.
Quote:
Is it too hard to access the parts otherwise?
yes.
Quote:
I had dealer quotes of $170 and $225 for the labor on this in case anyone is interested. I bought the parts from Rosenthal Mazda for about $180.
congratulations.
__________________


05rex8 is offline   Reply With Quote
Old 02-19-2009, 09:58 AM   #18
Registered User

Trader Score: (0)
Join Date: Dec 2004
Location: Lake Forest, IL
Posts: 981
^Thanks for answering the questions.
Matt RX8 is offline   Reply With Quote
Old 02-19-2009, 06:42 PM   #19
sold the 8... :(

Trader Score: (7)
Join Date: Feb 2008
Posts: 4,940
^yw
__________________


05rex8 is offline   Reply With Quote
Old 02-19-2009, 11:08 PM   #20
Registered User

Trader Score: (0)
Join Date: Dec 2004
Location: Lake Forest, IL
Posts: 981
So the parts arrived today and as it turns out, I I failed to order the new engine bracket. Is that part absolutely critical or should i just replace the mounts that I have?

And is this really a 30 minute job without a cherry picker?

It's very cold here in Illinois. My garage doesn't have heat
Matt RX8 is offline   Reply With Quote
Old 06-29-2009, 11:05 PM   #21
SARXgroup.com

9krpmrx8's Avatar

Trader Score: (35)
Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 27,863
sarxgroup
Any updates? I'm gonna do this, do i need the engine mount brackets updated as well? Whats decent price for all three mounts?
__________________


"Clean is the new cool, so letís keep it that way."

My Build Thread
9krpmrx8 is offline   Reply With Quote
Old 06-29-2009, 11:07 PM   #22
2005 Ti Gray RX-8 - SOLD

Chamberlin's Avatar

Trader Score: (1)
Join Date: May 2006
Location: Tucson, AZ
Posts: 314
The bracket is really just a heat shield for protecting the rubber mounts, it would be nice to have it. I think I paid $150 for everything. Not much else to update, from my original posts and the posts that followed.
Chamberlin is offline   Reply With Quote
Old 06-29-2009, 11:58 PM   #23
SARXgroup.com

9krpmrx8's Avatar

Trader Score: (35)
Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 27,863
sarxgroup
So the bracket is an update over what I have stock on my 04'? Sorry for the questions I have not really looked at the mounts.

So I need two of these right?

http://www.finishlineperformance.com.../rx8_mount.jpg
__________________


"Clean is the new cool, so letís keep it that way."

My Build Thread

Last edited by 9krpmrx8; 06-30-2009 at 12:03 AM.
9krpmrx8 is offline   Reply With Quote
Old 06-30-2009, 12:01 AM   #24
2005 Ti Gray RX-8 - SOLD

Chamberlin's Avatar

Trader Score: (1)
Join Date: May 2006
Location: Tucson, AZ
Posts: 314
If you look in the top picture, I think the only difference is that the new aluminum bracket has the ability to have the dinky black metal heat shield tabs mounted to it... So yes it is an update over your '04, but probably not worth sweating over.
Chamberlin is offline   Reply With Quote
Old 06-30-2009, 12:03 AM   #25
SARXgroup.com

9krpmrx8's Avatar

Trader Score: (35)
Join Date: Jan 2007
Location: San Antonio, Texas
Posts: 27,863
sarxgroup
I just wonder if i should get new brackets too.
__________________


"Clean is the new cool, so letís keep it that way."

My Build Thread
9krpmrx8 is offline   Reply With Quote
