DIY: Clean the in-tank sock filter.
07-02-2009, 09:18 PM
#77
EDIT: sorry, repost from the 1st page
there is a dirt cheap universal tool that works, you should always have a new gasket ring just in case
http://www.amazon.com/Tank-Fuel-Pump.../dp/B000I14PGQ
there is a dirt cheap universal tool that works, you should always have a new gasket ring just in case
http://www.amazon.com/Tank-Fuel-Pump.../dp/B000I14PGQ
Last edited by TeamRX8; 07-02-2009 at 09:21 PM.
07-02-2009, 09:21 PM
#78
there is a dirt cheap universal tool that works, you should always have a new gasket ring just in case
http://www.amazon.com/Tank-Fuel-Pump.../dp/B000I14PGQ
http://www.amazon.com/Tank-Fuel-Pump.../dp/B000I14PGQ
beers
07-03-2009, 07:33 AM
#79
EDIT: sorry, repost from the 1st page
there is a dirt cheap universal tool that works, you should always have a new gasket ring just in case
http://www.amazon.com/Tank-Fuel-Pump.../dp/B000I14PGQ
there is a dirt cheap universal tool that works, you should always have a new gasket ring just in case
http://www.amazon.com/Tank-Fuel-Pump.../dp/B000I14PGQ
wow team, Great tool
even tho I probably not gonna use it more than 10 times outa the life of the car ... its a good thing to have around ...
thx
09-05-2009, 09:15 PM
#81
07 Rx8
Join Date: May 2008
Location: Marshfield, WI
Posts: 123
Likes: 0
Received 0 Likes
on
0 Posts
Using the tool from mazda is a lot easier. The universal spanner you can get from napa or from auto zone isn't easy to use. The universal ones tend to twist and slip resulting in bloody knuckles and expletives flung every direction. I have found that if you do use the universal spanners, get a punch or center pin to place into the small holes in the top of the ring and use that to hold against the spanner to help it from twisting and slipping.
09-05-2009, 10:15 PM
#82
Sydney, Australia
Using the tool from mazda is a lot easier. The universal spanner you can get from napa or from auto zone isn't easy to use. The universal ones tend to twist and slip resulting in bloody knuckles and expletives flung every direction. I have found that if you do use the universal spanners, get a punch or center pin to place into the small holes in the top of the ring and use that to hold against the spanner to help it from twisting and slipping.
Last edited by SARRAS; 09-12-2009 at 06:07 PM.
09-06-2009, 09:35 AM
#83
Rotary engine addict
Join Date: Jun 2008
Location: Guadeloupe (FWI)
Posts: 303
Likes: 0
Received 0 Likes
on
0 Posts
I have a hard time openning this sh** !
I tryied twice without success
And the best part : my mazda dealer does not have the tool !
ok...where can we buy it or at least find something usefull ...
I tryied twice without success
And the best part : my mazda dealer does not have the tool !
ok...where can we buy it or at least find something usefull ...
09-06-2009, 04:49 PM
#84
Sydney, Australia
http://www.trademotion.com/partlocat...catalogid=4010
no problem
09-07-2009, 10:11 AM
#86
...pondering...
DO NOT BUY THAT FROM MAZDA! NAPA sells a comparable tool for like $20. If you search on here there is a thread with the part number - seriously, $145 is waaay too much unless you really can't get the NAPA version and are in a really tight spot.
09-12-2009, 11:46 AM
#87
04 6MT
Join Date: Nov 2003
Location: Gaffney, SC
Posts: 71
Likes: 0
Received 0 Likes
on
0 Posts
I did this without a fuel pump tool just now. I sprayed some PB Blaster last night, then this morning I pounded it off with a big screw driver and a hammer. No broken tabs.
On another note, this is something I apparently did not need to do. 04 with 70k on it, never have removed the pump, I do not premix, and always use name brand gas. Only a few particles and a few small strands on the filter. The outside of the tank itself was filthy, but everything else was clean.
This is definitely worth filing away for future use.
On another note, this is something I apparently did not need to do. 04 with 70k on it, never have removed the pump, I do not premix, and always use name brand gas. Only a few particles and a few small strands on the filter. The outside of the tank itself was filthy, but everything else was clean.
This is definitely worth filing away for future use.
09-12-2009, 03:04 PM
#88
Registered
Join Date: Oct 2004
Location: Philly
Posts: 332
Likes: 0
Received 0 Likes
on
0 Posts
Haven't tried it, worth a try
Haven't tried it, worth a try as I'm always at HD/Lowes/etc, will update on progress....
http://www.jeepforum.com/forum/f13/m...emoval-756703/

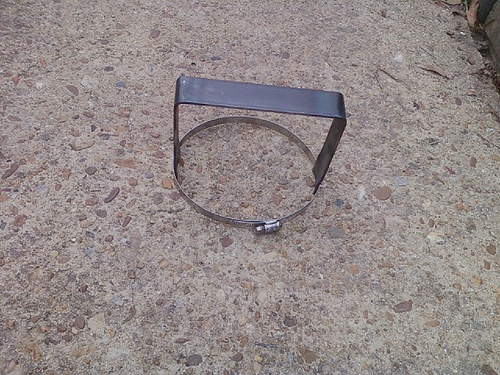

Simply get a 1.5 inch wide steel strap 1/8 inch thick 3 foot long piece from HD
Bend it into a u shape 2 right angle bends with two legs about 4 inches long and 6.5 inches or the width of the ring across the top.
You wont use the whole piece of steel strap that you get, it is 3 foot long piece. You only use about 15 inches worth of the 3 foot piece.
curl the ends to match the profile of the ring
use a 7 inch hose clamp to squeeze the legs down between the plastic ridges of the ring.
And you have an easy home made tool to remove and install that white plastic ring that hiolds the fuel pump assembly in the tank.
total cost from HD was 8$ a whole lot better than spending 60$ for the special tool number 6856
Bend it into a u shape 2 right angle bends with two legs about 4 inches long and 6.5 inches or the width of the ring across the top.
You wont use the whole piece of steel strap that you get, it is 3 foot long piece. You only use about 15 inches worth of the 3 foot piece.
curl the ends to match the profile of the ring
use a 7 inch hose clamp to squeeze the legs down between the plastic ridges of the ring.
And you have an easy home made tool to remove and install that white plastic ring that hiolds the fuel pump assembly in the tank.
total cost from HD was 8$ a whole lot better than spending 60$ for the special tool number 6856
09-20-2009, 03:48 PM
#89
07 Rx8
Join Date: May 2008
Location: Marshfield, WI
Posts: 123
Likes: 0
Received 0 Likes
on
0 Posts
10-23-2009, 05:44 PM
#90
Dongbag extrordinare
Join Date: Nov 2004
Location: Away from the fruits of my labor
Posts: 1,090
Likes: 0
Received 0 Likes
on
0 Posts
Okay. Ready to take the pump out. Kinda scared of breaking the fuel line on top of pump with green clip. Anyone know the best way to remove?
03-29-2010, 08:07 AM
#96
Rotary engine addict
Join Date: Jun 2008
Location: Guadeloupe (FWI)
Posts: 303
Likes: 0
Received 0 Likes
on
0 Posts
In fact, I had a 255lph fuel pump but had a problem : the new pump filter could not enter into the rx8's device...so I pluged the old filter (not that crap)
05-27-2010, 08:14 PM
#97
Registered
Join Date: Oct 2008
Location: Pittsburgh, PA
Posts: 67
Likes: 0
Received 0 Likes
on
0 Posts
I finally bought the spanner wrench from autozone (they said they are not going to rent this one). I still can't get the cap to open. Is there any special trick to it? I just sprayed some penetrating oil on it and will try again in the morning.
Also, somebody asked about right way to disconnect the fuel line in earlier posts, but I saw no answers....I am a newbie too and that insight will definitely help
Thanks.
Also, somebody asked about right way to disconnect the fuel line in earlier posts, but I saw no answers....I am a newbie too and that insight will definitely help
Thanks.
05-27-2010, 08:32 PM
#98
Hmmmmmm.........
Join Date: Mar 2005
Location: Melbourne, Australia
Posts: 3,564
Likes: 0
Received 6 Likes
on
4 Posts
Its just a c clip (the green part on the end of the hose), get your fingers either side of the 2 ends and pry apart enough to pull over the hose. Beware of the fuel that WILL leak out. Place plenty of rags under the hoses before hand.
05-27-2010, 08:57 PM
#99
Registered
Join Date: Oct 2008
Location: Pittsburgh, PA
Posts: 67
Likes: 0
Received 0 Likes
on
0 Posts
I am giving up on the spanner wrench..it just gave me a bloody forearm on the second try. I'll try the hammer thingy a few times over next few days before I give up. I haven't broken any tabs yet, so I must not be trying hard enough.
05-27-2010, 09:13 PM
#100
Hmmmmmm.........
Join Date: Mar 2005
Location: Melbourne, Australia
Posts: 3,564
Likes: 0
Received 6 Likes
on
4 Posts
Thanks. I will make sure of the rags. Also, I waited for the tank to be less than 1/4. So hopefully there won't be much of a mess.
I am giving up on the spanner wrench..it just gave me a bloody forearm on the second try. I'll try the hammer thingy a few times over next few days before I give up. I haven't broken any tabs yet, so I must not be trying hard enough.
I am giving up on the spanner wrench..it just gave me a bloody forearm on the second try. I'll try the hammer thingy a few times over next few days before I give up. I haven't broken any tabs yet, so I must not be trying hard enough.
Cheers
Andrew
