Borla installation.

Ok I've been installing the exhaust everything is on except the 2 bolts/springs that are connected to the cat/midpipe
It seems like I tighten it all the way but it doesn't tighten on the borla pipe. Do I need different bolts/springs? Idk what's going on.
When I tighten it, the exhaust is still lose and u can still see kinda a gap, not flush with the cat
This ad is not displayed to registered and logged-in members.
Register your free account today and become a member on RX8Club.com!
camilo is offline   Reply With Quote
Old 01-04-2012, 01:31 PM   #2
Most Modest Mod.

StealthTL's Avatar

Trader Score: (0)
Join Date: Mar 2003
Location: WAAaaay North....
Posts: 6,867
Hugh Jampton
Sounds like you don't have a donut-mesh gasket in there - you are supposed to rescue the one off the old muffler.

Last time I checked at a dealer they were $50, so there is an incentive.

It's a fat ring of stainless mesh, probably full of carbon, but you need it.

It's also in the instructions for the Borla, but who reads them, amirite?
__________________
I know what you're thinking - Less Is More, right?
But if less is more, just think how much more MORE will be!

StealthTL is offline   Reply With Quote
Old 01-04-2012, 01:41 PM   #3
Registered

camilo's Avatar

Trader Score: (0)
Join Date: Apr 2011
Location: south florida
Posts: 72
It's not on the instructions tho?
I have the 2 bolts/springs that connect it to the midpipe/cat.
I tighten it all the way and there is still a gap between the exhaust and the midpipe, I'll take a picture of it.
camilo is offline   Reply With Quote
Old 01-04-2012, 04:49 PM   #4
Watashi no Hachi desu...

Junirol's Avatar

Trader Score: (22)
Join Date: Dec 2009
Location: San Diego
Posts: 422
Send a message via AIM to Junirol
theres suppose to be a small gap, the donut gasket should keep it from leaking. The whole point of the spring and bolt/donut gasket is to allow some movement in the exhaust system. It helps with excess movement fatigue so you won't get cracks/bends. easy way of testing to see if its leaking, turn on the car put your hand over the flanged area and feel for air escaping. If there is air escaping, you have a leak, if not your good.
__________________
RB exhaust, BDC ported TB, ACT prolite G6, urethane mount, AFSS, RR Syncro saver, Optima 34R, RB Headers, Auto exe chassis braces, RB exhaust, Vleds, Stoptech BBK, Mazdatrix SS brake lines, KWv3 coilovers, Hotchikis RSB, BHR radiator, BHR coil, REmedy oil kit, Samco 6pc, REmedy water pump, MS Shift ****, Richard Sohn, Enkei RPF1, PBM hydo brake, MS body kit, RB Midpipe, 4.77 GR, Kaaz LSD, R3 recaro, Pettit SC stage II
Junirol is offline   Reply With Quote
Old 01-04-2012, 06:18 PM   #5
#225 of 1000

EricB's Avatar

Trader Score: (7)
Join Date: Jul 2011
Location: Dirty Jerz
Posts: 2,131
http://www.facebook.com/f1gurin F1GURIN F1GURIN F1GURIN Agent_Mulder
Send a message via AIM to EricB Send a message via Skype™ to EricB
Quote:
Originally Posted by Junirol View Post
theres suppose to be a small gap, the donut gasket should keep it from leaking. The whole point of the spring and bolt/donut gasket is to allow some movement in the exhaust system. It helps with excess movement fatigue so you won't get cracks/bends. easy way of testing to see if its leaking, turn on the car put your hand over the flanged area and feel for air escaping. If there is air escaping, you have a leak, if not your good.
is this common practice for exhausts? ill be installing my first in a few days, its not a borla though, its a RR
__________________

My install/Picture thread
EricB is offline   Reply With Quote
Old 01-04-2012, 06:27 PM   #6
Most Modest Mod.

StealthTL's Avatar

Trader Score: (0)
Join Date: Mar 2003
Location: WAAaaay North....
Posts: 6,867
Hugh Jampton
If the system has a flex-joint in the middle as ours does.

The gasket literally looks like a black metal donut, and is held in by the springs on the bolts - why else would you have three-inch long bolts with springs on them??
__________________
I know what you're thinking - Less Is More, right?
But if less is more, just think how much more MORE will be!

StealthTL is offline   Reply With Quote
Old 01-04-2012, 08:04 PM   #7
Registered

camilo's Avatar

Trader Score: (0)
Join Date: Apr 2011
Location: south florida
Posts: 72
There was a huge leak I would turn it on ad sound so loud like a straight cat/exhaust I ended up getting 2 m10 1.25 bolts and some good washers and made my own and it worked lol
camilo is offline   Reply With Quote
Old 01-04-2012, 09:08 PM   #8
Most Modest Mod.

StealthTL's Avatar

Trader Score: (0)
Join Date: Mar 2003
Location: WAAaaay North....
Posts: 6,867
Hugh Jampton
Yes, you could do it that way instead of putting a gasket in.

Good luck with that.
StealthTL is offline   Reply With Quote
Old 01-04-2012, 09:22 PM   #9
Registered

camilo's Avatar

Trader Score: (0)
Join Date: Apr 2011
Location: south florida
Posts: 72
Quote:
Originally Posted by StealthTL View Post
Yes, you could do it that way instead of putting a gasket in.

Good luck with that.
The gasket is in.. The 2 bolts/sprigs the connect the gasket to the midpipe wouldn't seal it enough even tighten all the way, the exhaust leak would be alot and very very loud.
I just changed the 2 bolts/springs with a different one so the springs could be compressed more and seal it.
camilo is offline   Reply With Quote
Old 01-04-2012, 09:33 PM   #10
Registered

camilo's Avatar

Trader Score: (0)
Join Date: Apr 2011
Location: south florida
Posts: 72
Quote:
Originally Posted by StealthTL View Post
Yes, you could do it that way instead of putting a gasket in.

Good luck with that.
I lied, I was confused for second thought gasket was where you put the bolts through on the exhaust. When I removed it the stock exhaust didn't have a gasket in between the pipes tho?
camilo is offline   Reply With Quote
Old 01-04-2012, 10:09 PM   #11
Watashi no Hachi desu...

Junirol's Avatar

Trader Score: (22)
Join Date: Dec 2009
Location: San Diego
Posts: 422
Send a message via AIM to Junirol
Quote:
Originally Posted by EricB View Post
is this common practice for exhausts? ill be installing my first in a few days, its not a borla though, its a RR
yes its very common, the engine vibrates alot. without the flex in the rubber hangers/flanged spring bolts/gaskets, the piping on the exhaust system would crack(fatigue) or bend. Just think of the engine that didn't have rubber mounts (solid metal mount), the whole car would shake violently and eventually fall apart.

Quote:
Originally Posted by camilo View Post
I lied, I was confused for second thought gasket was where you put the bolts through on the exhaust. When I removed it the stock exhaust didn't have a gasket in between the pipes tho?

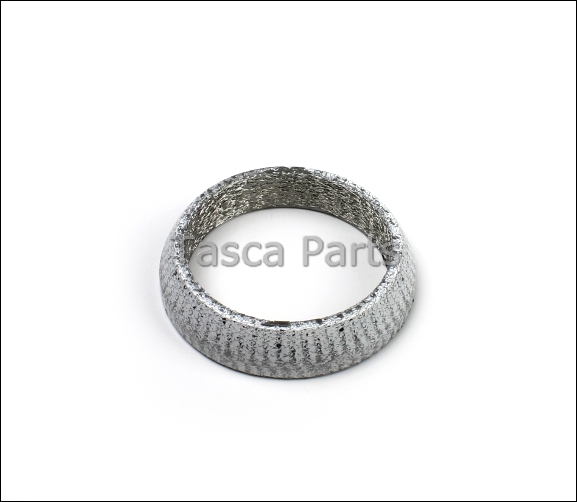

lol no no. its a gasket the size of the actual piping, that goes in between the midpipe and muffler pipe. it literally looks like a donut and is ment to be smashed together to seal. Without this gasket you will have a leak...
Attached Thumbnails
Borla installation.-1.jpg
__________________
RB exhaust, BDC ported TB, ACT prolite G6, urethane mount, AFSS, RR Syncro saver, Optima 34R, RB Headers, Auto exe chassis braces, RB exhaust, Vleds, Stoptech BBK, Mazdatrix SS brake lines, KWv3 coilovers, Hotchikis RSB, BHR radiator, BHR coil, REmedy oil kit, Samco 6pc, REmedy water pump, MS Shift ****, Richard Sohn, Enkei RPF1, PBM hydo brake, MS body kit, RB Midpipe, 4.77 GR, Kaaz LSD, R3 recaro, Pettit SC stage II
Junirol is offline   Reply With Quote
Old 01-04-2012, 10:24 PM   #12
Registered

camilo's Avatar

Trader Score: (0)
Join Date: Apr 2011
Location: south florida
Posts: 72
Quote:
Originally Posted by Junirol View Post
yes its very common, the engine vibrates alot. without the flex in the rubber hangers/flanged spring bolts/gaskets, the piping on the exhaust system would crack(fatigue) or bend. Just think of the engine that didn't have rubber mounts (solid metal mount), the whole car would shake violently and eventually fall apart.



lol no no. its a gasket the size of the actual piping, that goes in between the midpipe and muffler pipe. it literally looks like a donut and is ment to be smashed together to seal. Without this gasket you will have a leak...
Ok thank you, I'll check if it's stuck in the stock exhaust if not I'll get a new one thank you very much guys
camilo is offline   Reply With Quote
Old 01-05-2012, 12:34 PM   #13
Registered

xexok's Avatar

Trader Score: (0)
Join Date: Dec 2009
Location: Aurora, CO
Posts: 2,098
mordisk
That gasket is going to be on your cat, so check there. When I installed my midpipe I actually forgot that gasket and wow was it loud lol. You did not say if you had a cat or a midpipe but if you never changed the cat then the gasket should still be on there as mine was super snug and would not slide off.

Be careful when removing that gasket from the pipe I had to take a flat head screwdriver and work it around under it to even make it budge and my car is an 09. You can easily break it its hard to describe what its made of but it chips off easily.
__________________
'09 Rx8 sport
xexok is offline   Reply With Quote
Old 01-05-2012, 05:15 PM   #14
I4NI

Silver_Surfer's Avatar

Trader Score: (0)
Join Date: Jun 2006
Location: Hawaii
Posts: 833
Quote:
Originally Posted by camilo View Post
I lied, I was confused for second thought gasket was where you put the bolts through on the exhaust. When I removed it the stock exhaust didn't have a gasket in between the pipes tho?
You Lied?
__________________
2005 GT WhitewaterPearl
