Racing Exhaust
Looking to remove the stock exhaust. Dedicated race car.
Looking for exit on passenger side for weight distribution.
Must comply with SCCA sound limit: 103db
sblethen: Saw you custom made yours. Where'd you have it done?
I just got enough points back to do the exhaust.
Looking for exit on passenger side for weight distribution.
Must comply with SCCA sound limit: 103db
sblethen: Saw you custom made yours. Where'd you have it done?
I just got enough points back to do the exhaust.
#3
TeethNThings.com
Thread Starter
iTrader: (10)
Join Date: Mar 2008
Location: Mere seconds behind the leader...Doh!
Posts: 1,322
Likes: 0
Received 0 Likes
on
0 Posts
Straight midpipe (no cat)
Unfortunately, these sound limits are quite vague. Differ by tracks. I've seen 92db at 30 ft to 108 at 50ft.
Probably safest bet is better than 95db at 50 ft.
I know the answer is unclear, but so is any rules search. This is a changing area, and from what I understand will worsen as more people move closer to tracks.
#4
Not yet famous
iTrader: (7)
You'll need a strong muffler to stay below 95 db @ 50 ft with no cat. I don't have a ton of applicable experience, but I'll share a few tidbits of information:
An RX-8 showed up to a local autocross with an HKS Hi-Power with a stock header and cat-delete and was well over our limit of 90 db at 75 ft (approximately equivalent to 94 db @ 50 ft).
I'm currently running a high-flow cat, two very small Coast Fabrication mufflers, and a Borla 40474, and I'm well below our local sound limit. As a test, I tried the same setup without the Borla, and it was loud enough free-revving that I knew it would fail sound at our local venue.
I'd suggest reading about some of the custom exhausts people have made for BS/CS autocross, particularly those who have competed in San Diego (90 db @ 50 ft limit). Keep in mind that they were all behind a stock cat and cat-pipe muffler. Something like the Isley/Borla might work.
What brand of muffler to use comes down to personal preference, experience, budget, recommendations, etc... I have had good luck with Borla and Coast Fabrication. The Coast Fabrication stuff is pricey, but they are very light, the packing material is easy to replace (or they have high-temp options), and they have fantastic customer service. I'd call them up and talk to Gary Donahoe to see what he recommends.
I hope that helps. Hopefully someone else with more directly applicable experience will chime in. Good luck.
EDIT: One more (somewhat obvious) note - most of your weight will be exhaust tubing. Heavy-gauge tubing will hold in more sound. Running a better muffler will allow you to run thinner-gauge tubing at the expense of more sound transmitted into the cabin.
If I redid my exhaust, I'd also add a couple V-bands to make removing and reinstalling the exhaust quicker / easier.
An RX-8 showed up to a local autocross with an HKS Hi-Power with a stock header and cat-delete and was well over our limit of 90 db at 75 ft (approximately equivalent to 94 db @ 50 ft).
I'm currently running a high-flow cat, two very small Coast Fabrication mufflers, and a Borla 40474, and I'm well below our local sound limit. As a test, I tried the same setup without the Borla, and it was loud enough free-revving that I knew it would fail sound at our local venue.
I'd suggest reading about some of the custom exhausts people have made for BS/CS autocross, particularly those who have competed in San Diego (90 db @ 50 ft limit). Keep in mind that they were all behind a stock cat and cat-pipe muffler. Something like the Isley/Borla might work.
What brand of muffler to use comes down to personal preference, experience, budget, recommendations, etc... I have had good luck with Borla and Coast Fabrication. The Coast Fabrication stuff is pricey, but they are very light, the packing material is easy to replace (or they have high-temp options), and they have fantastic customer service. I'd call them up and talk to Gary Donahoe to see what he recommends.
I hope that helps. Hopefully someone else with more directly applicable experience will chime in. Good luck.
EDIT: One more (somewhat obvious) note - most of your weight will be exhaust tubing. Heavy-gauge tubing will hold in more sound. Running a better muffler will allow you to run thinner-gauge tubing at the expense of more sound transmitted into the cabin.
If I redid my exhaust, I'd also add a couple V-bands to make removing and reinstalling the exhaust quicker / easier.
Last edited by BRODA; 07-16-2012 at 08:51 AM.
#7
BECAUSE RACECAR
iTrader: (10)
Stock header
Straight midpipe (no cat)
Unfortunately, these sound limits are quite vague. Differ by tracks. I've seen 92db at 30 ft to 108 at 50ft.
Probably safest bet is better than 95db at 50 ft.
I know the answer is unclear, but so is any rules search. This is a changing area, and from what I understand will worsen as more people move closer to tracks.
Straight midpipe (no cat)
Unfortunately, these sound limits are quite vague. Differ by tracks. I've seen 92db at 30 ft to 108 at 50ft.
Probably safest bet is better than 95db at 50 ft.
I know the answer is unclear, but so is any rules search. This is a changing area, and from what I understand will worsen as more people move closer to tracks.
Needless to say I'm banned from running the car at that track now lmao.
#10
Driver of #50 RX8
iTrader: (3)
Join Date: Apr 2010
Location: New Hampshire
Posts: 325
Likes: 0
Received 0 Likes
on
0 Posts
Side doesn't matter direction does
Our original exhaust with a regular Borla muffler had our exhaust coming straight out the back on the passenger side and failed DB at NHMS. I think it was 103 with a limit of 102. We went to the local store and purchased a 90 degree elbow that pointed it in the opposite way for the afternoon and came in at 91db. same day, same track ,same spot, same temps, same readings ect. all documented by the person reading sound. he re-measures all those unique pressures and wind direction each session to my understanding.
I am now running a custom pipe in stainless (stainless will help with heat a lot near the tranny and rear end!) We then ran a custom Borla muffler that they (Borla) made for me. Supposedly they used to make them a while ago specifically for the RX8 but no longer do. I have a contact for it if your interested, I will be ordering another one soon. It did take about 3 months to get though. I also took the tip and stretched it in an upward angle to allow the exhaust to go up rather than back. this helps a lot actually, however I have no factual data to share since I do not have before and after measurements. This is a common practive in our area and has been tested by others. I am no running 92-94db depending on weather. I have a long header and 3" all the way to the rear muffler with as minimal turns as possible. I will try to post up pics and the muffler itself.
Stephen
#11
Driver of #50 RX8
iTrader: (3)
Join Date: Apr 2010
Location: New Hampshire
Posts: 325
Likes: 0
Received 0 Likes
on
0 Posts
Here is what I think is a pretty informative thread for you. Sadly as any newbie knows the search engine on this site sucks so I spent a little while going through my old posts to find it.
https://www.rx8club.com/aftermarket-...-borla-216122/
https://www.rx8club.com/aftermarket-...-borla-216122/
#13
Driver of #50 RX8
iTrader: (3)
Join Date: Apr 2010
Location: New Hampshire
Posts: 325
Likes: 0
Received 0 Likes
on
0 Posts

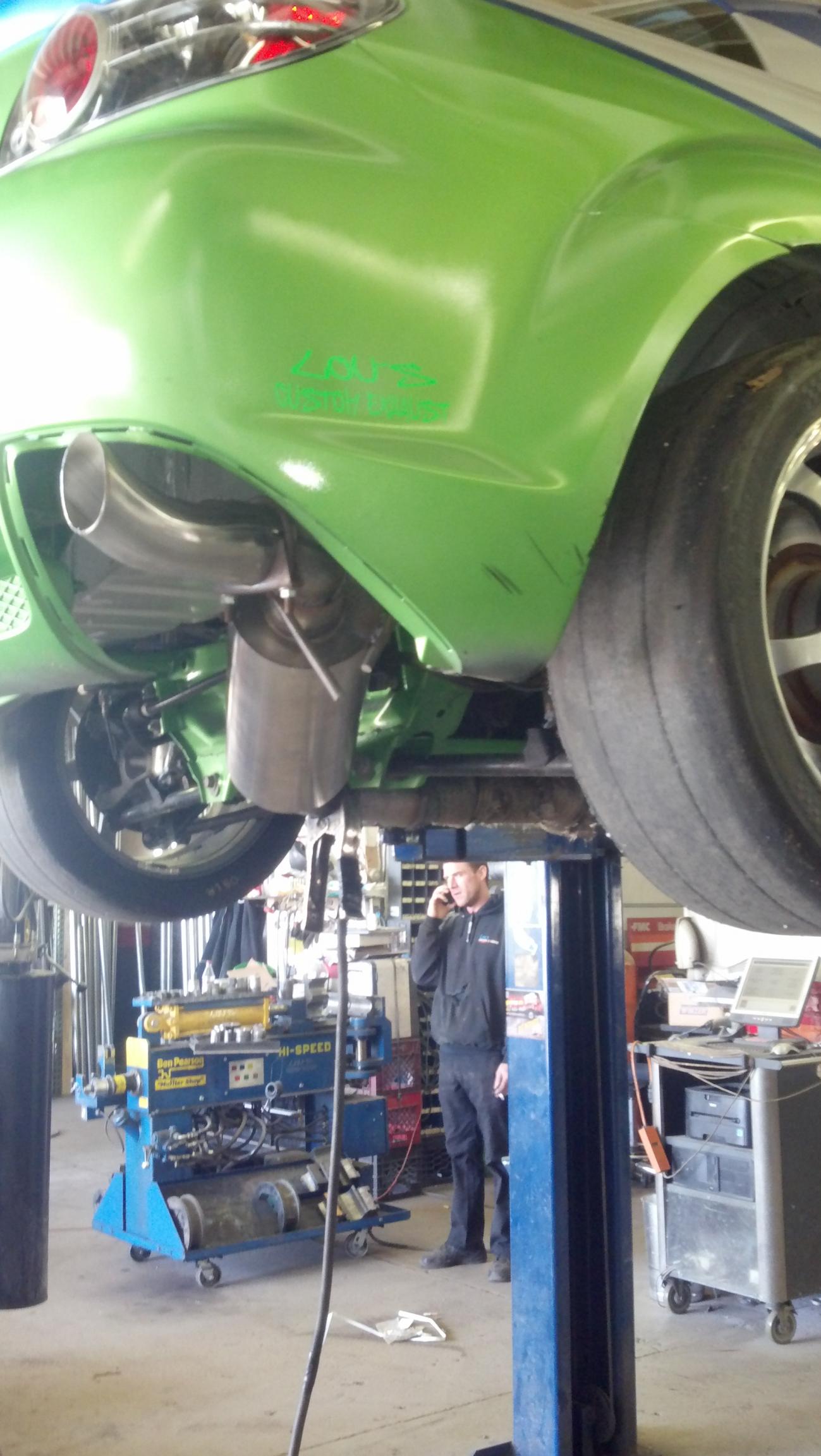

here is the new Borla Muffler that is specific to the Rotary. Notice the upward flare. Also check out the inside of this thing, strange but effective...
No Dyno Numbers. Sorry
No Dyno Numbers. Sorry
#15
BECAUSE RACECAR
iTrader: (10)
Looking to remove the stock exhaust. Dedicated race car.
Looking for exit on passenger side for weight distribution.
Must comply with SCCA sound limit: 103db
sblethen: Saw you custom made yours. Where'd you have it done?
I just got enough points back to do the exhaust.
Looking for exit on passenger side for weight distribution.
Must comply with SCCA sound limit: 103db
sblethen: Saw you custom made yours. Where'd you have it done?
I just got enough points back to do the exhaust.
Last edited by Arca_ex; 07-17-2012 at 09:25 AM.
#16
TeethNThings.com
Thread Starter
iTrader: (10)
Join Date: Mar 2008
Location: Mere seconds behind the leader...Doh!
Posts: 1,322
Likes: 0
Received 0 Likes
on
0 Posts
Stephen or Don; It seems that there are a few of us interested in this. Stephen you said you're going to order another one. Perhaps we can make a mini group buy for 3 or 4 or 5 of these if someone is going to custom make them. Perhaps we can get a better price that way?? Stephen talk it over with your contact. I'm definitely in.
#17
I have no issue providing a "group buy" of several exhausts assuming everyone is understanding of the timeline involved during the end of the race season. The way the exhaust works on my cars is that while it is two pieces, it is a complete system from header to tailpipe. We currently use two small "race" mufflers that weigh almost nothing but actually do help with the sound, and we use a "diffuser" at the rear if we need to point the noise away from sound control. It is very effective at its job. All my exhausts are stainless, and if you are really concerned about weight we can use thin gauge tubing for the tailpipe section. I highly suggest wrapping the tailpipe section of the exhaust where it passes the diff, and it is not a bad idea to wrap almost the entire thing to control heat and keep it away from the gearbox etc. Obviously coatings are an option as well.
Lots of cool stuff, anyone interested feel free to give me a ring.
Lots of cool stuff, anyone interested feel free to give me a ring.
#18
TeethNThings.com
Thread Starter
iTrader: (10)
Join Date: Mar 2008
Location: Mere seconds behind the leader...Doh!
Posts: 1,322
Likes: 0
Received 0 Likes
on
0 Posts
Personally, I'm not totally concerned about weight, more weight distribution. I'm already ballasting the car, so total weight doesn't matter, and having the weight low, midline, and passenger side is perfect.
Other's may have more concern. I could take 200 lbs off the car is I ran SCCA instead of NASA.
Would have to fit stock header, can't relocate that according to the rules.
Other's may have more concern. I could take 200 lbs off the car is I ran SCCA instead of NASA.
Would have to fit stock header, can't relocate that according to the rules.
#21
Still plays with cars
iTrader: (16)
Stephen or Don; It seems that there are a few of us interested in this. Stephen you said you're going to order another one. Perhaps we can make a mini group buy for 3 or 4 or 5 of these if someone is going to custom make them. Perhaps we can get a better price that way?? Stephen talk it over with your contact. I'm definitely in.
Also interested.
#22
Still plays with cars
iTrader: (16)
I have no issue providing a "group buy" of several exhausts assuming everyone is understanding of the timeline involved during the end of the race season. The way the exhaust works on my cars is that while it is two pieces, it is a complete system from header to tailpipe. We currently use two small "race" mufflers that weigh almost nothing but actually do help with the sound, and we use a "diffuser" at the rear if we need to point the noise away from sound control. It is very effective at its job. All my exhausts are stainless, and if you are really concerned about weight we can use thin gauge tubing for the tailpipe section. I highly suggest wrapping the tailpipe section of the exhaust where it passes the diff, and it is not a bad idea to wrap almost the entire thing to control heat and keep it away from the gearbox etc. Obviously coatings are an option as well.
Lots of cool stuff, anyone interested feel free to give me a ring.
Lots of cool stuff, anyone interested feel free to give me a ring.
#23
Driver of #50 RX8
iTrader: (3)
Join Date: Apr 2010
Location: New Hampshire
Posts: 325
Likes: 0
Received 0 Likes
on
0 Posts
On my phone so this is short... I just want to clarify that the only thing borla was my muffler. The rest of the exhaust was custom fit into the car with engine, transmission, and header installed. Fit it tight for maximum ground clearance. As Don said make sure you wrap it and keep the heat Shields near the gas tank installed as well.
Stephen
