Andres Gonzalez Morales

Category: Engine - Electrical
Price: $750
Private or Vendor Listing: Private Listing
Part Fits (you may select multiples): Others, Series I, Series II
Location (US State/Canada/Int): HI
Item Condition: New

hey guys i have an extra haltech RE ecu layying around the shop from a customer that failed to pay so now i have to sell it, specs are as follows(if you cant tune it there free generic tunes you can download onto the haltech via their website)

Specs:

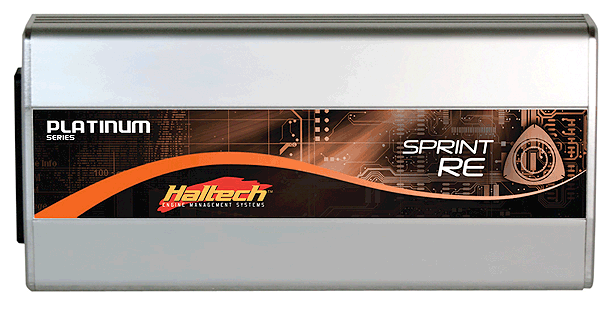

The Platinum Sprint RE

Engine Suitability:
• 2 Rotor Engines - 2nd Generation RX7 (FC3S)/Turbo II, 3rd Generation RX7 (FD3S) and RX8 (SE3P)
• Normally Aspirated or forced induction
• Load sensing by throttle position or manifold pressure (MAP)
• Sequential Injection
• Distributor ignition systems or multi-coil systems



Trigger Types:
• Reluctor



Trigger Patterns:
• Mazda Rotary Mult-itooth 24 and 2
• Mazda Rotary RX8



Features:
• Windows 2000, XP, Vista, Windows 7 compatible software
ECU Fixed Outputs:
• 4 x Fuel Injector outputs
(for high impedance injectors only (ie: above 8Ω)
• 4 x Ignition outputs
• Tacho
• Thermo Fan
• Fuel Pump

ECU Programmable Outputs:
• 2 x Programmable Outputs



ECU Inputs:
• Air Temperature
• Aux Rev Limiter
• Coolant Temperature
• Manifold Absoloute Pressure
• Roadspeed
• Throttle Position
• O2 Sensor (Narrowband or Wideband)

Functions:
• CAN Communication
• O2 Control
• Over Boost
• Gear Setup
• Decel Cut
• Transient Throttle Enhance
• Rev Limiter


Correction Tables: Fuel / Ignition:

• Air Temp Correction
• Barometric Correction
• Coolant Temperature Correction
• Injector Dead Time
• Map Correction
• Post Start
• Prime Pulse
• Staging Bar Injection Time
• Throttle
• Zero Throttle



Miscellaneous:

• Tune can be password protected in software
• Small and compact design
• Rugged anodized aluminum casing

Power Requirements:
Source: 8.6 to 16.5 Volts DC
Consumption: 360mA @ 12Volts DC

Physical Dimensions:
ECU Dimensions Length: 134mm (154mm with MAP nipple)
Width: 64mm Height: 28mm Weight: 195g (0.43 lb)

shoot me a text if ur interested 917 three seven six four four 77
