1.8t 20v swap
10-30-2016, 06:50 PM
#26

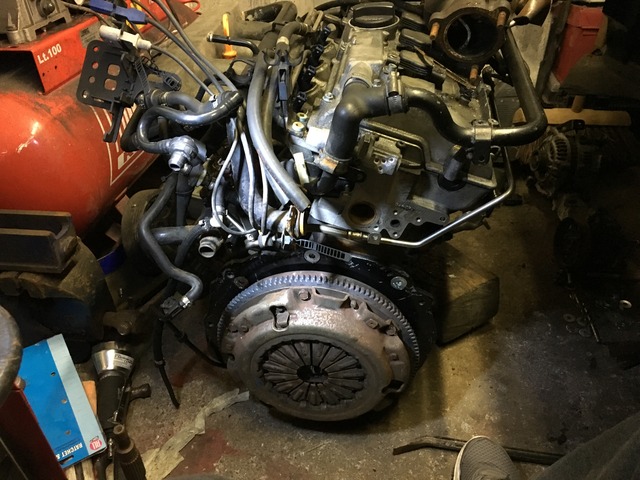

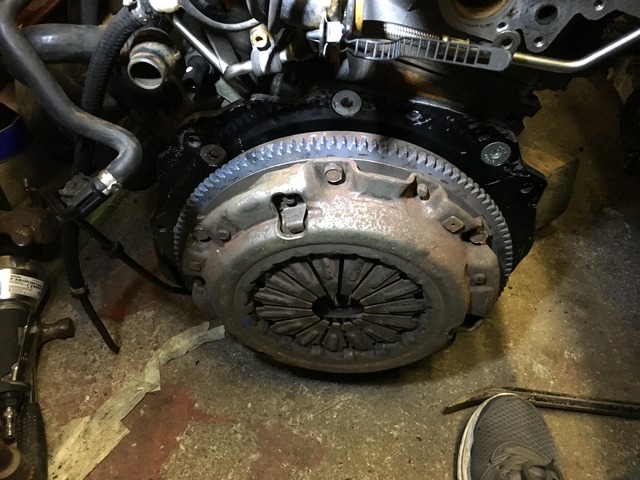

Modified flywheel turned up today, so I'll need to get it all cleaned up & fitted to proper engine.
Hope to have a go at fitting engine this weekend now. Possibly firing it soon. WISH ME LUCK
Cheers John
Hope to have a go at fitting engine this weekend now. Possibly firing it soon. WISH ME LUCK
Cheers John
10-31-2016, 09:38 PM
#28
Engine is finally in. What a nightmare that turned out to be.
Had never put the engine in complete before & had never put sump on mockup engine. What a mistake that was. :cry: Lots of small jobs done I wasn't looking forward to due to my error. Subframe bolts freed off, steering rack bolts freed off & anti-roll bar freed off.
Had to make a small bit of clearance on the subframe for the sump, but just glad to see it in.
Now the fun starts, wiring & piping it up next.
Will need to update times. Have them all wrote down in the garage.
Cheers John
Had never put the engine in complete before & had never put sump on mockup engine. What a mistake that was. :cry: Lots of small jobs done I wasn't looking forward to due to my error. Subframe bolts freed off, steering rack bolts freed off & anti-roll bar freed off.
Had to make a small bit of clearance on the subframe for the sump, but just glad to see it in.
Now the fun starts, wiring & piping it up next.
Will need to update times. Have them all wrote down in the garage.
Cheers John
10-31-2016, 09:39 PM
#29

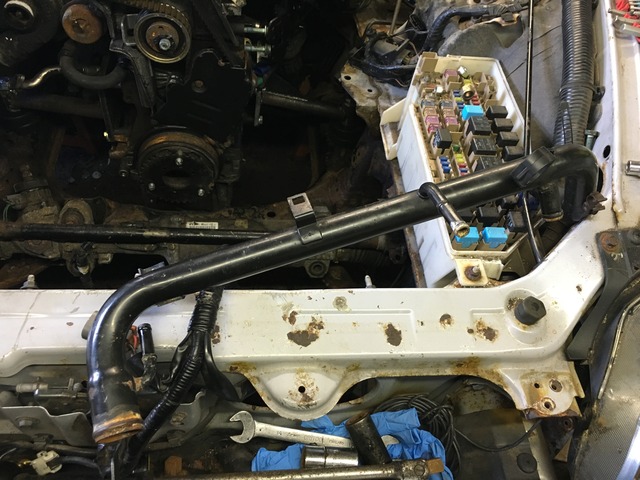

Started to get some of the pipe work sorted. I thought I start with the metal pipes on the engine. Started with the Passat top pipe.
Was going to interfere with the manifold I'm using.
With a simple bit of cutting & welding, it's sorted. I hope.
I've also made to bottom pipe fit my application, but forgot to take pics.
Times also updated on the first page.
Cheers John
Was going to interfere with the manifold I'm using.
With a simple bit of cutting & welding, it's sorted. I hope.
I've also made to bottom pipe fit my application, but forgot to take pics.
Times also updated on the first page.
Cheers John
10-31-2016, 09:40 PM
#30
A few small jobs done today.
Blanking plate fitted to the rear of the head.

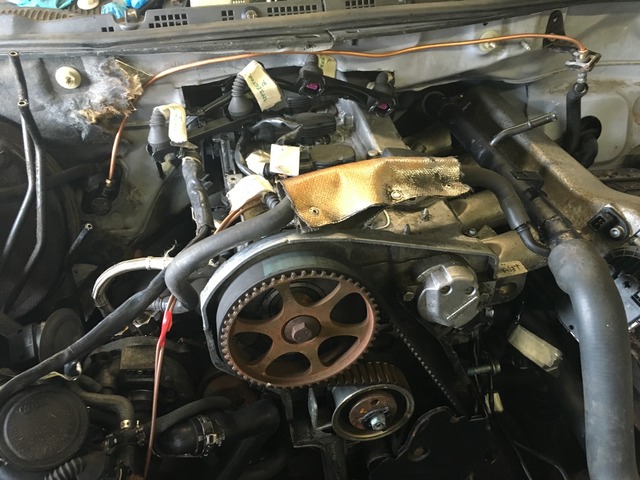

Wiring all connected to the engine, think I'll be able to fit it nice & tidy with minimum work.
Piped most of the turbo up temporarily, with the pipes I have about. Just so I can try & test fire it before going any further.
Plan is to pipe up the rest of the intake side of things, try & test fire it for next weekend if I get time & get ECU back. Getting a bit nervous now.
Cheers John
Blanking plate fitted to the rear of the head.
Wiring all connected to the engine, think I'll be able to fit it nice & tidy with minimum work.
Piped most of the turbo up temporarily, with the pipes I have about. Just so I can try & test fire it before going any further.
Plan is to pipe up the rest of the intake side of things, try & test fire it for next weekend if I get time & get ECU back. Getting a bit nervous now.
Cheers John
11-02-2016, 09:57 PM
#31
Not had much time to work on the car the last couple of weeks. Been busy getting the retired track car out of hibernation & ready for a rolling road day. Back on it over the next week.
The car the rx8 is replacing on track.
Cheers John
The car the rx8 is replacing on track.
Cheers John
11-02-2016, 09:59 PM
#33
Unfortunately not really much to report at the moment. I'm still waiting on my ECU coming back. :-k
Just thought I'd post to let you's know the project is still ongoing.
Have spent some of my time helping some friends compete at knockhill. Which lets me play with some interesting cars.

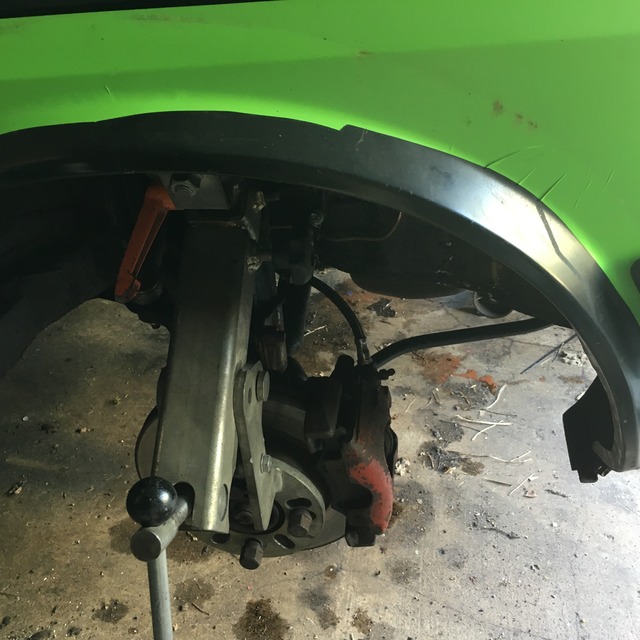

Also a few mods to the fiesta that we built last year. Arches rolled to get bigger wheels on to allow for a brake conversion

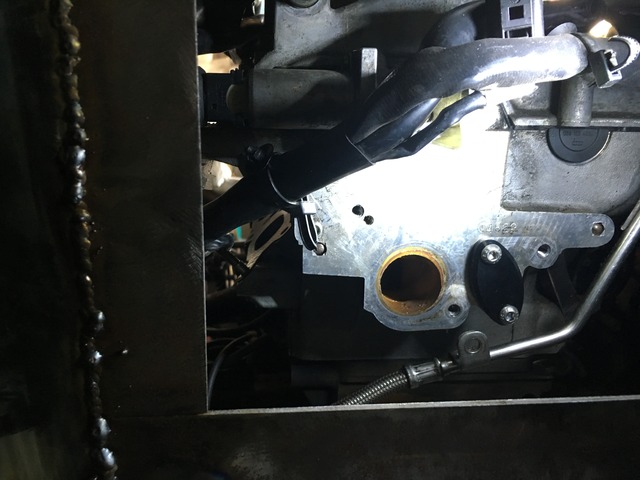

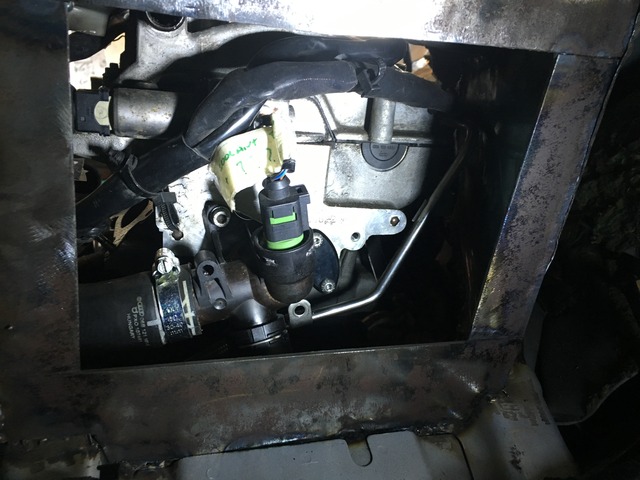

Did get a couple of jobs done to the rx8. Drilled & tapped the rear of the head to take an outlet that suits my application.

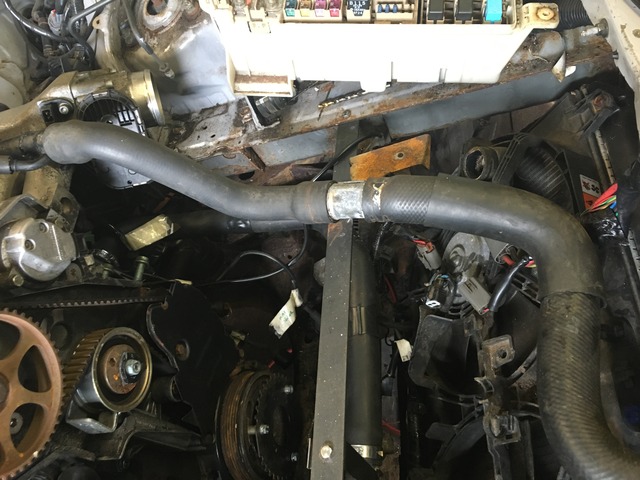

Messed about with the water pipes a bit till I was totally happy with them. Will update times ASAP.

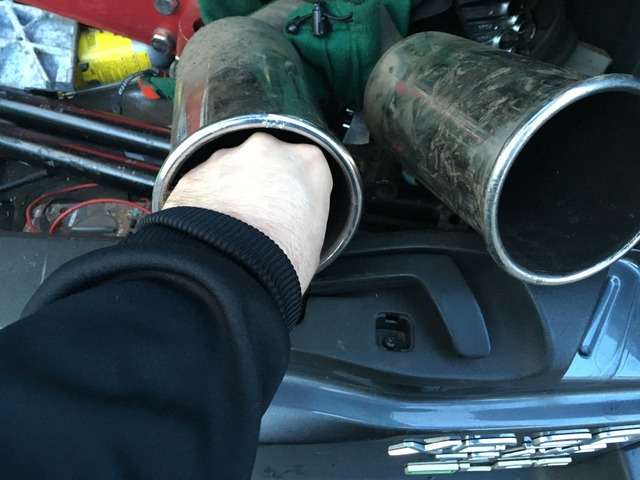

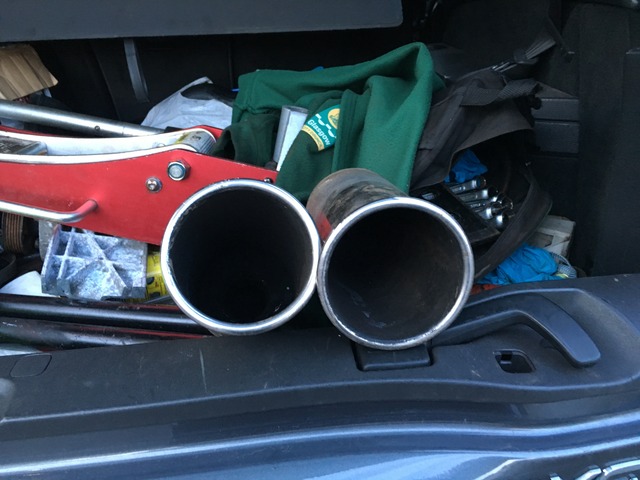

Almost forgot, got some tail pipes FOC for me to start making the exhaust. Should be big enough.
Cheers John
Just thought I'd post to let you's know the project is still ongoing.
Have spent some of my time helping some friends compete at knockhill. Which lets me play with some interesting cars.
Also a few mods to the fiesta that we built last year. Arches rolled to get bigger wheels on to allow for a brake conversion
Did get a couple of jobs done to the rx8. Drilled & tapped the rear of the head to take an outlet that suits my application.
Messed about with the water pipes a bit till I was totally happy with them. Will update times ASAP.
Almost forgot, got some tail pipes FOC for me to start making the exhaust. Should be big enough.
Cheers John
11-02-2016, 10:04 PM
#37
Been a while since I've been able to work on the car. But finally got the intercooler in a position I'm happy with. Had to remove the front crash bar, I'll make a different one up. Didn't realise the intercooler was this big.
Cheers John
Cheers John
11-02-2016, 10:05 PM
#39

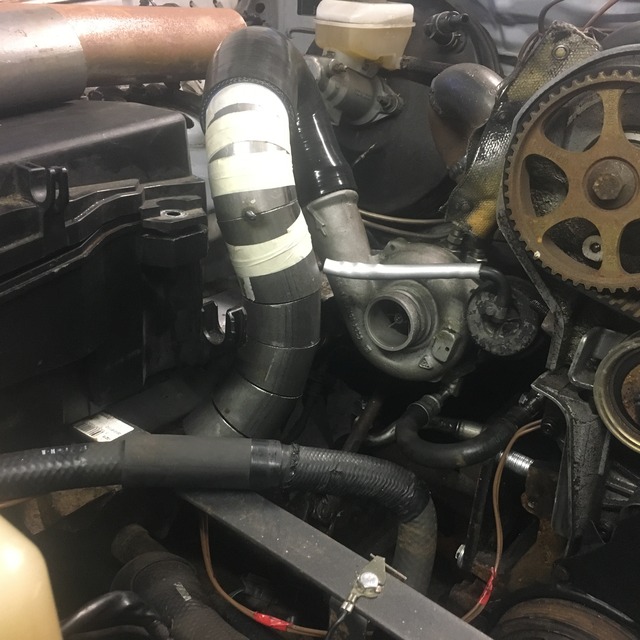

Got one of the boost pipes done. Quite happy with it for a first attempt.
Have to make an exhaust manifold now. Lesson learned about buying a cheap eBay one.
:oops: #-o
Cheers John
Have to make an exhaust manifold now. Lesson learned about buying a cheap eBay one.
:oops: #-o
Cheers John
11-02-2016, 10:07 PM
#41

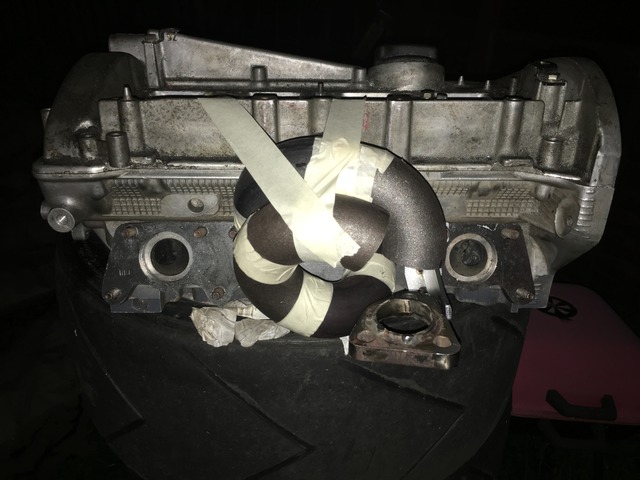

Started to mess about & mock up the exhaust manifold tonight. No off the shelf manifold will fit, due to how far I'm into the bulkhead. #-o
I'll need to sit & update first post with times, still start the stopwatch when I go into the garage. Just keep forgetting to lift notepad to update the time & don't want to guess at it, or lie about time. :^o
Cheers John
I'll need to sit & update first post with times, still start the stopwatch when I go into the garage. Just keep forgetting to lift notepad to update the time & don't want to guess at it, or lie about time. :^o
Cheers John
11-02-2016, 10:08 PM
#42
Thankfully the ankle is all healed up now & I can finally get on with the car. I've not been sitting about doing nothing though.
Last month I got the chance of being part of the pit crew for a super tourer at the super tourers race at knockhill & also part of the crew for the ultima again. To say I was chuffed is an understatement, even although I was still hobbling about.
Unfortunately one of the BMW cup cars I help with had a small bump & any spare time has been spent repairing that. But worth it finished today & back ready to race this weekend.
This is the last race of the year, so more time to get the RX8 done.
Cheers John
Last month I got the chance of being part of the pit crew for a super tourer at the super tourers race at knockhill & also part of the crew for the ultima again. To say I was chuffed is an understatement, even although I was still hobbling about.
Unfortunately one of the BMW cup cars I help with had a small bump & any spare time has been spent repairing that. But worth it finished today & back ready to race this weekend.
This is the last race of the year, so more time to get the RX8 done.
Cheers John
11-02-2016, 10:10 PM
#43

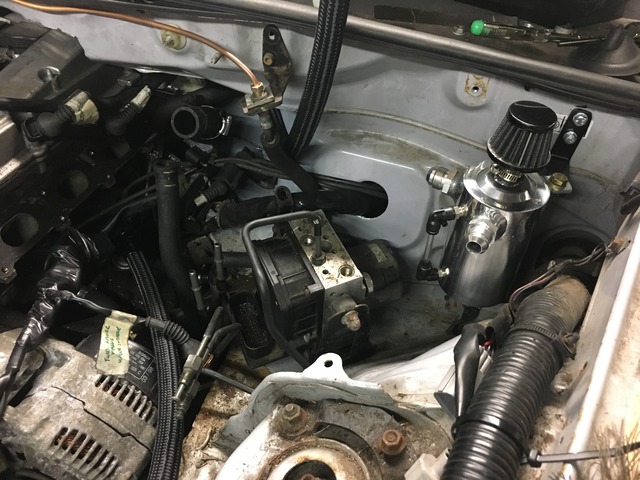

Managed to get a few bits done. Brackets made for the breather & ABS block. Both fitted. Just waiting on 2 ends to finish the breather pipes. But I'll get the brake pipes done while I wait.
Cheers John
Cheers John
11-02-2016, 10:10 PM
#44
Been a bit distracted from the project again, missed track too much. So dragged the 3 door out & got it ready for a bit of a play last weekend the weekend
Finally got the manifold made up, let's hope it works. On to making the intake pipe & boost pipe up. Ends for breathers here too, so let's hope for big progress this week.
Finally got the manifold made up, let's hope it works. On to making the intake pipe & boost pipe up. Ends for breathers here too, so let's hope for big progress this week.
11-14-2016, 08:50 AM
#46
Pistons Please
Any pics looking up from the bottom of the car? Curious as to the oil pan ground clearance!
Did you decide to fit the engine that far back into the bay, in the name of using the stock trans? Progress looks awesome
Did you decide to fit the engine that far back into the bay, in the name of using the stock trans? Progress looks awesome
11-14-2016, 09:19 PM
#47
Will get some pics for you when I get home from work. It was a combination of 2 things to put engine as far back. Yes one was to match up with stock drivetrain, the other was to try & keep the weight as close to the stock rotory as possible.
Cheers John
Cheers John
11-16-2016, 11:31 PM
#48
Forgot I had an engine mounting off measuring for spacers. Will get that on & get the pics for you ASAP.
Sorry updates have been so slow guys, just can't get a minute to work on the car just now.

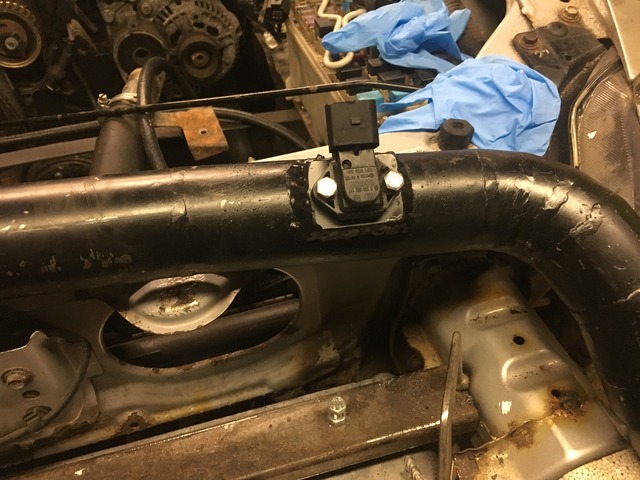

Managed to make a boss & mount the map sensor. Not much,but at least it's a job off the list.
Cheers John
Sorry updates have been so slow guys, just can't get a minute to work on the car just now.
Managed to make a boss & mount the map sensor. Not much,but at least it's a job off the list.
Cheers John
11-26-2016, 10:26 AM
#49
Hope these pics help you.
Sump sits at it lowest point about level with the subframe. Oil level sensor will be removed & replaced with a flat plate. This is with the rx8 gearbox at the night it would be at attached to the rotary.
Hope this helps. If you'd like more pics just let me know.
Cheers John
Sump sits at it lowest point about level with the subframe. Oil level sensor will be removed & replaced with a flat plate. This is with the rx8 gearbox at the night it would be at attached to the rotary.
Hope this helps. If you'd like more pics just let me know.
Cheers John
