my10ae

Hi Tmparts:

Could you be so kind as to list out the all the paint codes for the 8? I have a Brillant Black and was sent a bottle of black with paint code PZ. I don't remember specifically, but the paint code on my door is NOT PZ. Can you enlighten us all?

Thanks,
Kevin

medcentermazda

Sure no problem!
The first thing to remember about Mazda paint codes is that the paint code on the door jamb is usually not the same as the touch up paint code...The paint code on the door jamb is what Body Shops and such use to order paint from paint vendors or to obtain the paint formula to mix the paint themselves.
Anyway, the following is a list of the body paint codes from the door jam and the corresponding touch up paint codes.
Name Body paint code Touch up paint code
Brilliant Black A3F PZ
Lightning Yellow A4J 93
Nordic Green 27C 97
Sunlight Silver 22V 68
Titanium Gray 29Y 66
Velocity Red 27A 87
Winning Blue 27B 94
If you have any questions, please let me know.
Thanks,
Marshall

my10ae

Marshall:

Thanks for that info, I appreciate it.

Mods, can you make this a sticky for this thread?

Marshall, since when did Mazda stray from their paint codes to be different from their touch up codes? I own a 99 10AE Miata and the paint code on the door is 20P and the touch up code is 2P (non clearcoat). I know that''s a little off, but not like the codes for the 8. Just curious and thanks for the info...

Kevin

medcentermazda

Kevin,
Back in the good old days...up to about 1993 I think, the codes were the same. after that sometimes they are similar like yours but most of the time they are not.

Marshall

sohcpunk

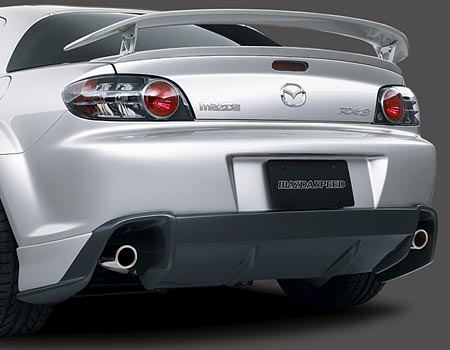

please list the paint code for the mazdaspeed rear bumper difusser. Here is a picture

https://www.rx8club.com/attachment.php?postid=204893

dark grayish bottom piece, thanks

medcentermazda

This looks to be what Mazda is calling a Prime+ gun Metallic.

They do have this in all the body colors also.

sohcpunk

so how would i tell a body shop to paint it? would i tell them prime metallic?

medcentermazda

These come also painted to match the factory paint. The one on the picture looks to be a non painted one. A body shop could paint it any color you would like.

sohcpunk

I do not agree with what you are saying. The Mazdaspeed bodykits dont have unpainted plastic rear diffusers. This part of the rear bumper is definitely painted. I have seen a silver one and a gray one in person and they are both painted the same color. The top area of the bumper is painted the normal body color. I just need the paint code for that area because I will be painting my rear diffuser the same color. Thanks

sohcpunk

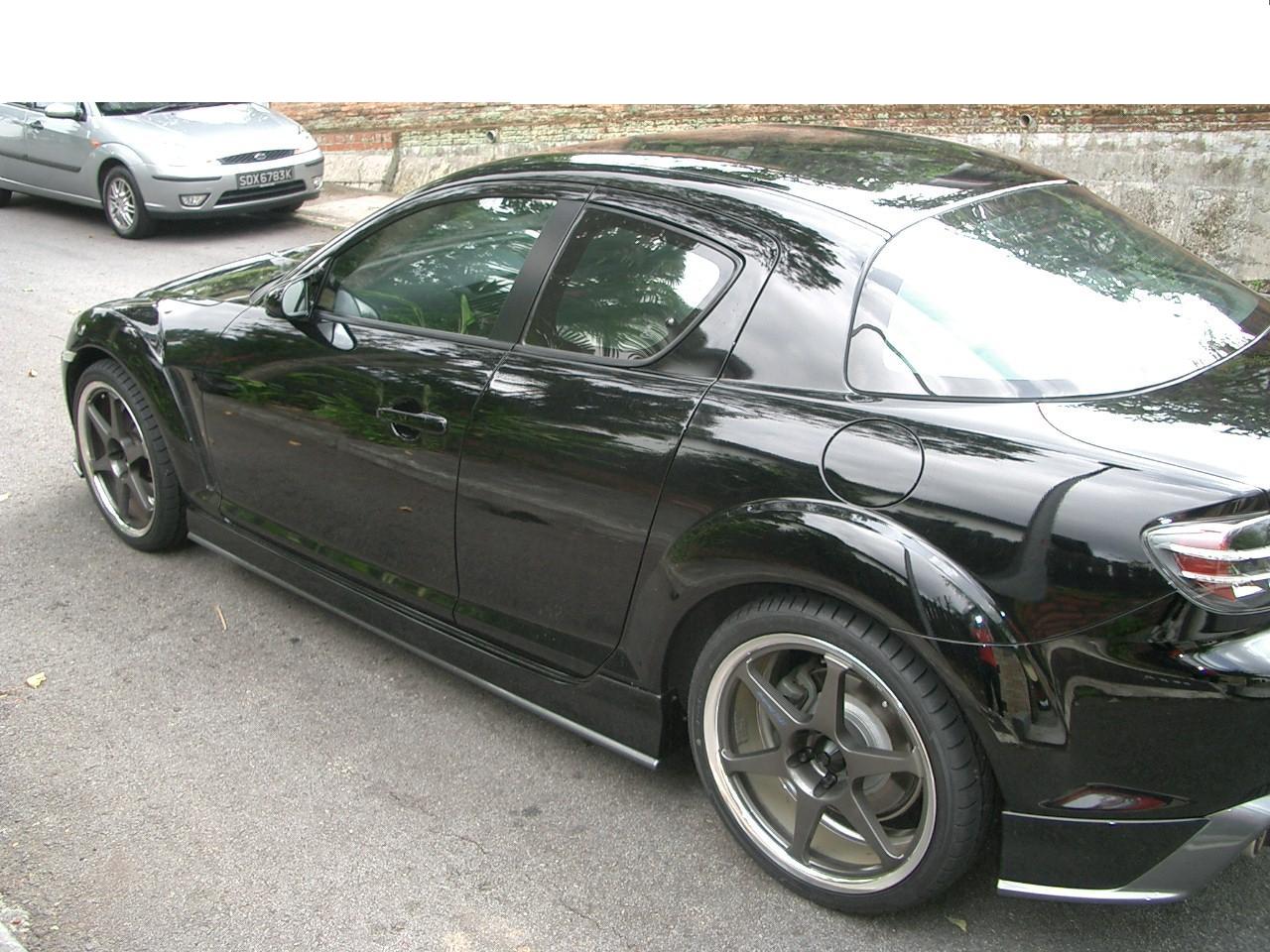

here is another picture of a rear diffuser. this time, the body color is black but I still see the same gray color on the rear diffuser.

https://www.rx8club.com/attachment.php?postid=157520

medcentermazda

Thats a good question. Mazda has not sent any info to dealers. Only thing we got was a new price book with part# and prices. It is only giving us colors which I thought was one color but that one is a two tone looks to be but not 100% sure

Brilliant Black A3F PZ and

Sunlight Silver 22V 68


Someone had some pics from the car that was in Irvine Ca at Mazda headquarters but I cannot find the tread.

RichGT

So if I were to paint my car at a body shop, I would tell them 27B? or 27B 94? which one? I dont want to get this mixed up. I thougth the paint codes would be longer than that..

medcentermazda

You will tell them 27b

RX-8Mania

Why is the Velocity Red touch-up code on this page http://www.finishlineperformance.com...n&key=MAZ31035 27A?

You said 27A is for body paint???

RX-8Mania

http://www.mazdausa.com/MusaWeb/rx8/..._and_specs.pdf

Page 11 said 27A is the color code for Velocity Red. You're right tmparts.

vApor

whats the paint code for Pearless White?

Mafia

i too would like to know this

FoxyRoxy

Do you know the paint code for the '05 Shenka black cherry?

Rx8honey

I think it's 25D 64. Double check tho.

fd3s777

iTrader: (2)

Can anyone confirm on white?

mkztg

try this site: http://www.paintscratch.com/

mdrx-8/83

wHAT HAPPENED TO THE WHITE "8" PAINT CODE?

medcentermazda

Ok here is the newest paint codes. Where you see numbers and letters () is what the paint code is found on the drivers door. Mazda then changes this to a part # for us 0000-88-0154-??




2004 2008 Brilliant Black Clearcoat (A3F with
Clearcoat) (PZ without Clearcoat)
0000-88-0154-PZ

2007 2008 Crystal White Pearl (34K) 0000-88-0154-8K

2006 2008 Galaxy Gray (32S) 0000-88-0154-32

2007 2008 Stormy Blue Mica (35J) 0000-88-0154-78

2004 2008 Sunlight Silver Metallic (22V) 0000-88-0154-68

2004 2008 Velocity Red Mica (27A) 0000-88-0154-87

2006 2007 Phantom Blue (32C) 0000-88-0154-C3

2006 2006 Copper Red (32V) 0000-88-0154-74

2005 2006 Whitewater Pearl (25D) 0000-88-0154-D5

2004 2006 Winning Blue Metallic (27B) 0000-88-0154-94

2004 2005 Nordic Green Mica (27C) 0000-88-0154-97

2004 2005 Titanium Gray Metallic (29Y) 0000-88-0154-66

2004 2004 Lightning Yellow (A4J) 0000-88-0154-93

Huey52

iTrader: (2)

28W (same as 2004 Miata "Radiant Ebony")

manntis

catalogued at http://www.rotorhead.ca/articles/200...5/paint-codes/
